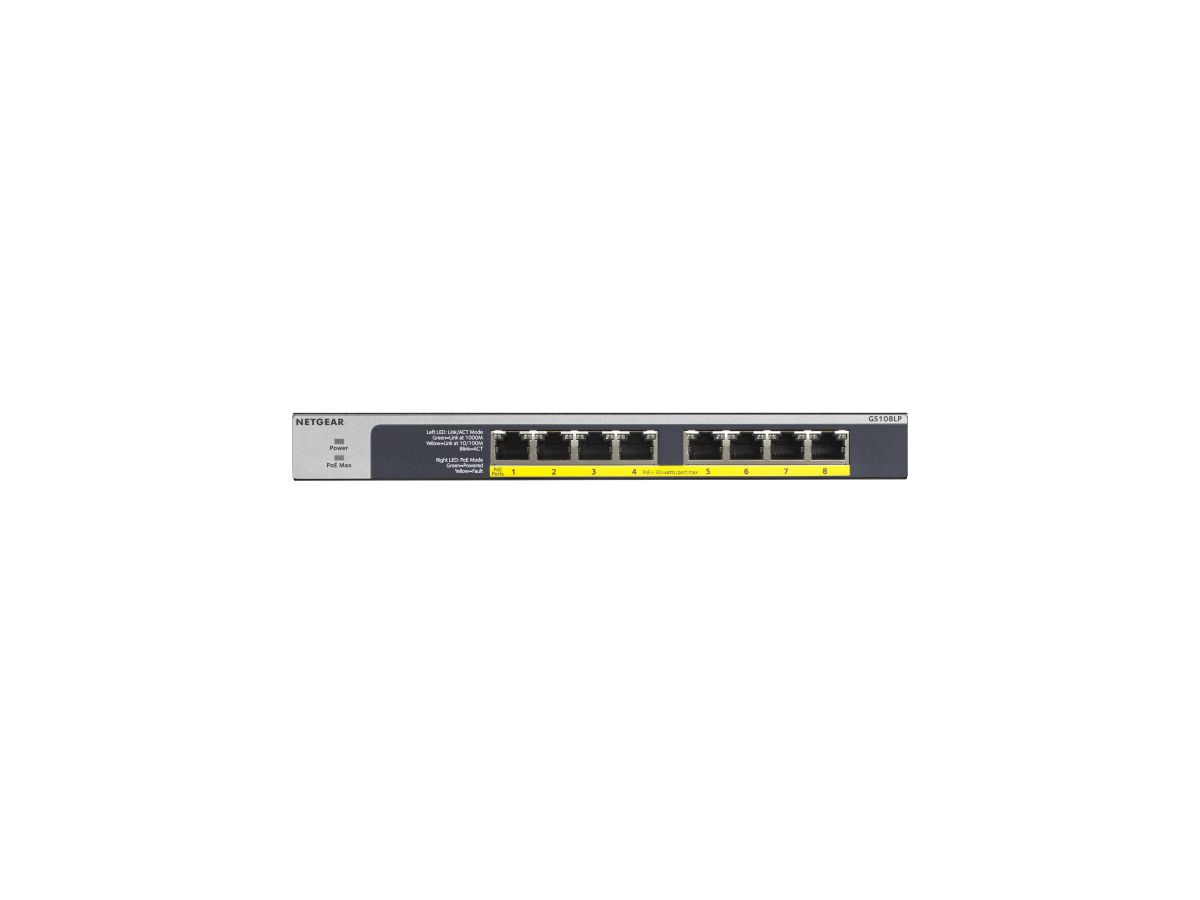

Netgear GS108LP Unmanaged Gigabit Ethernet (10/100/1000) Black,Grey 1U Power over Ethernet (PoE)

Netgear GS108LP Unmanaged Gigabit Ethernet (10/100/1000) Black,Grey 1U Power over Ethernet (PoE)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Available - can be delivered within 24 hours
Item no. 520782689
Brand / Manufacturer NETGEAR
Manuf. item no. GS108LP-100EUS
EAN 0606449134971

Description

Netgear GS108LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE.... DC input voltage: 54 V. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U

Instant Connectivity with Reliable Performance The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations. They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks. High quality components and Energy Efficiency NETGEAR switches are built with top quality components to assure a long life. They are built to last, and rigorously tested to provide the reliability businesses need. NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used. PoE+ Support Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices. These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power. All models have a built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch. The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included).

Specifications

Manufacturer NETGEAR
Product type Network Switches
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector AC-in jack
Weight & dimensions
Width 236 mm
Depth 102 mm
Height 27 mm
Weight 600 g
Power
Power consumption (typical) 67.5 W
Power consumption (max) 130 W
DC input voltage 54 V
Input current 1.25 A
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 1000 m
Heat dissipation 230.85 BTU/h
Networking
Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Flow control support Y
Data transmission
MAC address table 4000 entries
Switching capacity 16 Gbit/s
Store-and-forward Y
Jumbo frames support Y
Packet forwarding Y
Management features
Switch type Unmanaged
Quality of Service (QoS) support Y
Design
Rack mounting Y
Product colour Black,Grey
Form factor 1U
LED indicators Y
Wall mountable Y
Power over Ethernet (PoE)
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 60 W
Performance
Buffer size 192 KB
Plug and Play Y
Mean time between failures (MTBF) 2752476 h
