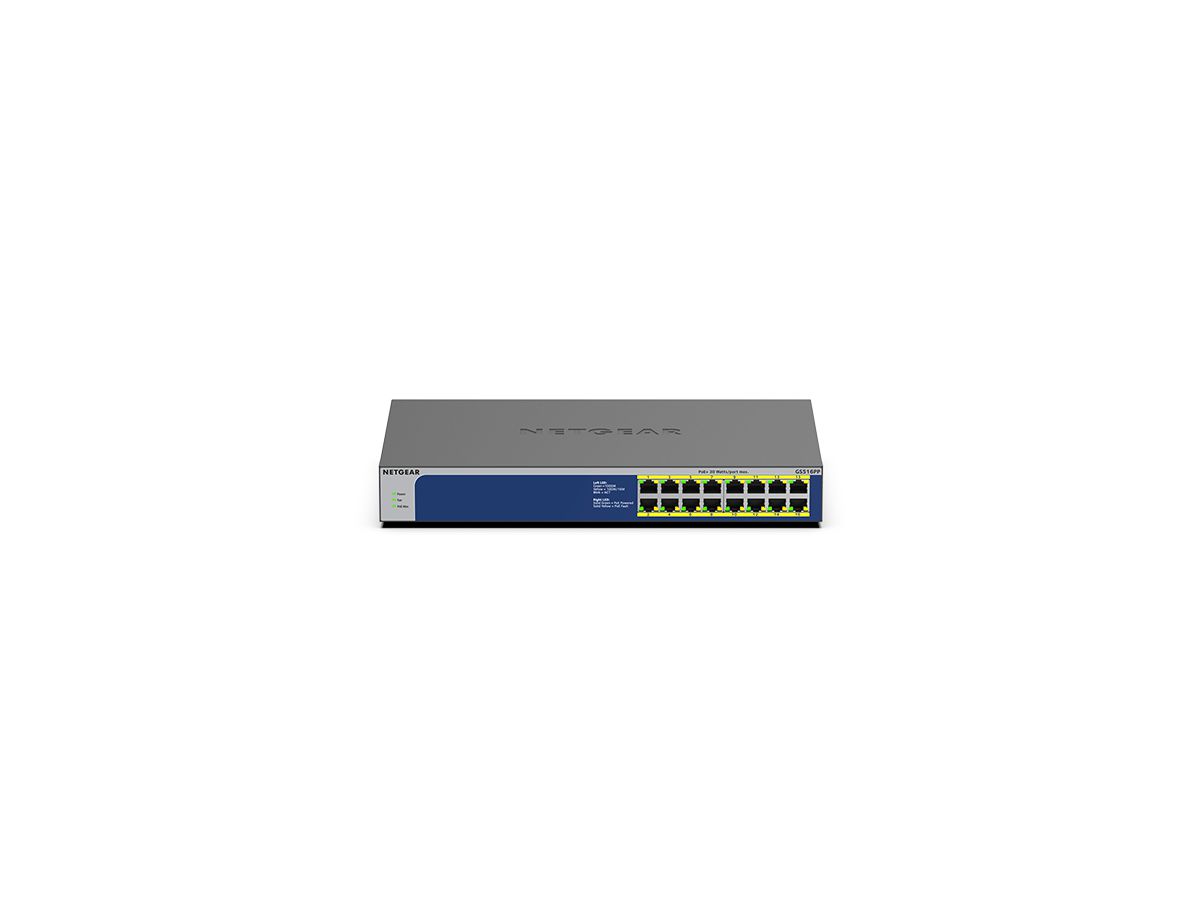

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey

Item no. 523670638 Brand / Manufacturer NETGEAR Manuf. item no. GS516PP-100EUS EAN 0606449149258
NETGEAR

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/07/2026

Description

NETGEAR GS516PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting

Instant Connectivity and Reliable PerformanceThe NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516PP joins the series and offers 16 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 260W, deploy denser PoE+ devices to a single switch rather than multipleThe GS516PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.Powerful and Energy EfficientIdeal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS516PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.

Specifications

Manufacturer
NETGEAR
Product type
Network Switch
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Weight & dimensions
Width
330 mm
Depth
207 mm
Height
43 mm
Weight
2.3 kg
Power
Power supply included
Y
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
316.1 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 95%
Operating altitude
0 - 3000 m
Network
Networking standards
IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G support
N
Copper ethernet cabling technology
10GBASE-T, 100BASE-T, 1000BASE-T
Full duplex
Y
Half duplex
Y
Auto MDI/MDI-X
Y
Data transmission
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Latency (1 Gbps)
12 µs
Jumbo frames support
Y
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
0.192 MB
Security
Queue scheduling algorithms
Weighted Round Robin (WRR)
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Y
Design
Rack mounting
Y
Product colour
Blue, Grey
Housing material
Metal
LED indicators
Activity, Fan fail, Link, PoE, Power, Speed
Number of fans
2 fan(s)
Certification
FCC 47 CFR Part15B (Class A)ICES-003 Class AEN 55024/55032/55035 (Class A)AS/NZS CISPR 32VCCIBSMI CNS13438KCCUL 62368-1CB_IEC 60950-1 + IEC 62368-1 Ed-3LVD EN60950-1+EN62368-1 Ed-2 RptAS/NZS 62368.1 Ed-2BSMI CNS14336-1
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
260 W
Performance
Mean time between failures (MTBF)
2415333.9 h
Logistics data
Harmonized System (HS) code
85176990
