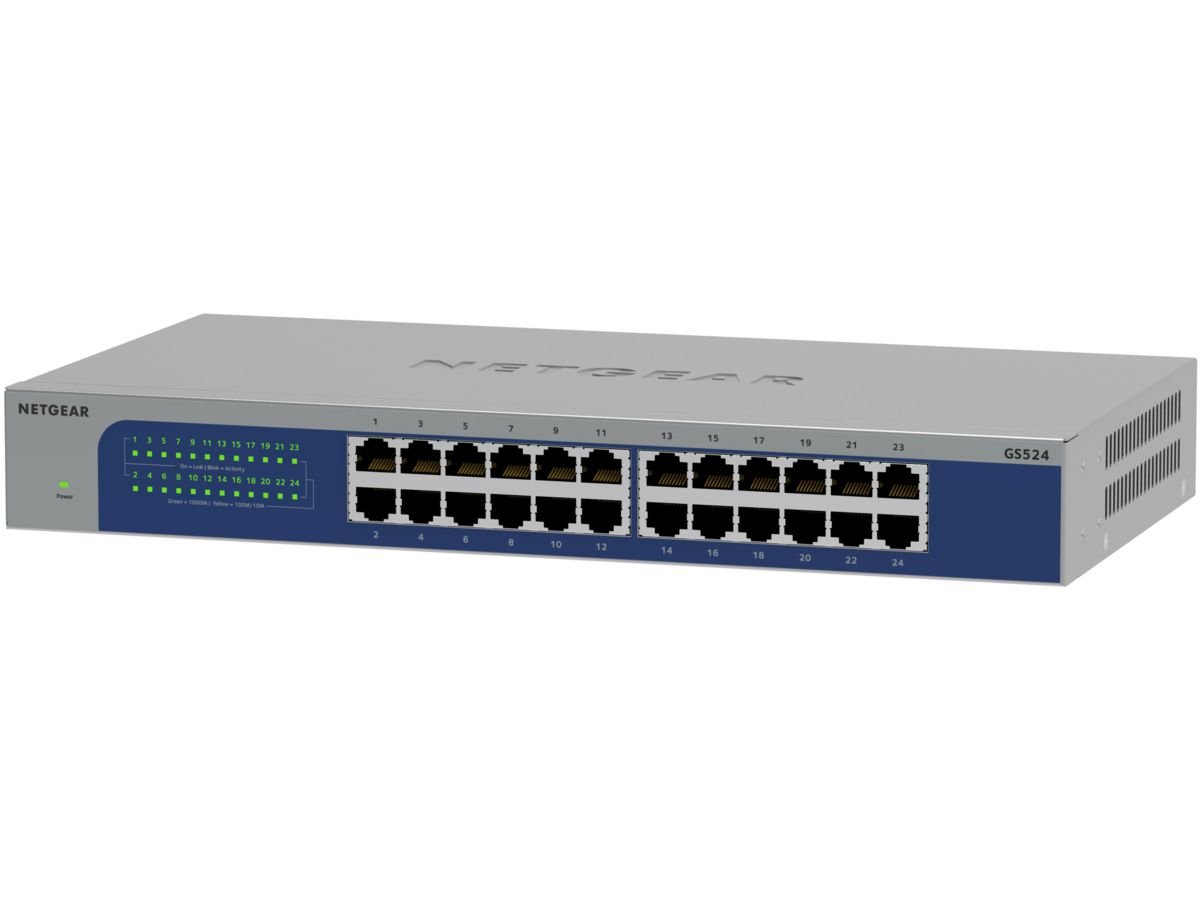

NETGEAR GS524-300EUS, 24-Port Gigabit Ethernet unmanaged Switch, Desktop Gigabit Ethernet (10/100/1000)
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 529682042 |
|---|---|
| Brand / Manufacturer | NETGEAR |
| Manuf. item no. | GS524-300EUS |
| EAN | 0606449164770 |
:strip_icc():strip_exif()/logos/netgear.png "NETGEAR")
Description
NETGEAR GS524-300EUS, 24-Port Gigabit Ethernet unmanaged Switch, Desktop. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Take Gigabit to the Desktop
Specifications
| Manufacturer | NETGEAR |
|---|---|
| Product type | Network Switches |
Technical details
| Compliance certificates | CE, Federal Communications Commission (FCC), ISED, UKCA, VCCI |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Weight & dimensions
| Width | 328 mm |
|---|---|
| Depth | 169 mm |
| Height | 43 mm |
| Weight | 1.47 kg |
Power
| Power source | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 12 W |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Protocols
| Switching protocols | Ethernet |
|---|
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Full duplex | Yes |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 48 Gbit/s |
| Latency (10-100 Mbps) | 35 µs |
| Latency (1 Gbps) | 15 µs |
Management features
| Switch type | Unmanaged |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Performance
| Mean time between failures (MTBF) | 1016877 h |
|---|
