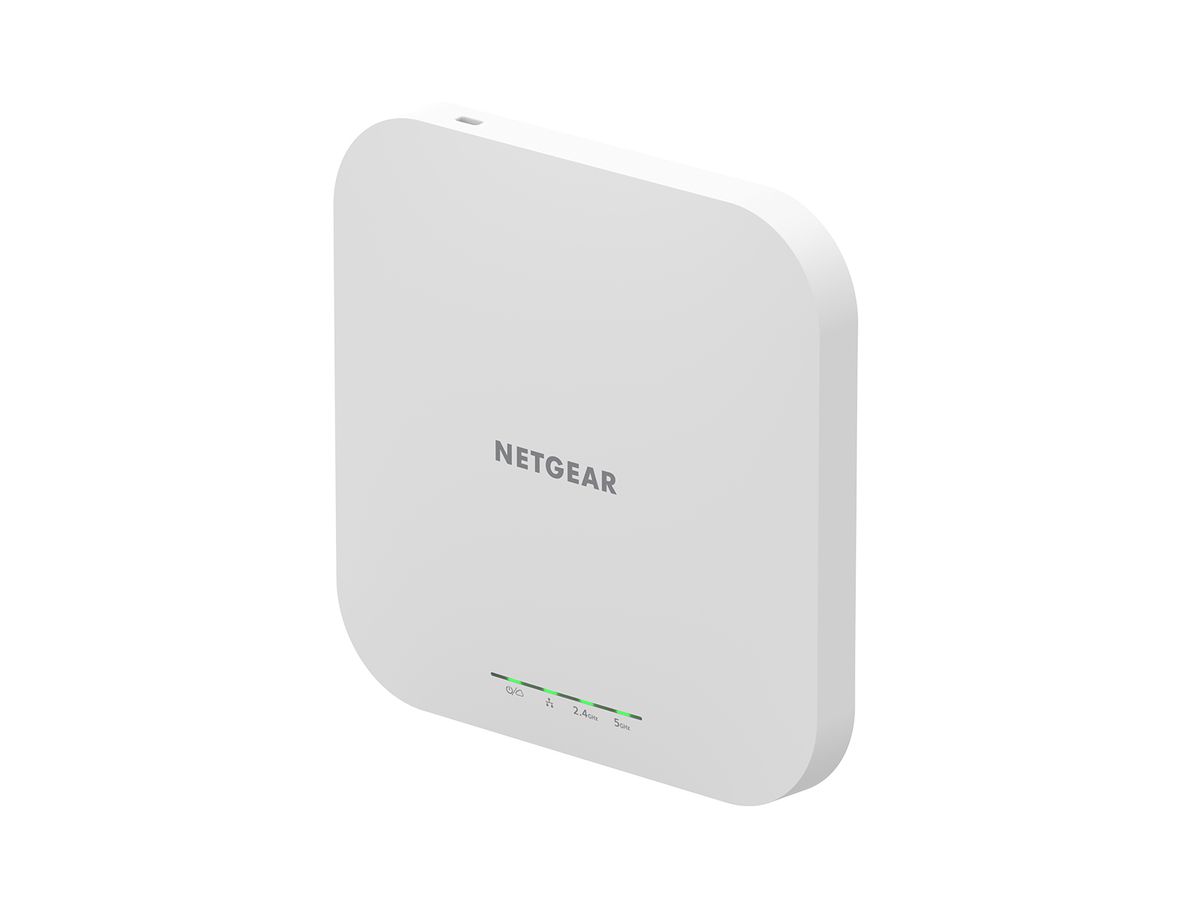

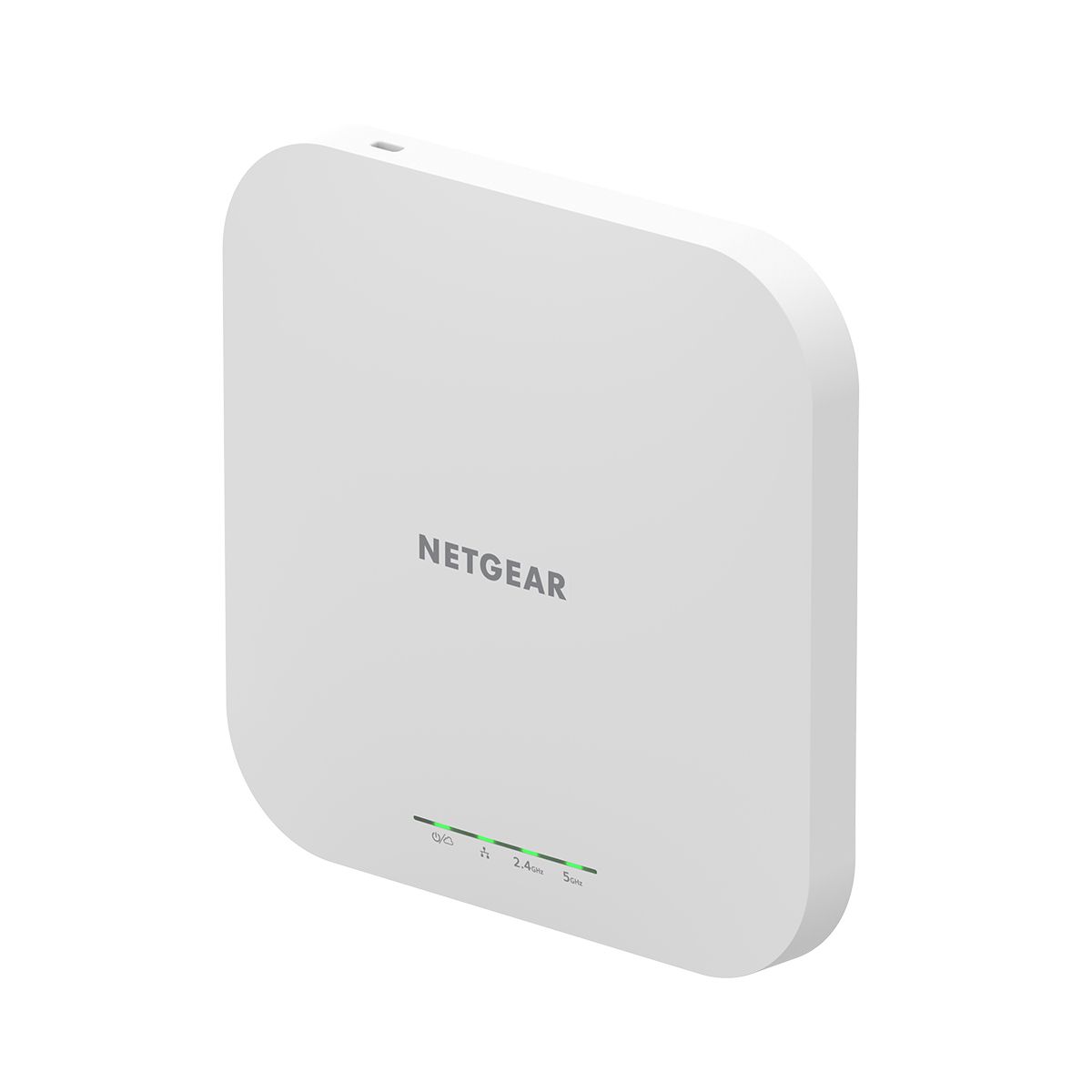

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point (WAX610) 1800 Mbit/s White Power over Ethernet (PoE)

Item no. 523669173 Brand / Manufacturer NETGEAR Manuf. item no. WAX610-100EUS EAN 0606449149227
NETGEAR

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/19/2026

Description

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point (WAX610). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610 is a wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610 is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come.

The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.

Package Contents

- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide

Specifications

Manufacturer
NETGEAR
Product type
Wireless Access Points
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Weight & dimensions
Width
160.9 mm
Depth
160.9 mm
Height
33.2 mm
Weight
412 g
Power
Power over Ethernet (PoE)
Yes
AC input voltage
12 V
Input current
2.5 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Packaging data
Package width
220 mm
Package depth
455 mm
Package height
235 mm
Package weight
3.98 kg
Security
Security algorithms
EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast, SSID broadcast on/off
Number of SSID supported
8
Auto Wireless Distribution System (WDS)
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Antenna
Antenna type
Internal
Antenna gain level (max)
4.5 dBi
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
LAN, Power, Status
Features
2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
1800 Mbit/s
Maximum data transfer rate (2.4 GHz)
600 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of users
250 user(s)
Auto MDI/MDI-X
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Spread spectrum method
OFDM, OFDMA
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Logistics data
Harmonized System (HS) code
85176990
