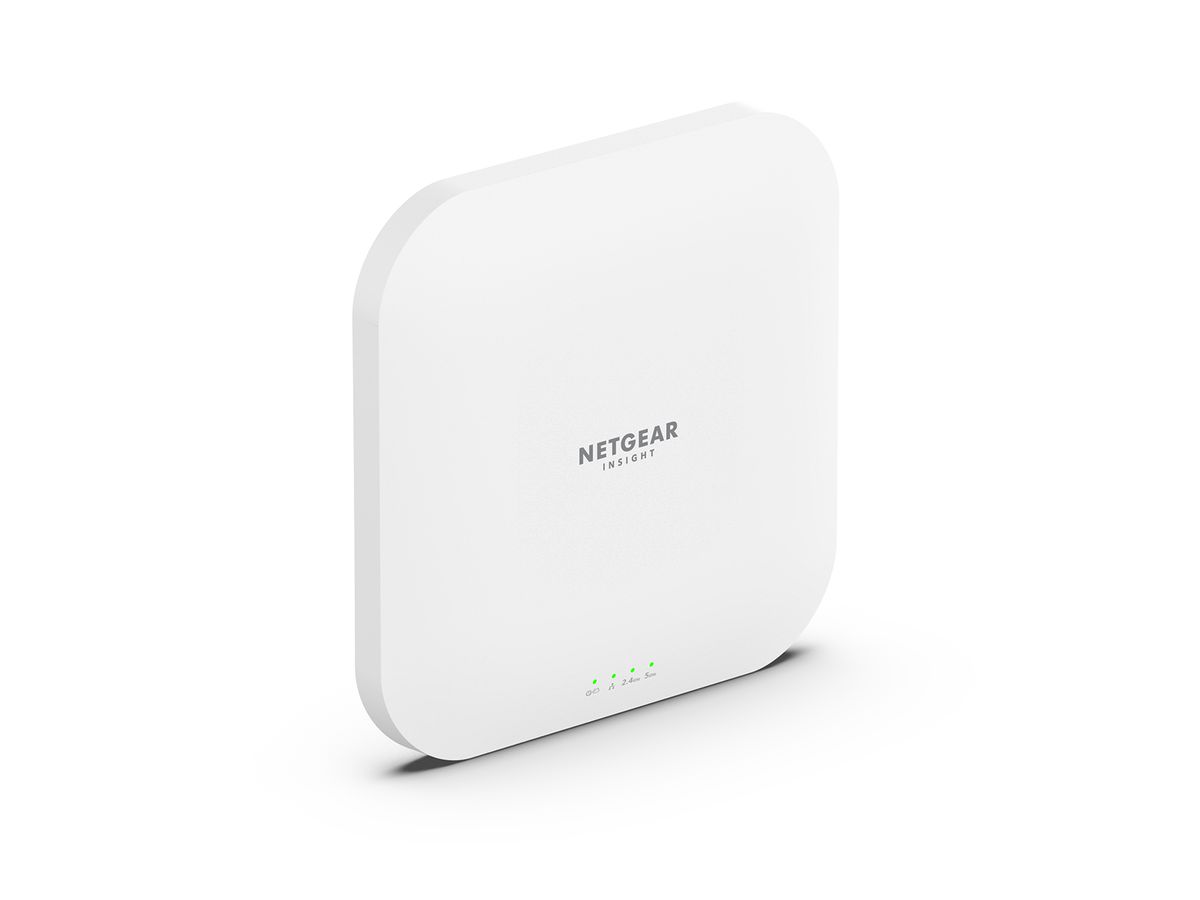

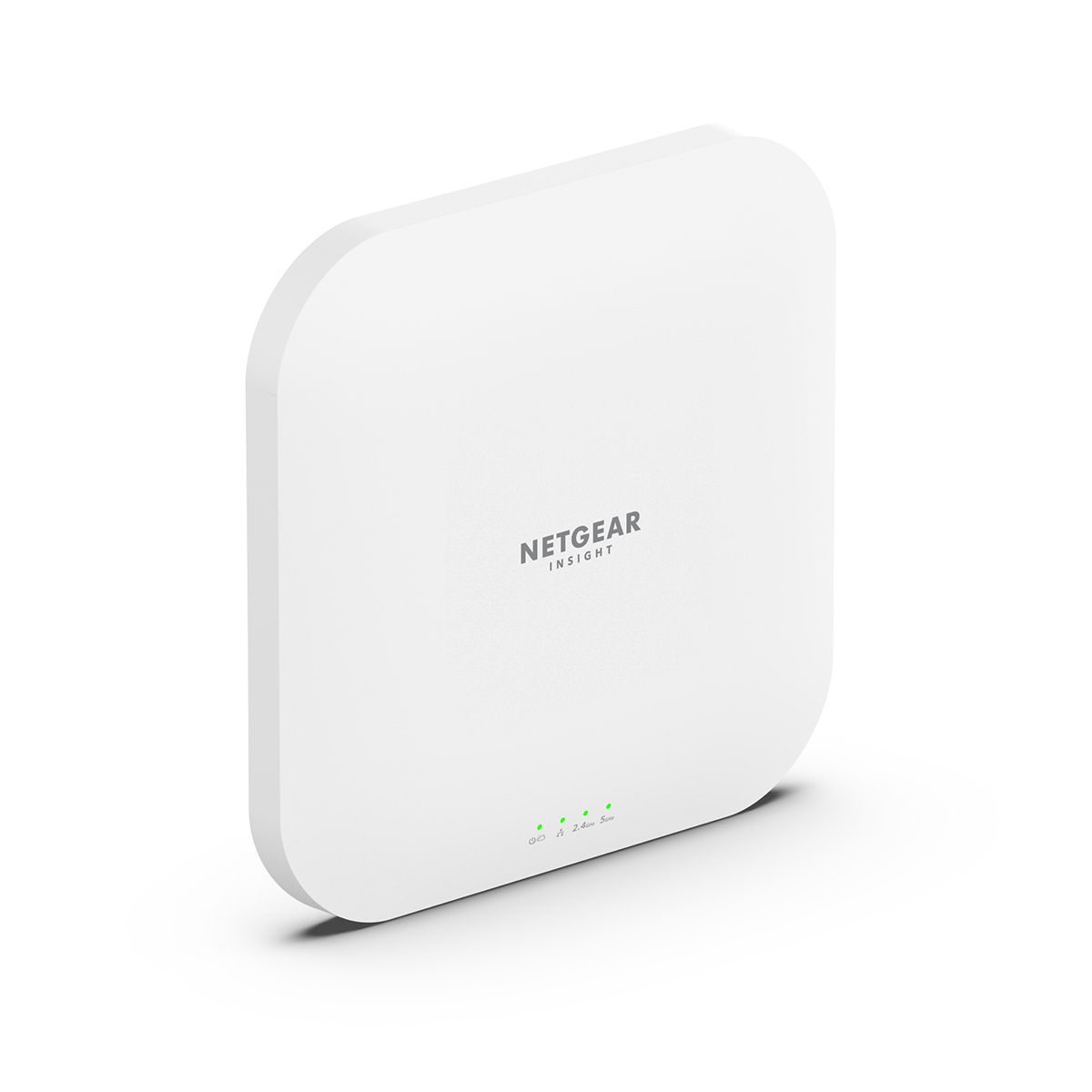

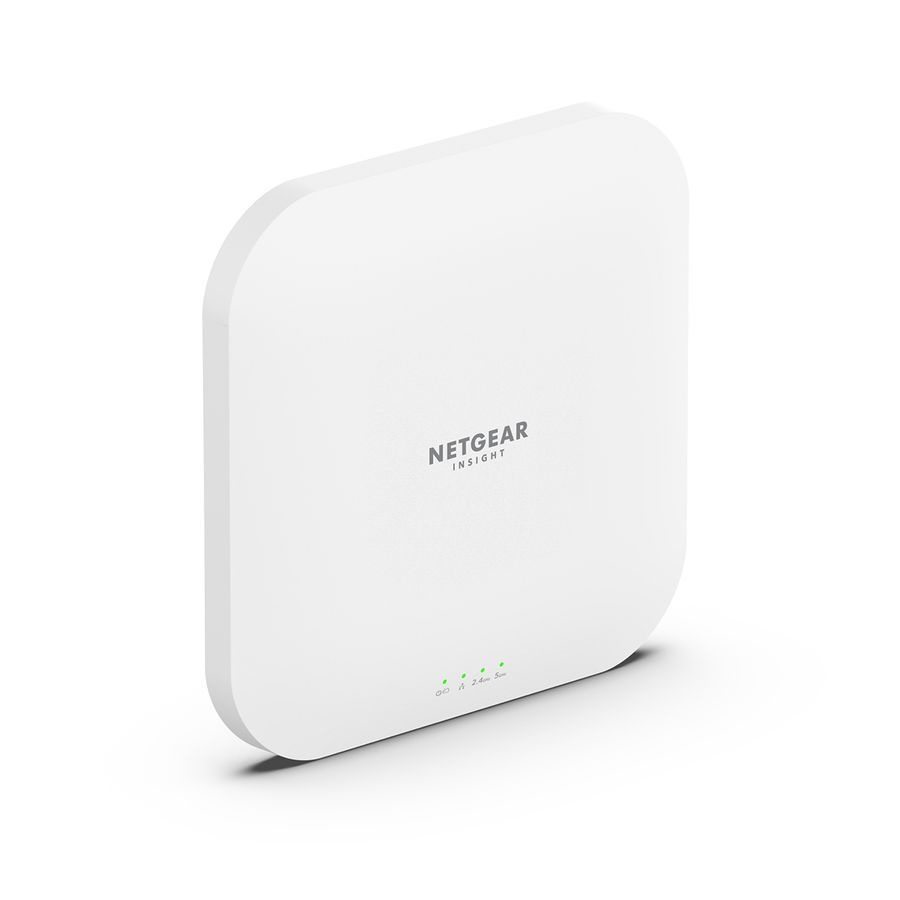

NETGEAR Insight Cloud Managed WiFi 6 AX3600 Dual Band Access Point (WAX620) 3600 Mbit/s White Power over Ethernet (PoE)

Item no. 525095430 Brand / Manufacturer NETGEAR Manuf. item no. WAX620-100EUS EAN 0606449154511
NETGEAR

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/19/2026

Description

NETGEAR Insight Cloud Managed WiFi 6 AX3600 Dual Band Access Point (WAX620). 2.4 GHz, 5 GHz, Maximum data transfer rate: 3600 Mbit/s. Security algorithms: EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.

High-Performance Business WiFi
Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band

Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless Wireless Mesh
Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Multi-Gigabit Speed
Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring

Easy Setup
Set up, configure, and manage with NETGEAR Insight

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included

Business-Level Security
WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more

Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other

Specifications

Manufacturer
NETGEAR
Product type
Wireless Access Points
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Weight & dimensions
Width
205.7 mm
Depth
205.7 mm
Height
34.3 mm
Weight
783 g
Power
Power over Ethernet (PoE)
Yes
Output voltage
12 V
Output current
2.5 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Security
Security algorithms
EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
MAC address filtering
Yes
Auto Wireless Distribution System (WDS)
Yes
Management features
Web-based management
Yes
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Quick start guide
Yes
Antenna
Antenna type
Internal
Antenna gain level (max)
4.3 dBi
Design
Placement
Ceiling, Wall
Product colour
White
LED indicators
LAN, Power, WLAN
Features
2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
3600 Mbit/s
Maximum data transfer rate (2.4 GHz)
1200 Mbit/s
Maximum data transfer rate (5 GHz)
2400 Mbit/s
Ethernet LAN data rates
100,1000,2500 Mbit/s
Networking standards
IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Auto MDI/MDI-X
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Modulation
OFDM
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Logistics data
Harmonized System (HS) code
85176990
