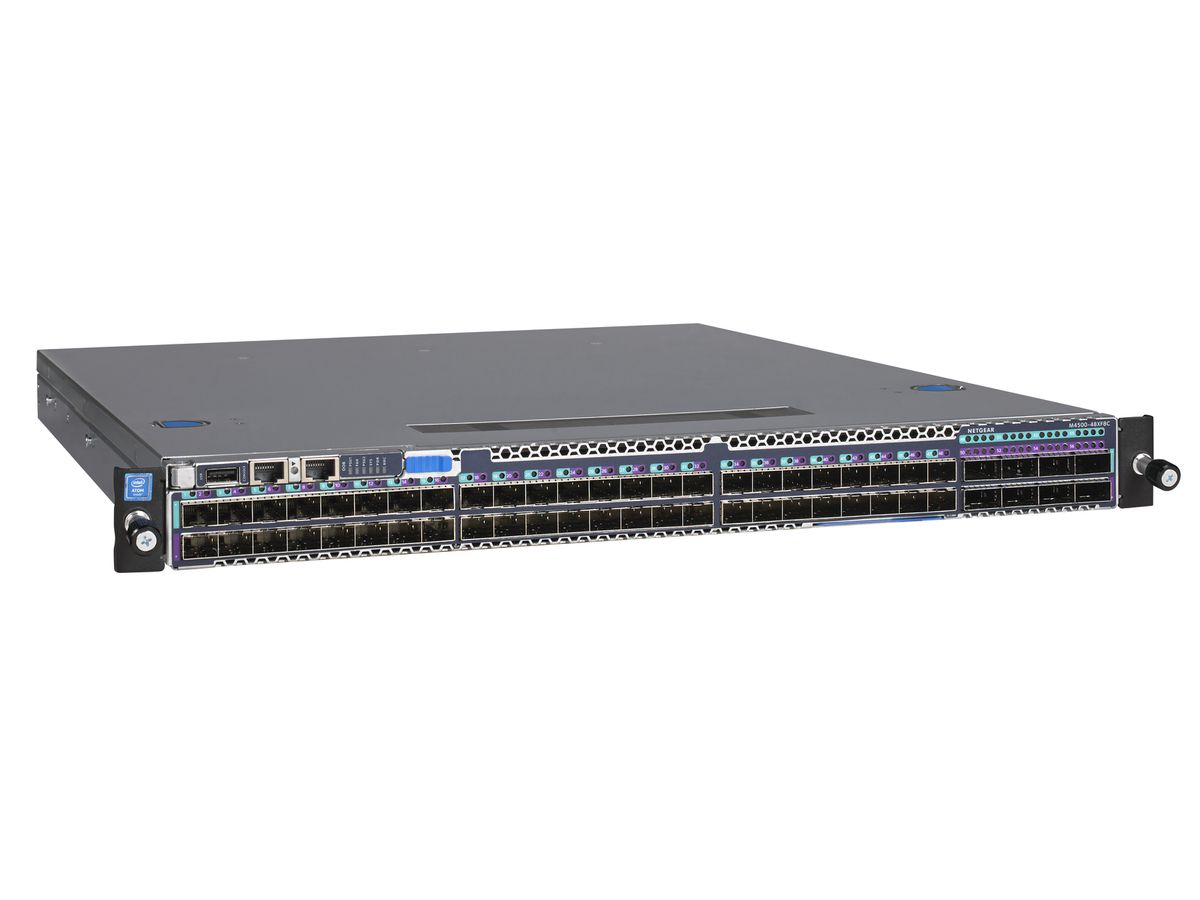

NETGEAR M4500-48XF8C Managed L2/L3/L4 1U Black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	522427961
Brand / Manufacturer	NETGEAR
Manuf. item no.	XSM4556-100EUS
EAN	0606449145694

Description

NETGEAR M4500-48XF8C. Switch type: Managed, Switch layer: L2/L3/L4. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 4000 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.3ad. Power connector: DC-in jack. Rack mounting, Form factor: 1U

The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.

Specifications

Manufacturer	NETGEAR
Product type	Network Switch

Ports & interfaces

Fiber optic connector	QSFP+
Console port	RJ-45
QSFP28 ports quantity	8
SFP28 ports quantity	48
USB 2.0 ports quantity	1
Power connector	DC-in jack

Power

Power consumption (max)	426 W

Protocols

Management protocols	Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+

Network

Networking standards	IEEE 802.1AX, IEEE 802.3ad
10G support	Y
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Auto-sensing	Y
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000

Data transmission

MAC address table	32000 entries
Switching capacity	4000 Gbit/s

Packaging data

User guide	Y
Manual	Y
Package type	Box
Package width	593 mm
Package depth	888 mm
Package height	186 mm
Package weight	20.9 kg

Security

DHCP features	DHCP client, DHCP relay, DHCP server
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	HTTPS, SNMP, SSH
SSH/SSL support	Y
BPDU filtering/protection	Y

Management features

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
System event log	Y

Optical fiber

Fiber ethernet cabling technology	100BASE-X

Design

Rack mounting	Y
Form factor	1U
Product colour	Black
Housing material	Metal
Reset button	Y
LED indicators	Y
Electromagnetic compatibility	CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024

Power over Ethernet (PoE)

Power over Ethernet (PoE)	N

Performance

Built-in processor	Y
Memory type	DDR3-SDRAM
Internal memory	8000 MB
Flash memory	256 MB
Noise level	64 dB
Harmonized System (HS) code	85176990

Logistics data

Products per master (outer) case	1 pc(s)

Multicast features

Multicast support	Y

Downloads

PDF data sheet - NETGEAR M4500-48XF8C Managed L2/L3/L4 1U Black - English (1.2 MB)

Download
