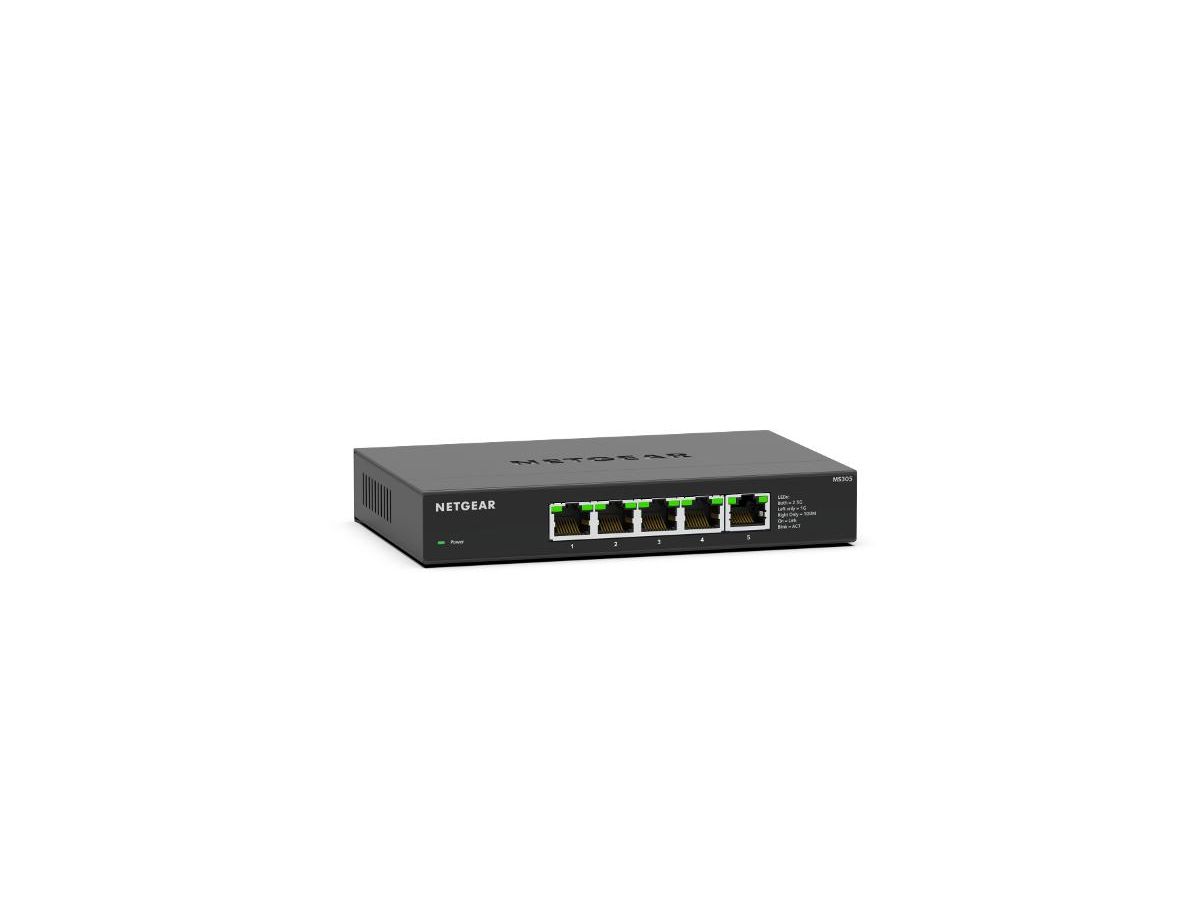

NETGEAR MS305-100EUS network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527346723 |
|---|---|
| Brand / Manufacturer | NETGEAR |
| Manuf. item no. | MS305-100EUS |
| EAN | 0606449160123 |
:strip_icc():strip_exif()/logos/netgear.png "NETGEAR")
Description
NETGEAR MS305-100EUS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable
The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Specifications
| Manufacturer | NETGEAR |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Weight & dimensions
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 480 g |
Power
| Power source | DC |
|---|---|
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (typical) | 4.6 W |
| Power consumption (max) | 9.24 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Network
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Cable length detection | Yes |
Data transmission
| Forwarding rate | 3.72 Mpps |
|---|---|
| Latency (1 Gbps) | 2458 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9720 |
| Packet buffer memory | 1 MB |
Management features
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
Design
| Rack mounting | No |
|---|---|
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Performance
| Fanless | Yes |
|---|---|
| Mean time between failures (MTBF) | 1401743 h |
Sustainability
| Sustainability certificates | CCC, Low Voltage Directive (LVD) |
|---|
