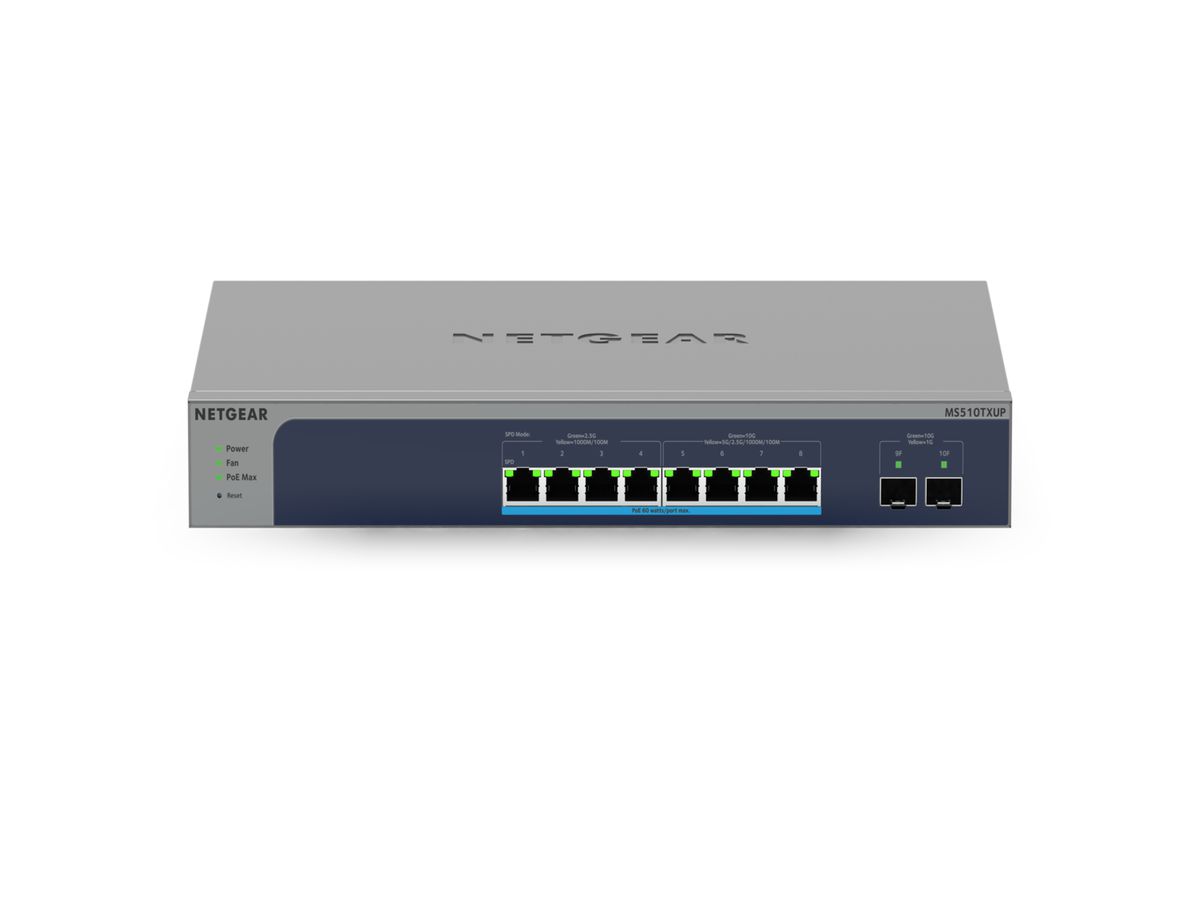

NETGEAR MS510TXUP network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey, Blue
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 524703881 |
|---|---|
| Brand / Manufacturer | NETGEAR |
| Manuf. item no. | MS510TXUP-100EUS |
| EAN | 0606449152395 |
:strip_icc():strip_exif()/logos/netgear.png "NETGEAR")
Description
NETGEAR MS510TXUP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Full duplex. MAC address table: 32000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch comes with 2 fiber 10G uplinks. Organizations that buy infrastructure for the long term and want future proofing can now deploy denser PoE+ and even PoE++ devices with 295W power budget and 2.5G / 5G /10G speeds. The ideal companion to the MS510TXUP is the NETGEAR WAX610 WiFi 6 Access Point that features a 2.5G Ethernet port. MS510TXUP provides a total PoE budget of 295W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. The switch provides four auto-adapt multispeed Gigabit PoE+/PoE++ RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit PoE+/PoE++ RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
Specifications
| Manufacturer | NETGEAR |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP+ modules quantity | 2 |
Weight & dimensions
| Width | 330 mm |
|---|---|
| Depth | 206 mm |
| Height | 43 mm |
Power
| Power supply included | Y |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Protocols
| Management protocols | SNMP v1/v2c,SNMP v3 |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x |
|---|---|
| 10G support | Y |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Y |
| Full duplex | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| VLAN support | Y |
| Number of VLANs | 256 |
Data transmission
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 140 Gbit/s |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
Security
| DHCP features | DHCP client,DHCP server |
|---|---|
| Access Control List (ACL) | Y |
| Access Control List (ACL) ingress | 100 |
| IGMP snooping | Y |
| Security algorithms | HTTPS,SSL/TLS |
| Loop protection | Y |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
Design
| Rack mounting | Y |
|---|---|
| Product colour | Grey, Blue |
| LED indicators | Activity, Power, Speed |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Y |
|---|---|
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 60 W |
Performance
| Built-in processor | Y |
|---|---|
| Processor frequency | 1000 MHz |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
Multicast features
| Multicast support | Y |
|---|
