Item no.:26210016Herst.-Art.-Nr.:26.21.0016
ROLINE 19-inch wall-mounted housing Basic 7 U, 540x400 WxD kit black
Item no.
26210186
Brand / Manufacturer
ROLINE
Manuf. item no.
26.21.0186
EAN
7630049601895
Item weight
10.7 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
Deliverable approx. 07/27/2026
Description

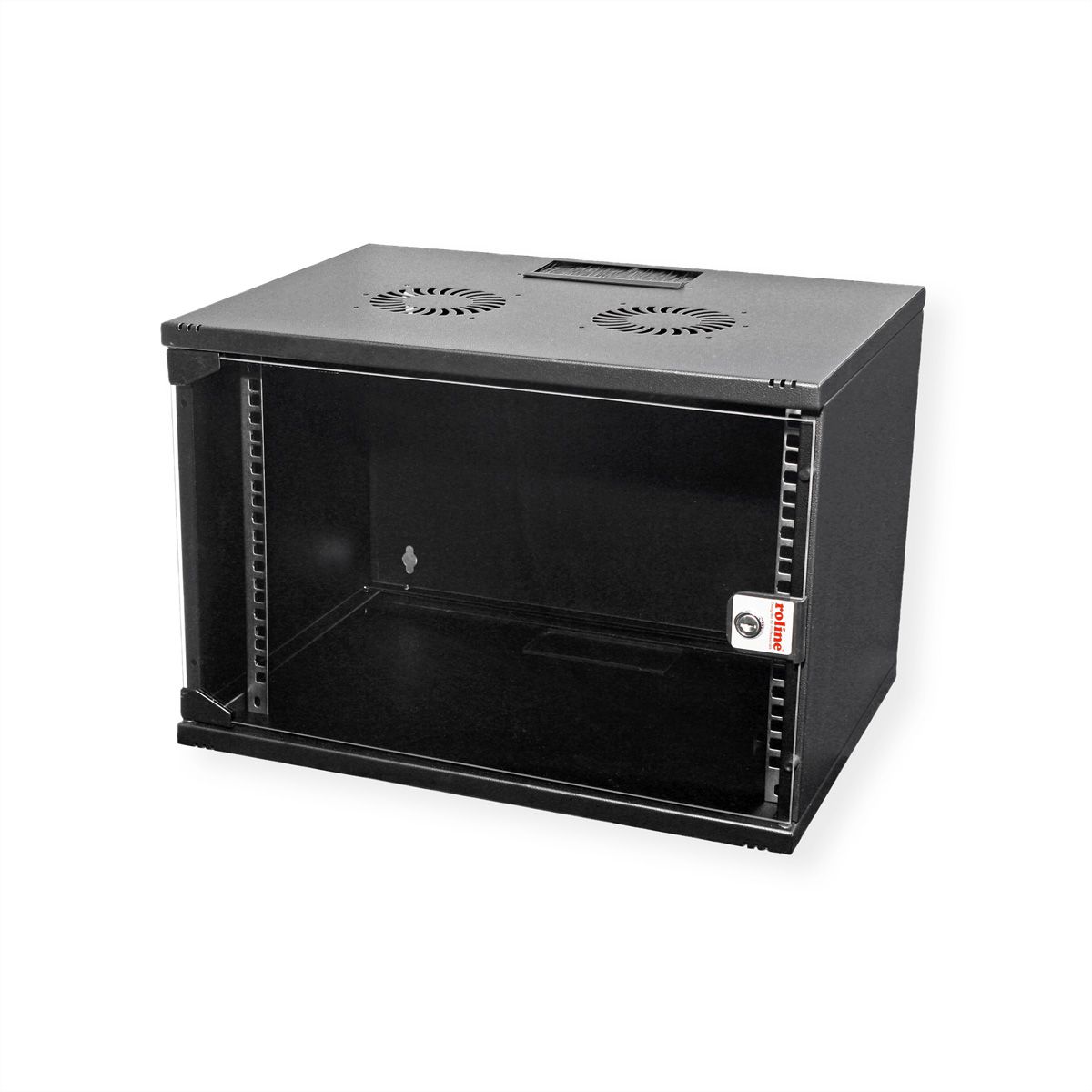

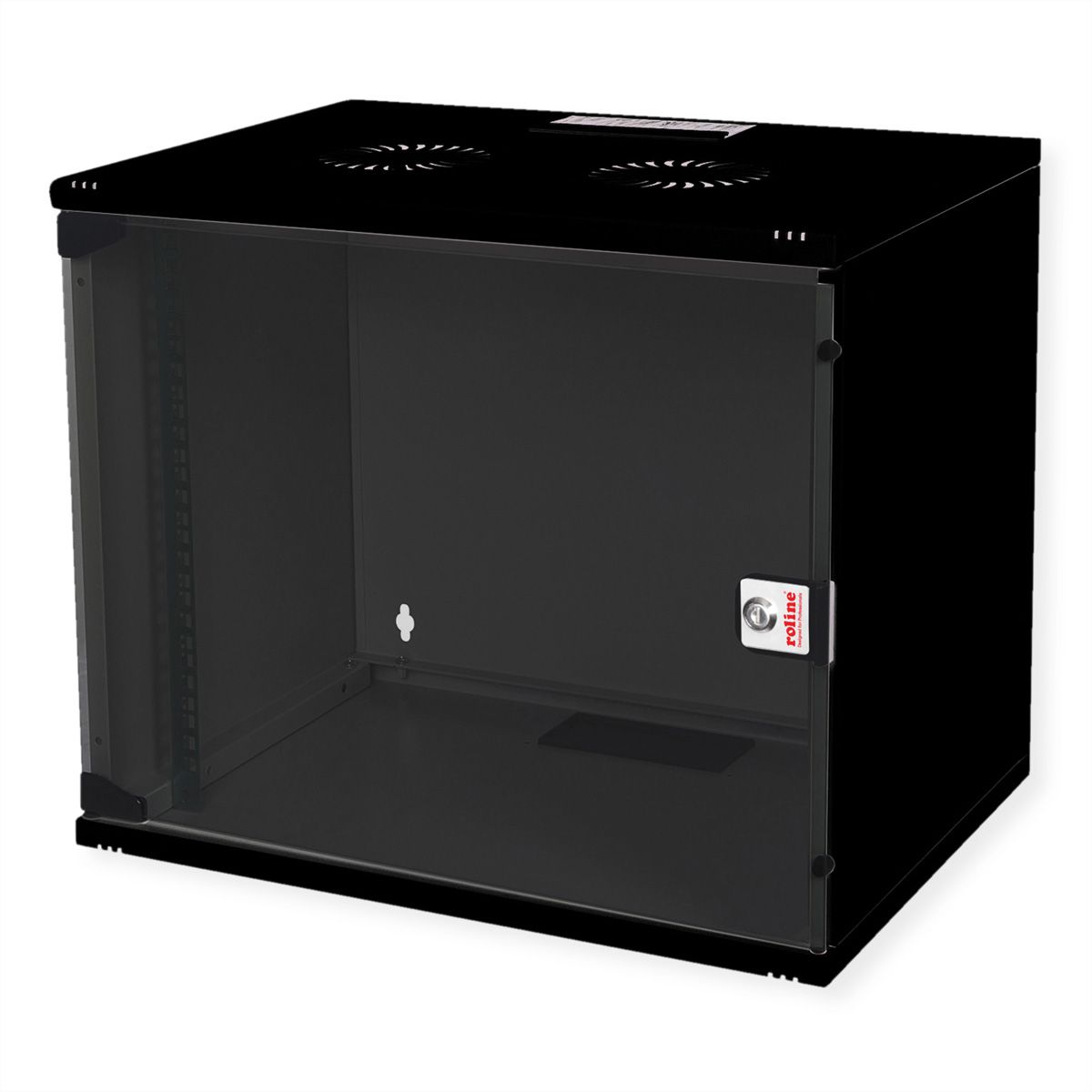

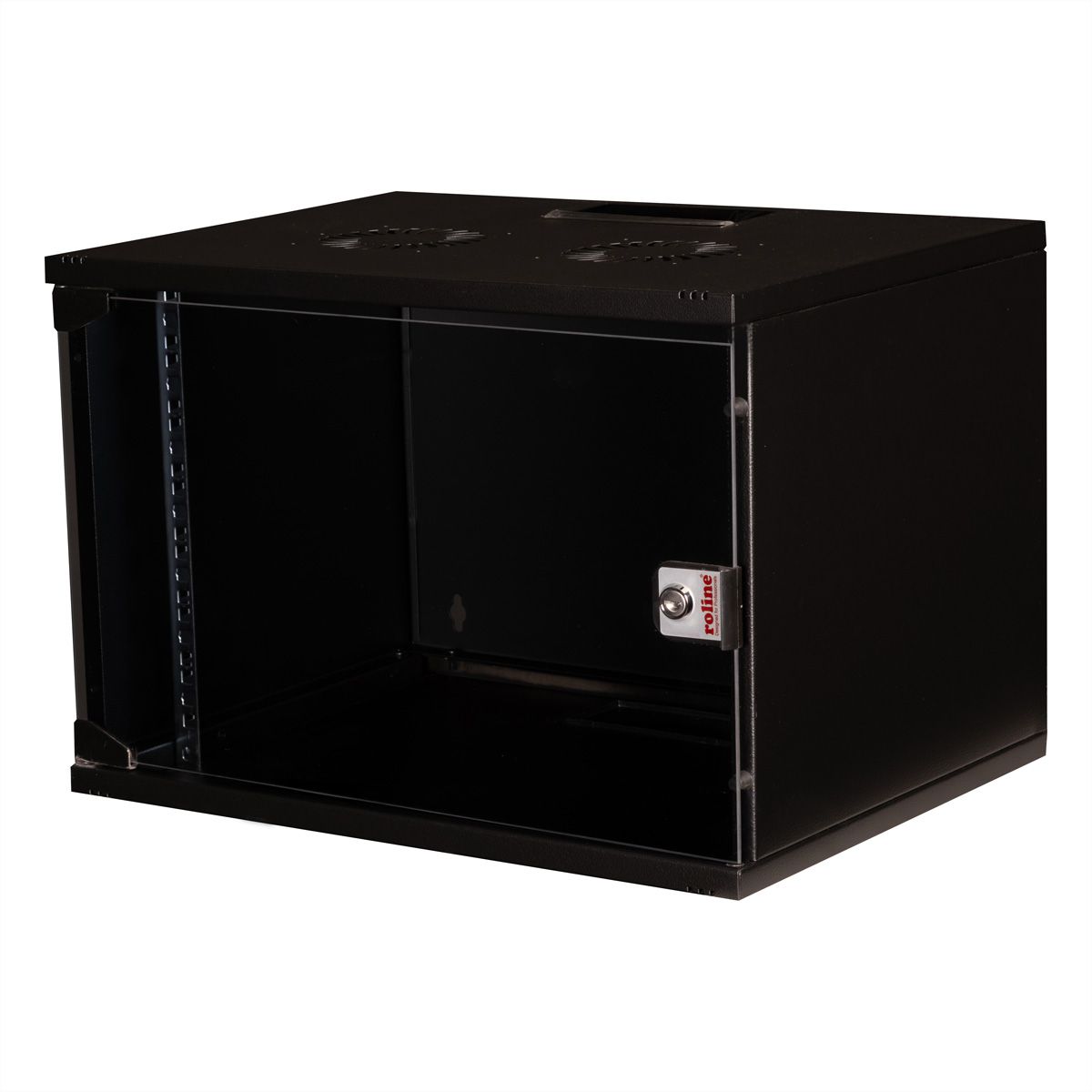

ROLINE 19 inch wall housing Basic 7 U 540x400 WxD kit black

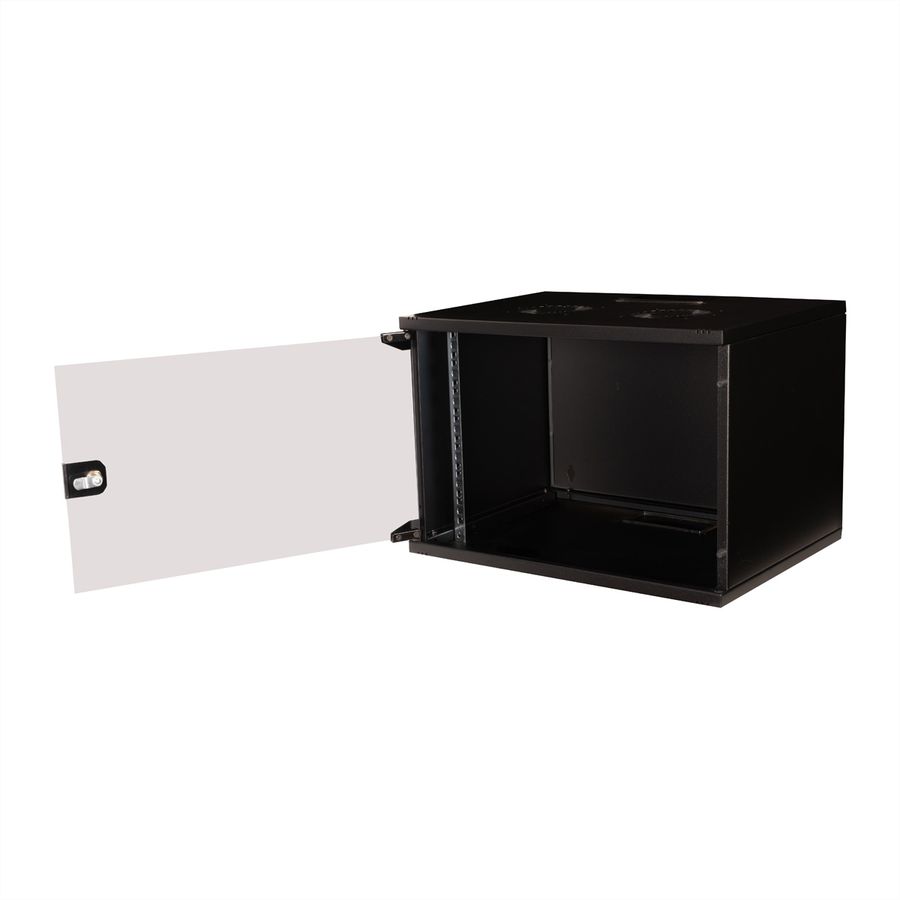

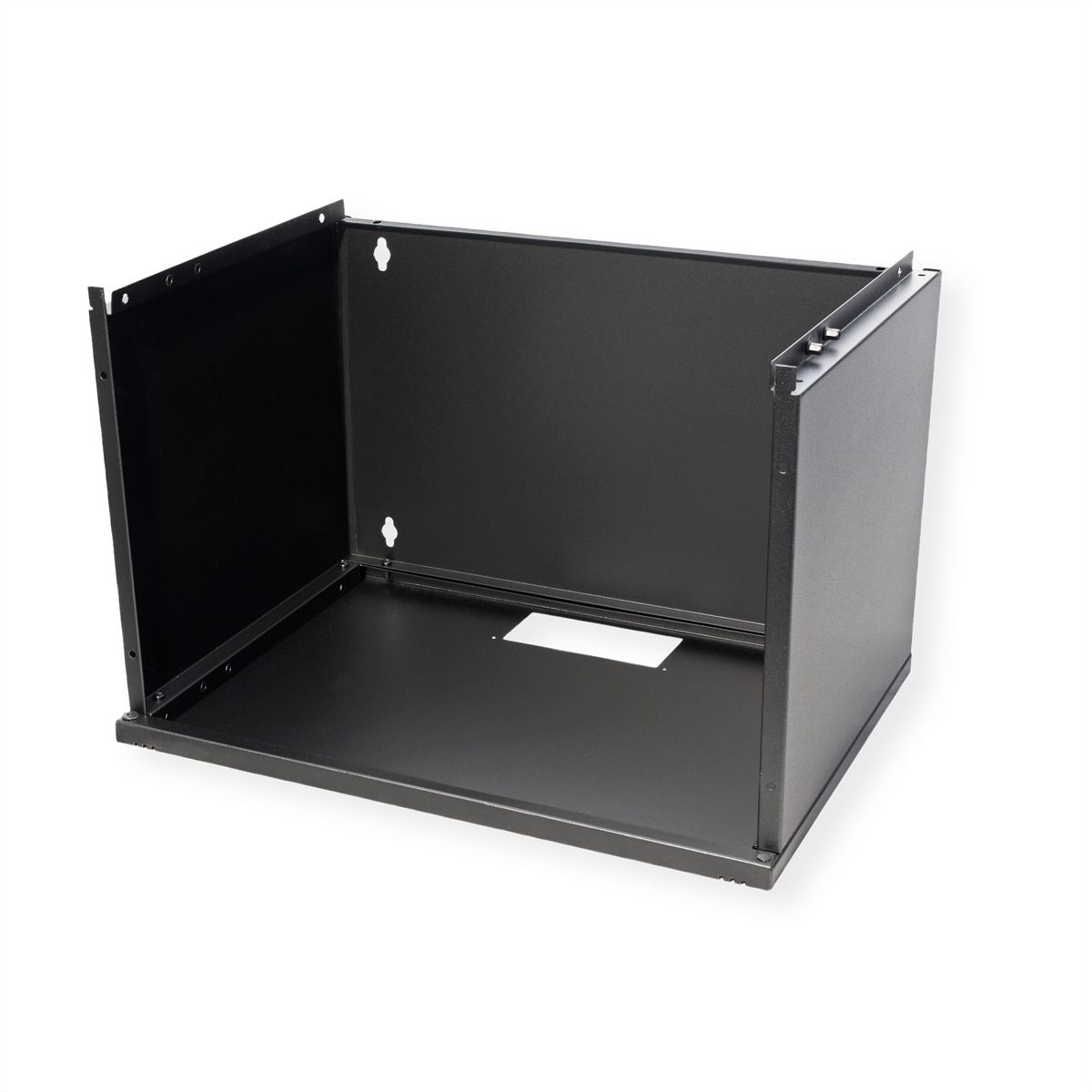

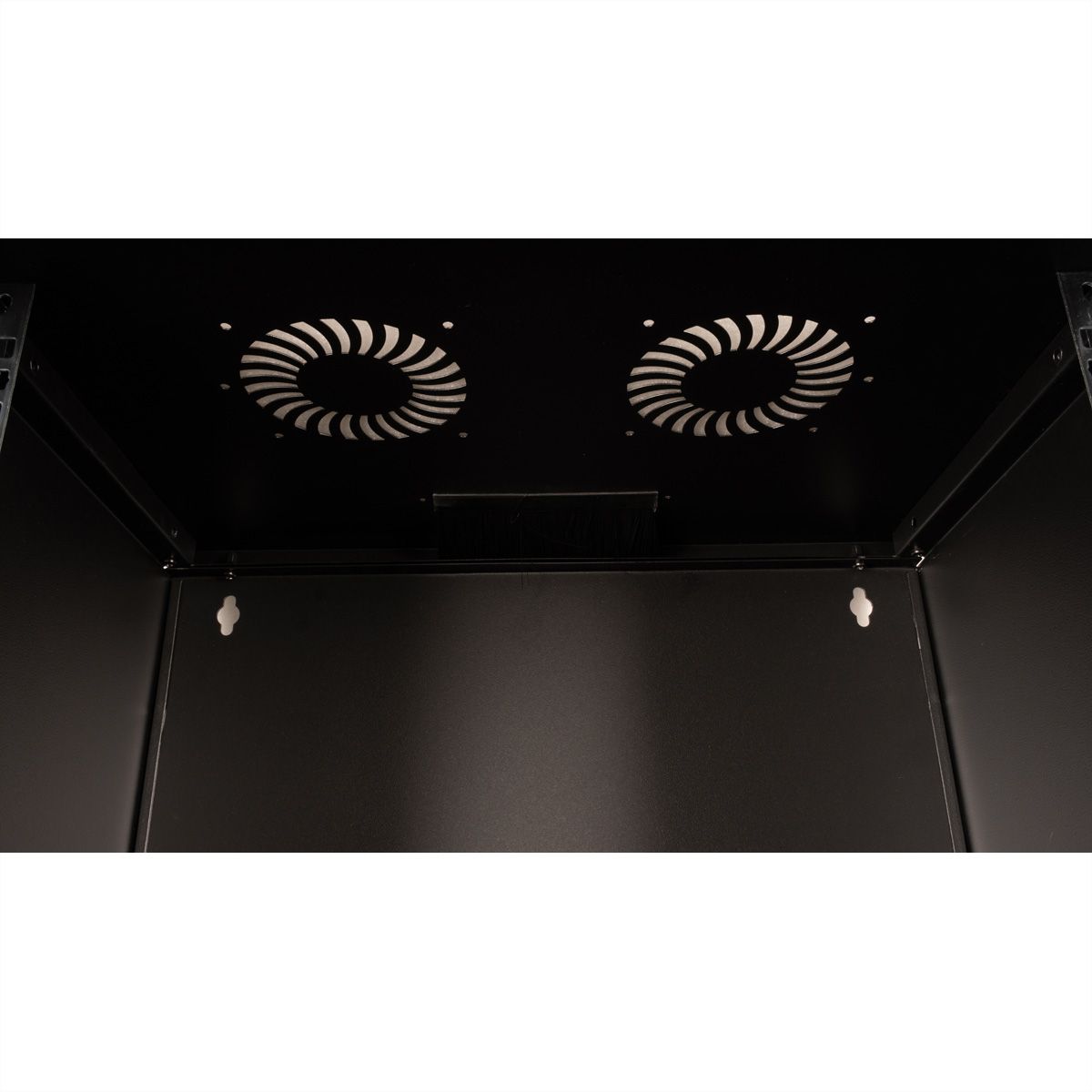

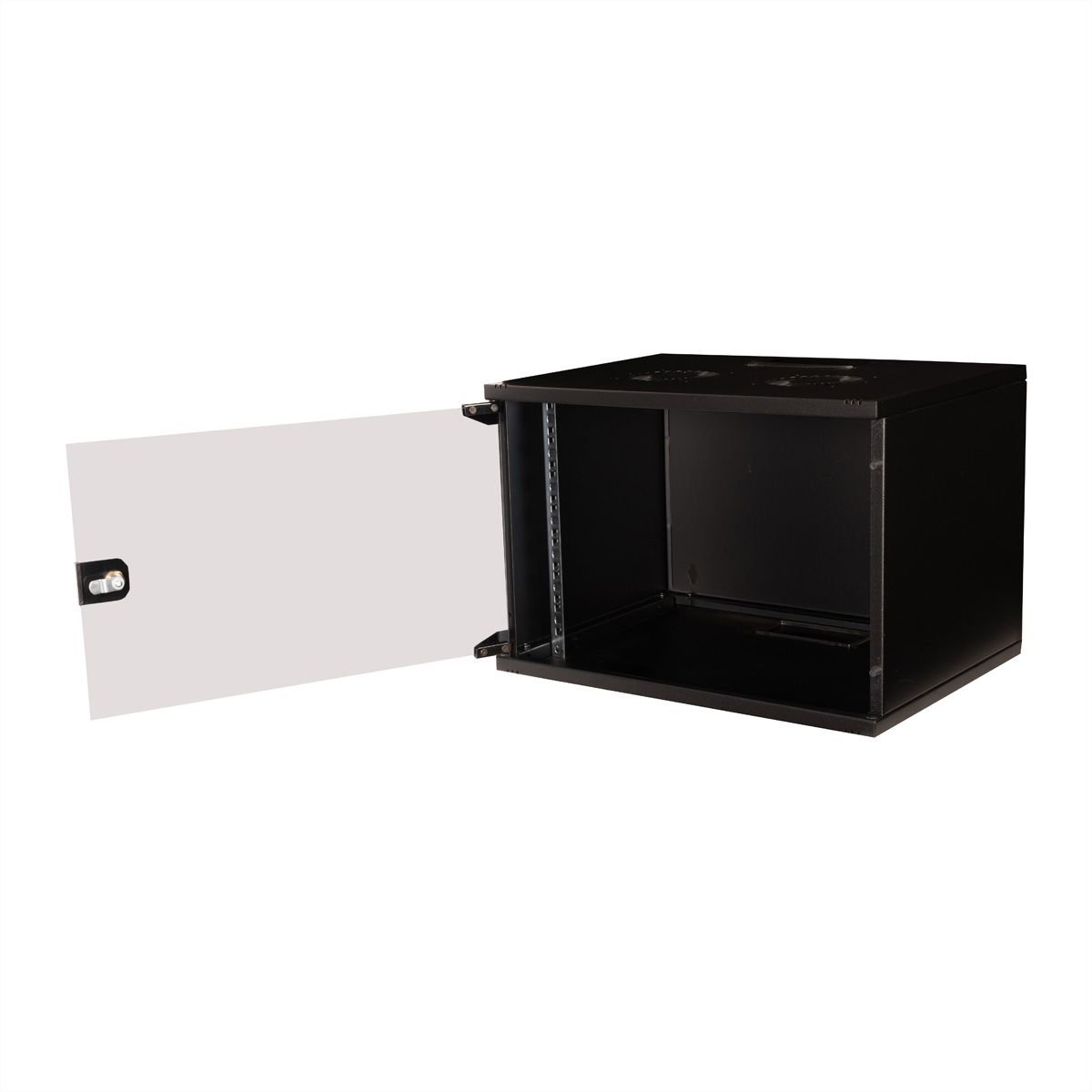

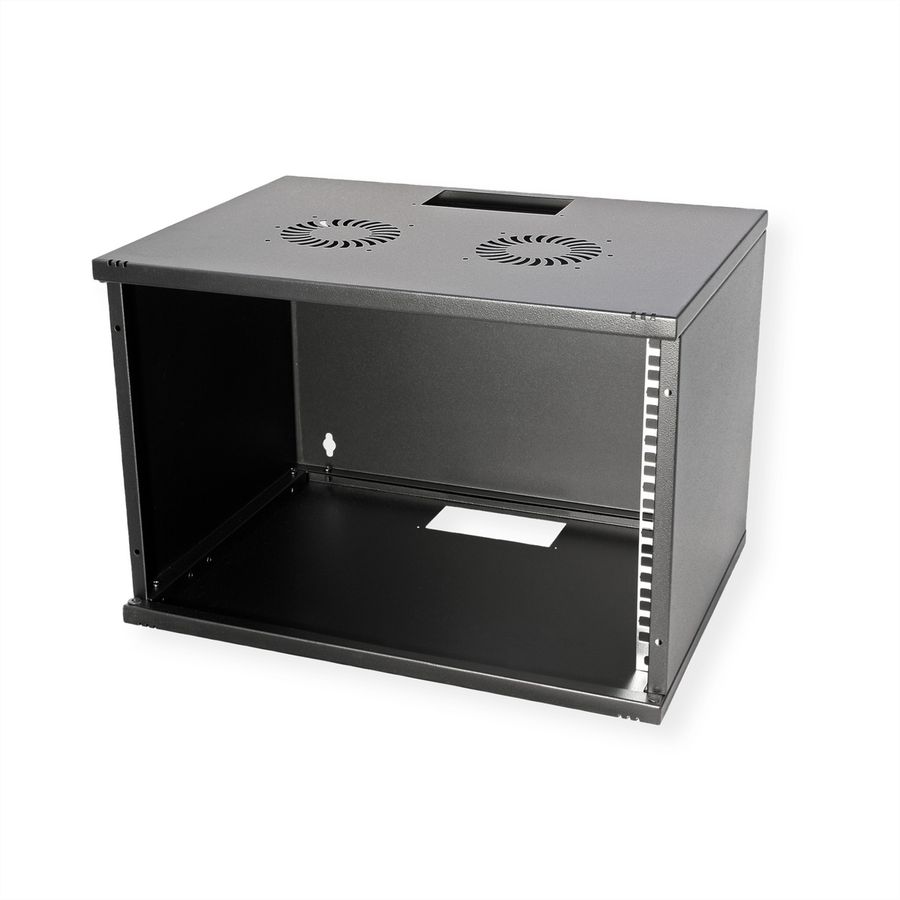

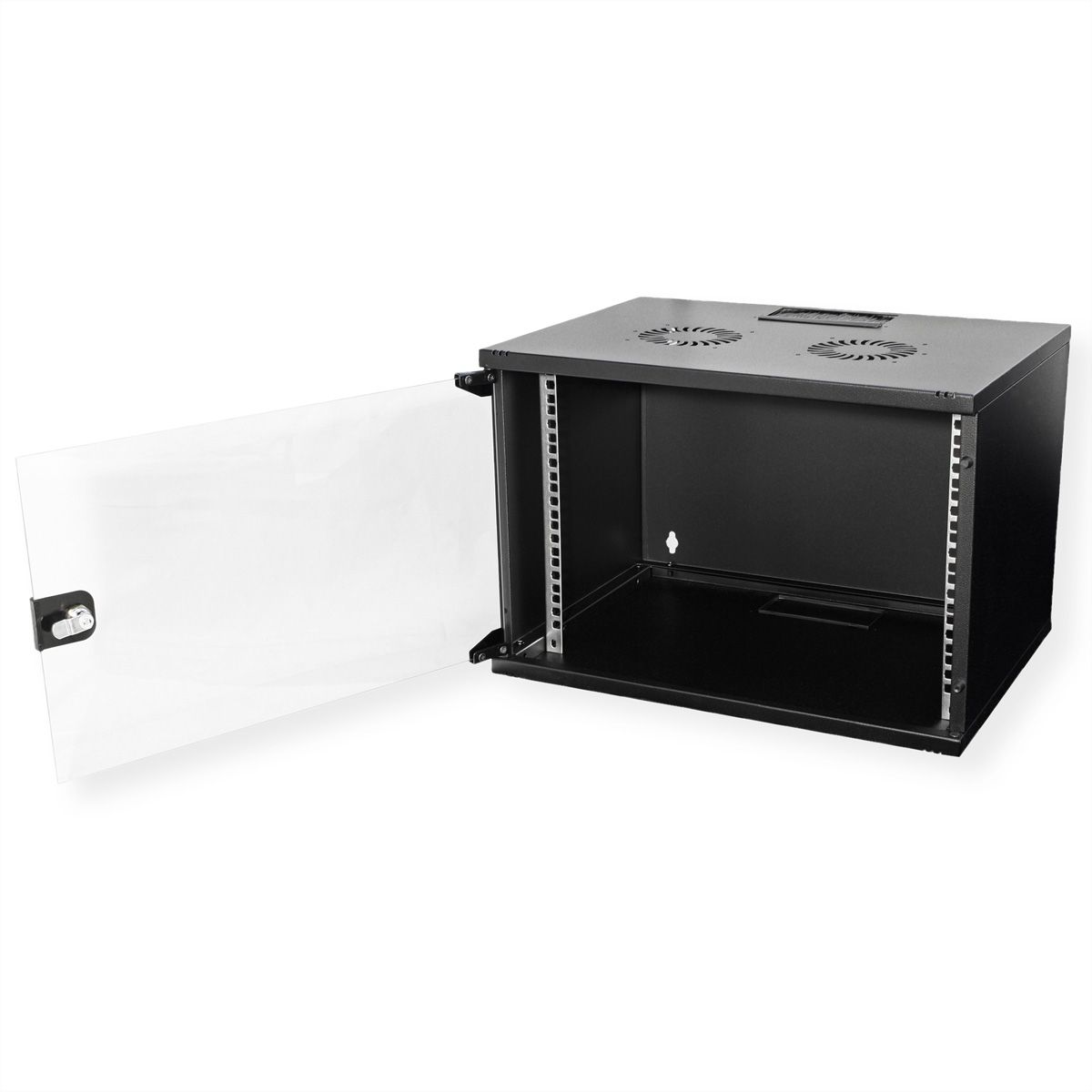

The 19" wall-mounted enclosures in the ROLINE Basic series are supplied unassembled as a flat pack (kit). Available in four different height units and equipped with a full glass door and cable entries with brushes on the top and bottom, they are ideal for sub-distribution or for setting up a small to medium-sized network. Inside, a pair of galvanised 19" profile rails with readable height units are installed, which are adjustable in depth. Each enclosure consists of a robust steel construction made of up to 1.5 mm thick sheet steel and is available electrostatically powder-coated in the standard colours grey (RAL 7035) and black (RAL 9005). The door hinge can be changed if required. Assembly is quick and easy thanks to the enclosed assembly instructions.
Specifications
- Manufacturer
- ROLINE
- Product group
- 19"- / 10" technology
- Product type
- 19"-wall housing
- Colour
- black
- Scope of delivery
- 19-inch wall-mounted housing Basic 7 U as a kit, 2x spanners, assembly instructions
- Type of profile rail
- L-shaped
- Modular spacing
- 482.6 mm (19 inch)
- Model
- With permanent frame
- Height units
- 7 U
- Minimum rack depth supported
- 360 mm
- Maximum rack depth supported
- 380 mm
- Delivery condition
- Flatpack, disassembled
- Demountable
- yes
- Material group
- Steel
- Material front door
- Glass
- Wall mountable
- yes
- Adjustable feets
- no
- Maximum weight capacity
- 60 kg
- Protection class (IP Code)
- IP20
- Soundproof
- no
- Number of doors
- 1
- With front door
- yes
- With backside door
- no
- With glazed door
- yes
- Front
- Glass door
- Rack rails
- yes
- Side panels included
- yes
- Removeable side panels
- no
- Removable front door
- yes
- Removable back door
- no
- Ventilation
- Passive
- RAL colour
- RAL 9005 Jet black
- Height
- 370 mm
- Width
- 540 mm
- Depth
- 400 mm
- Weight
- 9.5 kg
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 425 mm
- Depth of packaging (single piece)
- 630 mm
- Package weight (single piece)
- 10.7 kg
