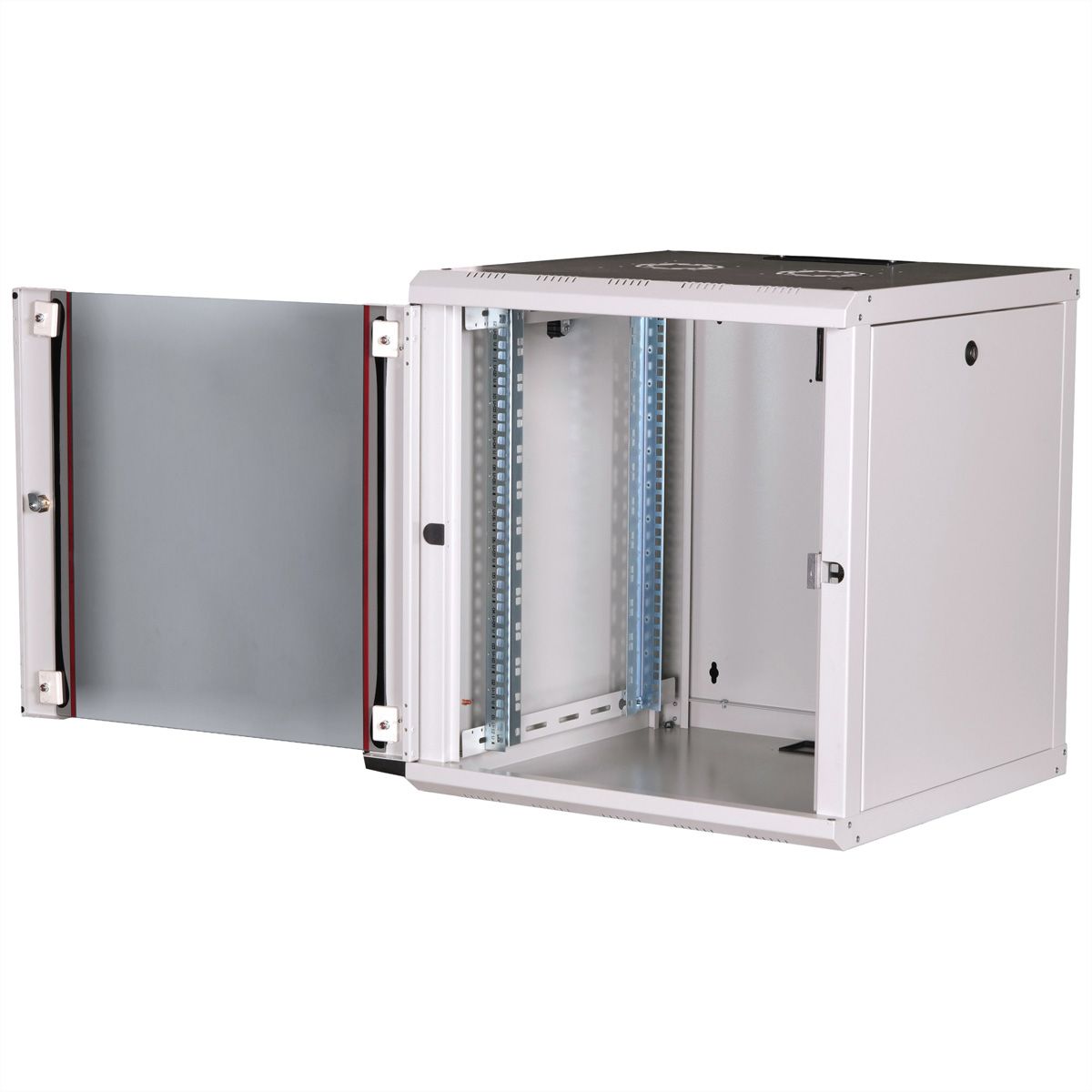

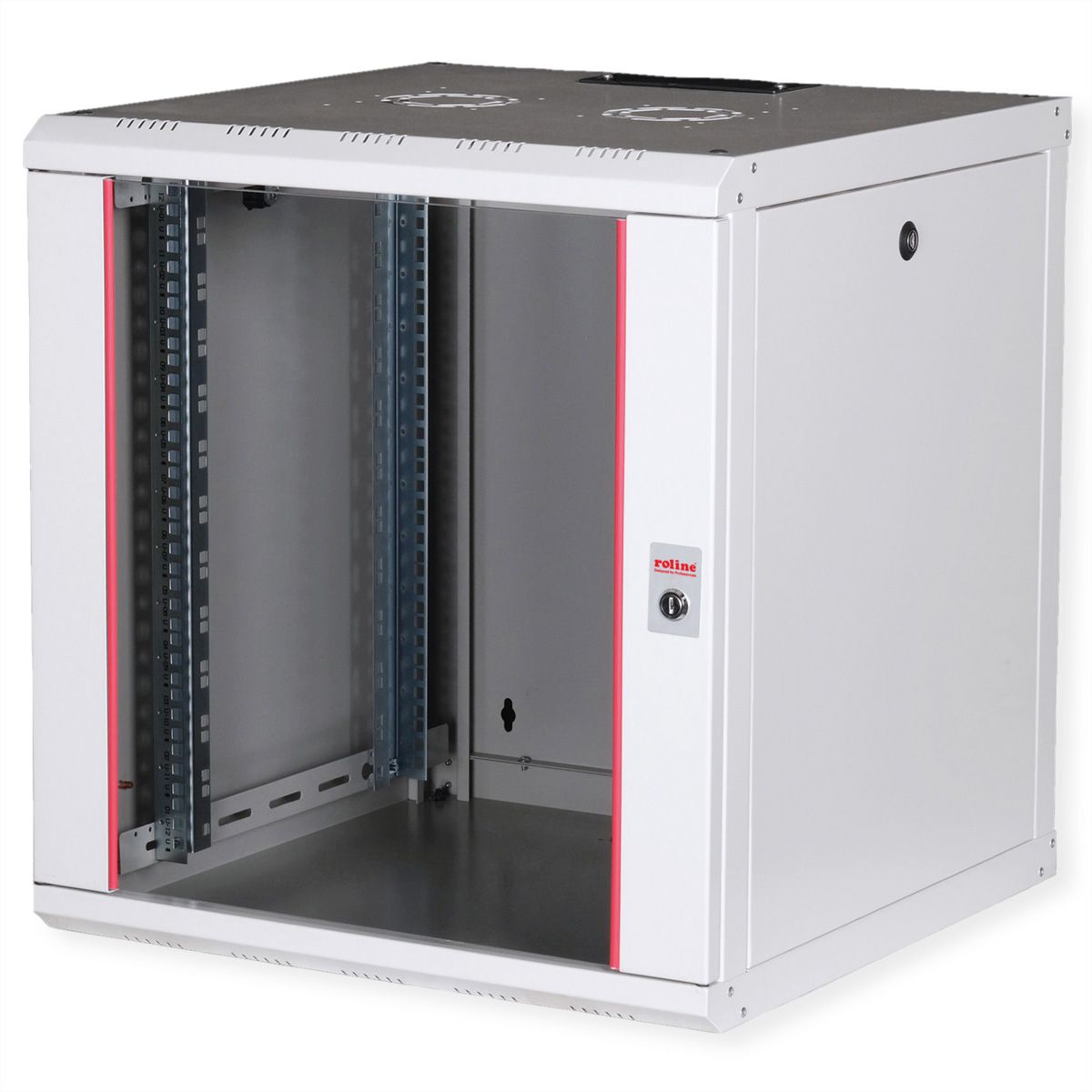

ROLINE 19-inch wall-mounted housing Pro 12 U, 600x600 WxD grey
Item no.
26210175
Brand / Manufacturer
ROLINE
Manuf. item no.
26.21.0175
EAN
7630049601789
Item weight
31 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
This item is transported on a pallet; additional shipping costs will be charged!
Description

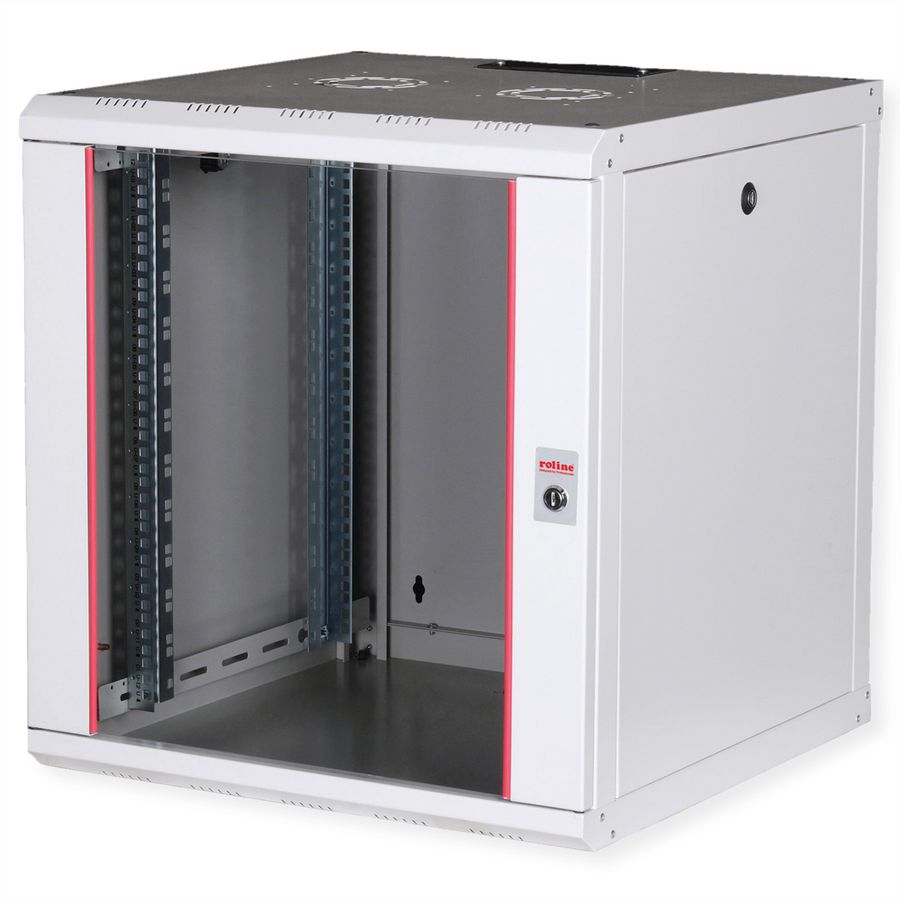

ROLINE 19 inch wall-mounted housing Pro 12 U 600x600 WxD grey

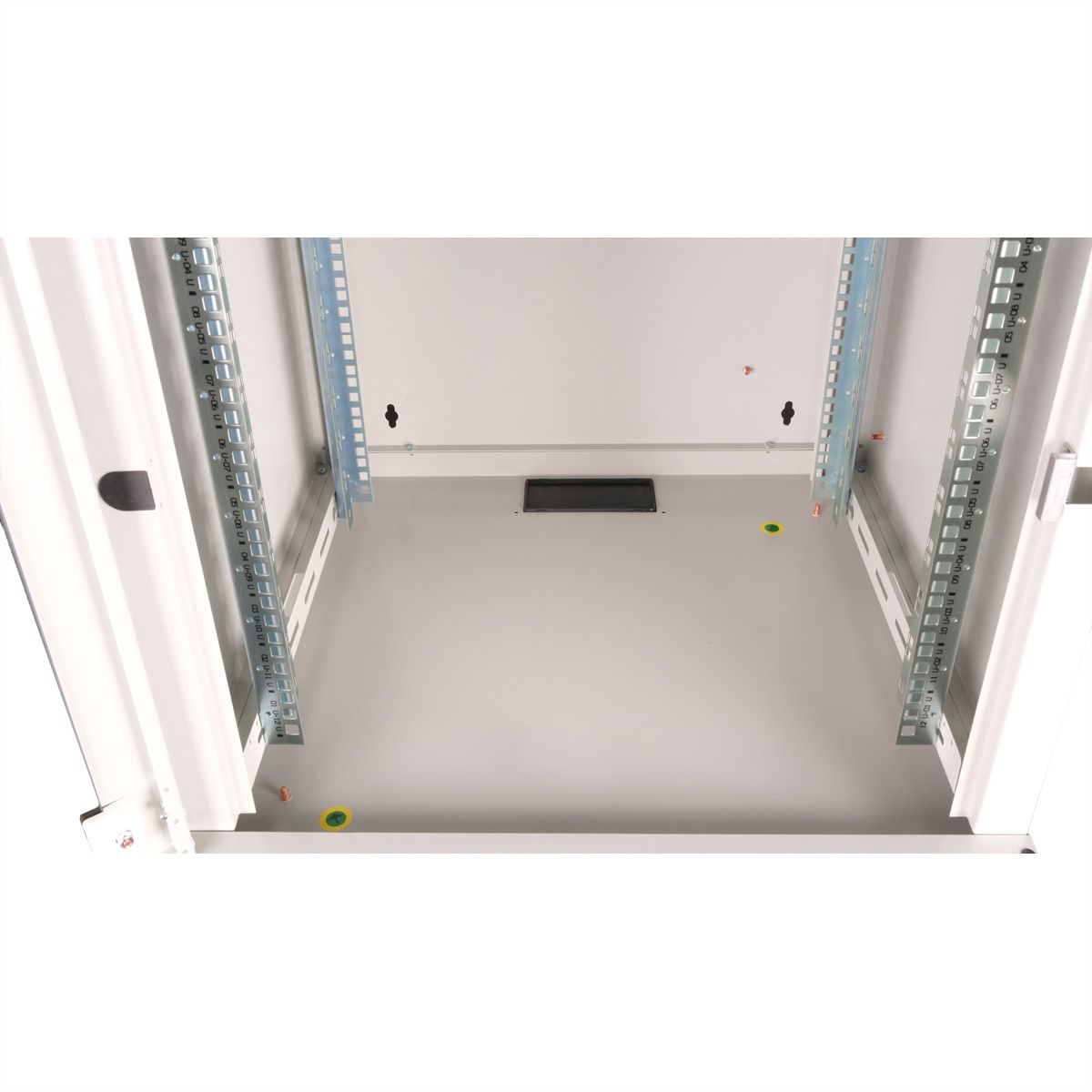

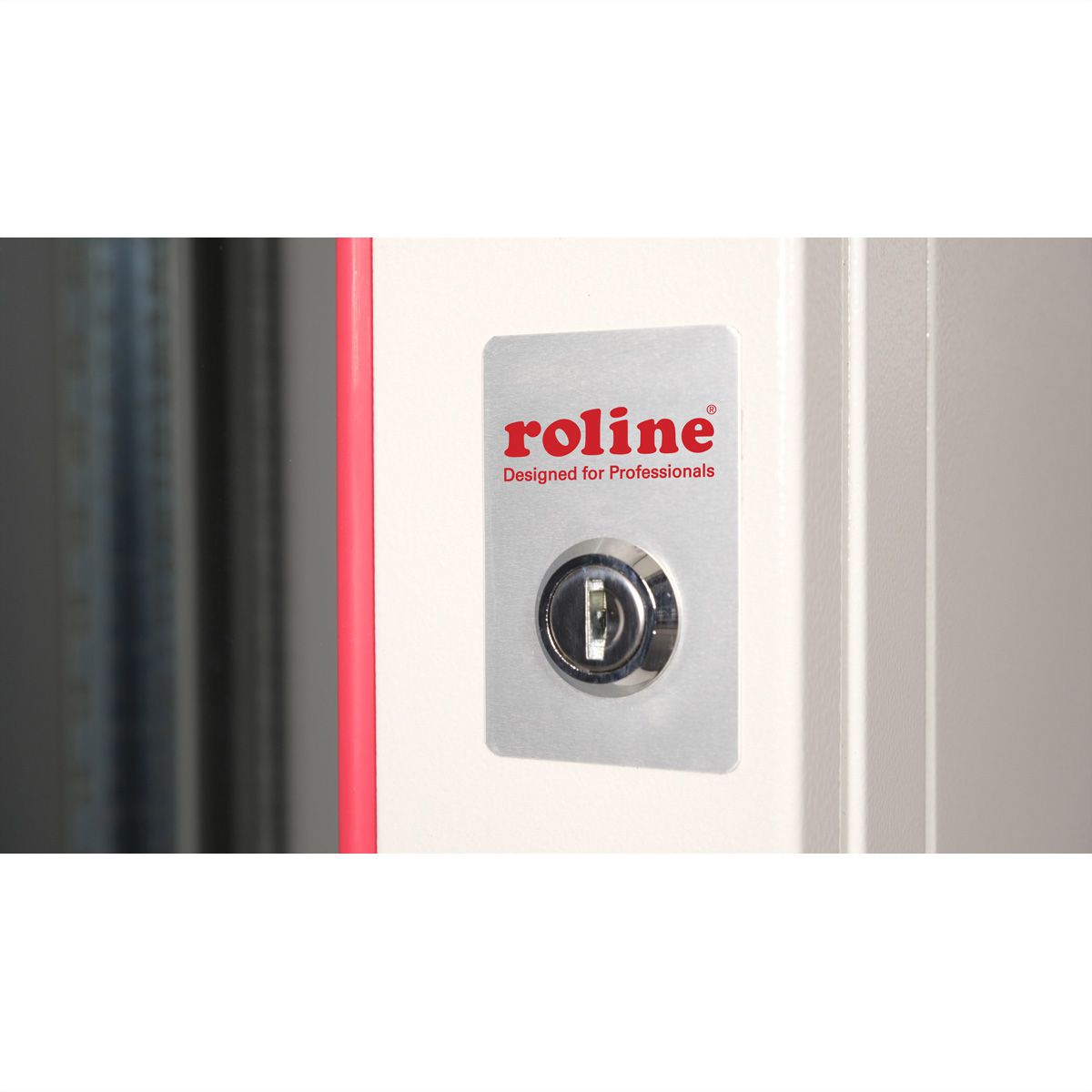

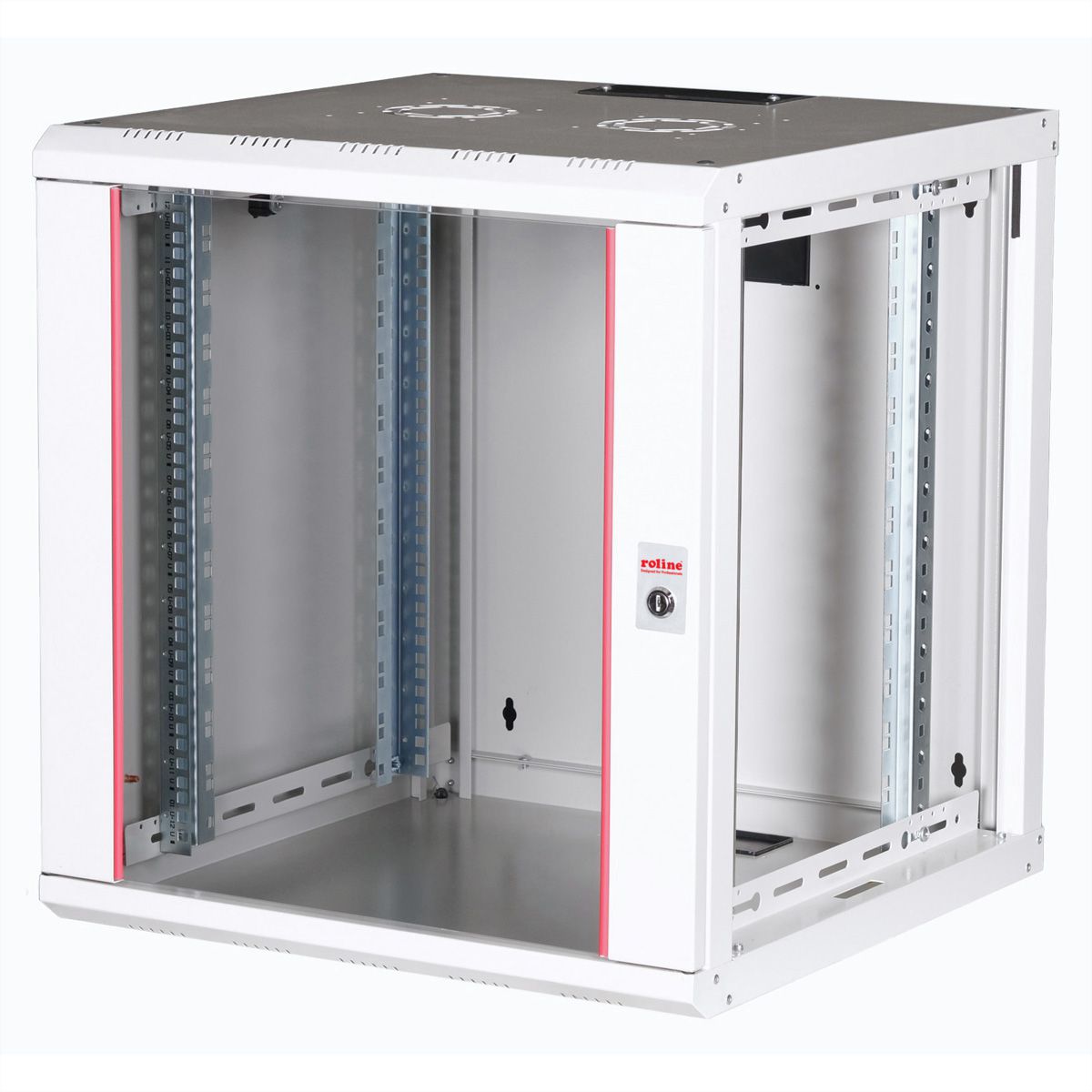

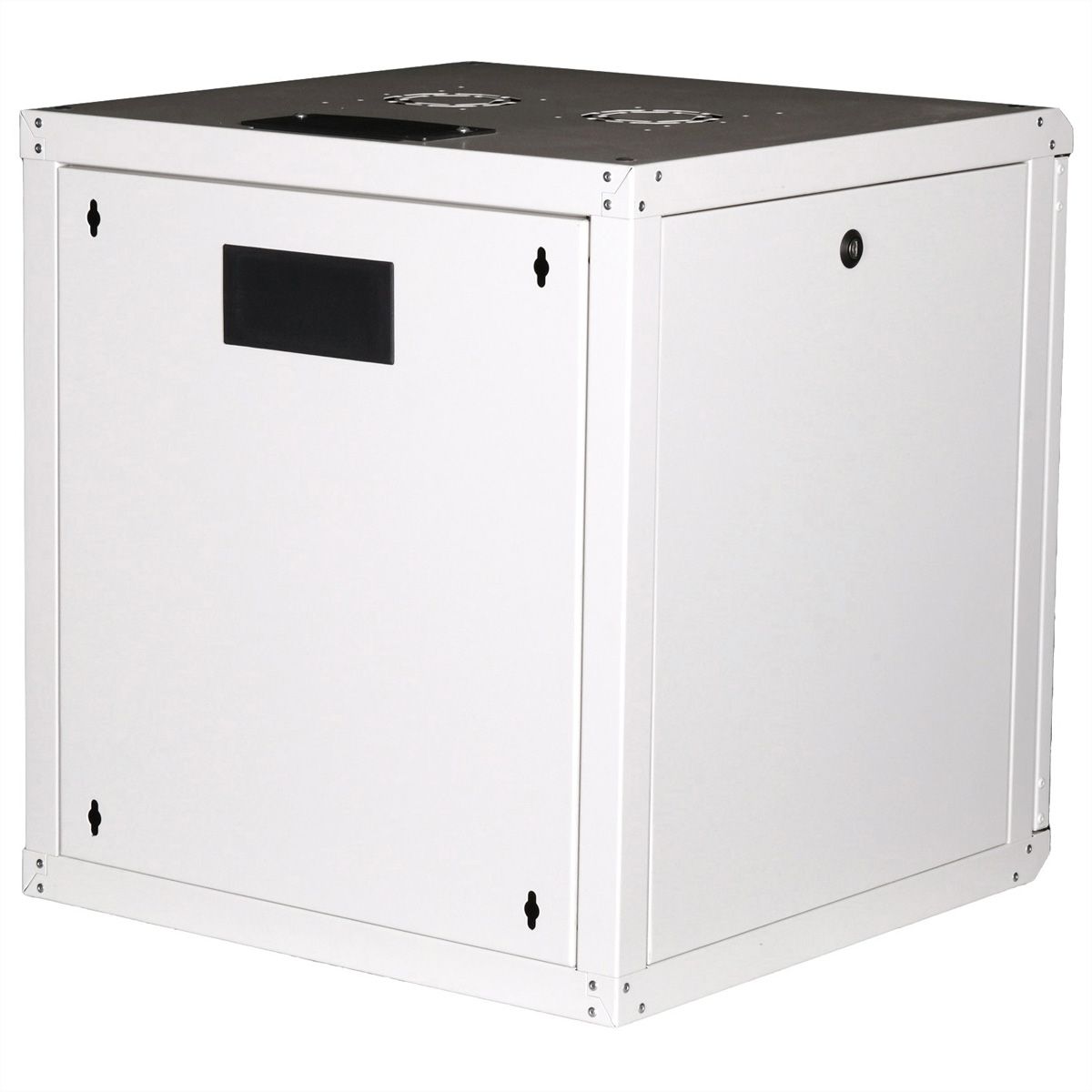

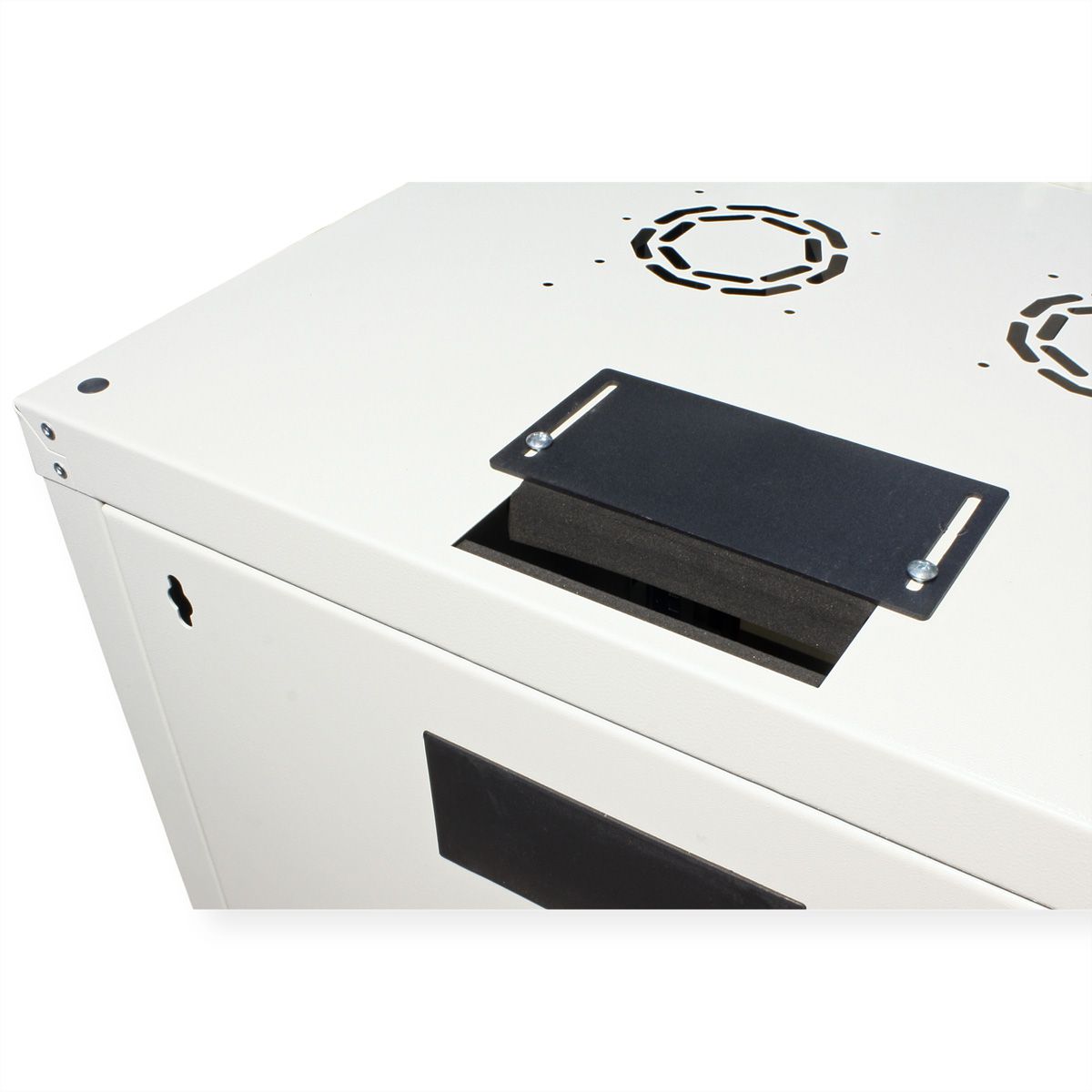

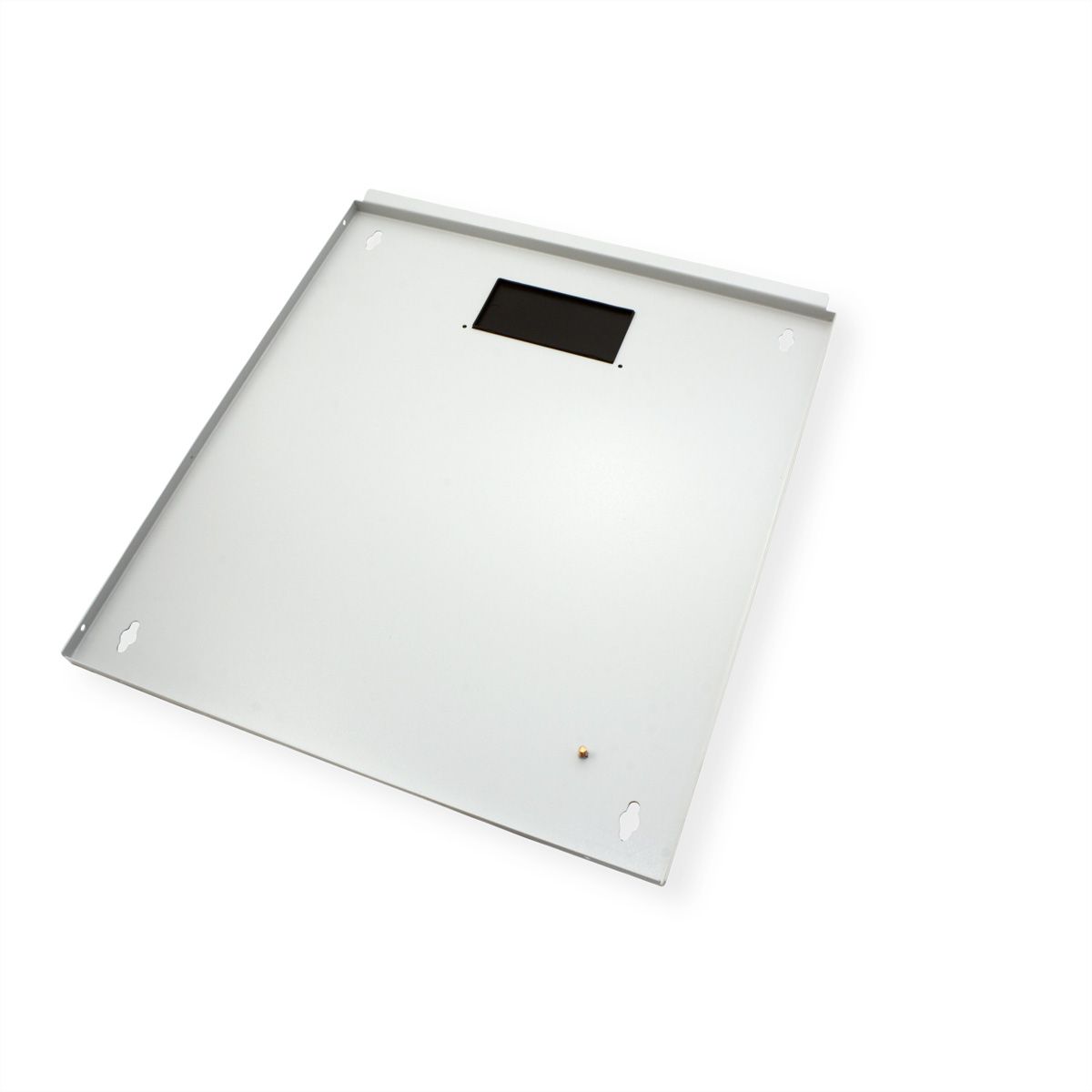

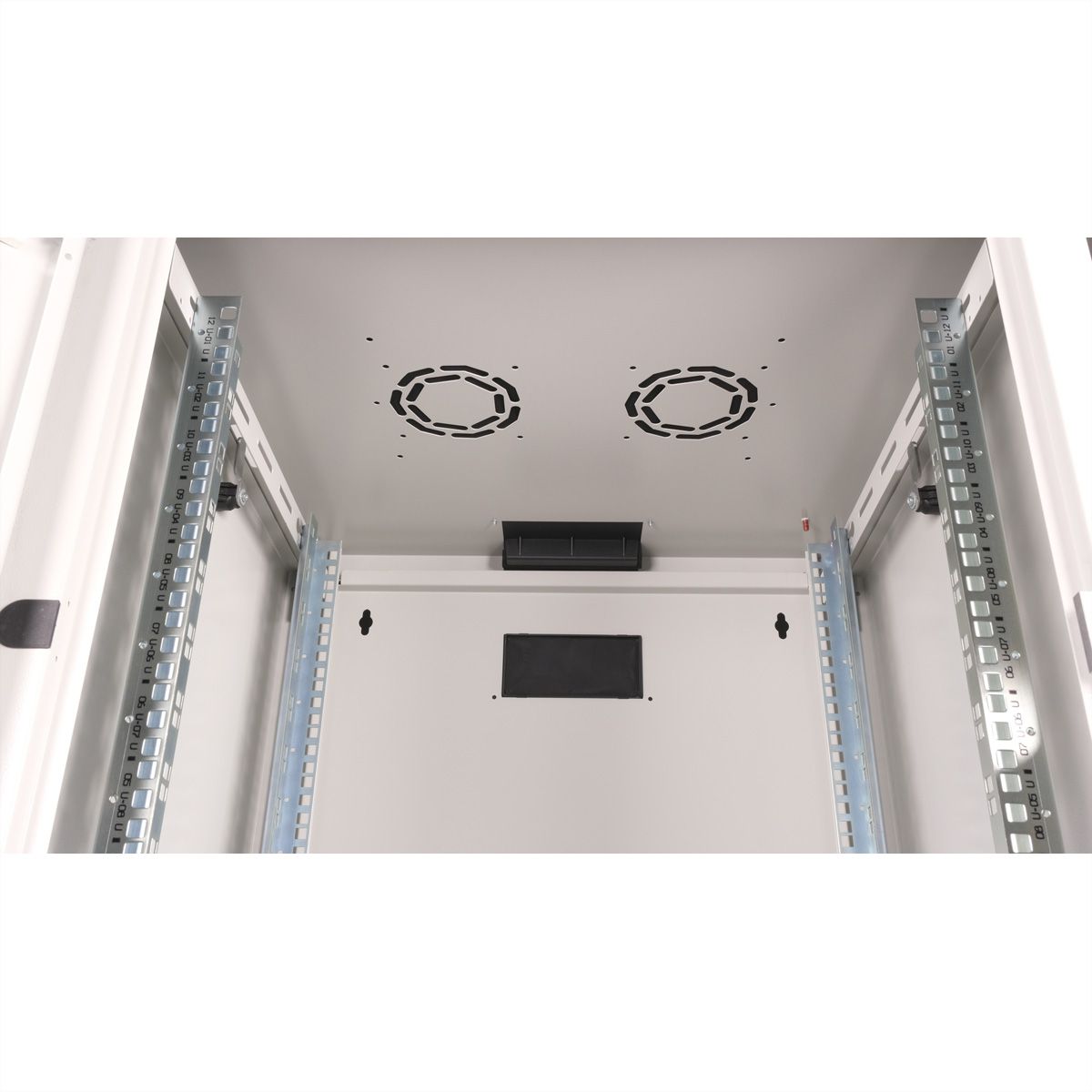

The wall-mounted enclosures in the ROLINE Pro series have been specially designed for flexible network cabling. Each enclosure has a slide-on cable inlet in the roof with a foam rubber seal. The rear panel and the base plate are equipped with punched cable inlets and plastic covers. The roof chassis has a punched-out area to accommodate a fan module. Inside, two pairs of galvanised profile rails with height units of 483 mm (19") are installed, which are also adjustable in depth. The robust steel constructions of the cabinets are made of up to 1.5 mm thick sheet steel and are available powder-coated in grey (RAL 7035) or black (RAL 9005). The side panels and front door are modular, lockable and removable, which improves accessibility. Wall mounting is carried out in two simple steps: Firstly, the rear panel is screwed to the wall and then connected to the housing. Optional levelling feet or castors can be used to make the enclosures free-standing.
Specifications
- Manufacturer
- ROLINE
- Product group
- 19"- / 10" technology
- Product type
- 19"-wall housing
- Colour
- grey
- Scope of delivery
- 19-inch wall-mounted housing Pro 12 U, earthing cable set, installation set (screws, cage nuts, washers), 2x spanners, assembly instructions
- Type of profile rail
- L-shaped
- Modular spacing
- 482.6 mm (19 inch)
- Model
- With permanent frame
- Height units
- 12 U
- Minimum rack depth supported
- 320 mm
- Maximum rack depth supported
- 450 mm
- Delivery condition
- fully assembled
- Demountable
- yes
- Material group
- Steel
- Material front door
- Glass
- Wall mountable
- yes
- Adjustable feets
- no
- Maximum weight capacity
- 100 kg
- Protection class (IP Code)
- IP20
- Soundproof
- no
- Number of doors
- 1
- With front door
- yes
- With backside door
- no
- With glazed door
- yes
- Front
- Glass door
- Rack rails
- yes
- Side panels included
- yes
- Removeable side panels
- yes
- Removable front door
- yes
- Removable back door
- no
- Ventilation
- Passive
- RAL colour
- RAL 7035 Light grey
- Height
- 640 mm
- Width
- 600 mm
- Depth
- 600 mm
- Weight
- 28 kg
- Height of packaging (single piece)
- 690 mm
- Width of packaging (single piece)
- 650 mm
- Depth of packaging (single piece)
- 650 mm
- Package weight (single piece)
- 31 kg
