The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

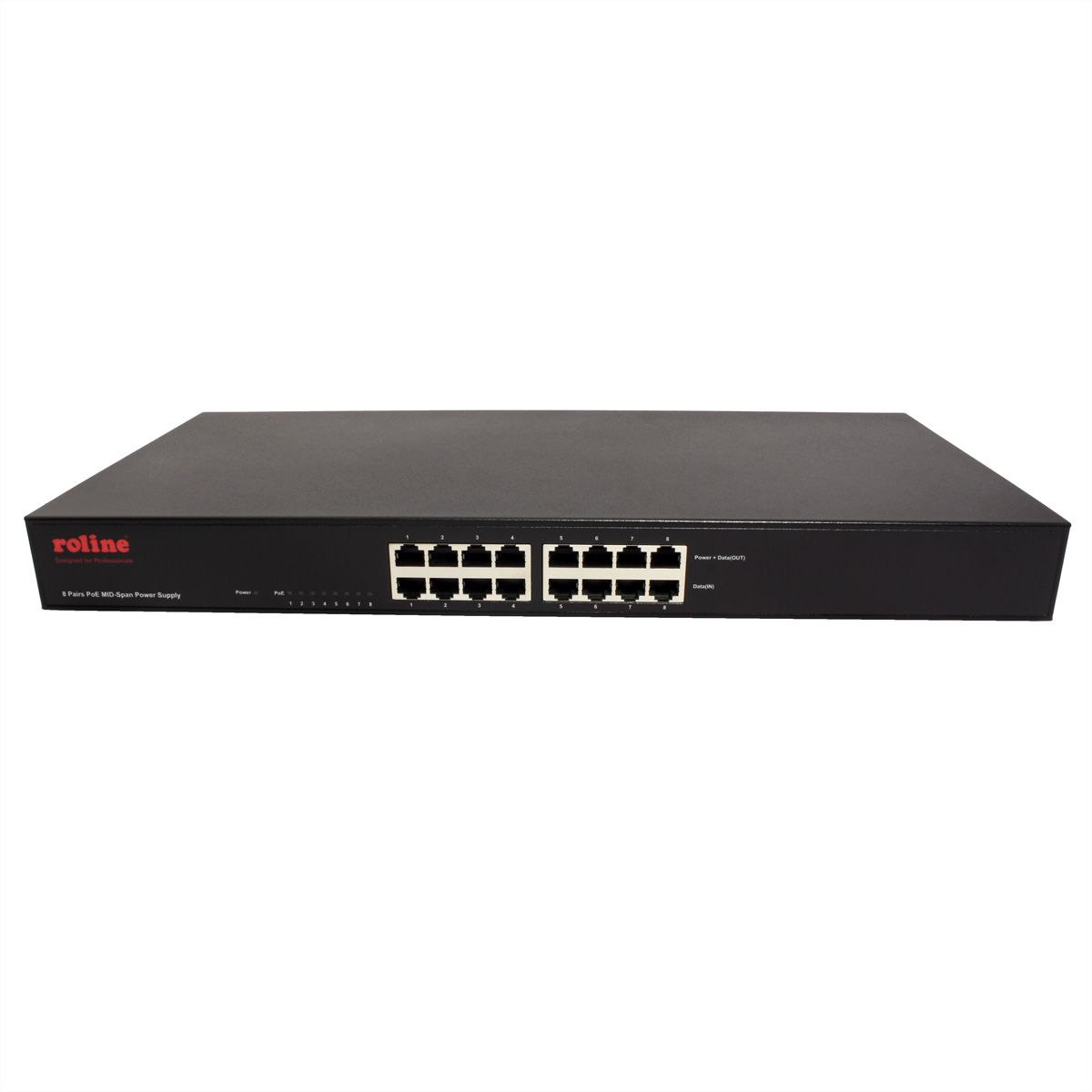

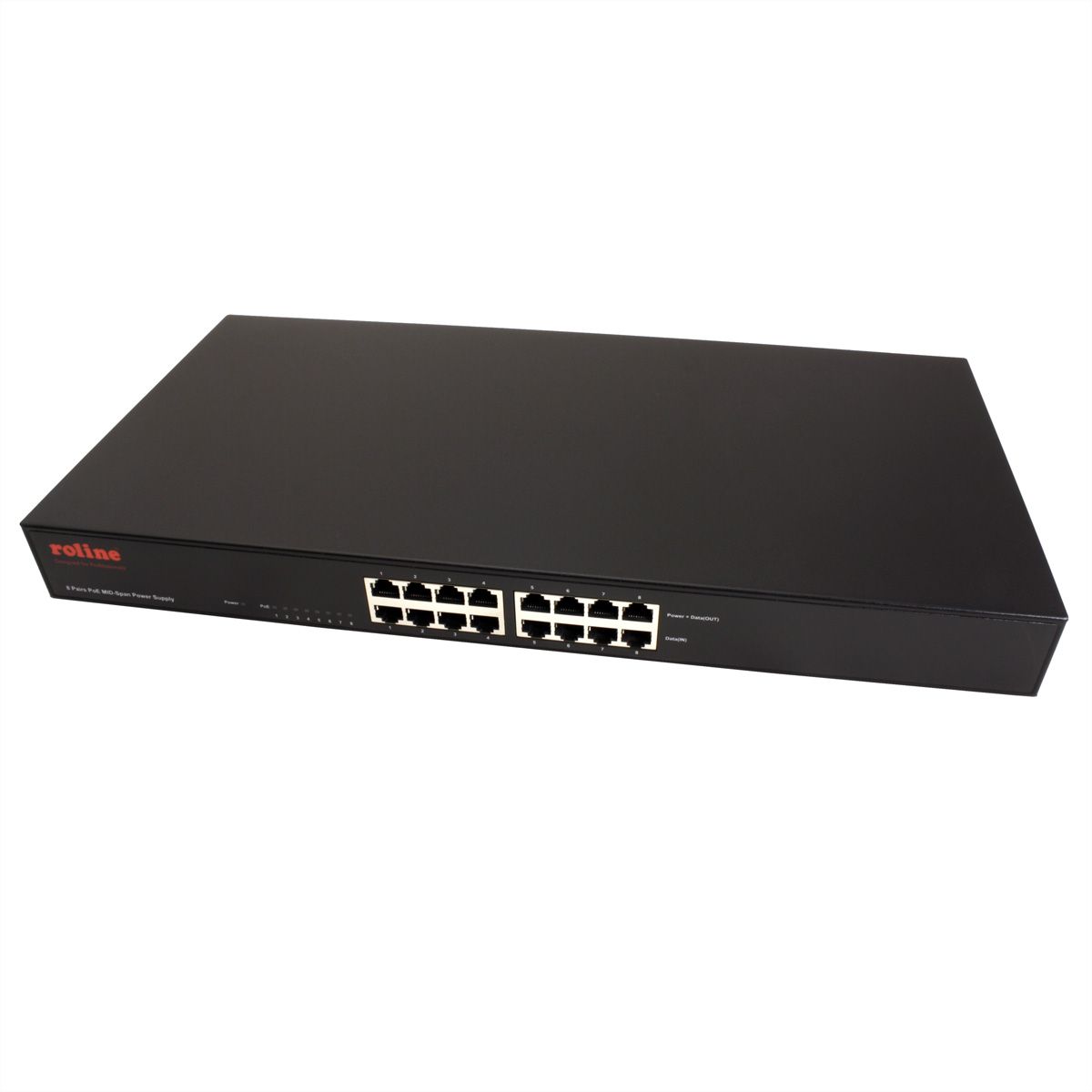

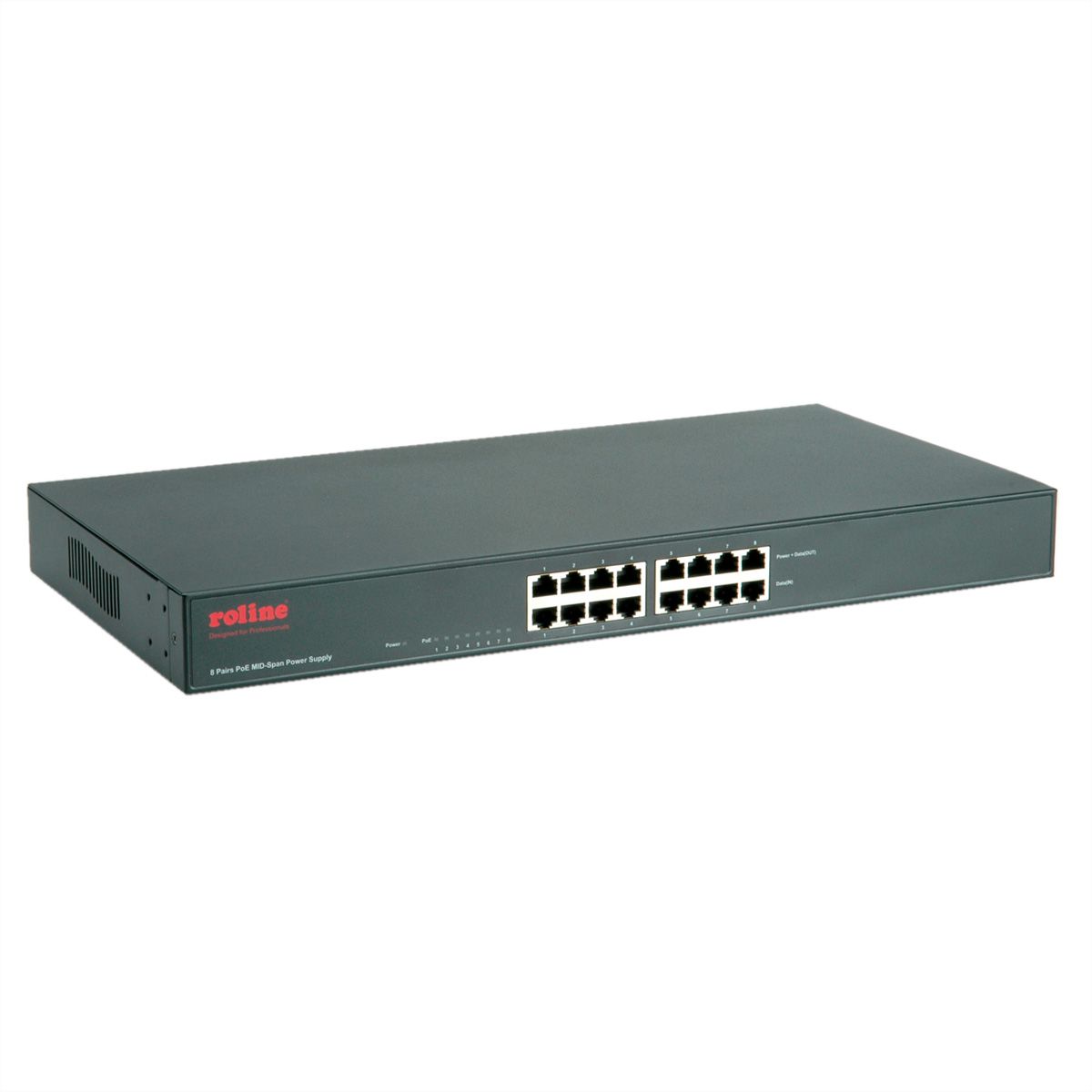

ROLINE 19" PoE MID-Span Power Supply, 8 Midspanports
Item no.
21131181
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1181
EAN
7611990198696
Item weight
3.407 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

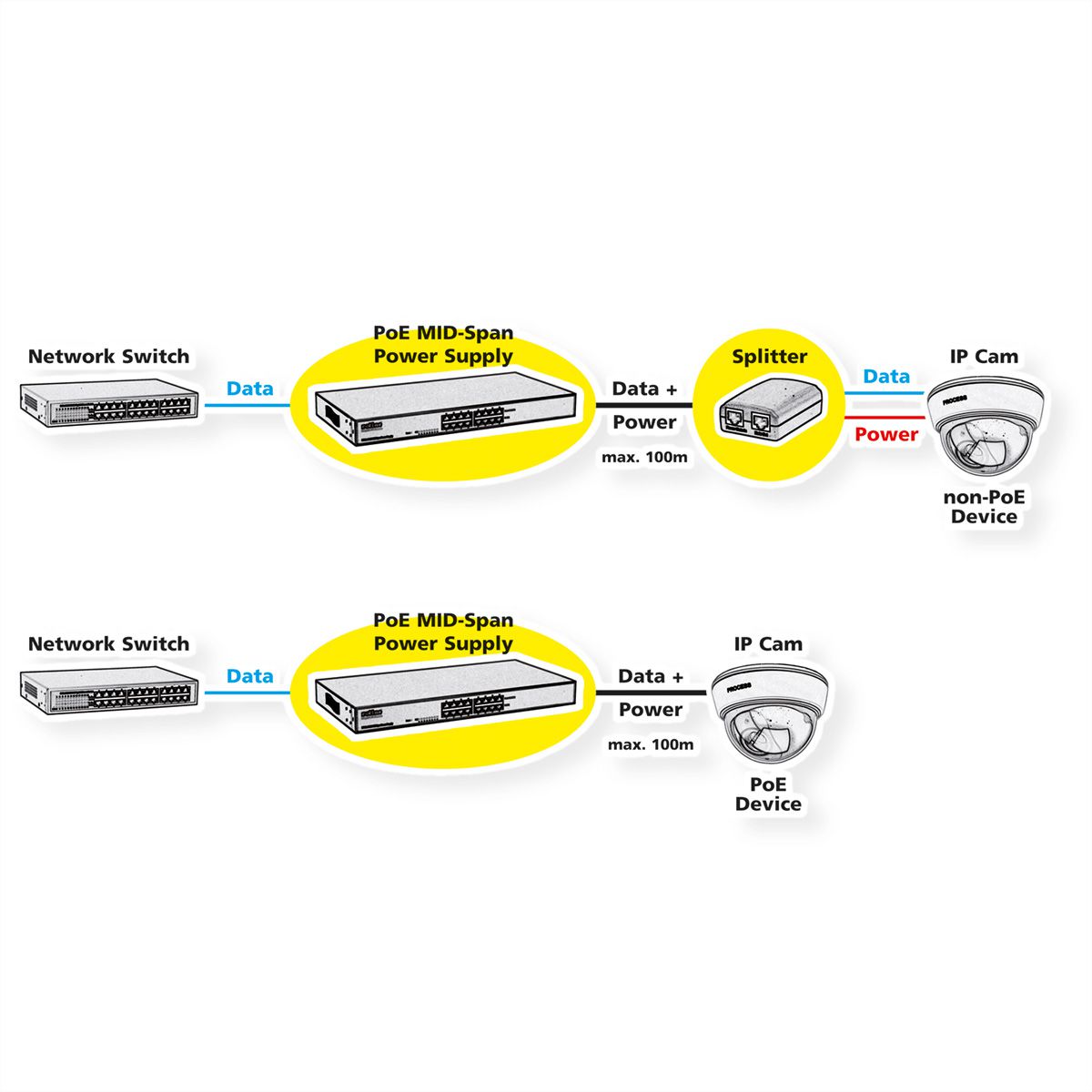

8-way injector that supplies IEEE 802.3af Power over Ethernet (PoE) compliant network accessories like e. g. workgroup switches, network cameras, access points, IP-phones with data and power over one LAN cable.
- Data-in Ports: 8x 10/100BaseTX, Data + Power-out Ports: 8x 10/100BaseTX
- Standards: IEEE 802.3 10BaseT , IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control, IEEE 802.3af PoE
- Max. power output: 48 VDC / 15.4 W per port
- PoE capable ports: Port 1-8 up to 15.4 W per port
- PoE power budget: 110 W
- Max. power consumption (without PoE): 122 W (12 W)
- Status LEDs
- Metal casing, 19" rack-mountable (rack-mount kit included)

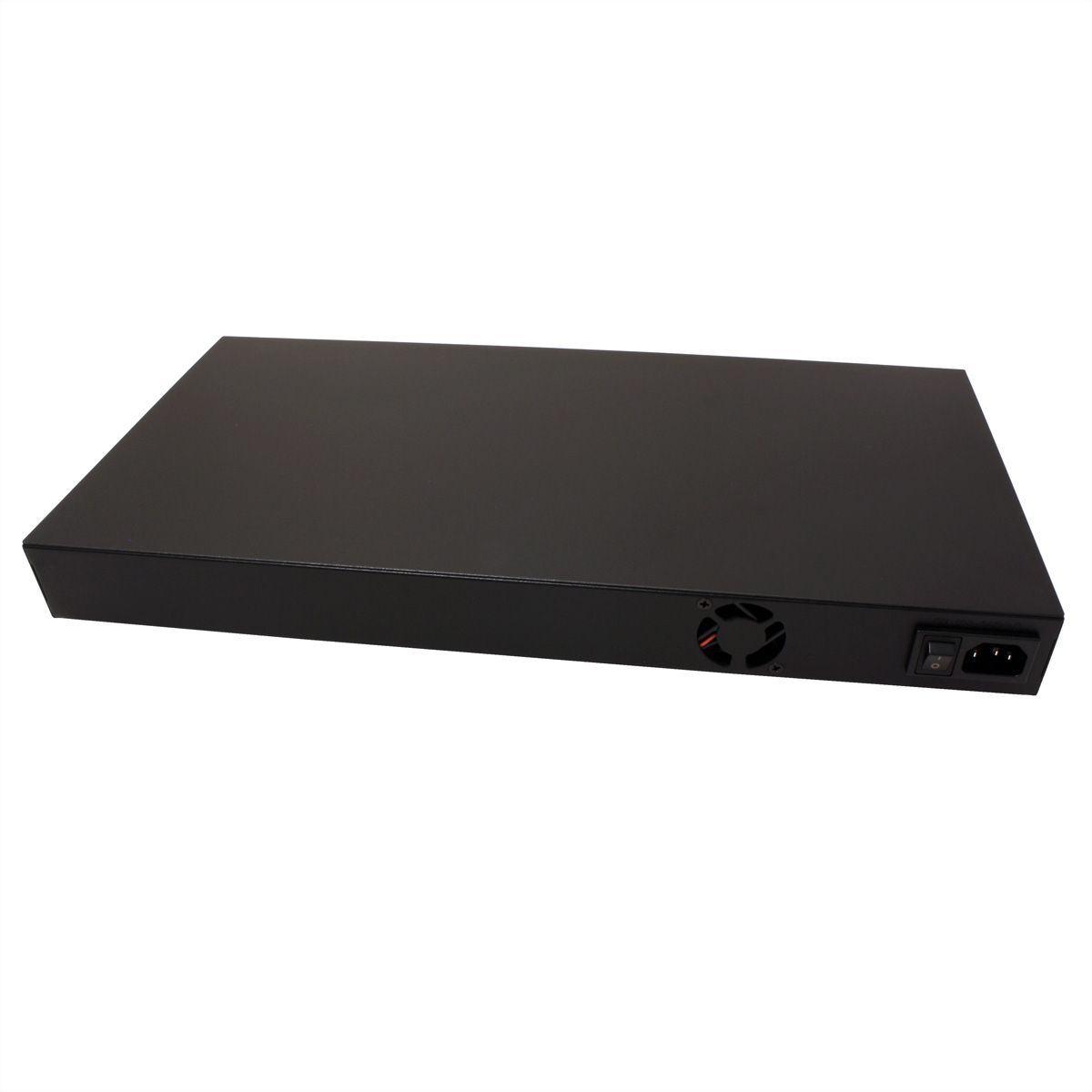

- Active cooling with integrated fan
- Internal power supply
- Dimensions (WxDxH): 440 x 220 x 44 mm
- Contents: Switch, power cord, rack mount kit, manual
Specifications
- Manufacturer
- ROLINE
- Product group
- PoE adapter
- Product type
- PoE-Injector
- Colour
- black
- Scope of delivery
- Switch, aansluitkabel, rackmount kit, handleiding
- Network standard
- Fast Ethernet
- LAN (Mbps)
- 10/100
- Quantity of ports
- 8
- Power over Ethernet (PoE)
- PoE (IEEE 802.3af)
- Quantity of PoE ports
- 8
- Max. PoE output power per port
- 15.4 W
- Max. PoE output power (total)
- 110 W
- Mounting form
- 19" Rackmount
- Mounting angle
- 2
- Mains connection
- Cold appliance connection
- Height
- 44 mm
- Width
- 440 mm
- Depth
- 220 mm
- Weight
- 2.7 kg
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 310 mm
- Depth of packaging (single piece)
- 500 mm
- Package weight (single piece)
- 3.407 kg
Downloads
Product data sheet - English (43.8 KB) Manufacturer data sheet - English (1.7 MB) User manual - Français (352.0 KB) User manual - Deutsch (565.1 KB) User manual - English (737.1 KB) Safety instructions - Deutsch (383.9 KB) Safety instructions - English (383.9 KB) Safety instructions - Français (383.9 KB)
