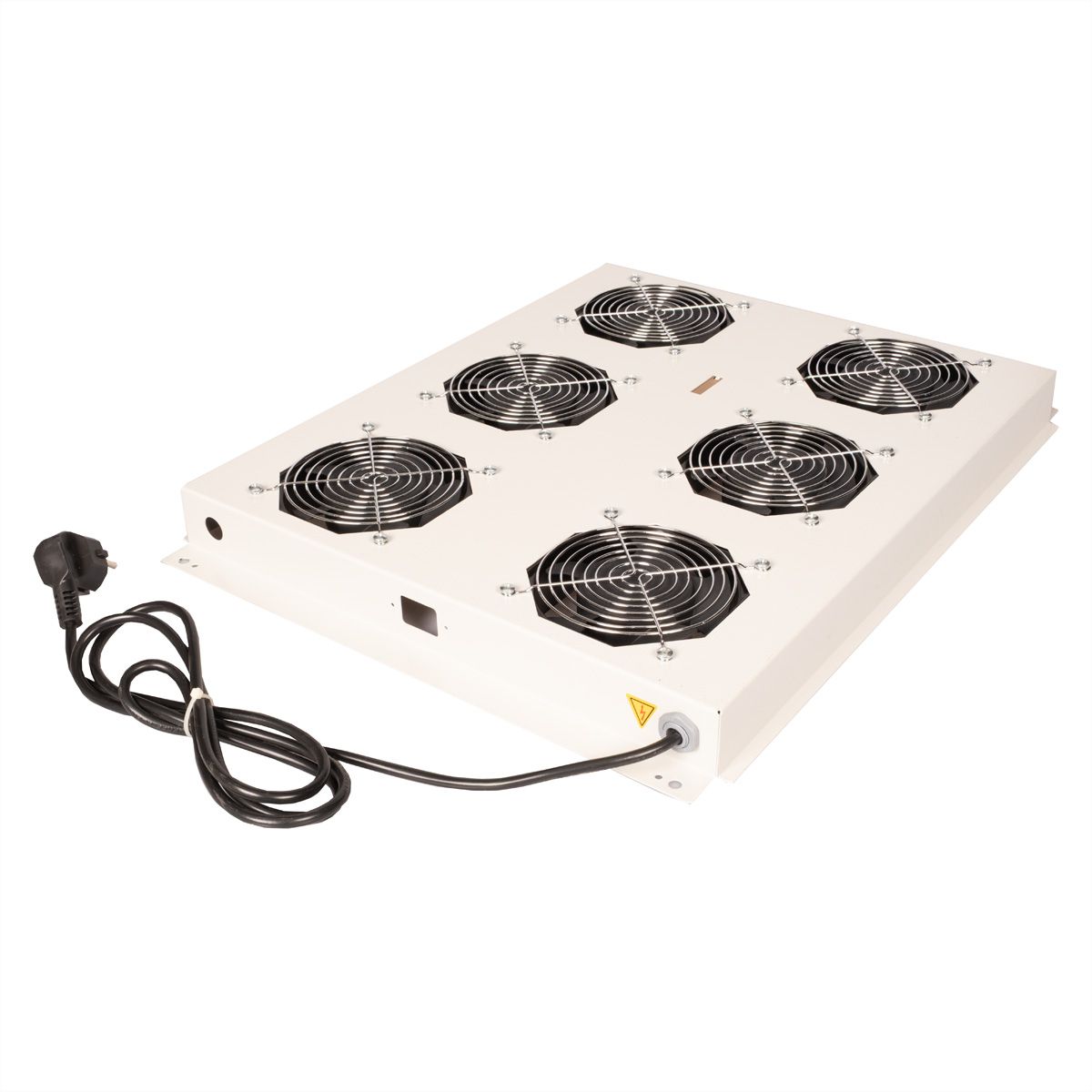

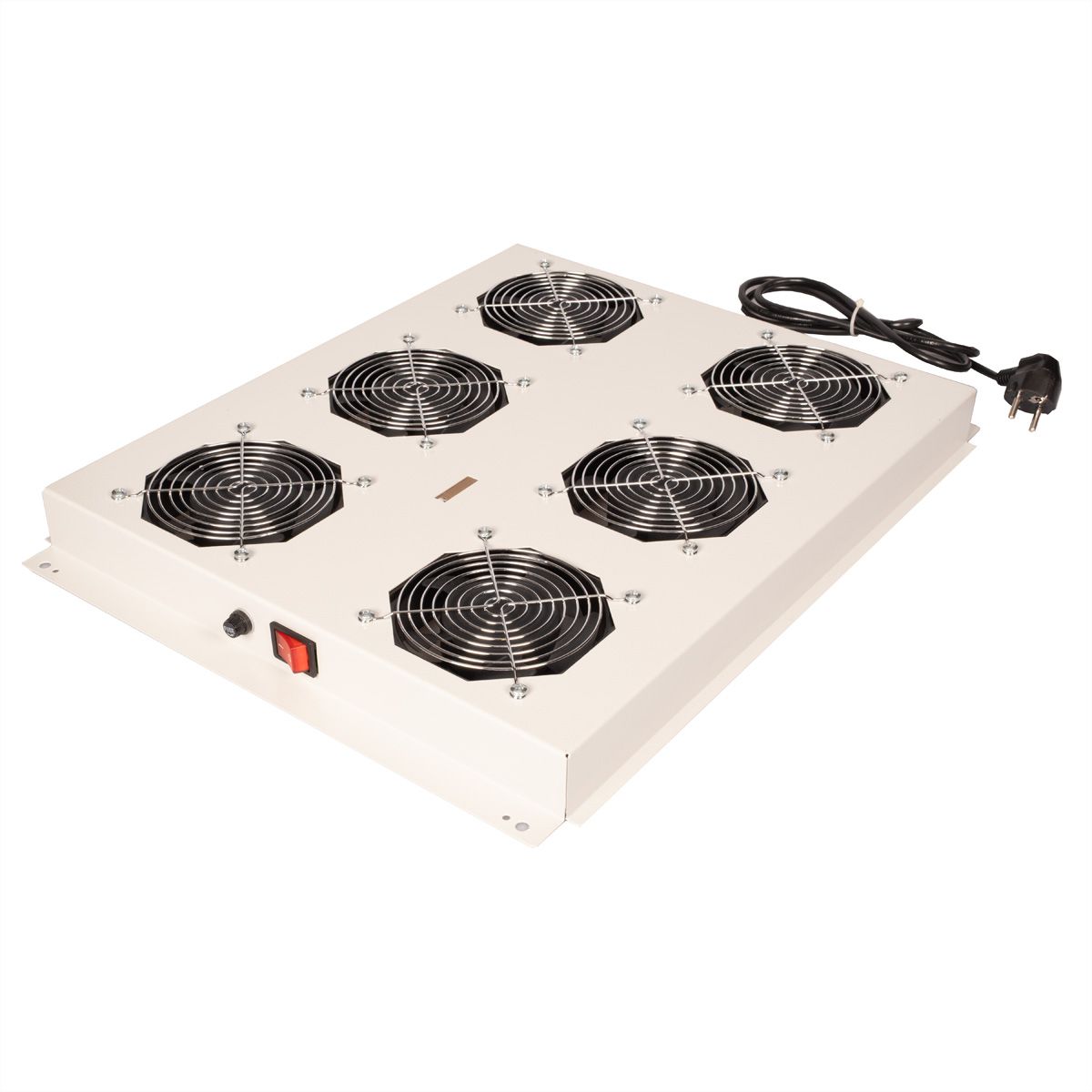

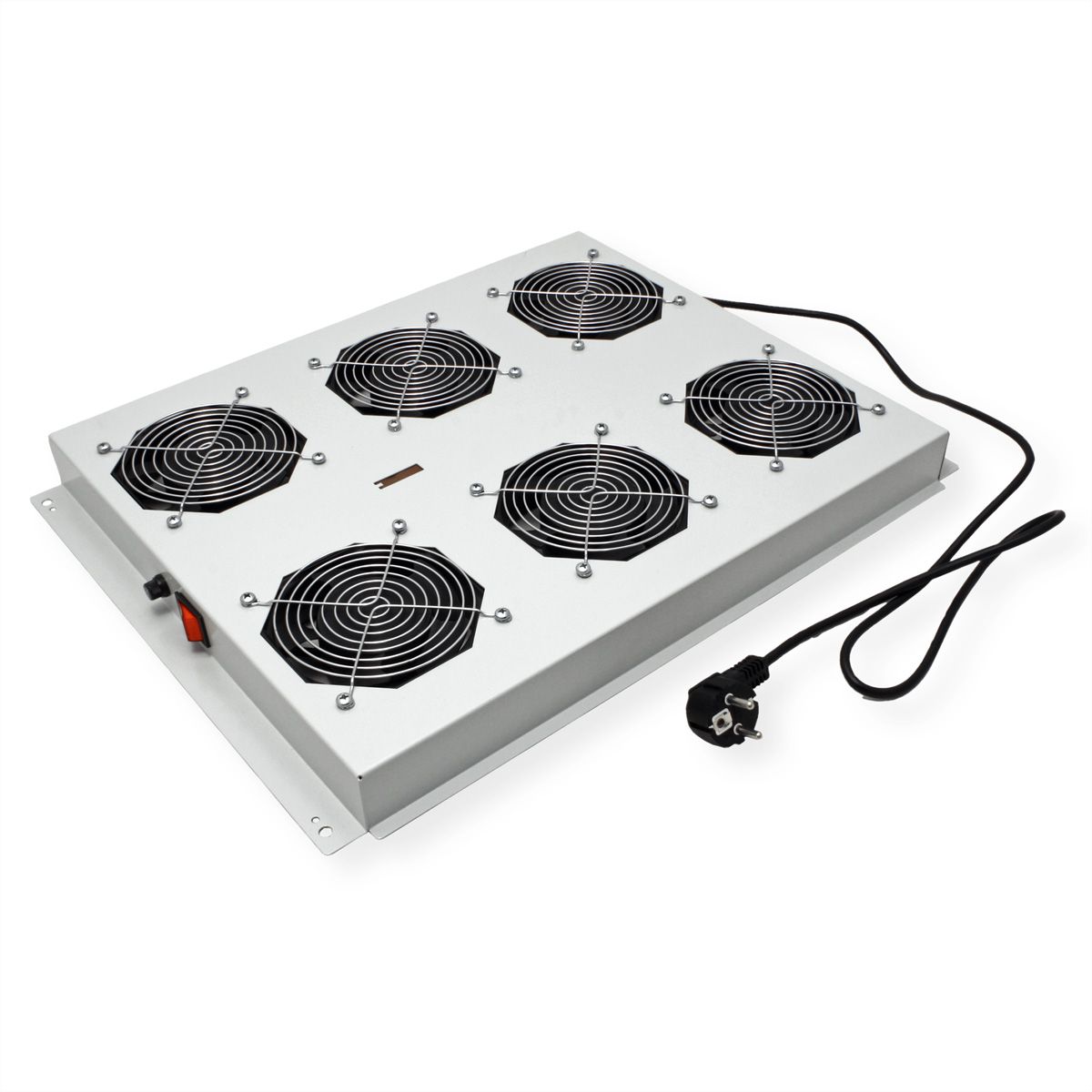

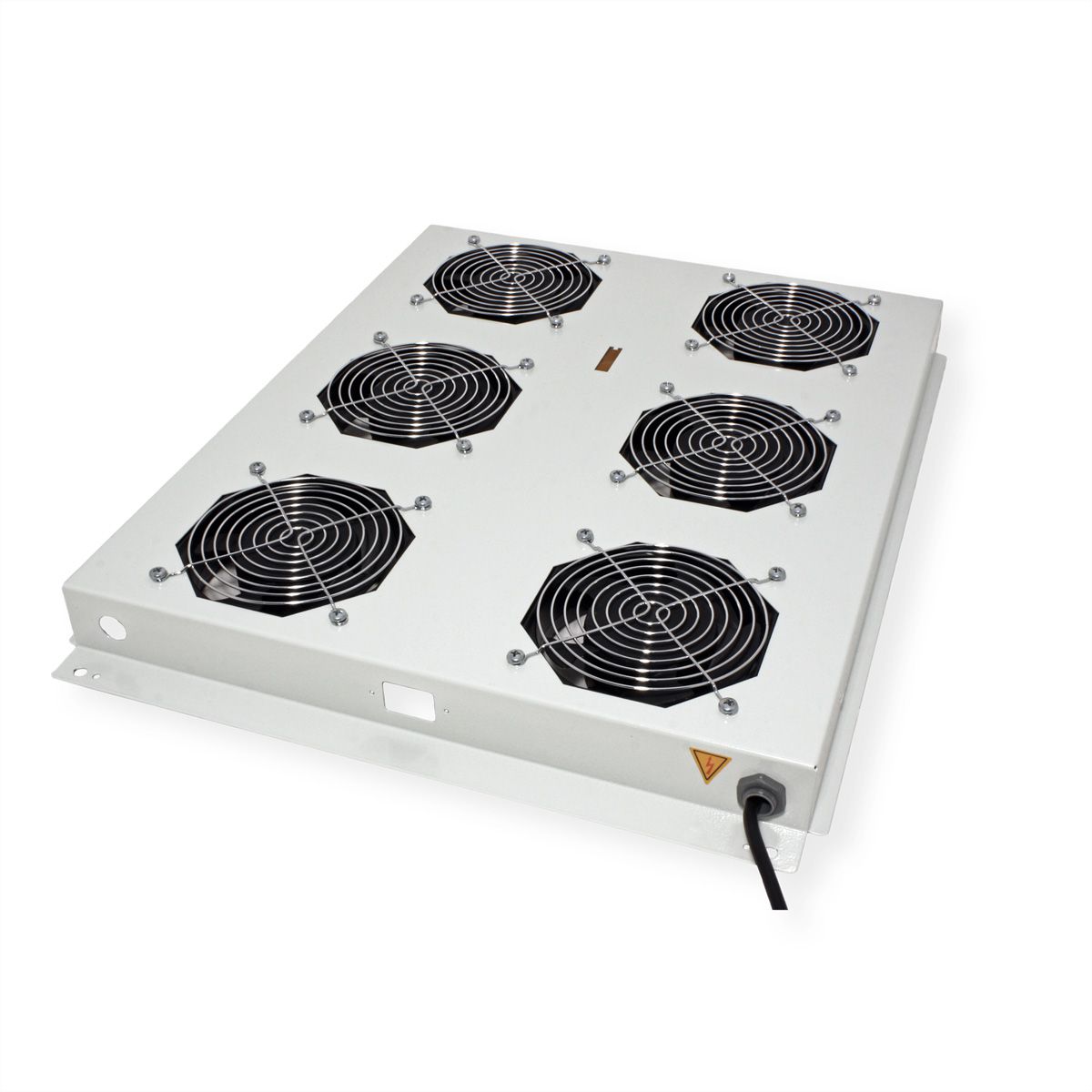

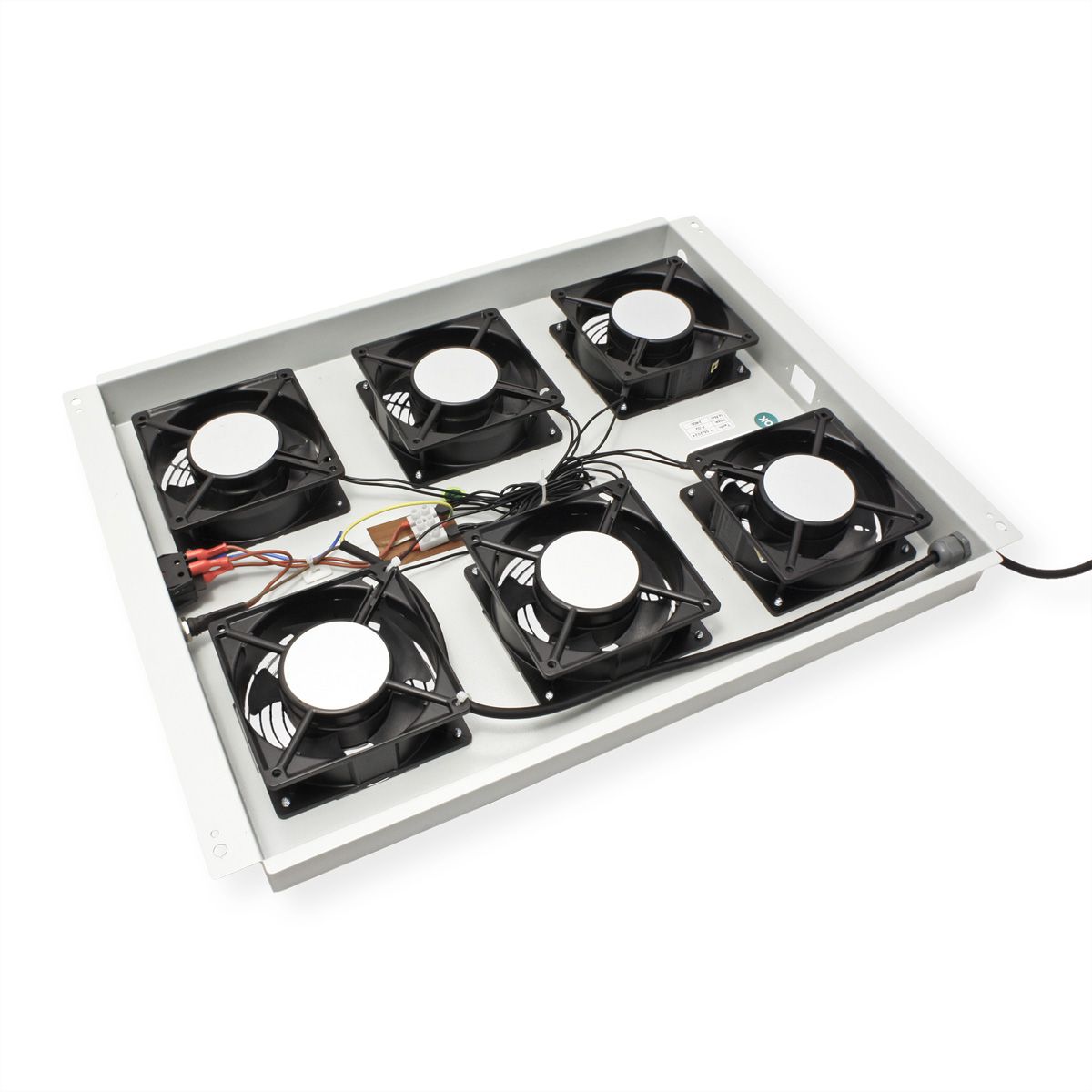

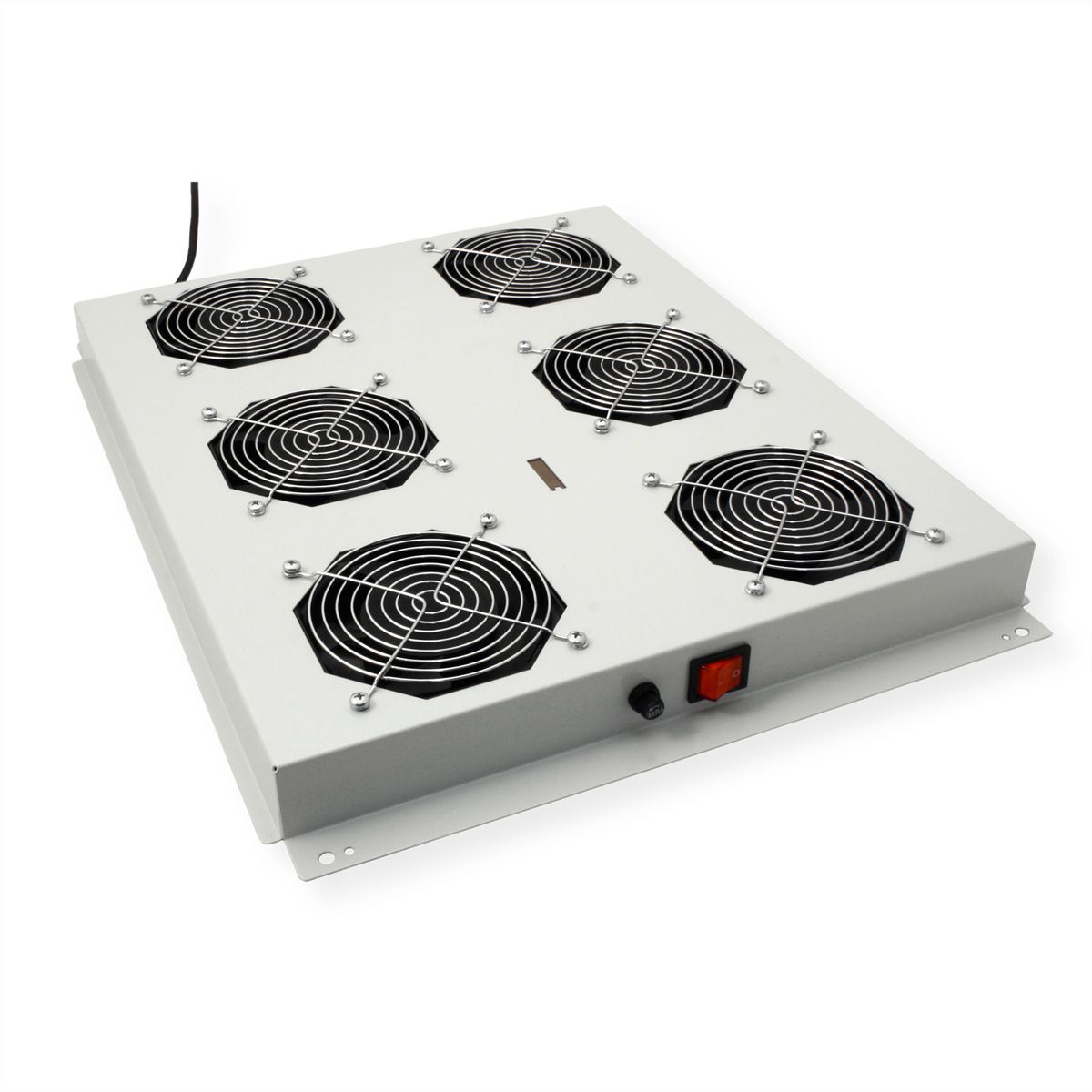

ROLINE 19" roof fan unit with 6 fans, ON/OFF for server rack PRO series, grey

Item no. 26210309 Brand / Manufacturer ROLINE Manuf. item no. 26.21.0309 EAN 7630049603233 Item weight 6 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

ROLINE 19-inch roof-mounted fan units, ON/OFF, for server racks

The roof-mounted fan units can be used flexibly in any ROLINE 19’ server cabinet Pro series. Each fan unit is supplied with a mounting kit. An additional ON/OFF switch offers additional application options. The model is available in the standard colours grey (RAL 7035) and black (RAL 9005) and can be equipped with either four or six fans.

Specifications

Manufacturer
ROLINE
Product group
19"- / 10" technology
Product type
19"-Cabinet ventilation
Colour
grey
Scope of delivery
roof fan unit, mounting material
Modular spacing
482.6 mm (19 inch)
Material group
Steel
Ventilation
Active
Number of integrated fans
6
Fan power consumption
per fan: 18 W ± 10%
RAL colour
RAL 7035 Light grey
Mains connection
Protective contact plug, Type-E/F
Height
50 mm
Width
420 mm
Depth
530 mm
Weight
5555 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
430 mm
Depth of packaging (single piece)
560 mm
Package weight (single piece)
6 kg
