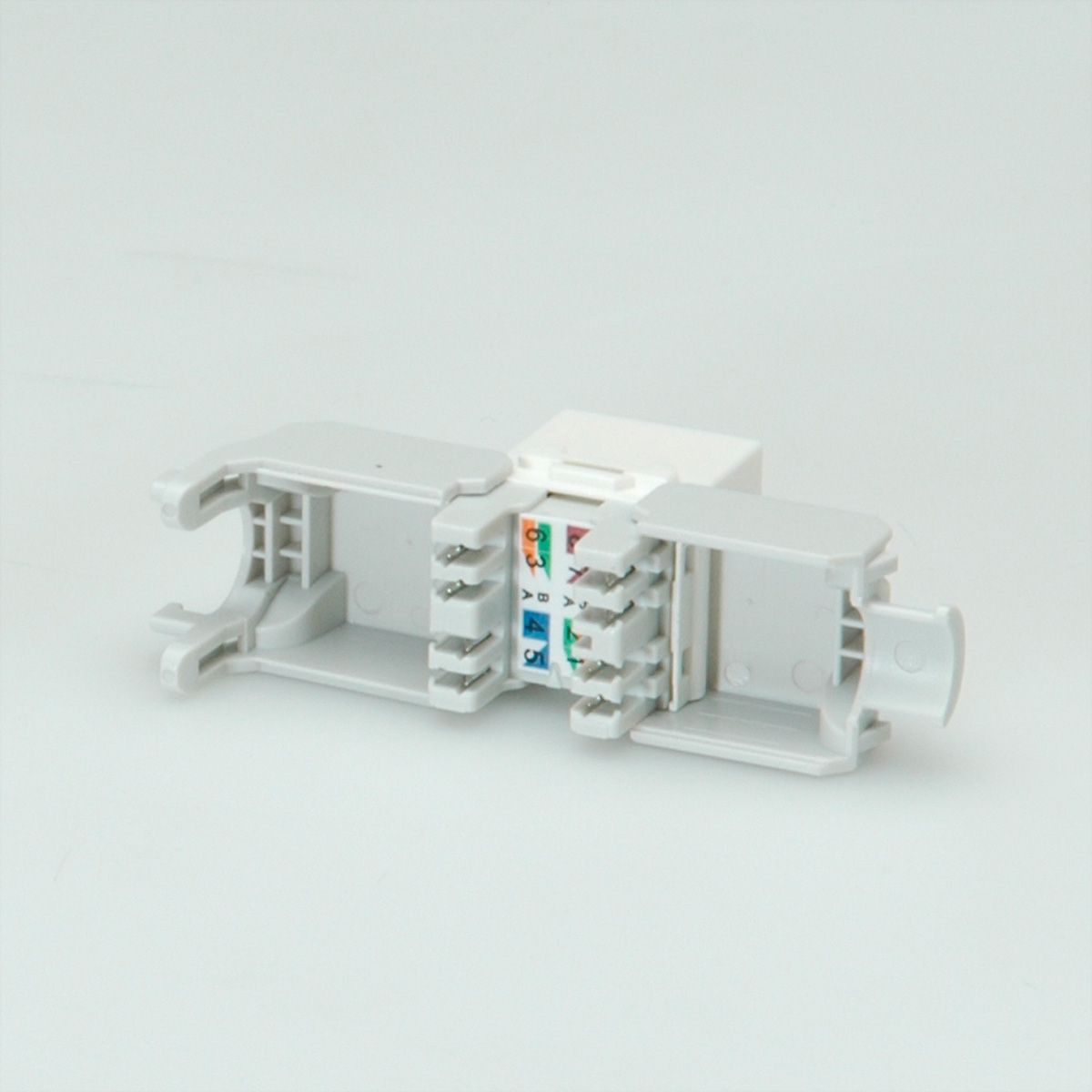

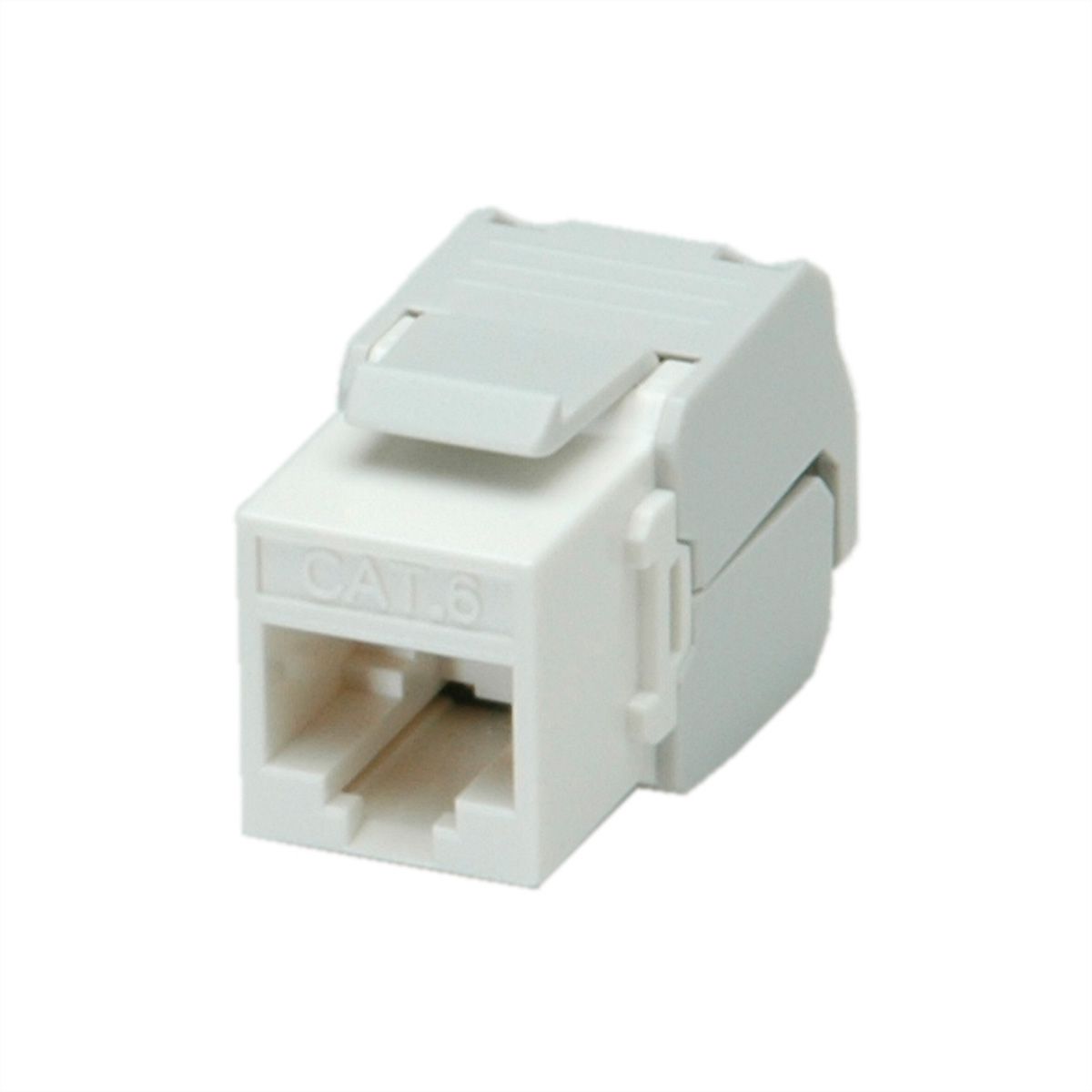

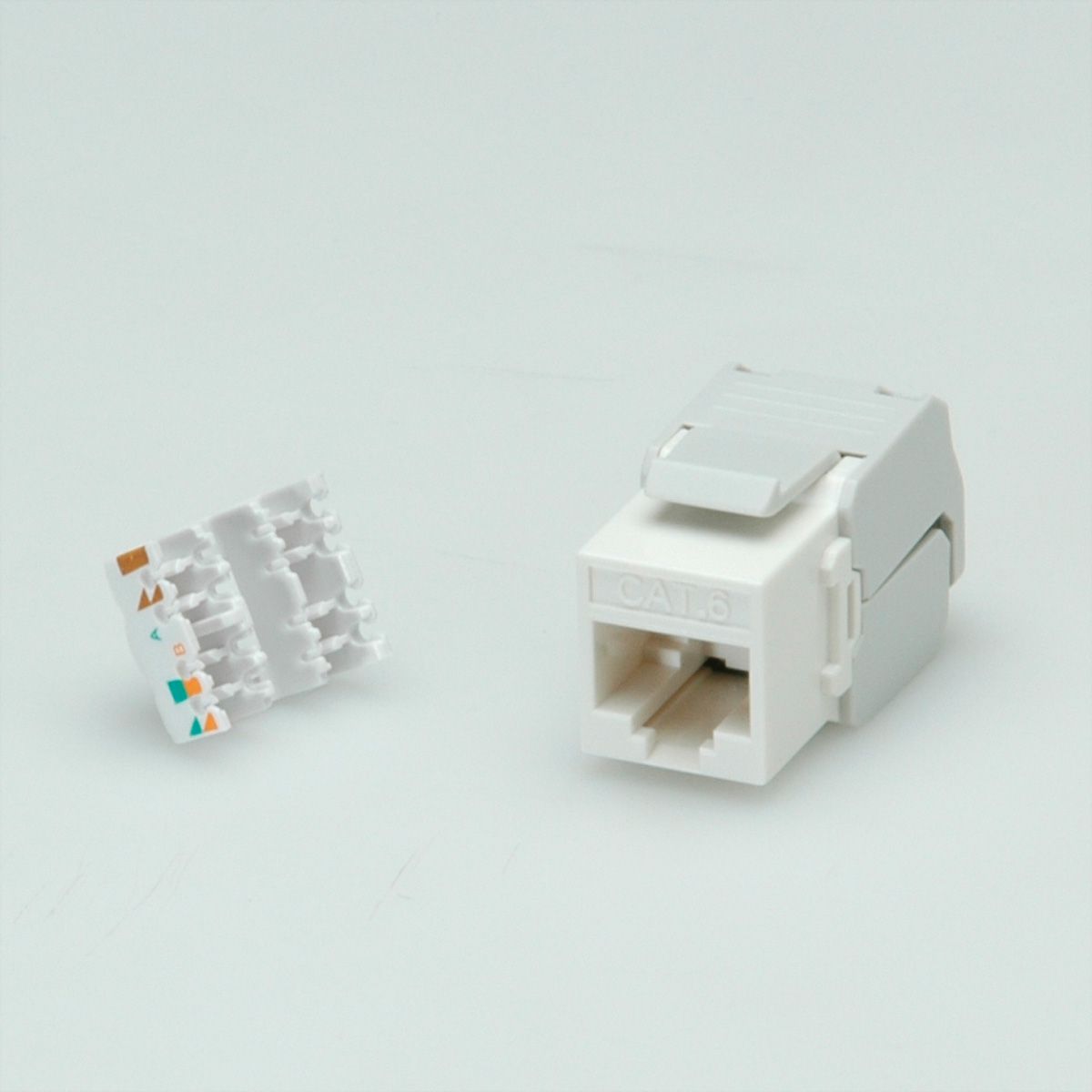

ROLINE Cat.6 (Class E) Keystone Jack, RJ-45, UTP, tool-free, white, white

Item no. 26110353 Brand / Manufacturer ROLINE Manuf. item no. 26.11.0353 EAN 7611990170562 Item weight 0.009 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

ROLINE Keystone in Cat.6 Quality for use in a Gigabit network

  • The system is composed of a 19" patch panel frame and the UTP Cat.6 RJ-45 keystone jacks
  • Assembling of cables and keystones takes place over LSA-plus or toolless
  • Colour code on the keystone jacks, based on the standard EIA/TIA 568 A and 568 B
  • Colour: White

For a structured unshielded Cat.6 cabling system we recommend to use the following components:

ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0989
Flush Mount Wall Jack for Keystones, unloaded: 25.16.8579
ROLINE Cat.6 Keystone, RJ-45, unshielded: 26.11.0352 (black), 26.11.0353 (white)
19" Keystone Patch Panel, 24 Ports, unshielded: 26.11.0356 (light grey), 26.11.0357 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ45 Keystone Jack
Colour
white
Scope of delivery
1x Keystone
Shield type
Not screened
Transfer quality
Cat6 / Class E
Quantity of ports
1
Assembly cable connection
Krone LSAplus
Assignment
EIA/TIA 568A & 568B
Connection direction
Straight
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Height
23 mm
Width
16 mm
Depth
38 mm
Weight
7.6 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
30 mm
Depth of packaging (single piece)
40 mm
Package weight (single piece)
0.009 kg

Downloads

Product data sheet - English (38.0 KB) Manufacturer data sheet - English (186.2 KB) User manual - Deutsch (2.2 MB) User manual - Français (2.1 MB) User manual - English (2.2 MB)
