Item no.:25168587Herst.-Art.-Nr.:25.16.8587

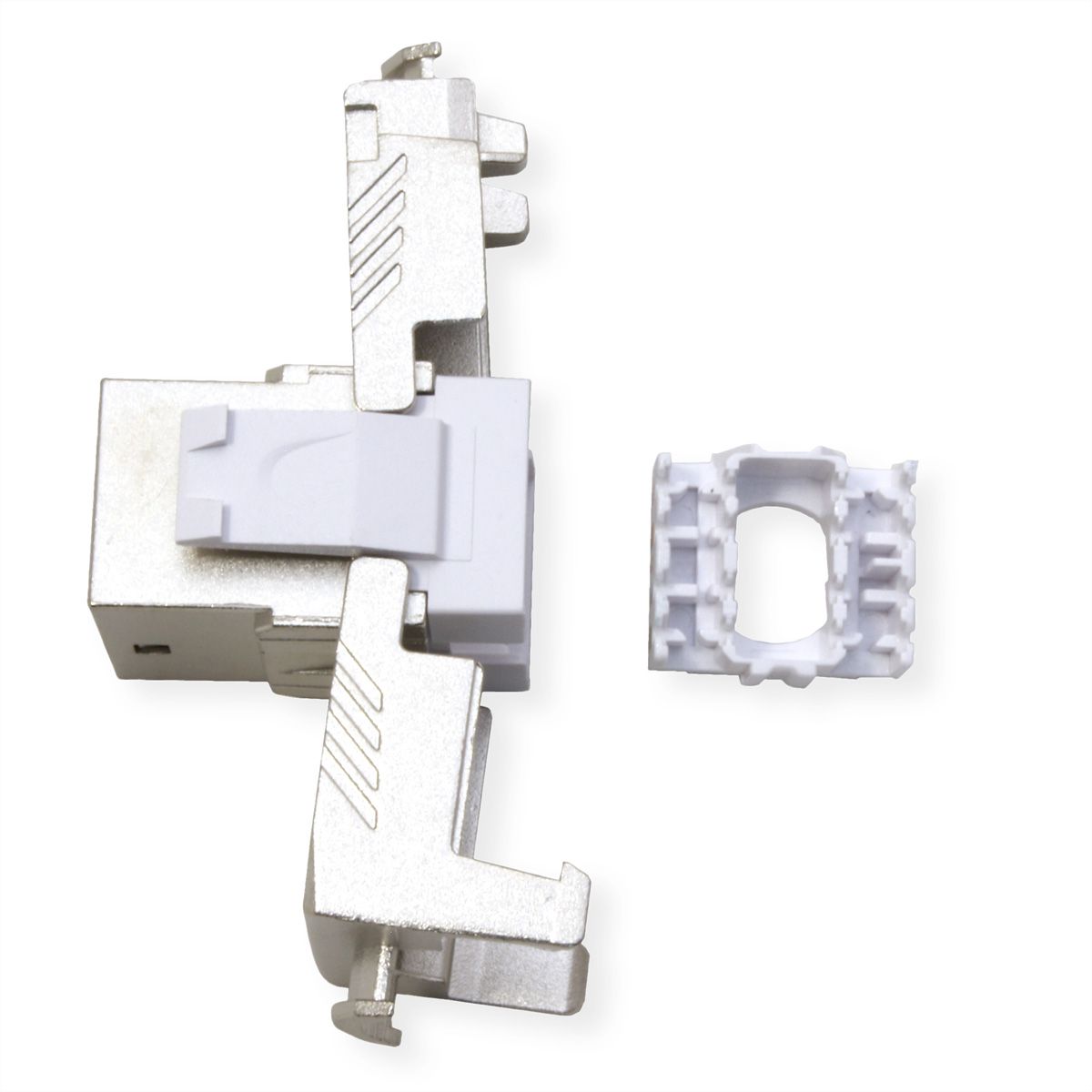

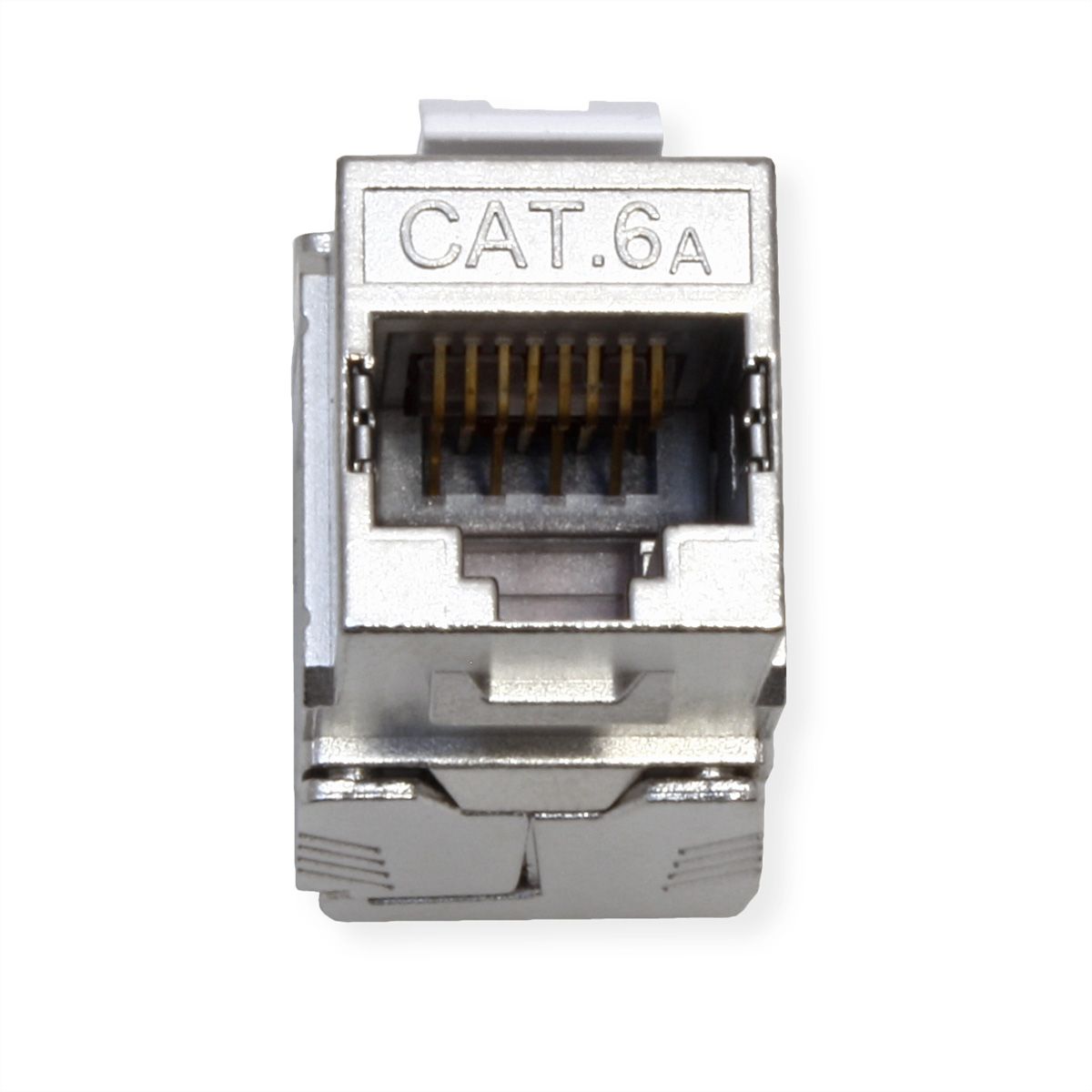

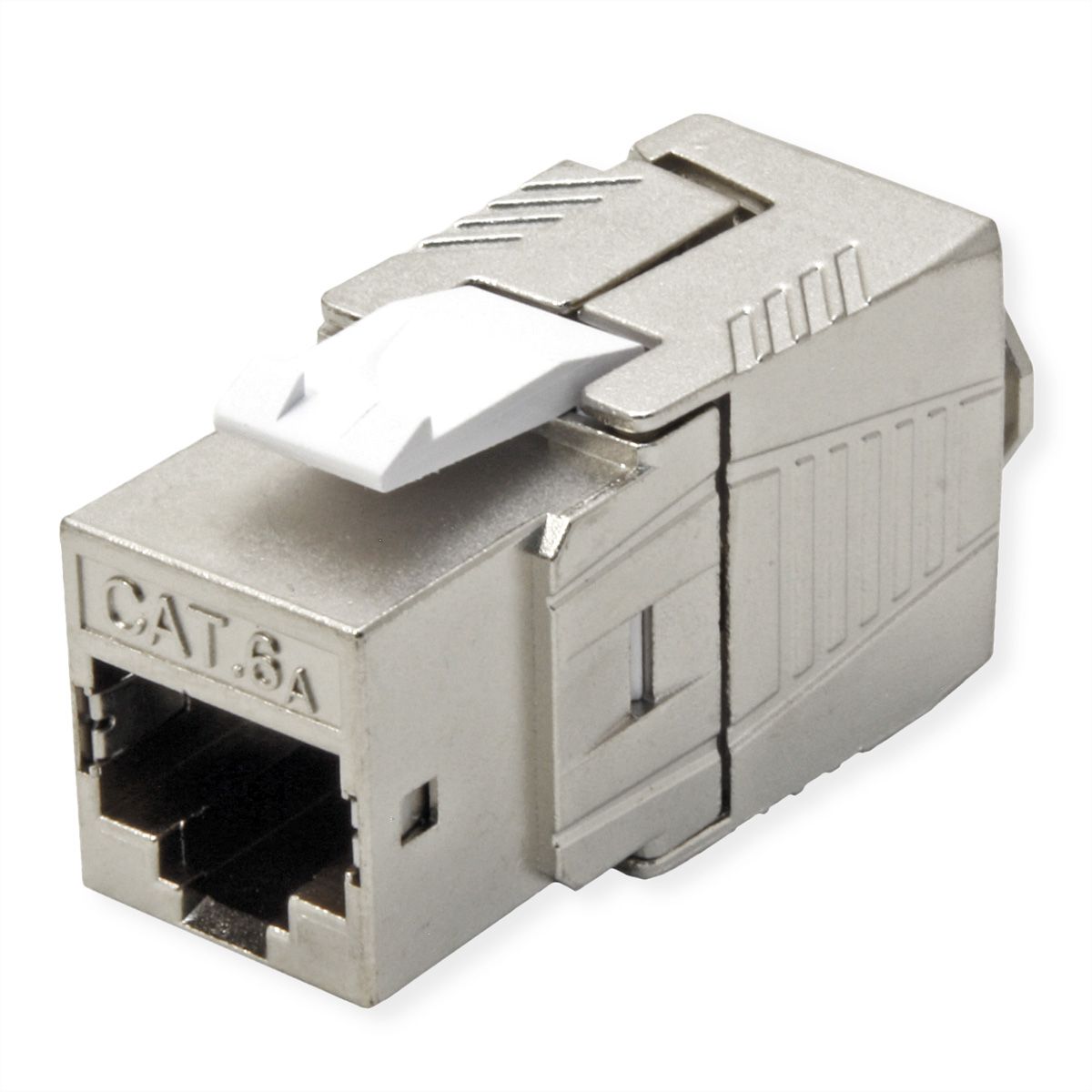

ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver
Item no.
21170327
Brand / Manufacturer
ROLINE
Manuf. item no.
21.17.0327
EAN
7630049628908
Item weight
0.02 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

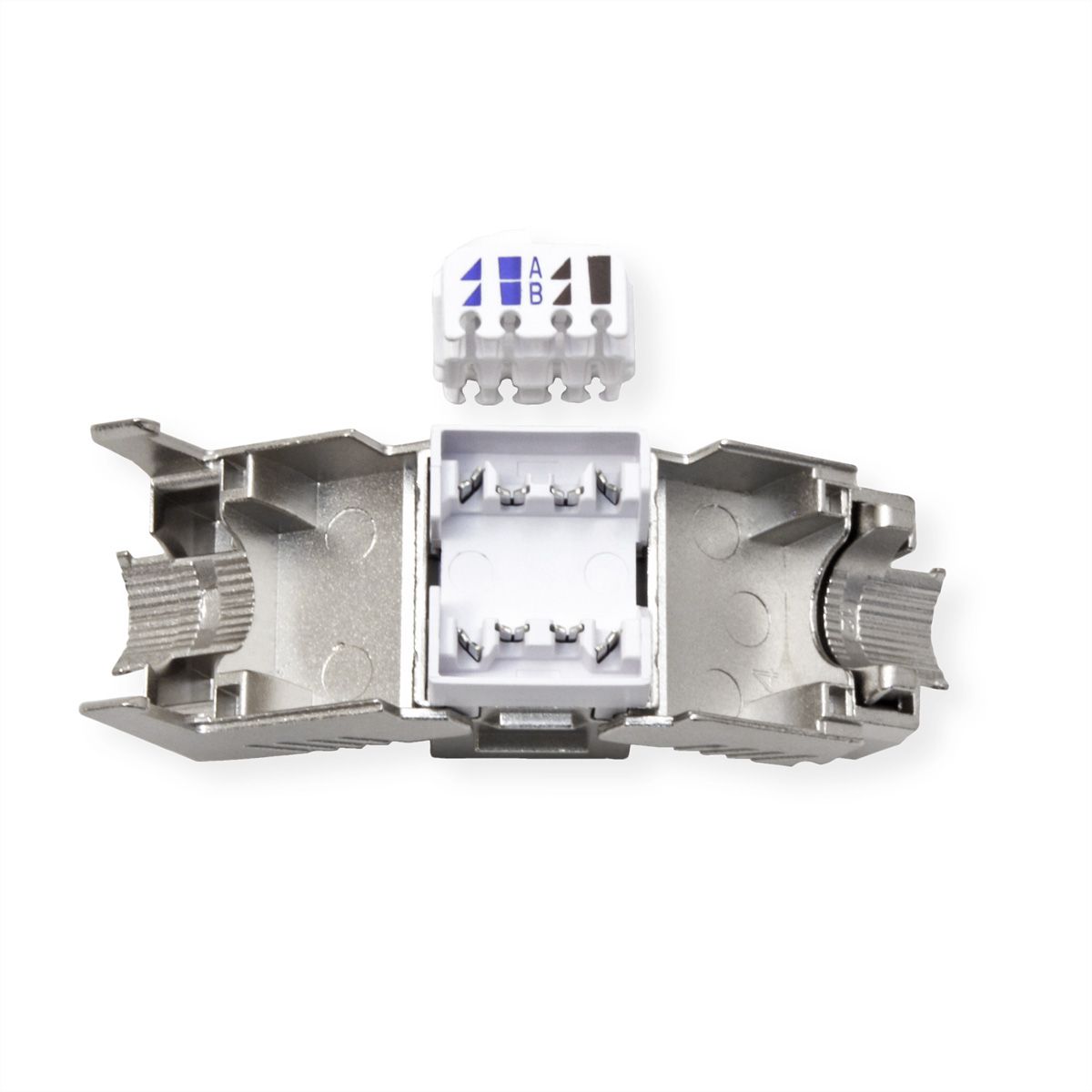

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- 180 degree cable entry
- Supports PoE per IEEE 802.3af,PoE+ per IEEE 802.3at
- For cables with AWG 23-26
- For cables with OD: 5.5-9.0 mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 41.6×16.5×20.3mm
GHMT certified
Specifications
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Technical particularity
- GHMT certified
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 20.3 mm
- Width
- 16.5 mm
- Depth
- 41.6 mm
- Weight
- 22 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 40 mm
- Package weight (single piece)
- 0.02 kg
Compatible with
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/roline.png "ROLINE Logo")
The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
