Item no.:25168587Herst.-Art.-Nr.:25.16.8587

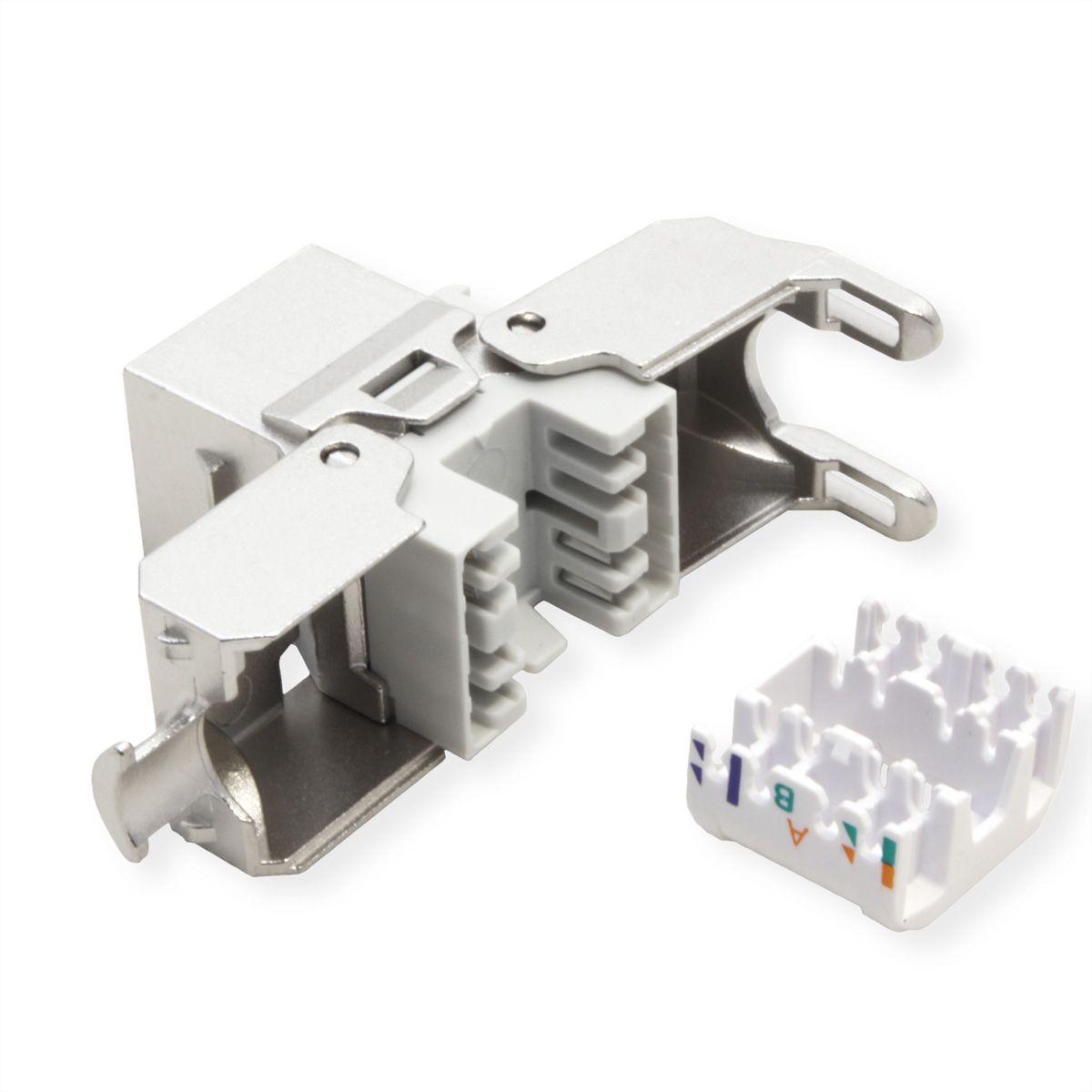

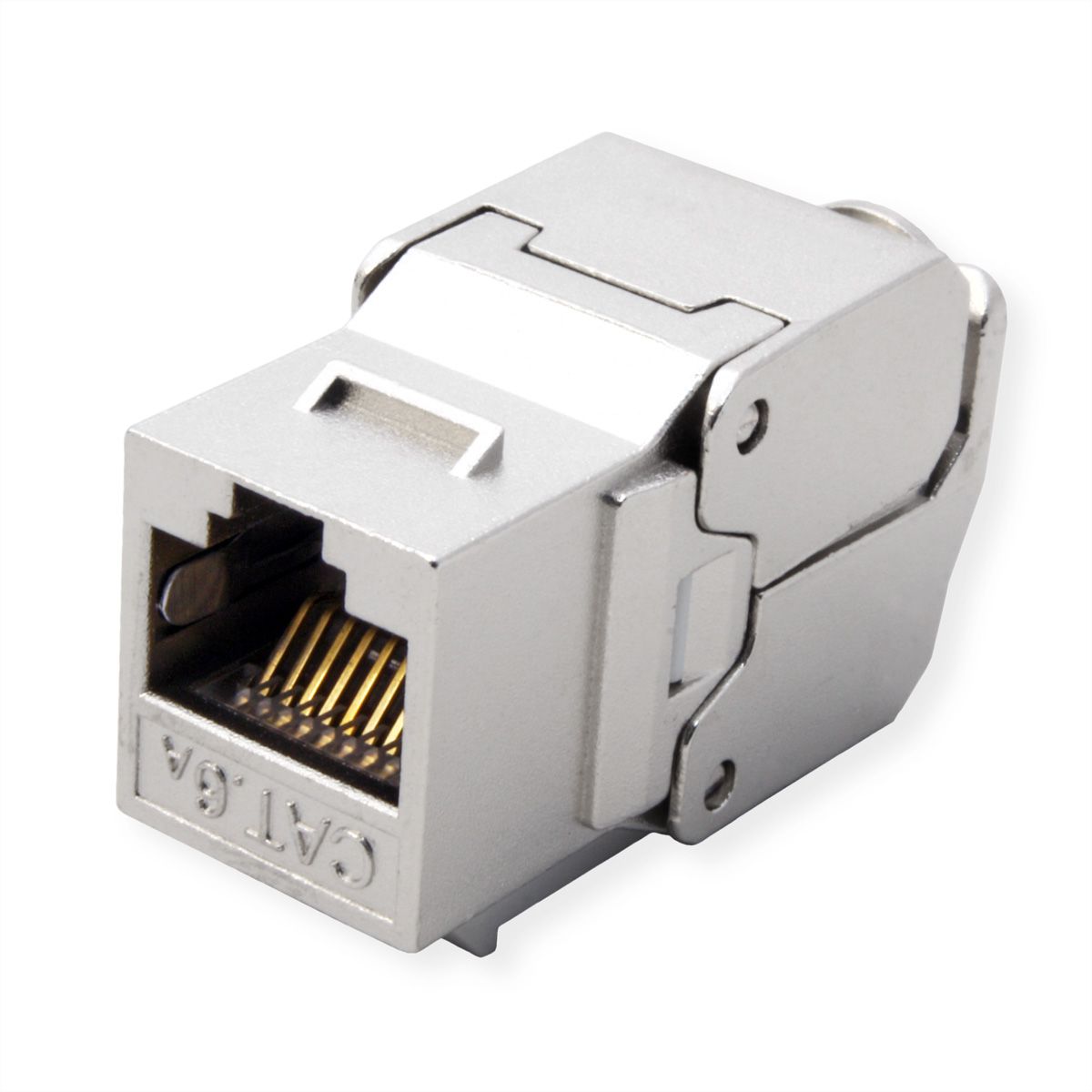

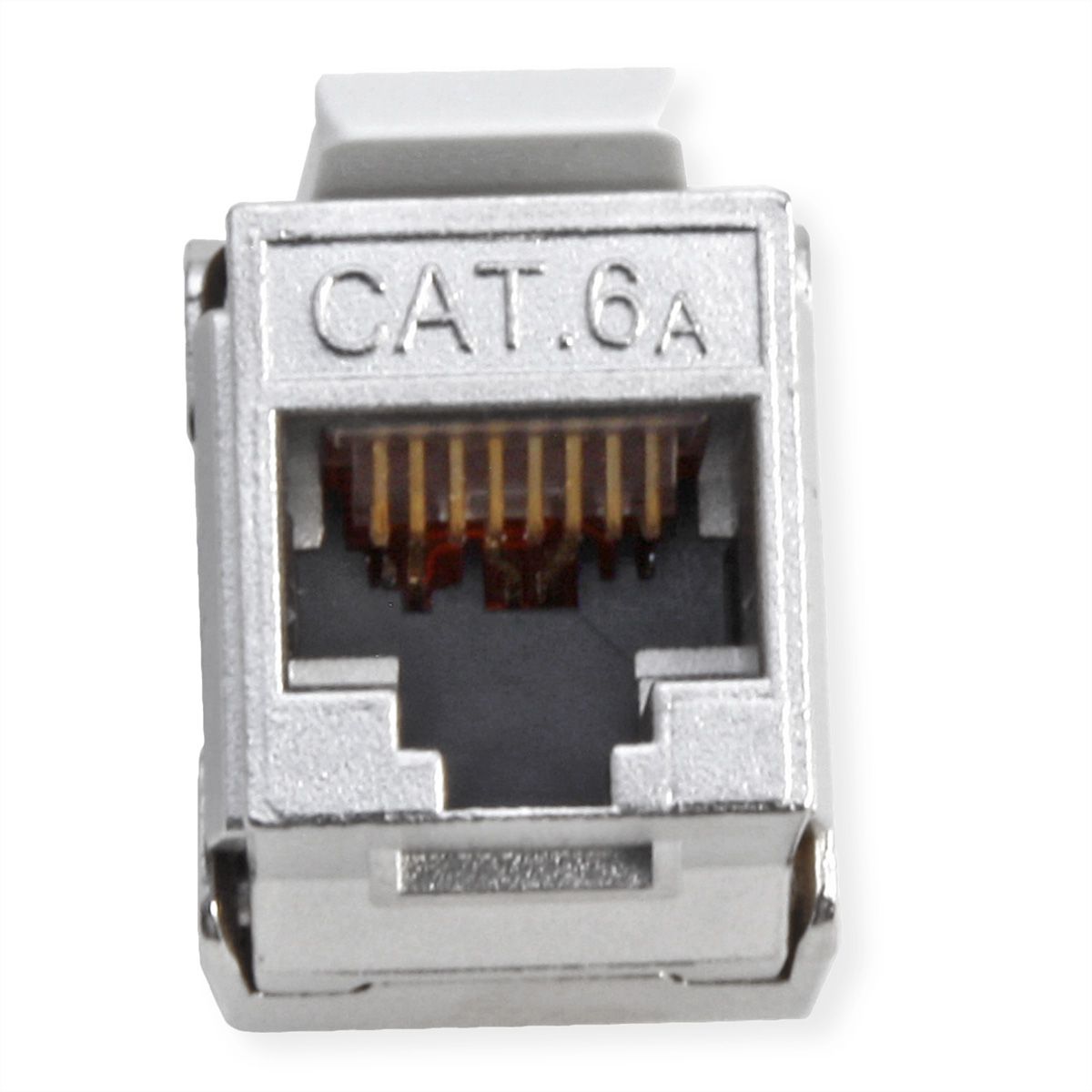

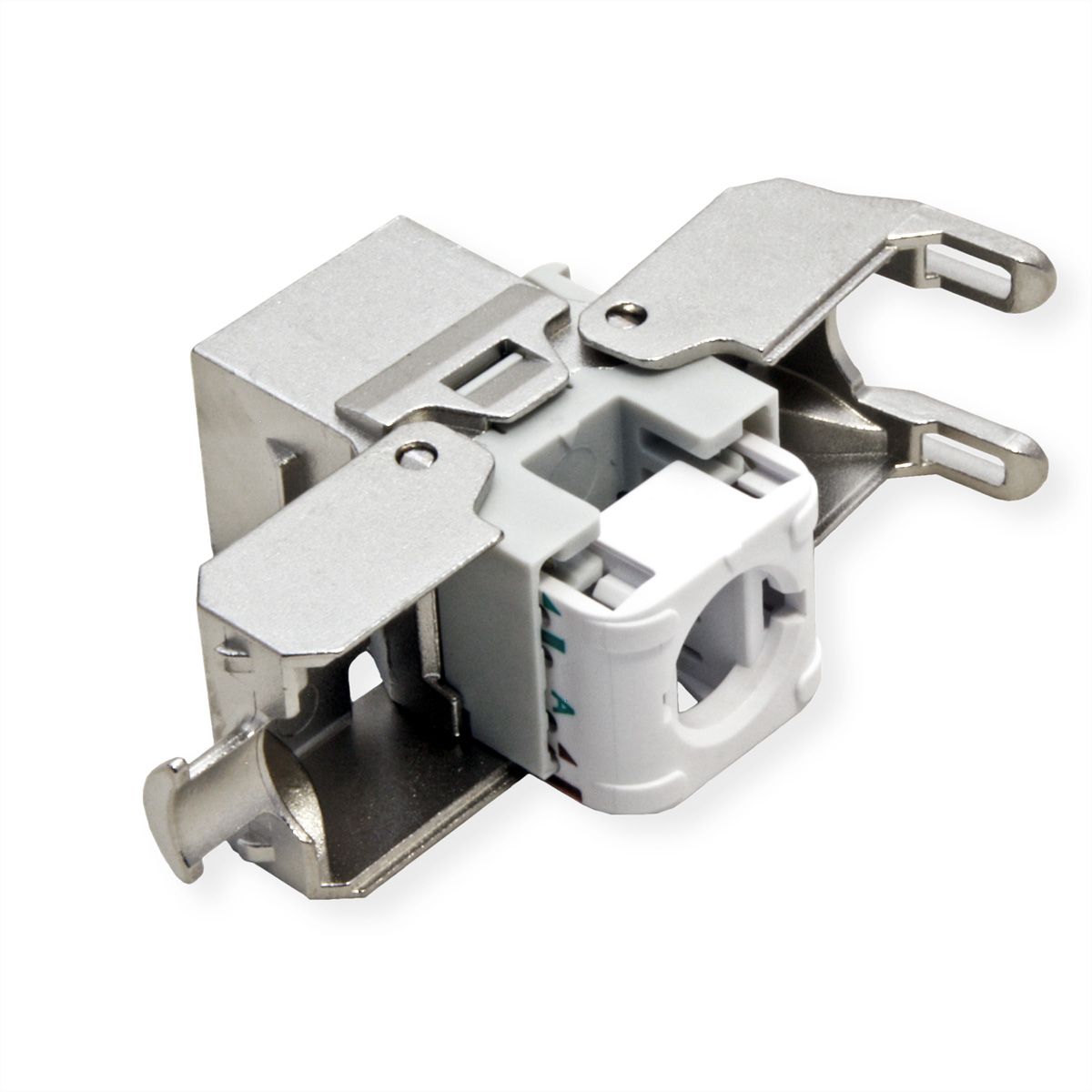

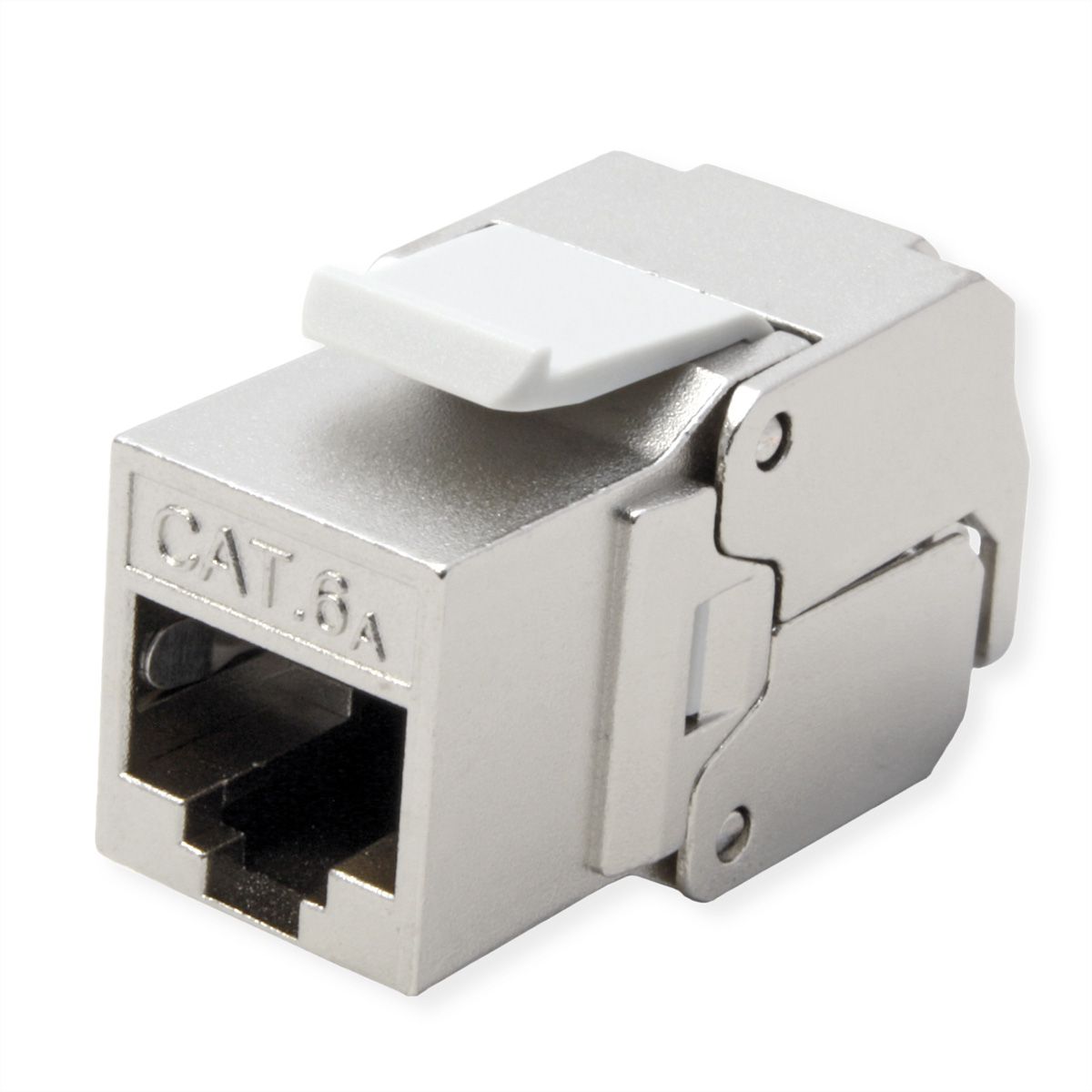

ROLINE Cat.6A (Class EA) Keystone, RJ-45, STP, with shutter, tool-free, silver
Item no.
21170326
Brand / Manufacturer
ROLINE
Manuf. item no.
21.17.0326
EAN
7630049628700
Item weight
0.005 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
Deliverable approx. 08/31/2026
Description
The solution for Cat.6A cabling for data rates up to 10Gbit/s!.
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

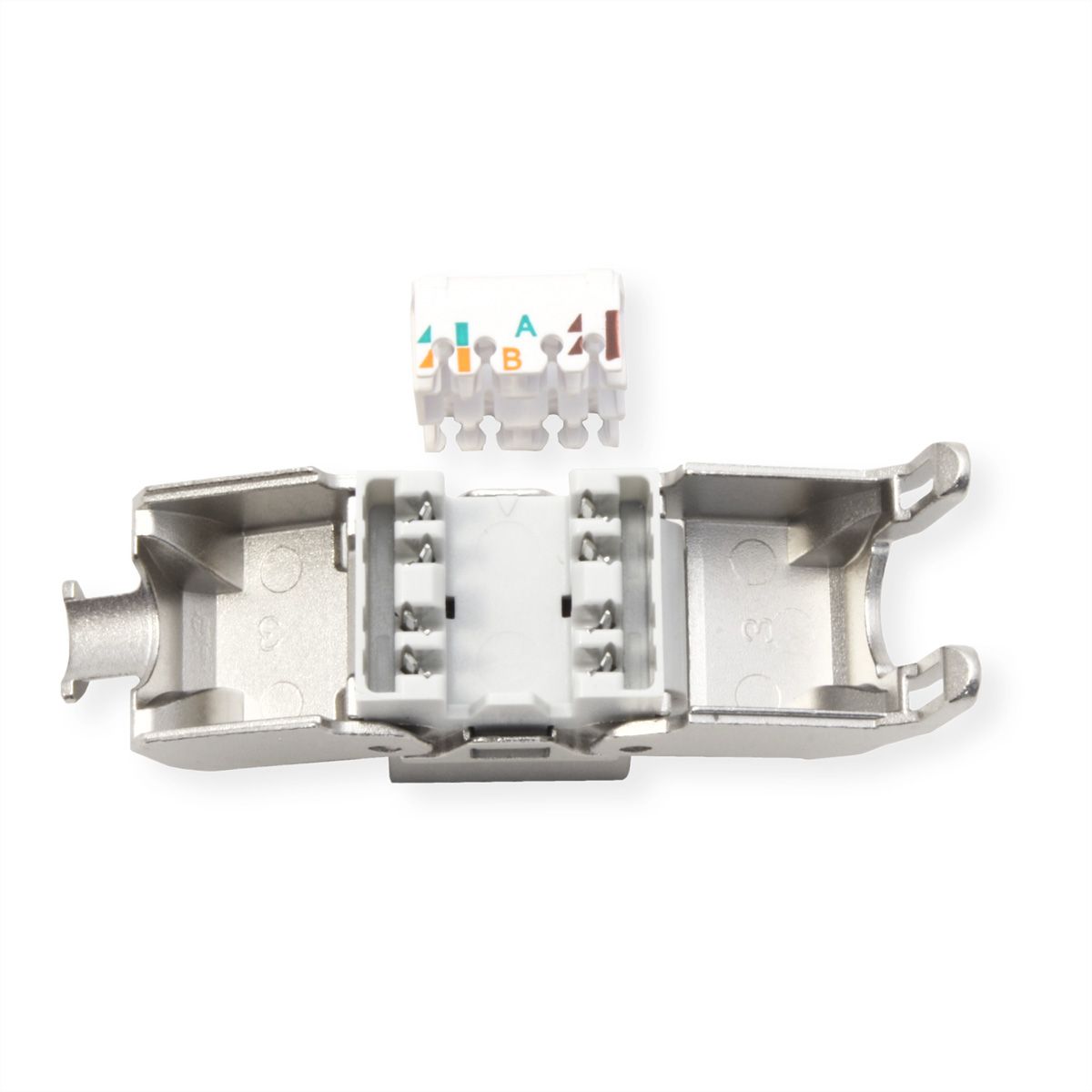

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- With internal plastic shutter
- 180 degree cable entry
- For cables with AWG 23-26
- For cables with OD: 5.0-8.5mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 38×17×20mm
Specifications
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 20 mm
- Width
- 17 mm
- Depth
- 38 mm
- Weight
- 22 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.005 kg
- Material (casing)
- Zinc die-casting
Compatible with
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/roline.png "ROLINE Logo")
The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
