Description

The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s!

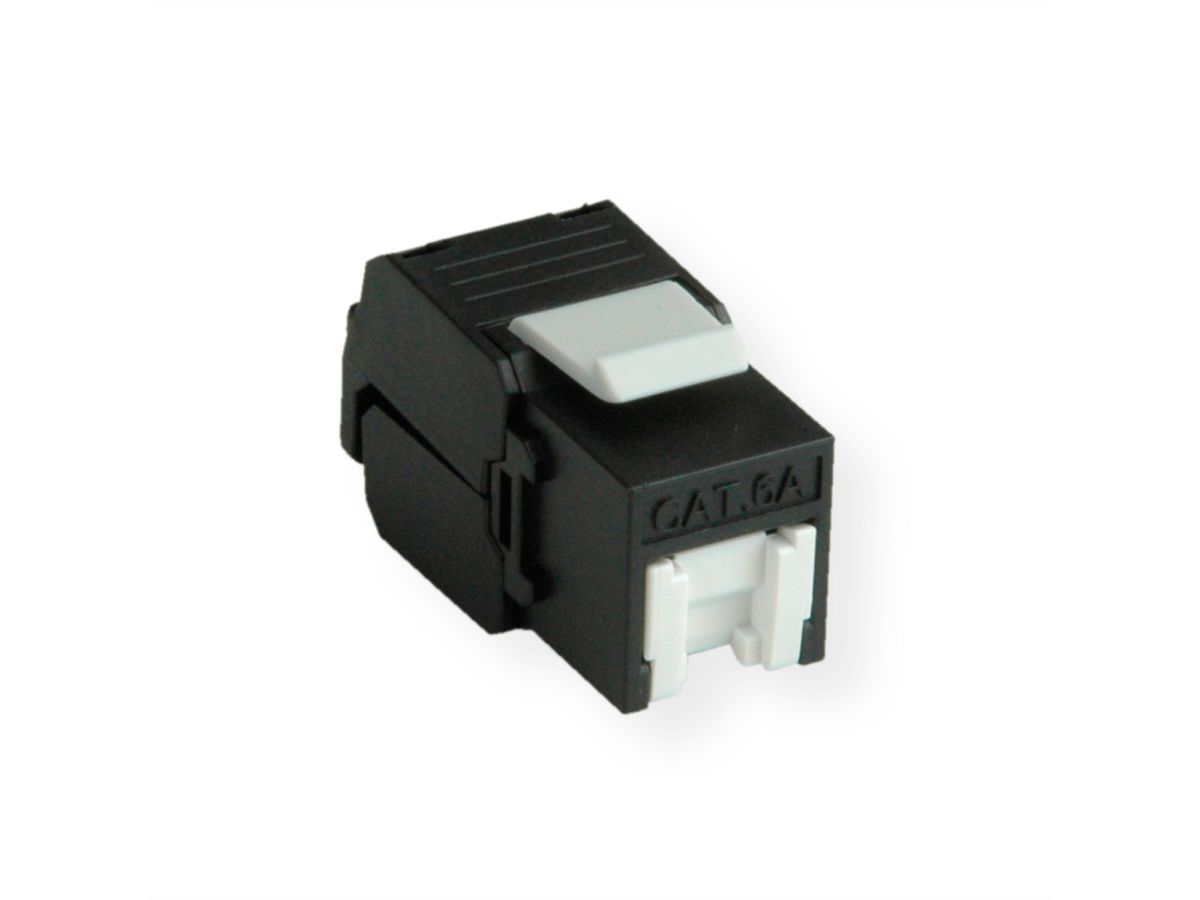

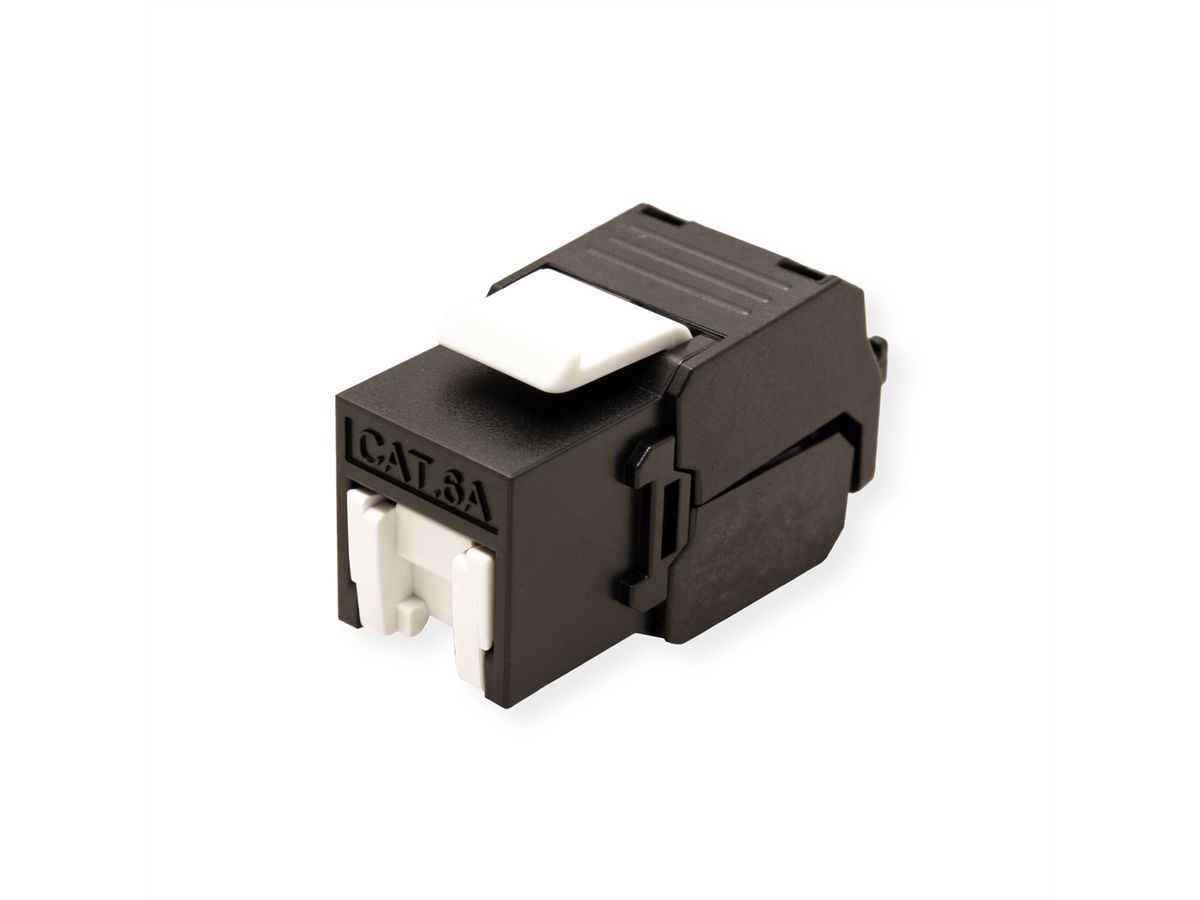

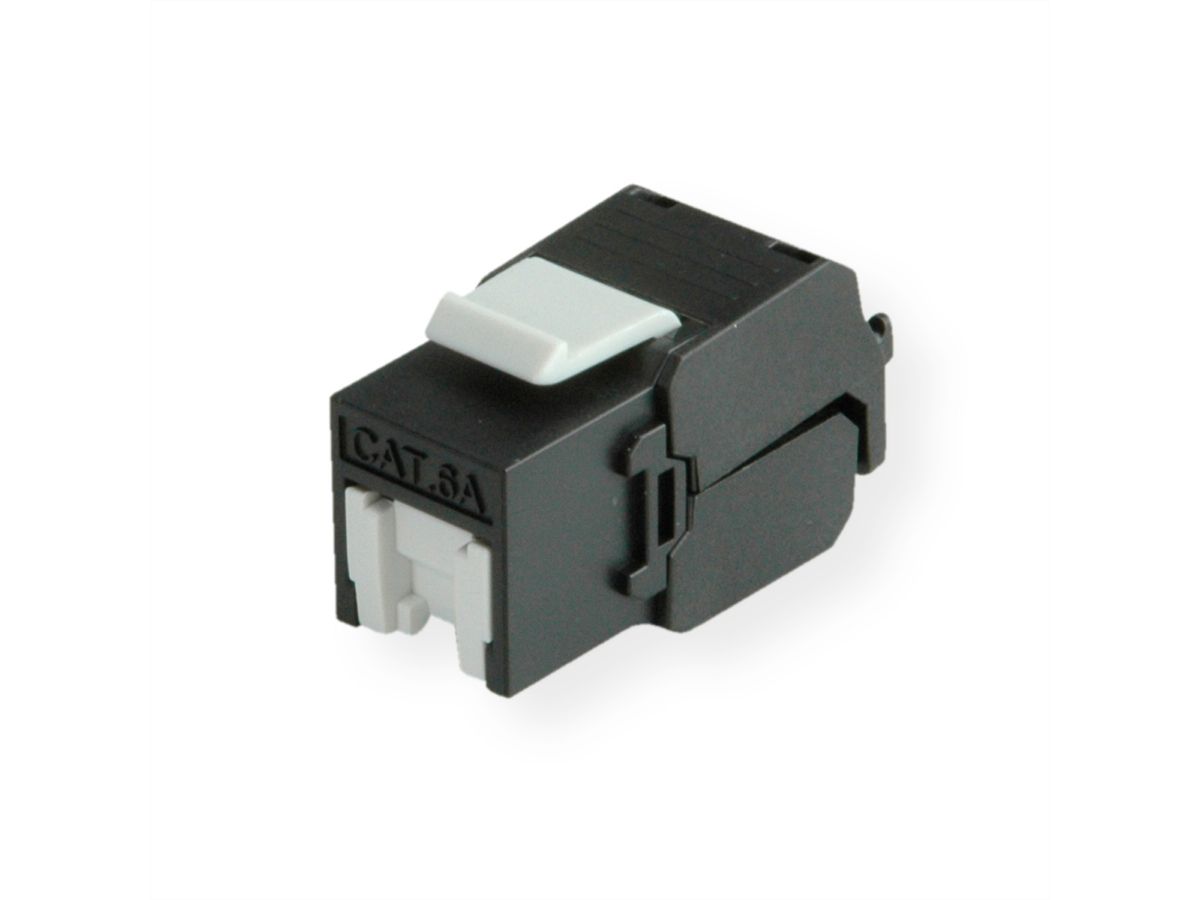

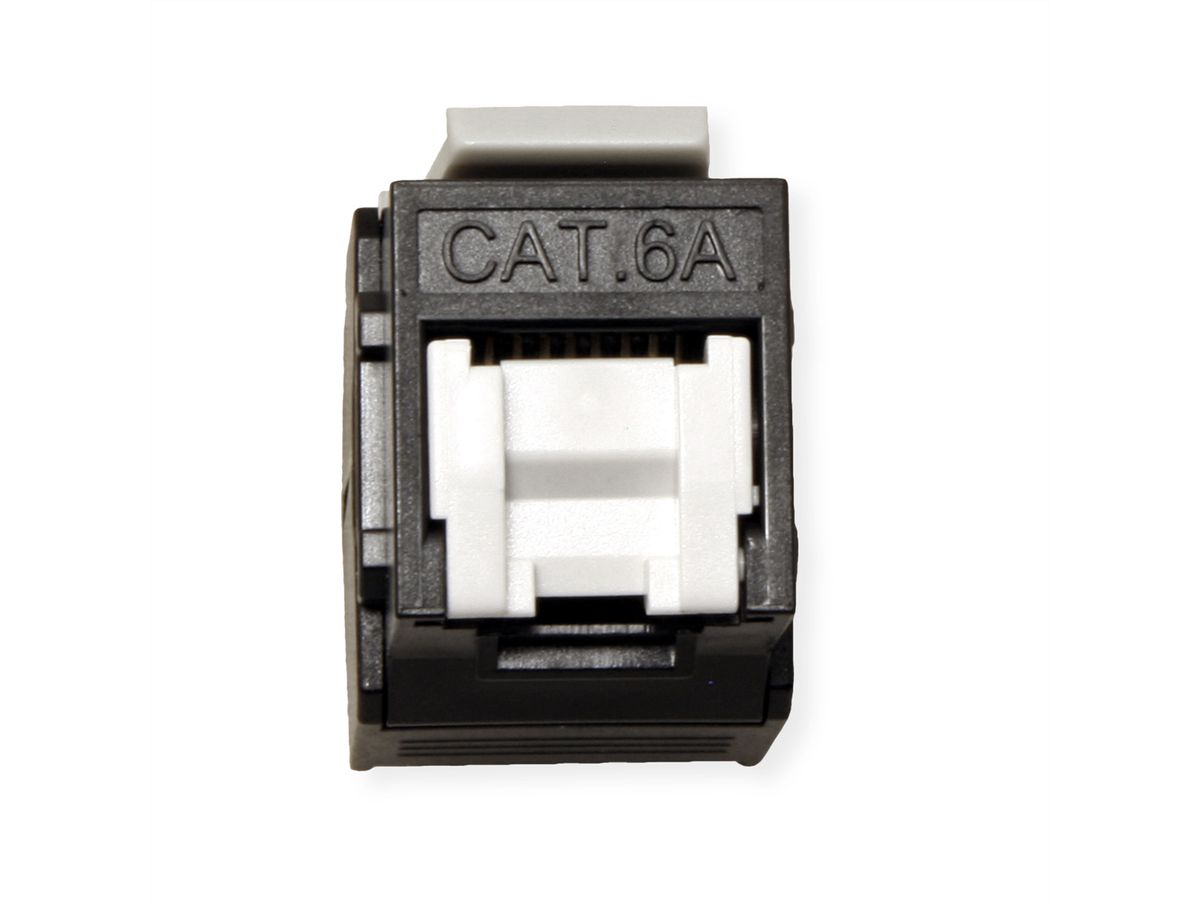

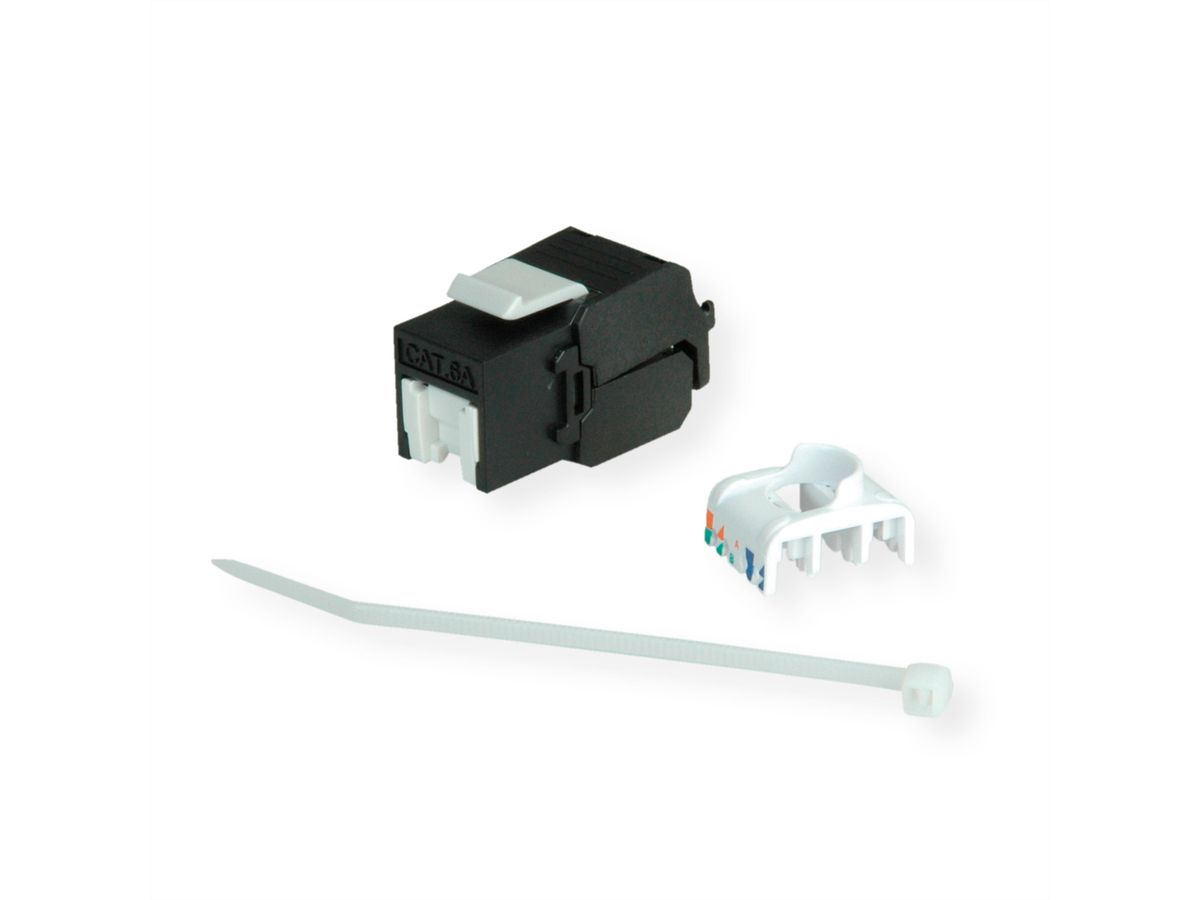

Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

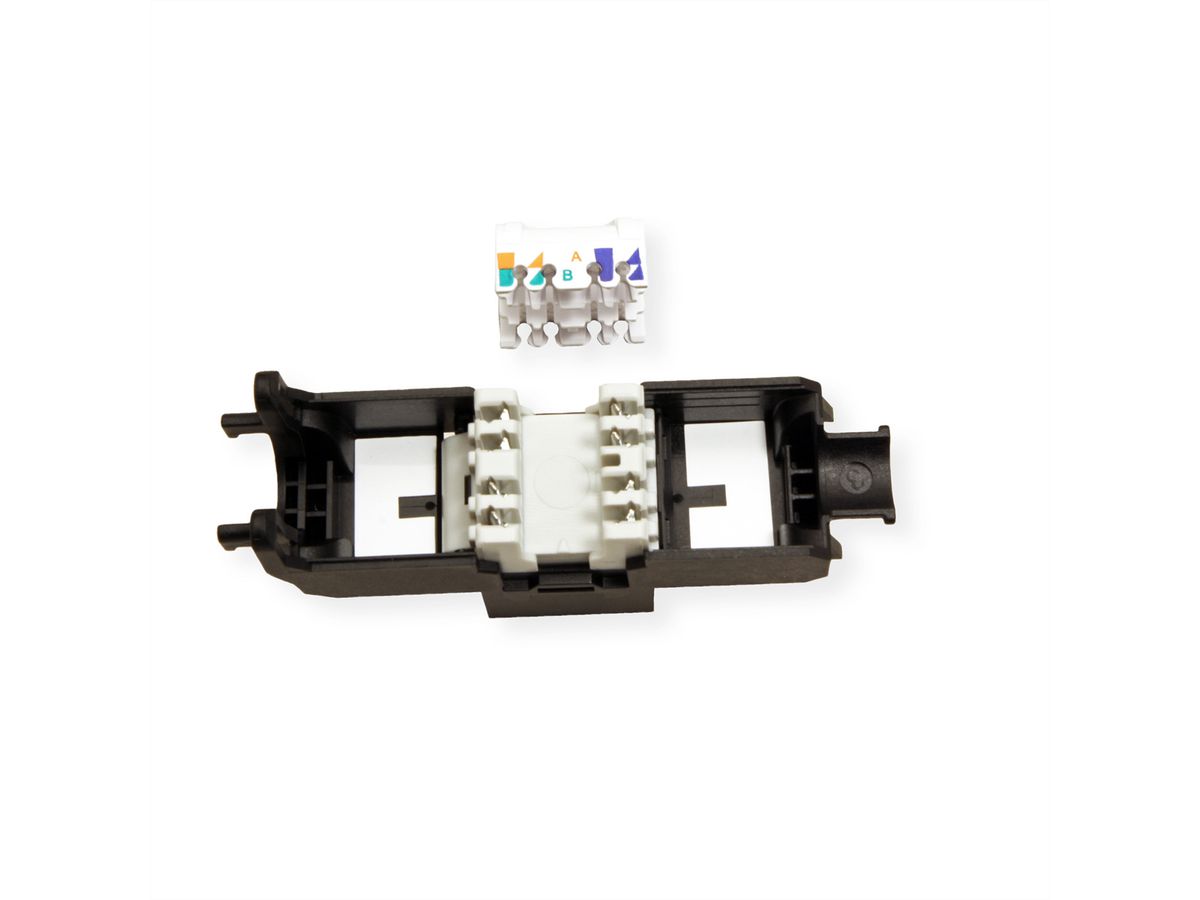

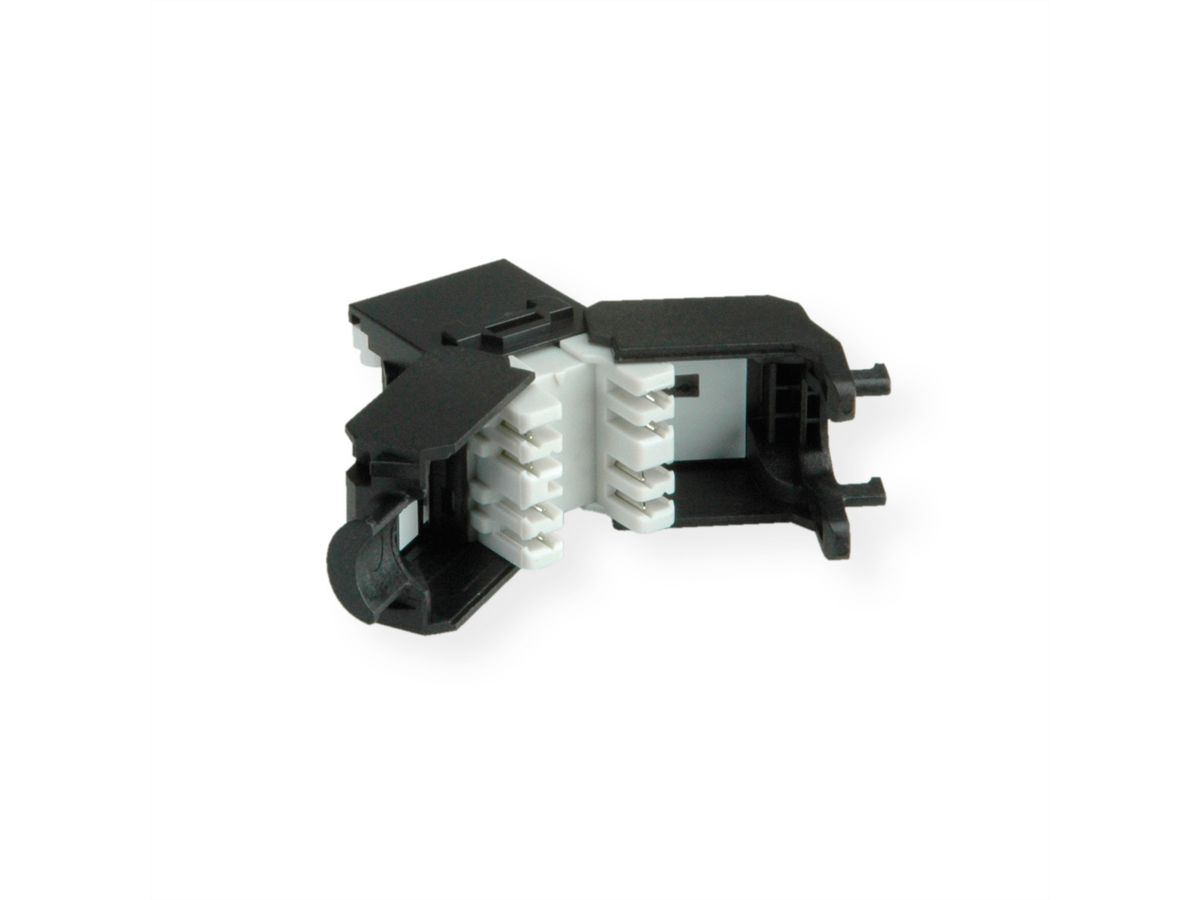

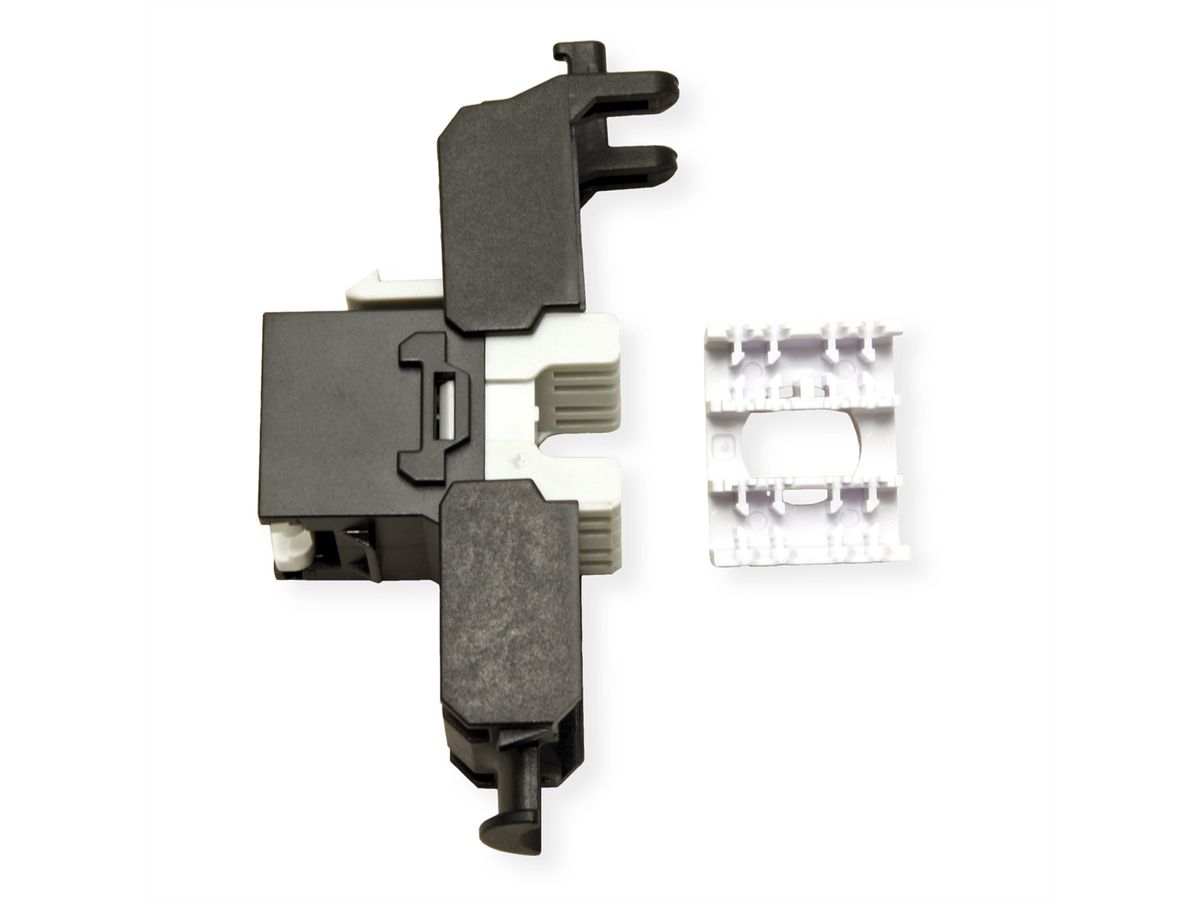

• Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
• Cat.6A Keystone Jack (Module) UTP
• Unshielded housing
• Contacts gold plated
• Slim type
• With plastic internal shutter
• 180 degree cable entry
• Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
• For cable AWG 22-24(0.45-0.65mm)
• For cable OD: 5.0-8.5mm
• Color code on the Keystone jacks based on the standard EIA/TIA 568 A & B
• Dimensions (L x W x H): 37.9× 15.8 × 22.2mm

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	black
Shield type	Not screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A & 568B
Connection direction	Straight
Height	22.2 mm
Width	15.8 mm
Depth	37.9 mm
Weight	7.9 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.004 kg
