Item no.:26110337Herst.-Art.-Nr.:26.11.0337
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

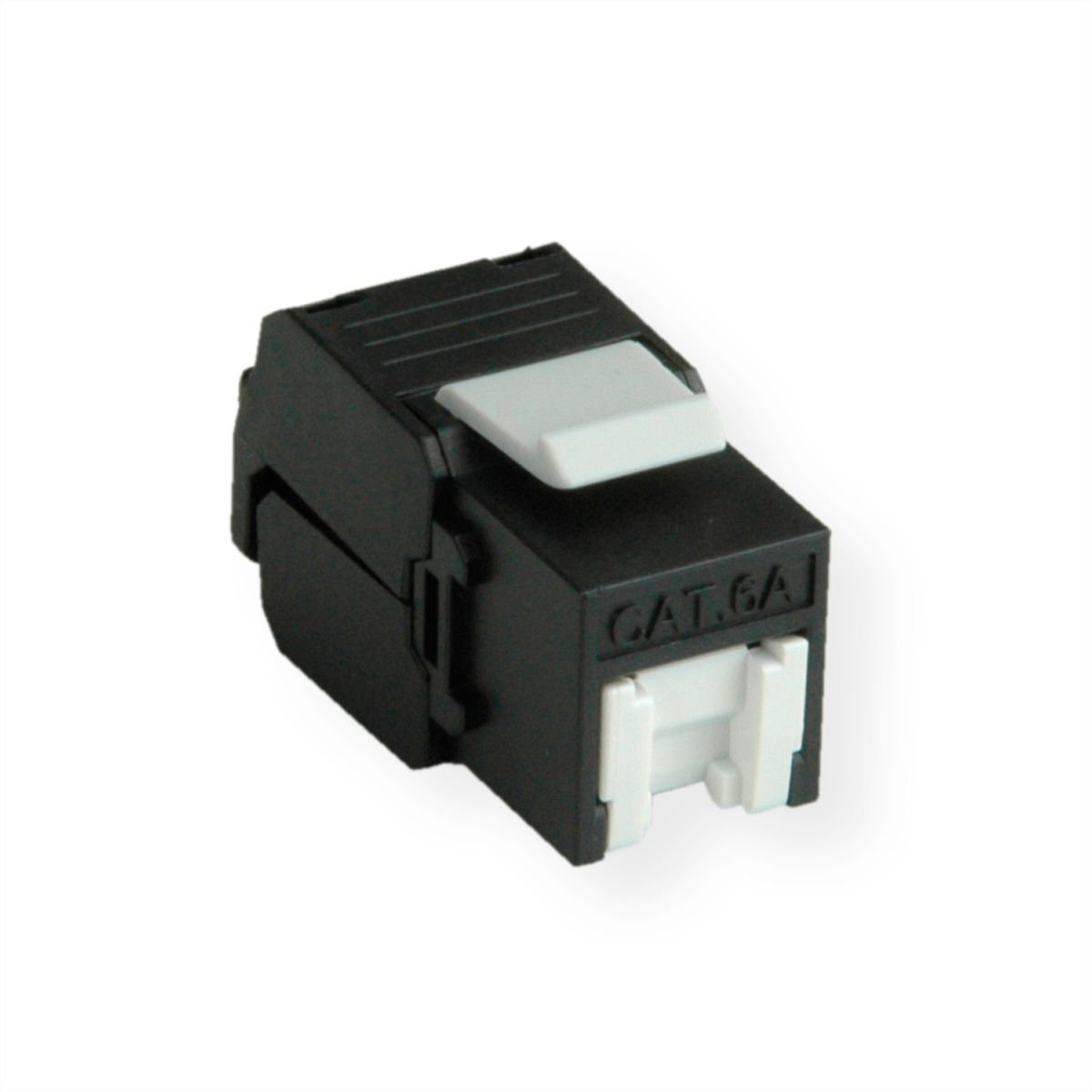

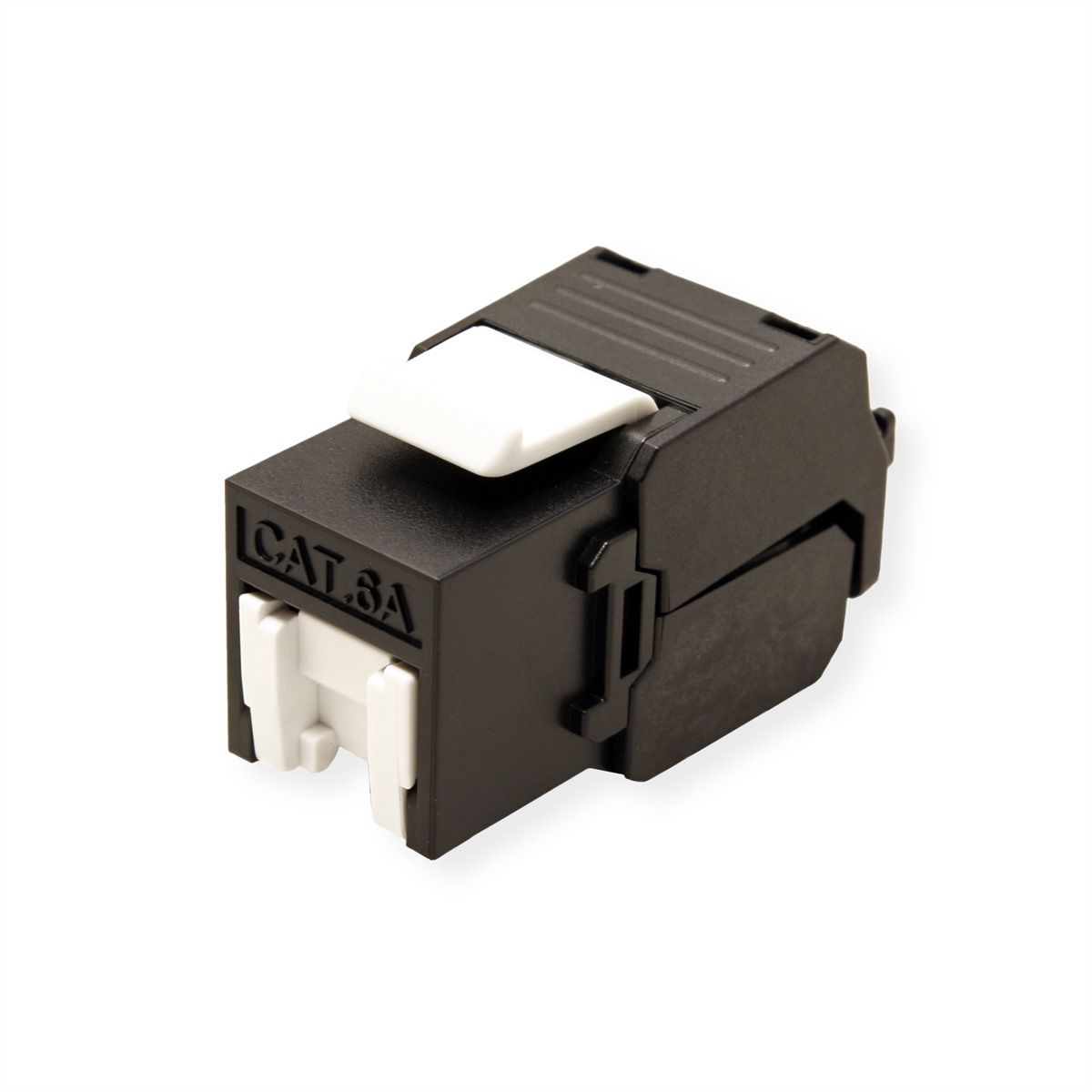

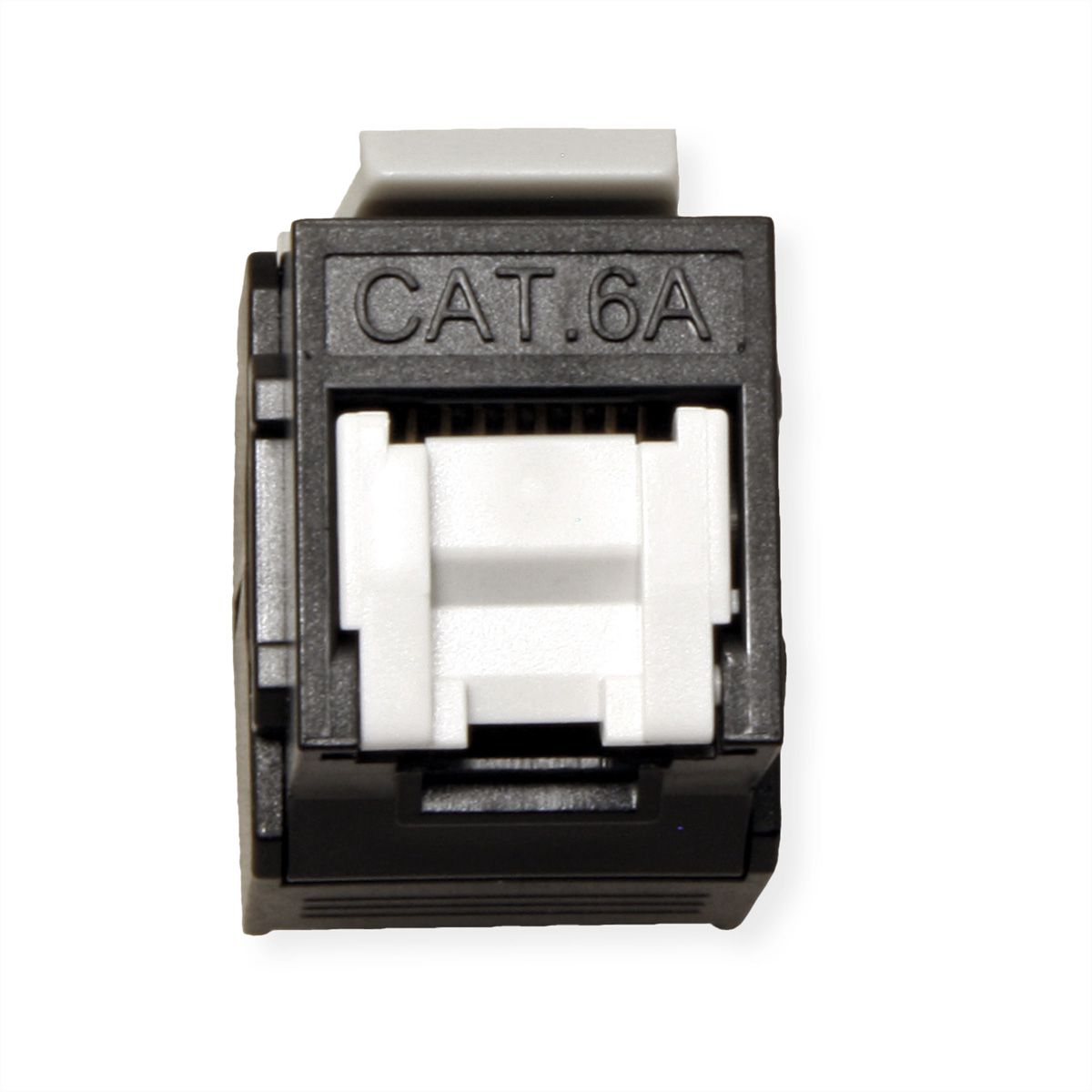

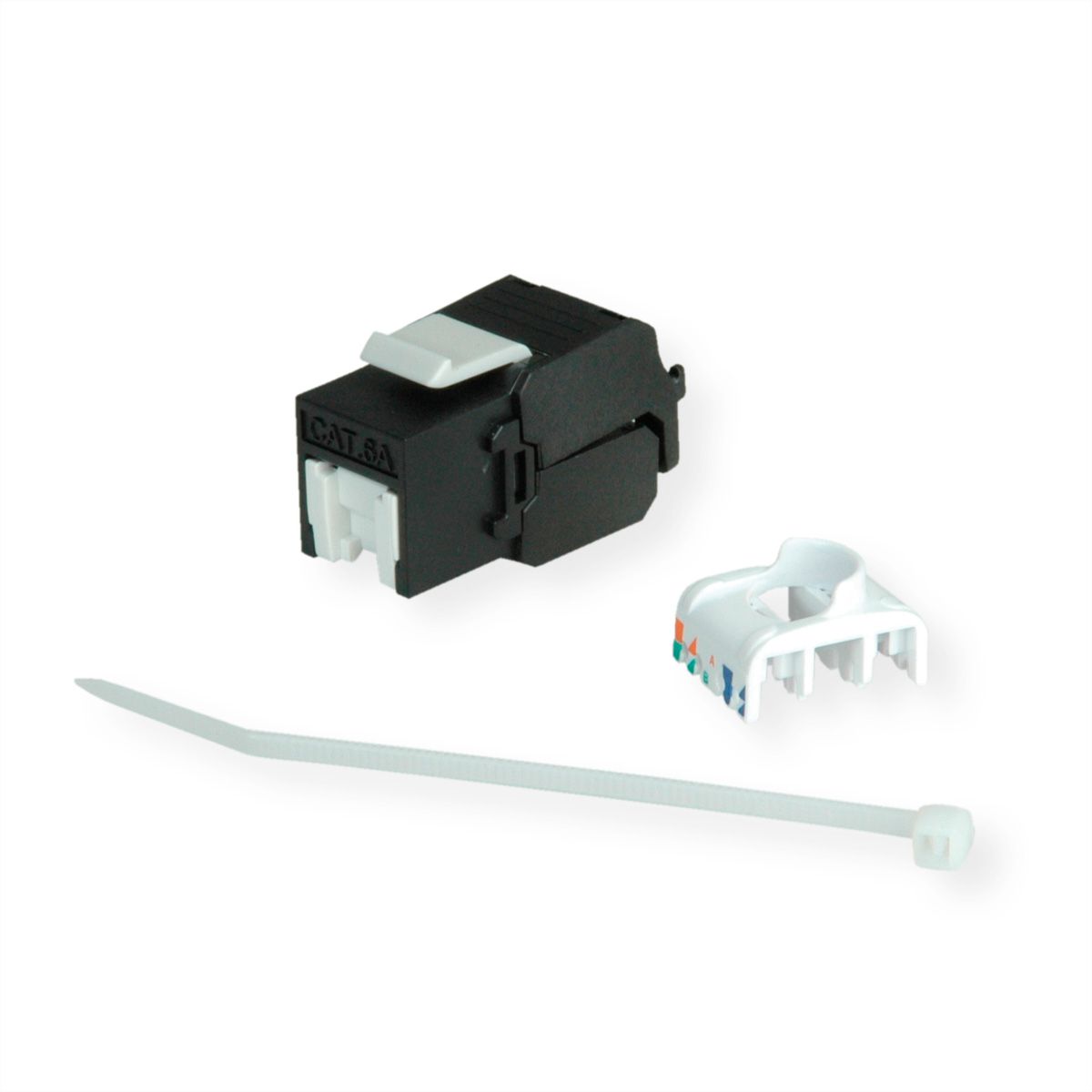

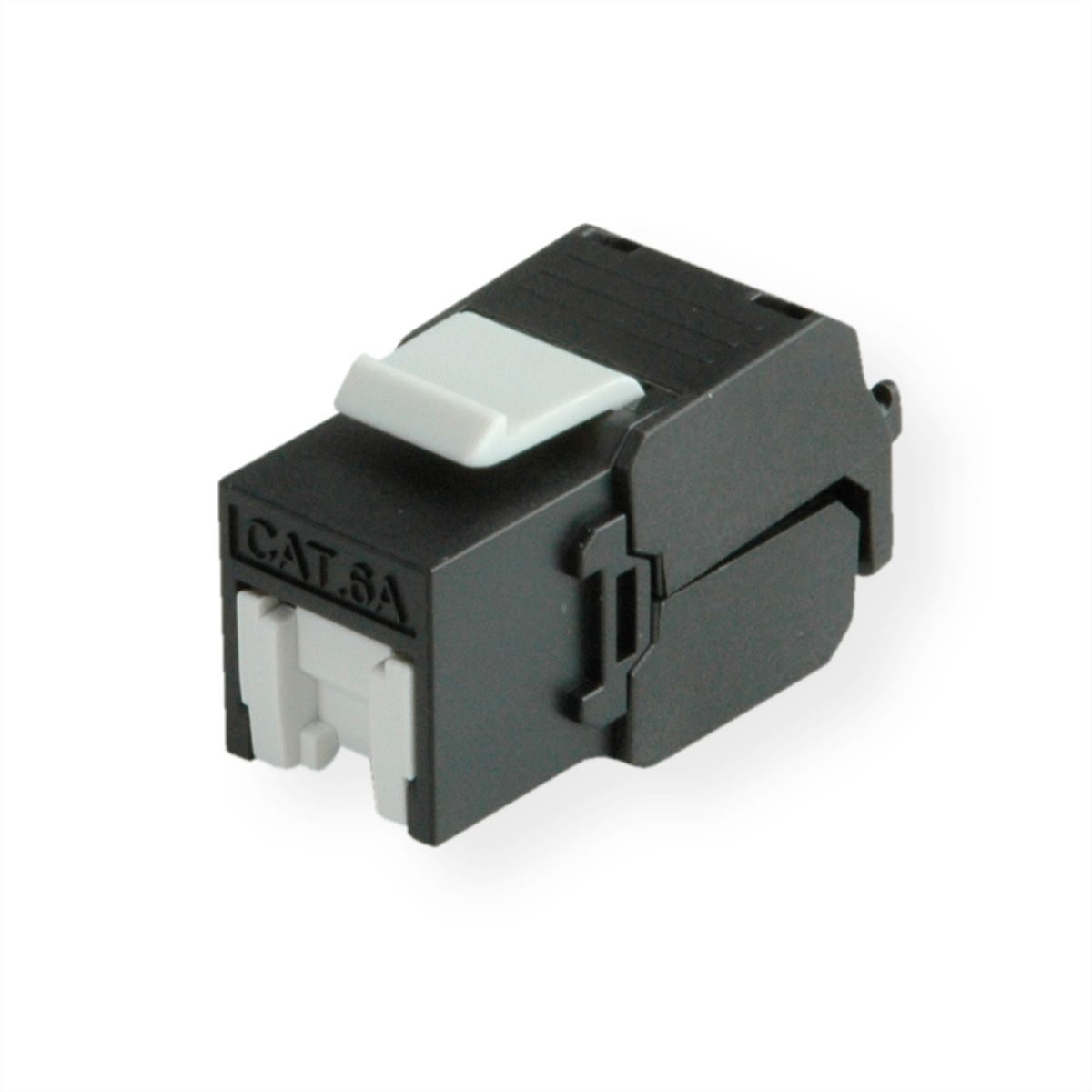

ROLINE Cat.6A (Class EA) Keystone, RJ-45, UTP, with shutter, Tool-free, black
Item no.
21170320
Brand / Manufacturer
ROLINE
Manuf. item no.
21.17.0320
EAN
7630049614635
Item weight
0.004 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s!
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

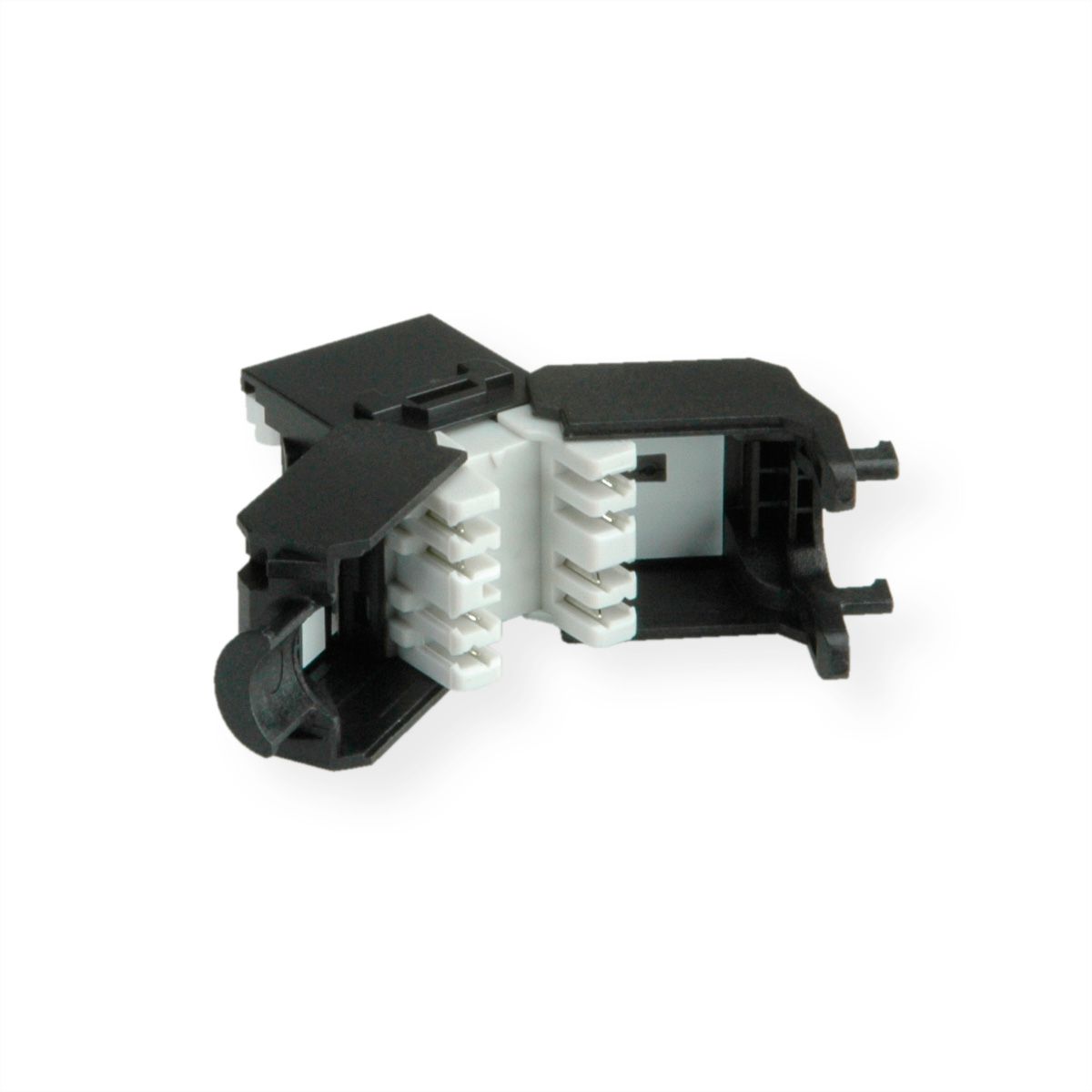

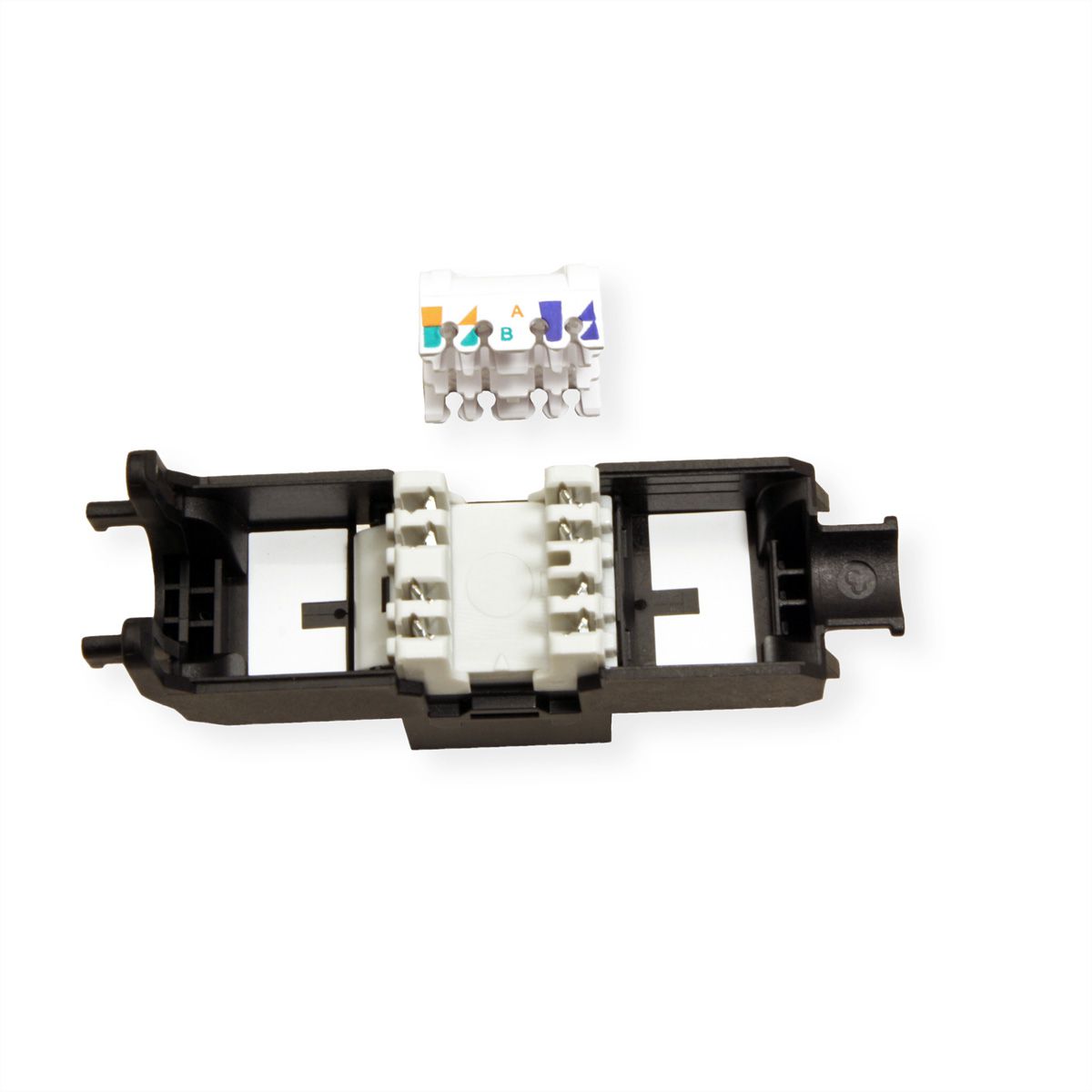

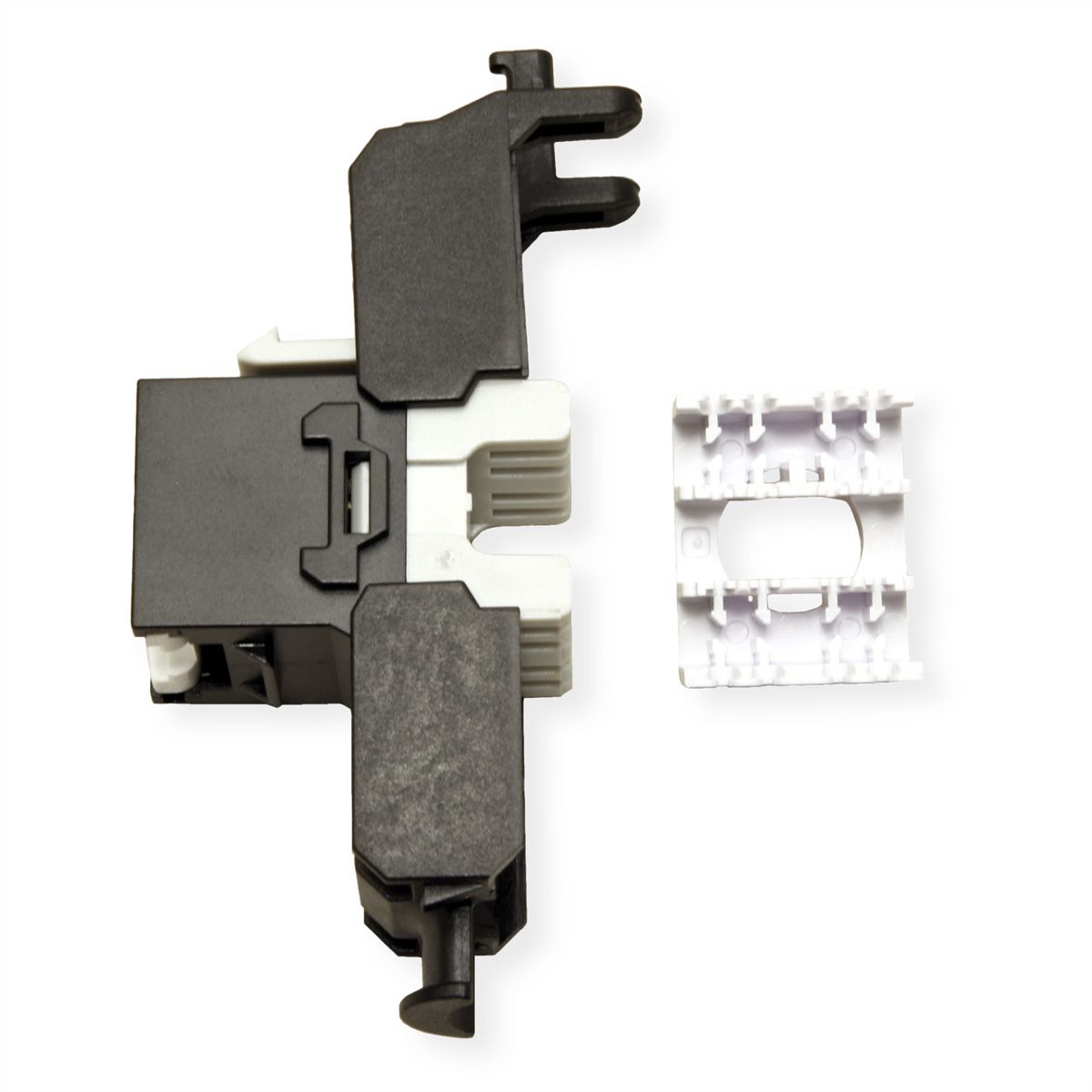

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) UTP
- Unshielded housing
- Contacts gold plated
- Slim type
- With plastic internal shutter
- 180 degree cable entry
- Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
- For cable AWG 22-24(0.45-0.65mm)
- For cable OD: 5.0-8.5mm
- Color code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 37.9× 15.8 × 22.2mm
Specifications
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- black
- Scope of delivery
- 1x Keystone
- Shield type
- Not screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Height
- 22.2 mm
- Width
- 15.8 mm
- Depth
- 37.9 mm
- Weight
- 7.9 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.004 kg
