ROLINE Cat.6A (Class EA) Modular Plug, shielded, for Solid/Stranded Wire, 10 pcs.

Item no. 21173099 Brand / Manufacturer ROLINE Manuf. item no. 21.17.3099 EAN 7630049634909 Item weight 0.032 kg

ROLINE Cat.6A (Class EA) Modular Plug, shielded, for Solid/Stranded Wire, 10 pcs.

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

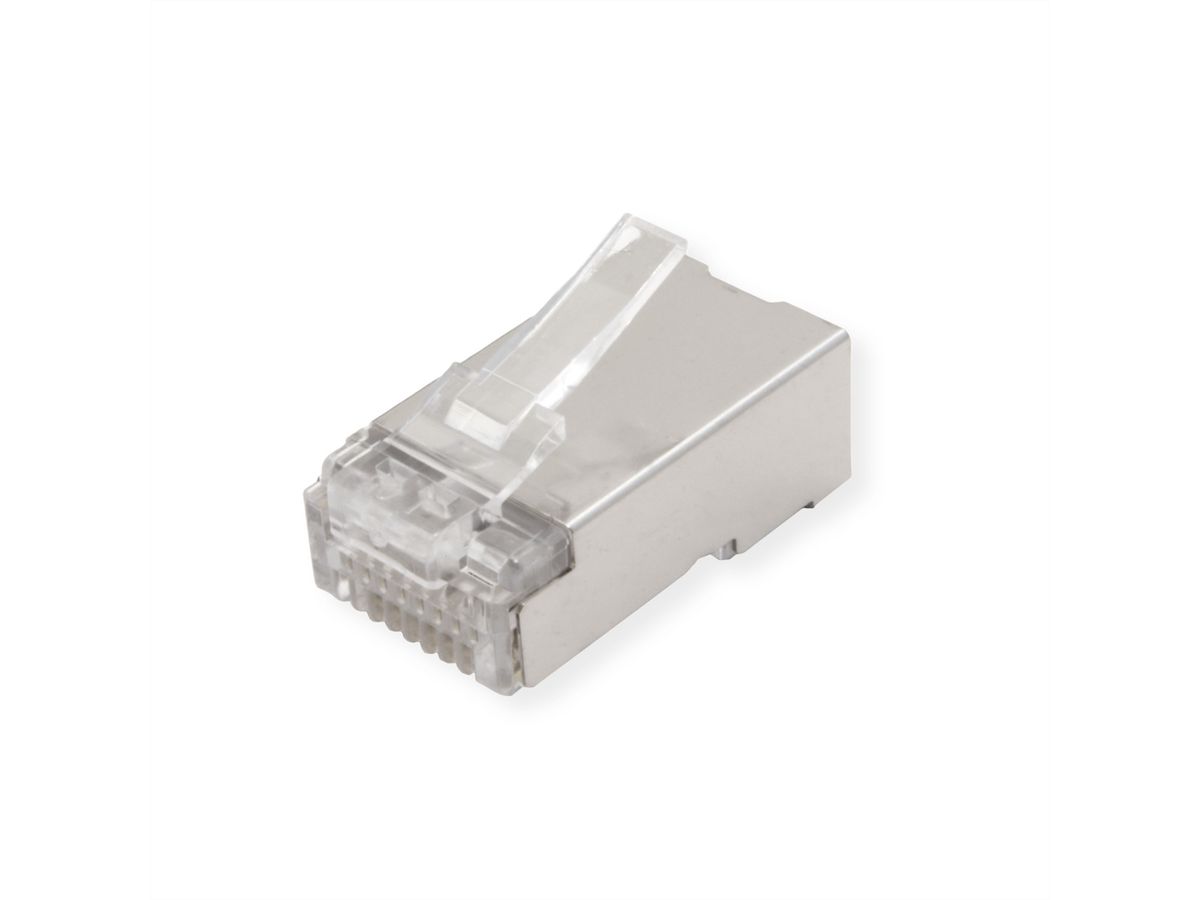

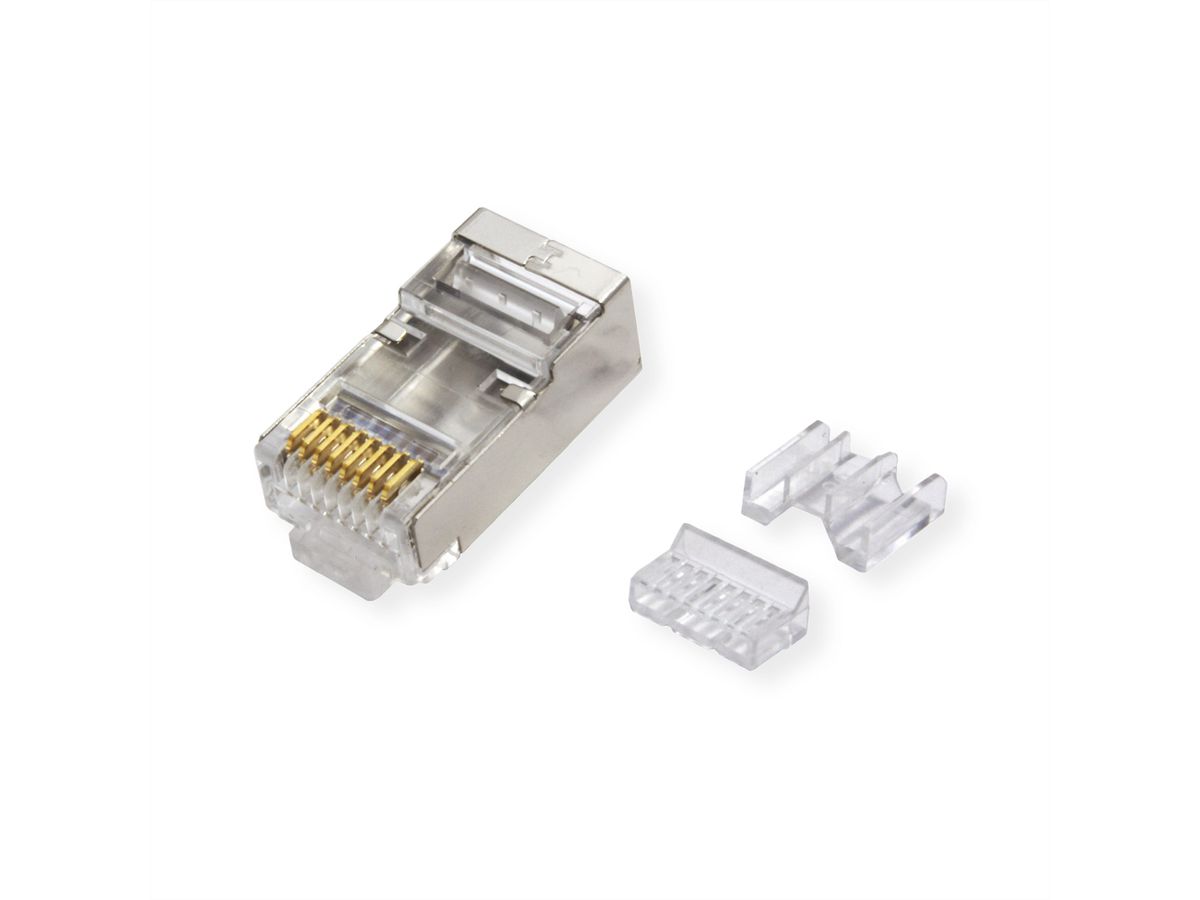

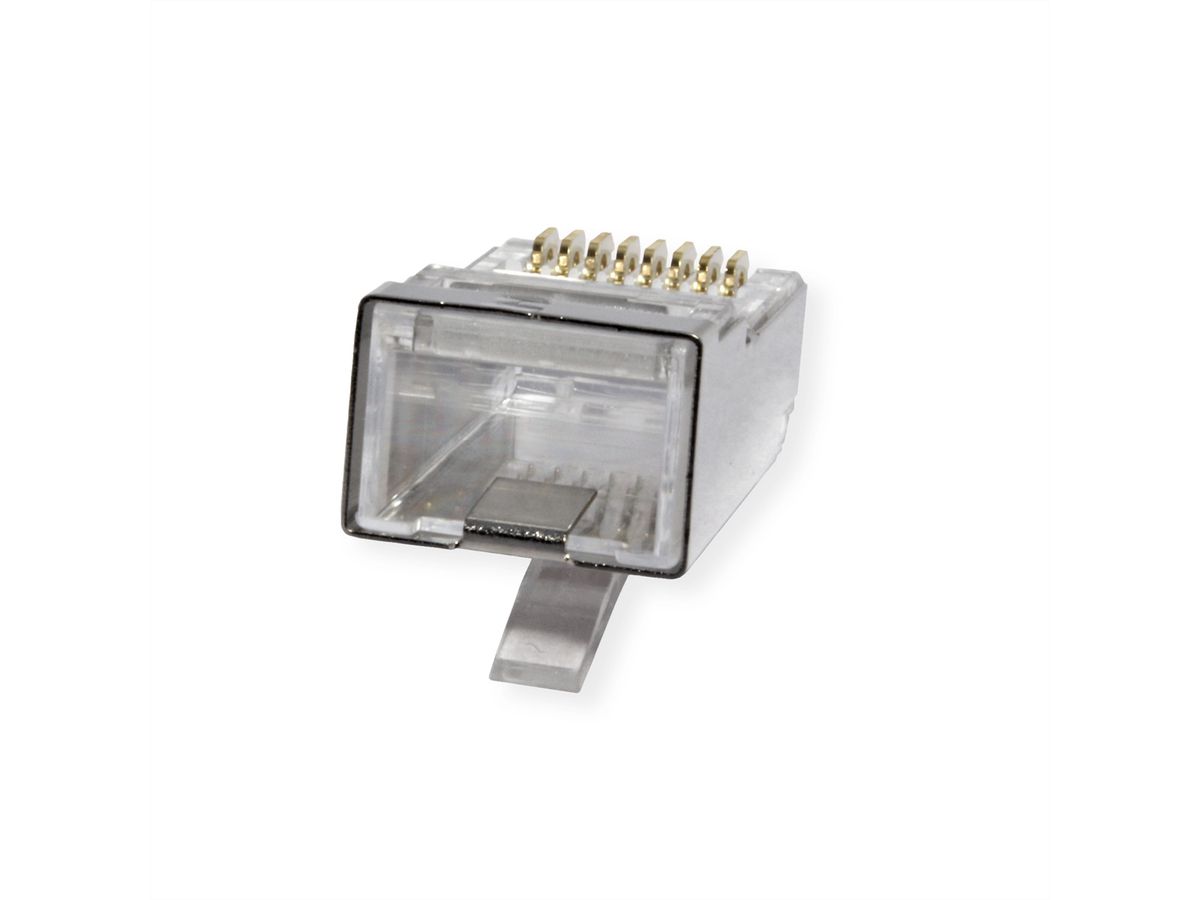

10 shielded Cat. 6A Modular Plugs for network cabling - suitable for stranded and solid wire.

Cat. 6A Modular Plugs, 8p8c
Shielded
Gold plated contacts
For solid and stranded wire
Suitable for stranded and solid wire cables in AWG 23 - 26

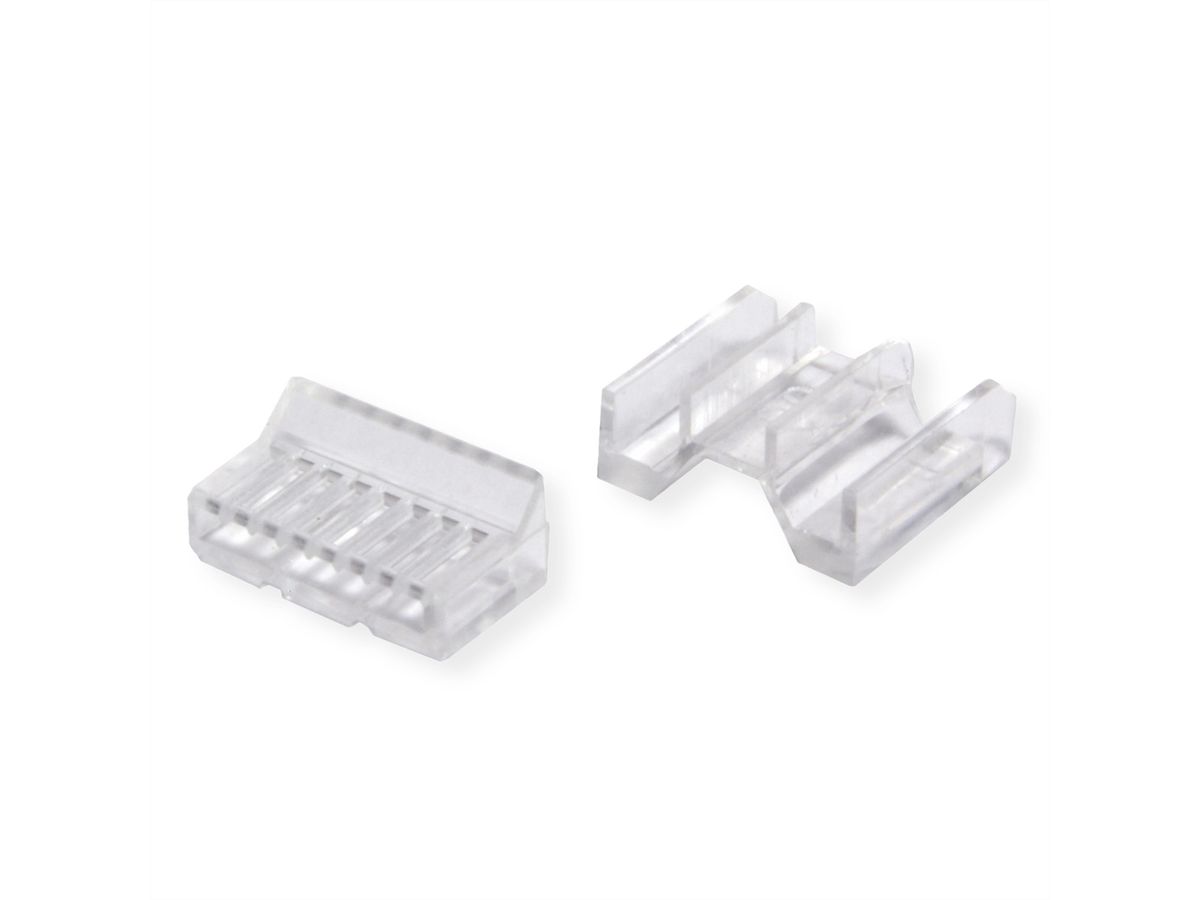

With wire insertion aid
Package unit 10 plugs

Specifications

Manufacturer: ROLINE
Product group: Connection technology TP
Product type: RJ-45 Modular Plugs
Colour: silver
Shield type: Screened
Transfer quality: Cat6A / Class EA
Quantity of ports: 1
Side 1 Connector Type: RJ-45
Side 1 Connector Gender: Male
Material (casing): Kunststoff / Metallschirmung
Shield contacts: ja
separate strain relief: no
Connection direction: Straight
Height: 11 mm
Width: 11.7 mm
Depth: 21.5 mm
Weight: 24 g
Height of packaging (single piece): 20 mm
Width of packaging (single piece): 70 mm
Depth of packaging (single piece): 70 mm
Package weight (single piece): 0.032 kg
Scope of delivery: 10 Modular Plugs
