The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

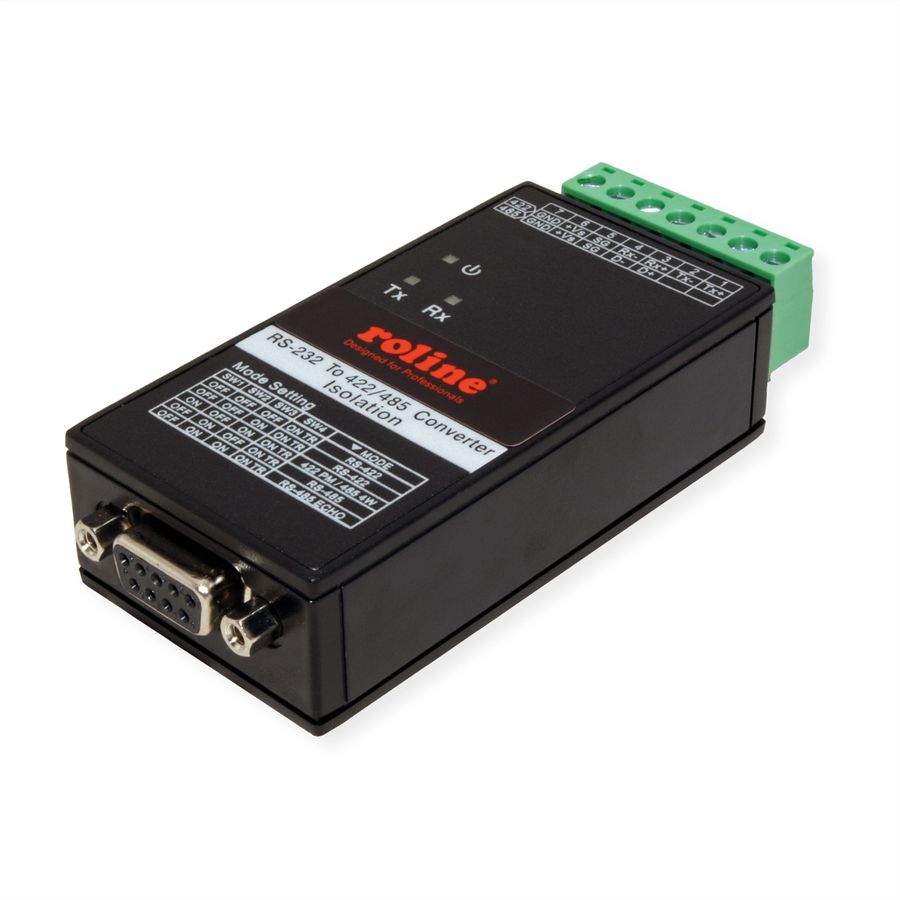

ROLINE Converter RS232 to RS422/485, with Isolation, for DIN Rail
Item no.
12021005
Brand / Manufacturer
ROLINE
Manuf. item no.
12.02.1005
EAN
7611990194858
Item weight
0.16 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

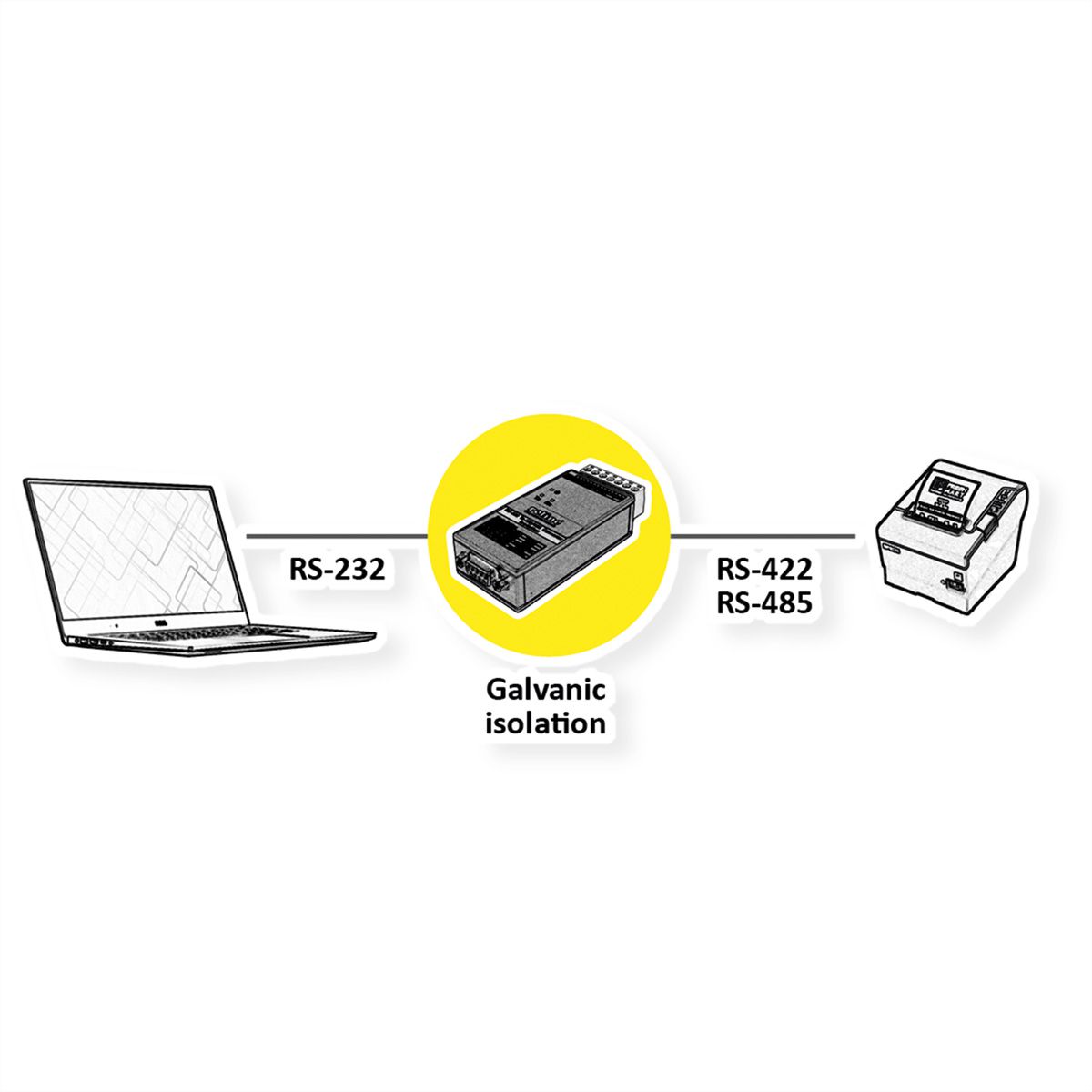

- Converts RS-232 signals to RS-422 or RS-485
- Fully compliant with PC serial COM ports
- Isolation 3000 VDC (optical)

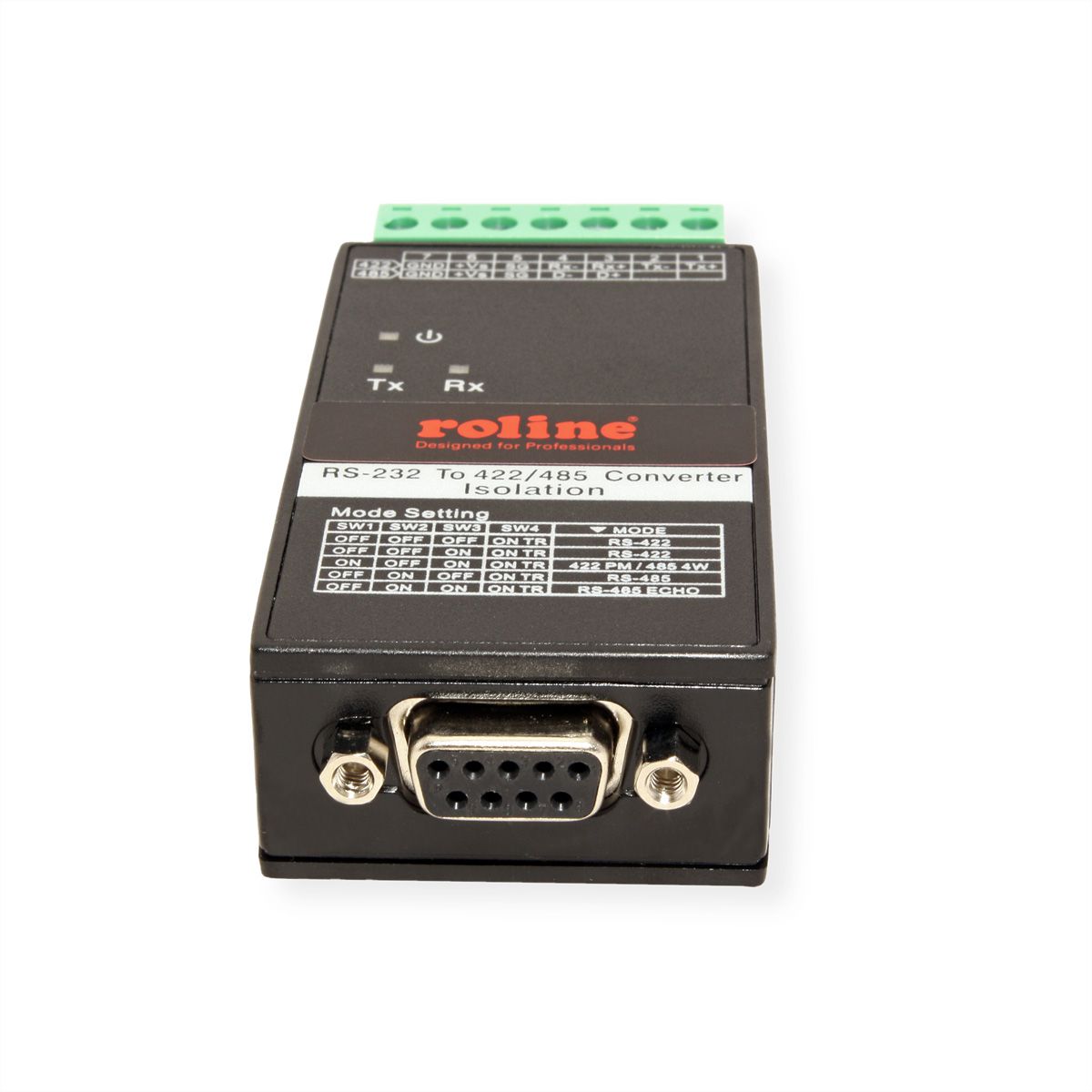

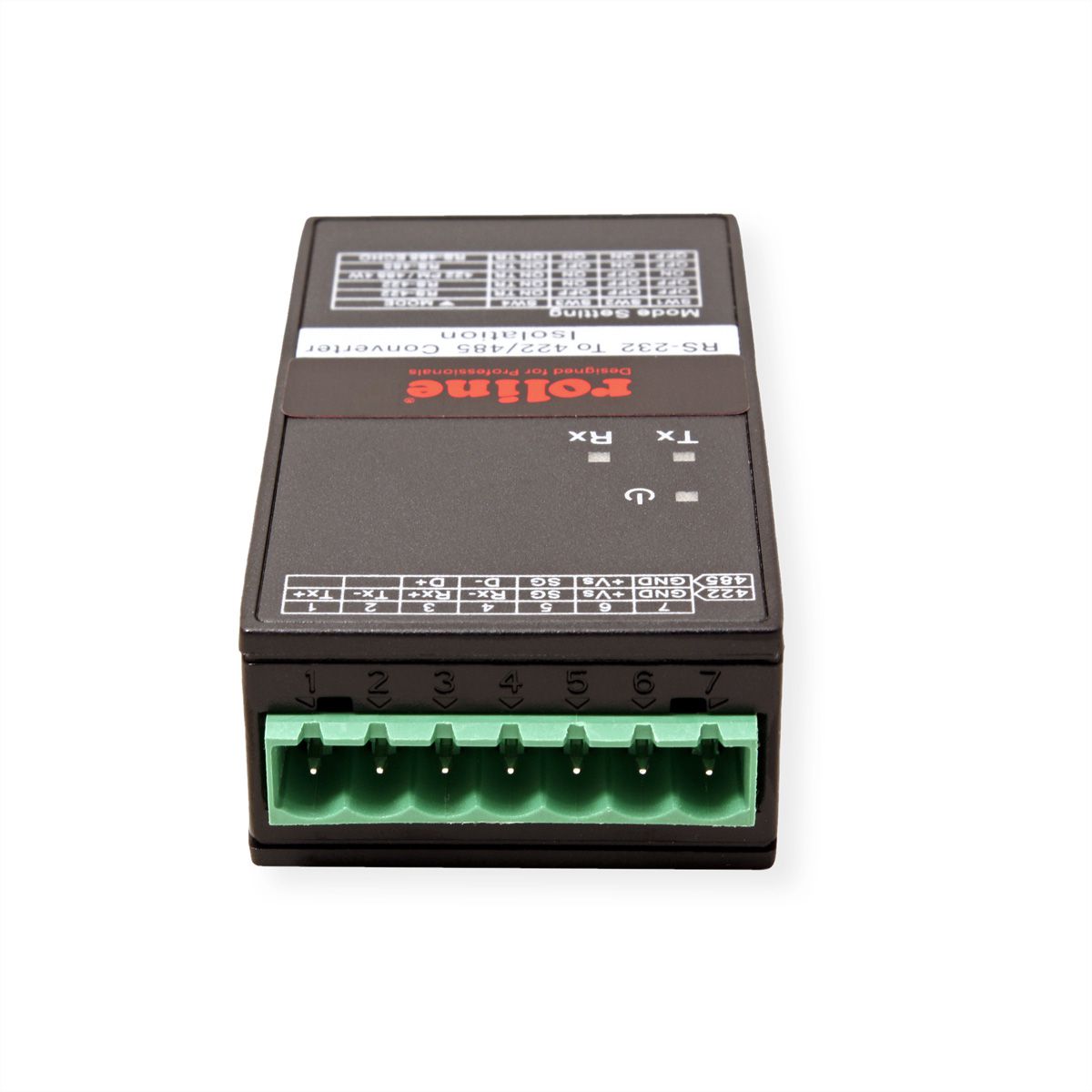

- Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
- Auto toggling by hardware
- Data transfer rate of up to 115.2 Kbit/s
- Terminal resistance and Echo mode

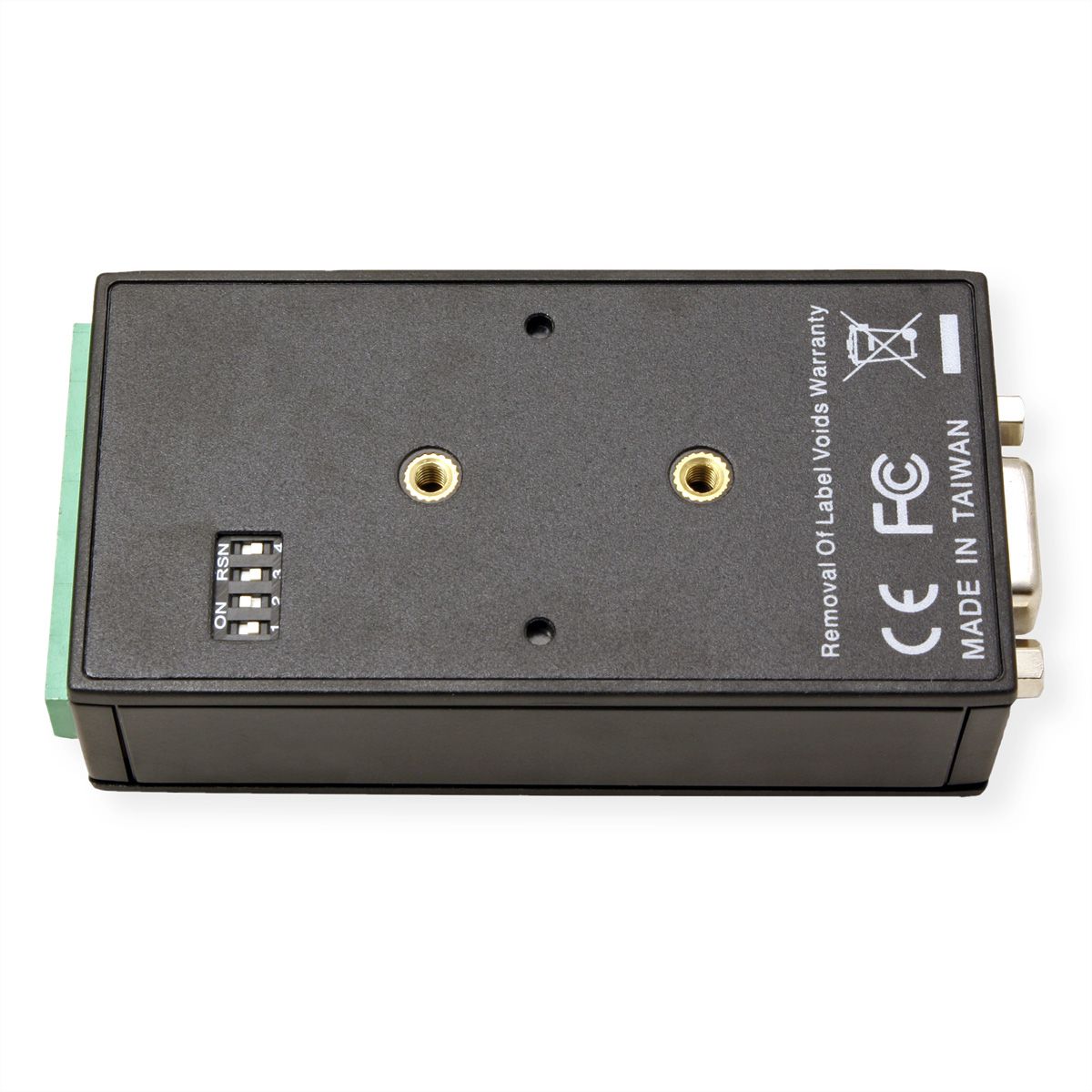

- DIP switches for terminal settings
- Signals: TXD, RXD, RTS, CTS, GND for RS-232
- Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
- Status LEDs
- Windows ME/2000/Server 2003/XP/Server 2008/XP/Vista/7/10/11

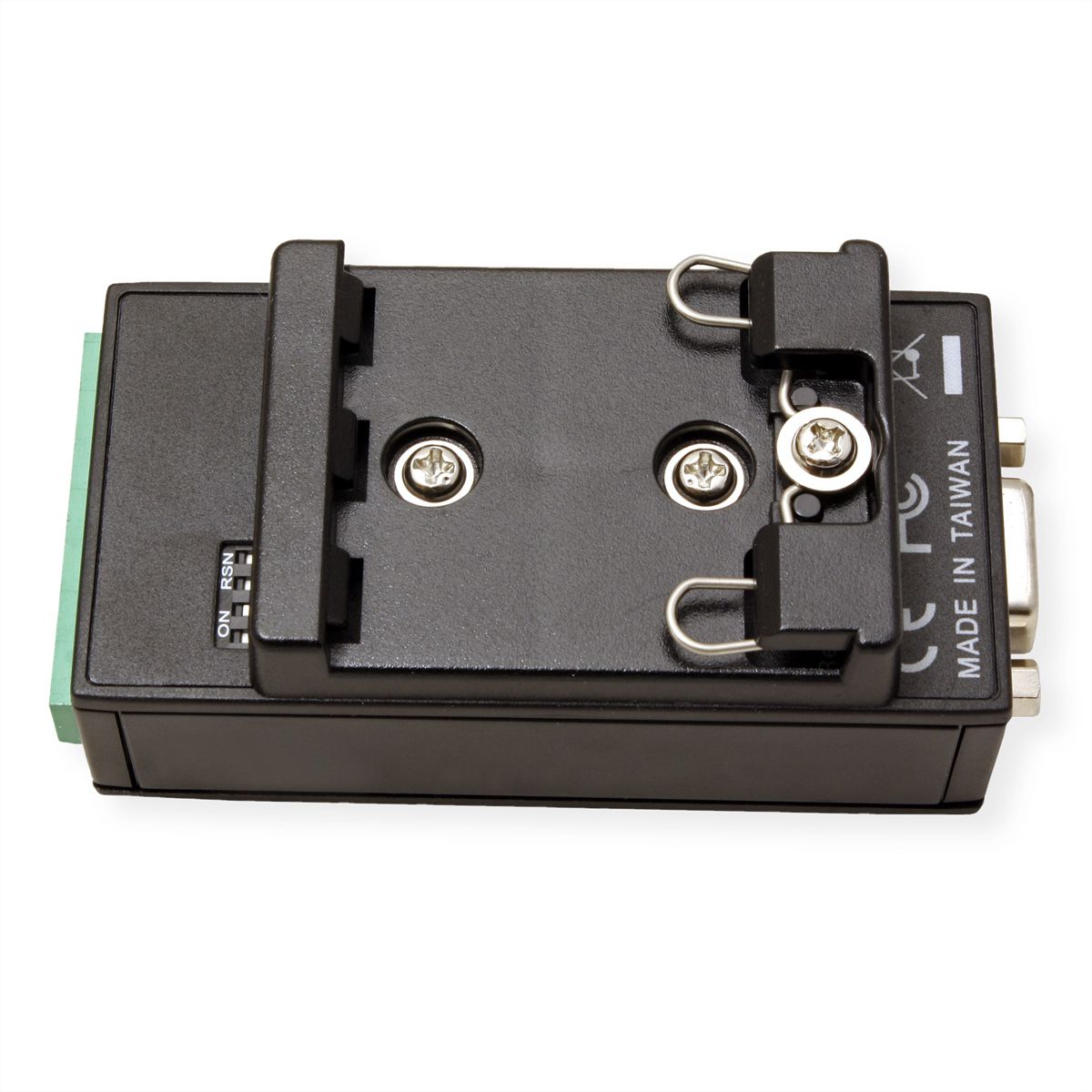

- For DIN rail mounting
- DC power supply 10~30 V (built-in surge protector)
- Hardware solution, no software required
Environmental Limits:
Operating Temperature: -30 ~ 75°C
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
Specifications
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- Serial interface converter
- Colour
- black
- Scope of delivery
- converter, manual
- Side 1 connection (PC)
- RS232
- Side 2 connection (Peripherals)
- Terminal block
- Side 1 Connector Type
- D-Sub 9-pin (DE-9)
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
- Terminal block
- Side 2 Connector Gender
- Female
- Conversion direction
- RS422/RS485- RS232
- Area of application
- External
- Technical particularity
- DIN rail montage
- Height
- 22 mm
- Width
- 42 mm
- Depth
- 97.2 mm
- Weight
- 65.7 g
- Height of packaging (single piece)
- 45 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 190 mm
- Package weight (single piece)
- 0.16 kg
