The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

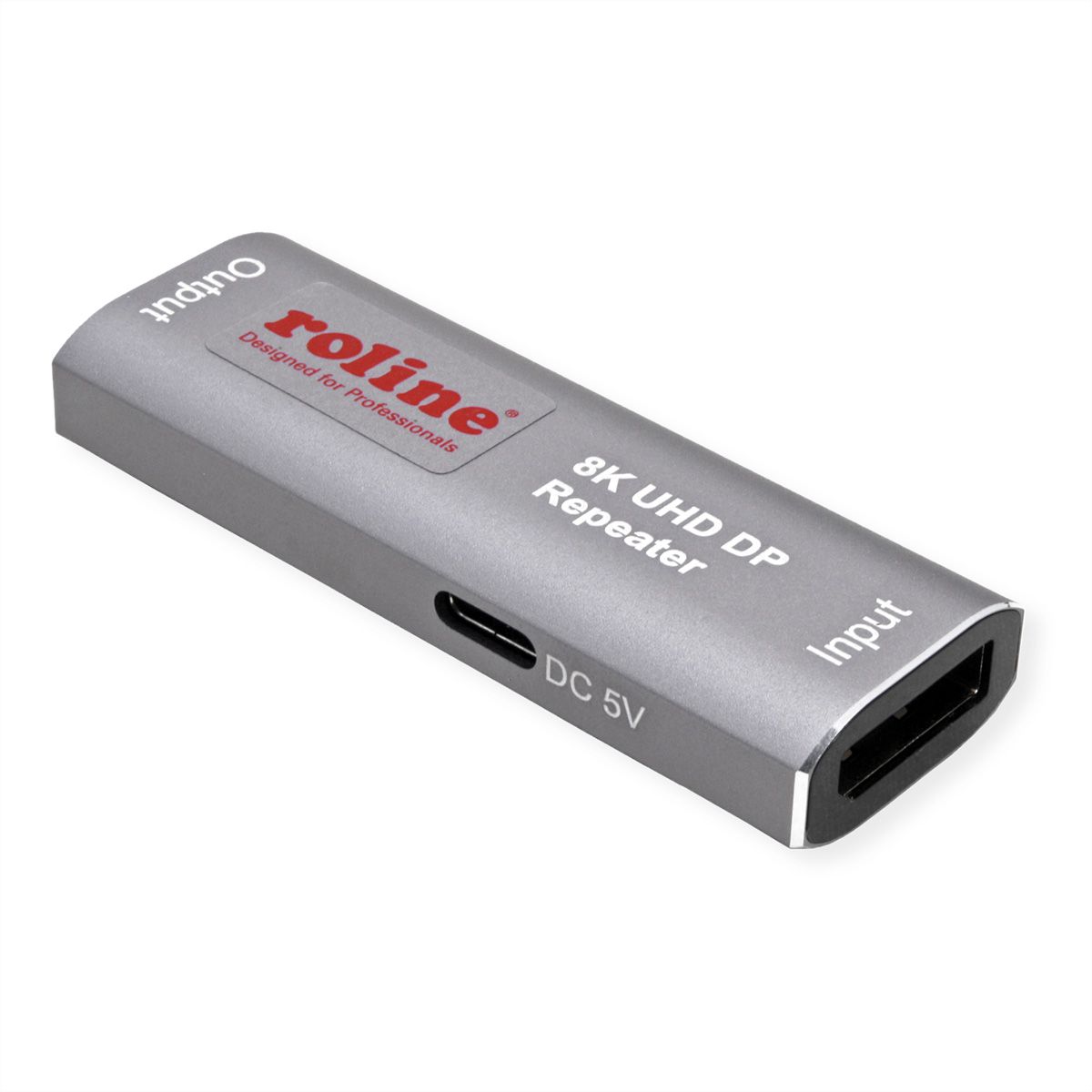

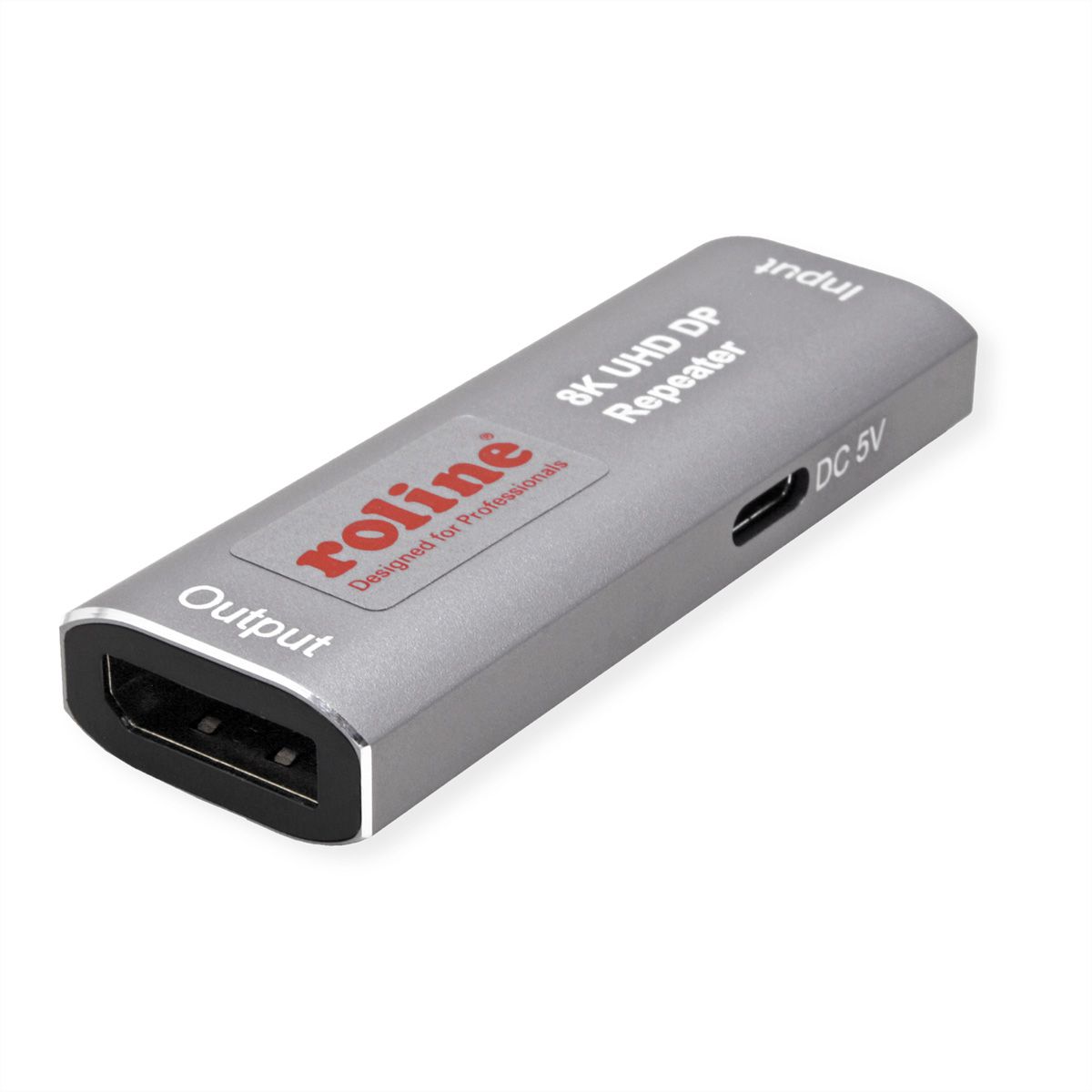

ROLINE DisplayPort Extender, 8K60, 10m
Item no.
14013475
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3475
EAN
7630049628861
Item weight
0.02 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
:strip_icc():strip_exif()/bilder/icons/icon_dp_4320p.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_8k.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

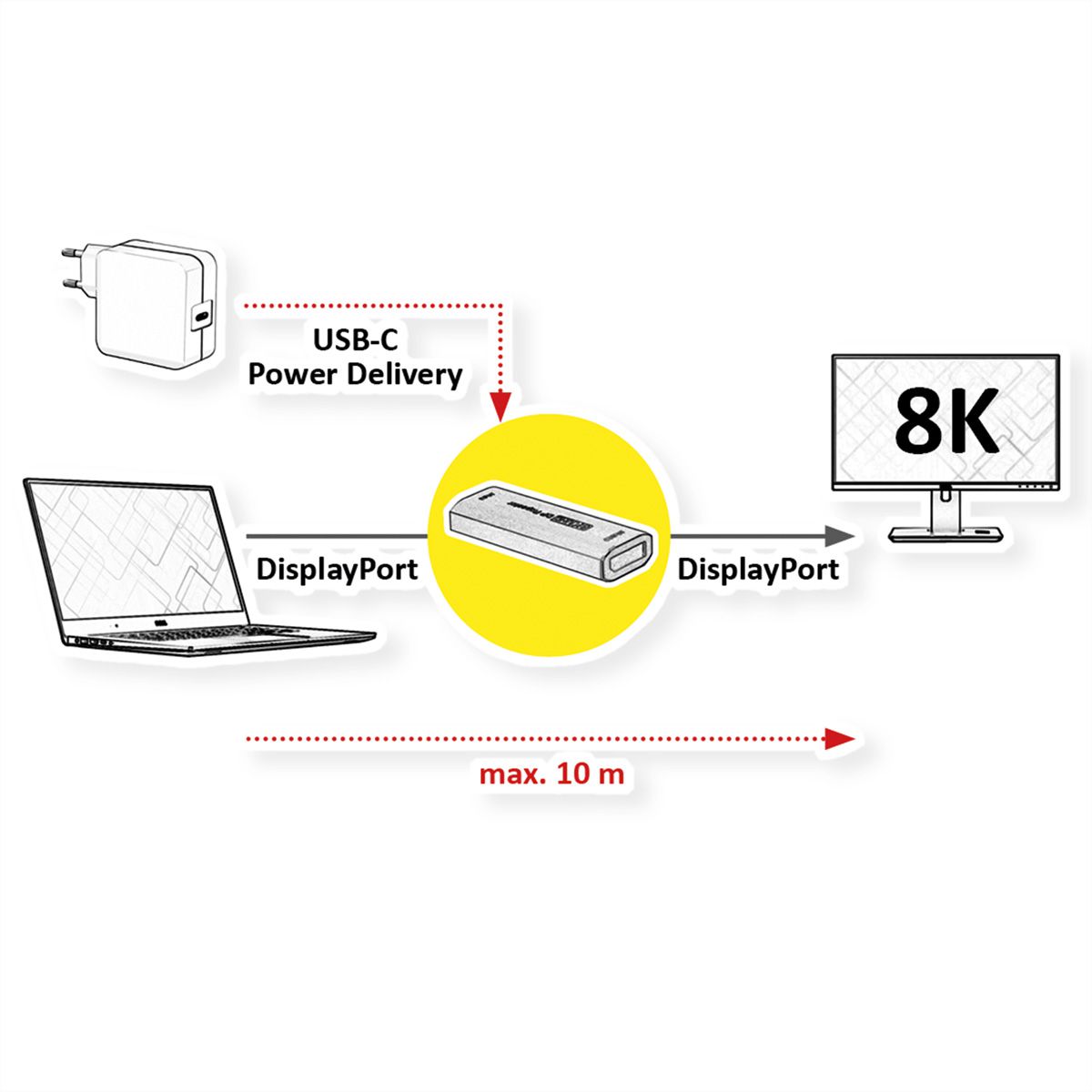

DisplayPort Repeater to create a point-to-point connection to reduce costs for applications that require a single DisplayPort input and output device over long distances - with up to 7680x4320 @60Hz resolution!
- Ideal for display applications in conference rooms, classrooms & training facilities etc.
- Extend the DisplayPort signal up to 10/20 meters (depending on the resolution)
- Supports DisplayPort resolutions up to 8K @60Hz
- Compliant with DisplayPort specification v1.2
- Compliant with HDCP 2.2 & DPCP
- Supports 8K 60Hz (max. length: 5m in; 5m out), 4K 60Hz (max. length: 10m in; 10m out);
- HDTV compatible
- Plug & Play
- Power: via USB C cable (5 VDC, 2A) - not included.
REMARK: Graphics card and display must support display stream compression (DSC) to use HDR 8K@30/60Hz、
4K@120Hz and 2K@240Hz
Specifications
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- DisplayPort extension
- Colour
- grey
- Scope of delivery
- DisplayPort Repeater, Quick Installation Guide
- Interface
- DP
- Max. distance
- 10 m
- Video input
- DP
- Video output
- DP
- Max. resolution
- 7680 x 4320 @60Hz (8K, UHD-2)
- Operating temperature min.
- -15 °C
- Operating temperature max.
- 45 °C
- Height
- 10 mm
- Width
- 23 mm
- Depth
- 60 mm
- Weight
- 17 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 70 mm
- Package weight (single piece)
- 0.02 kg
- Power supply output
- DC 5V; 2A
