The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
ROLINE Dual-Head 4K@60Hz HDMI KVM Switch, 2 PCs, DP/HDMI, Audio, with 2 Port USB 2.0 Hub
Item no.
14013047
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3047
EAN
7630049634794
Item weight
1 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

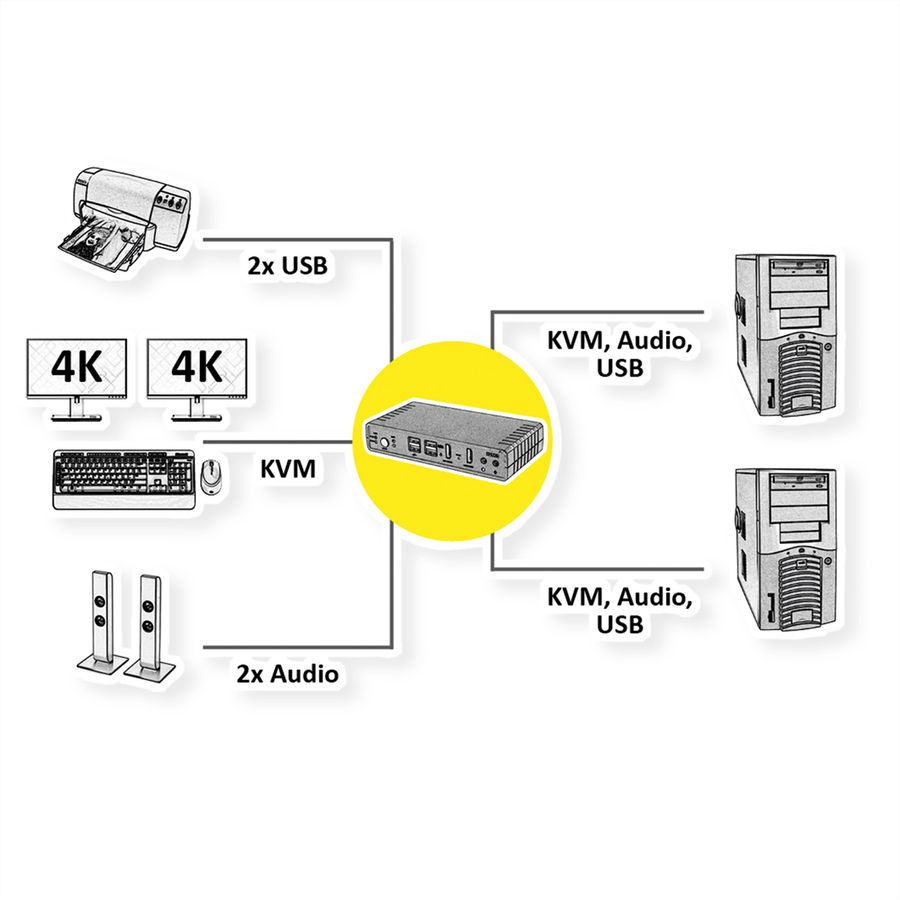

This ROLINE Dual-Head 4K@60Hz HDMI KVM Switch allows you to control two computers with DP/HDMI video output via one console with USB Keyboard, USB Mouse, 2x HDMI 4K@60Hz, 2 Port USB 2.0 Hub, Microphone and Speaker.
- Supports video resolution up to 4K@60Hz, 3840x2160@60Hz
- One Console controls two PC
- Supports 2x DisplayPort-/HDMI-in (PC side) and 2x HDMI-out (Console side)
- HDMI 2.0, Displayport 1.2 and HDCP 2.2 compliant
- 2x USB for Keyboard and Mouse and 2 port USB 2.0 Hub
- Audio/Microphone enabled
- Switching can be done with buttons and keyboard hotkeys
- LED status indication
- No software needed
- Supported Operating Systems: Windows, Mac, Linux

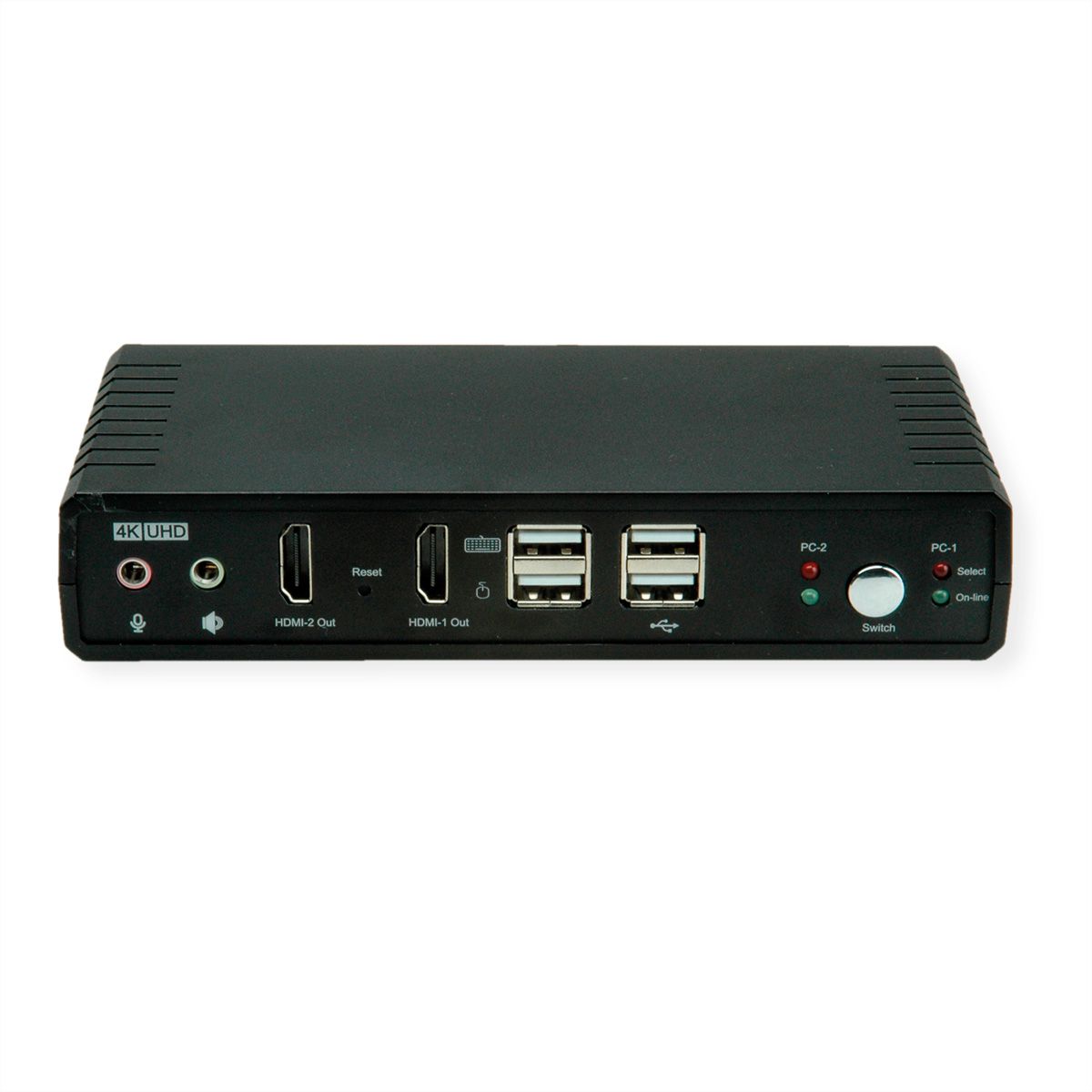

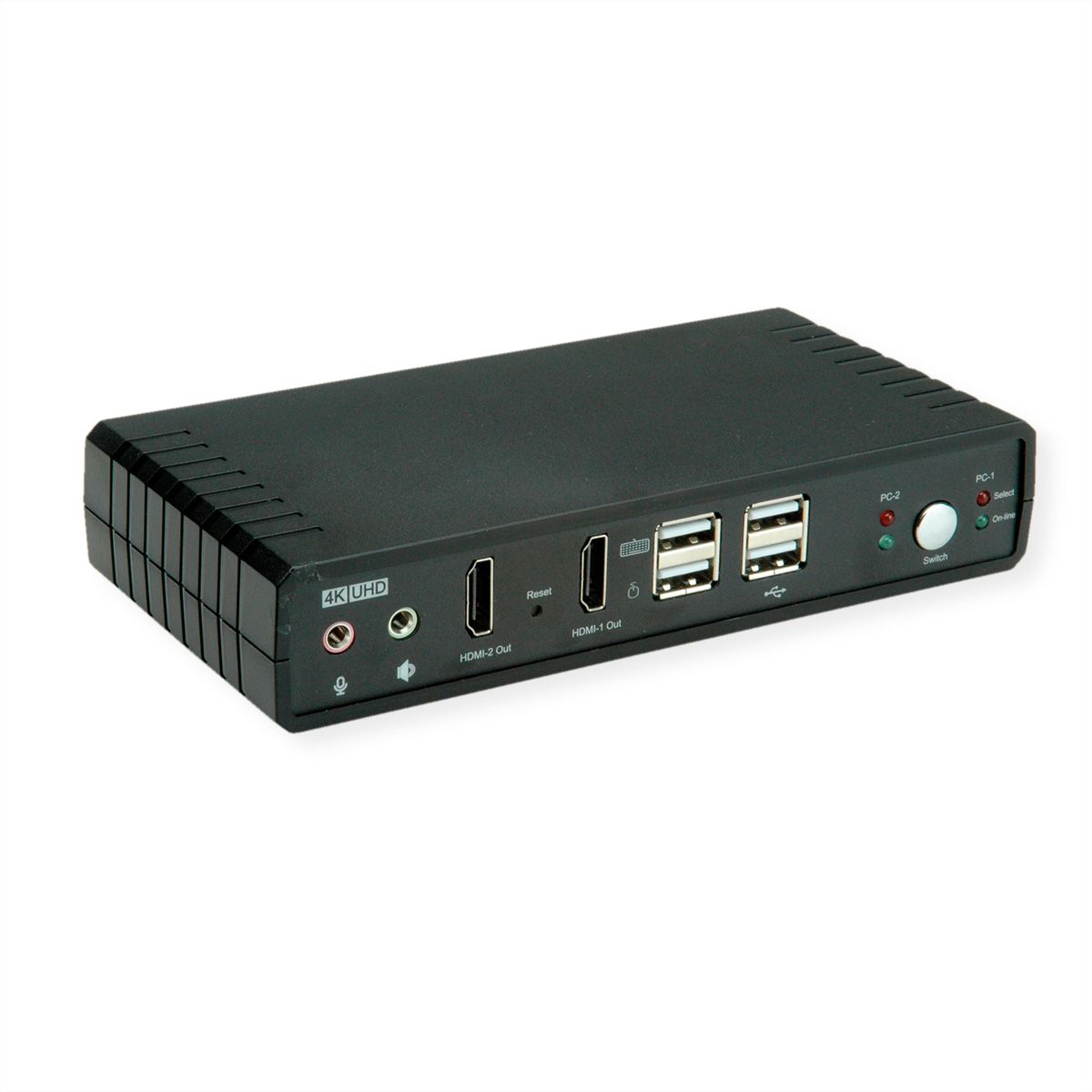

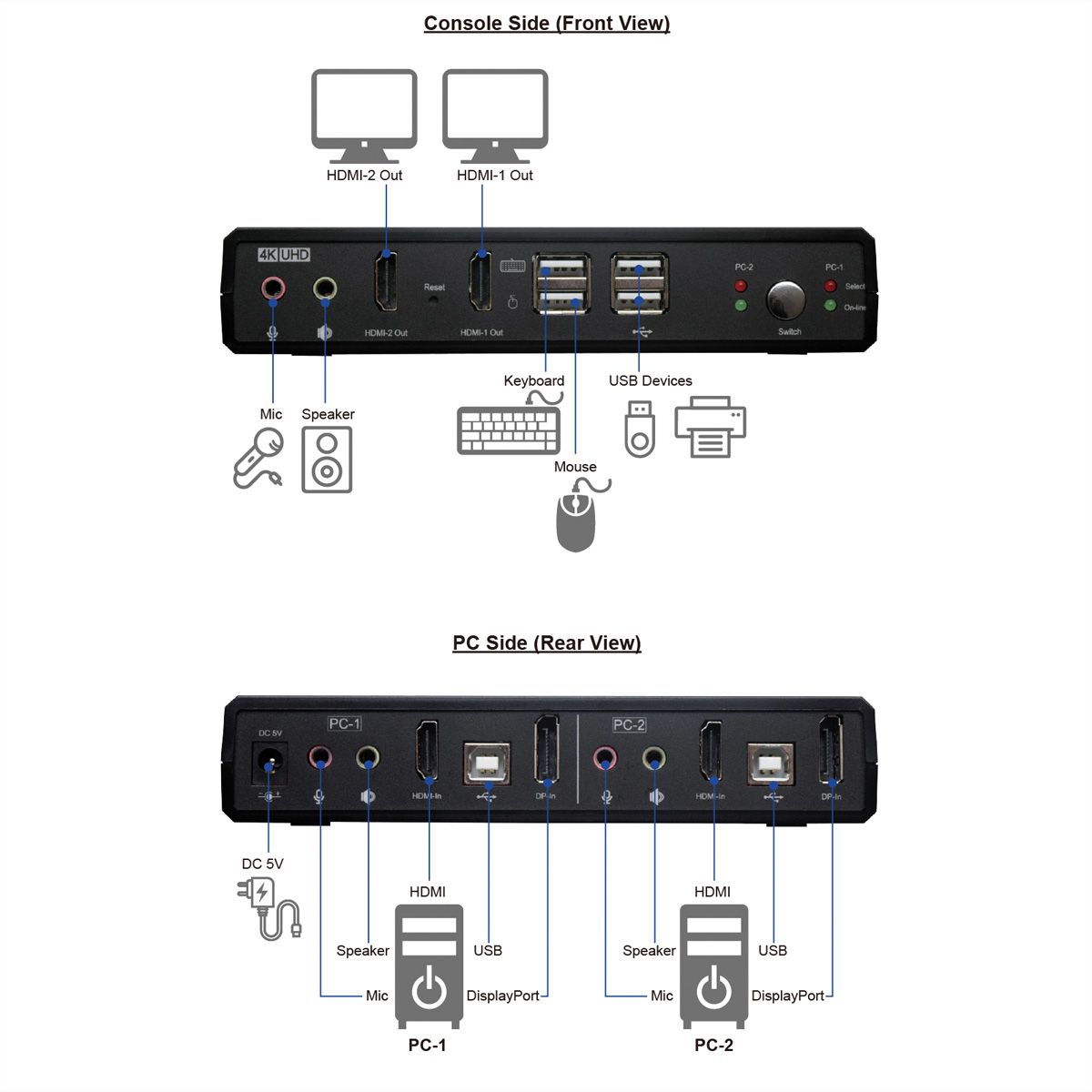

Console Side:
2x HDMI female for video output
2x USB Type A female for keyboard and mouse
2x USB Type A female for USB 2.0 hub
2x 3.5-mm audio phone jack

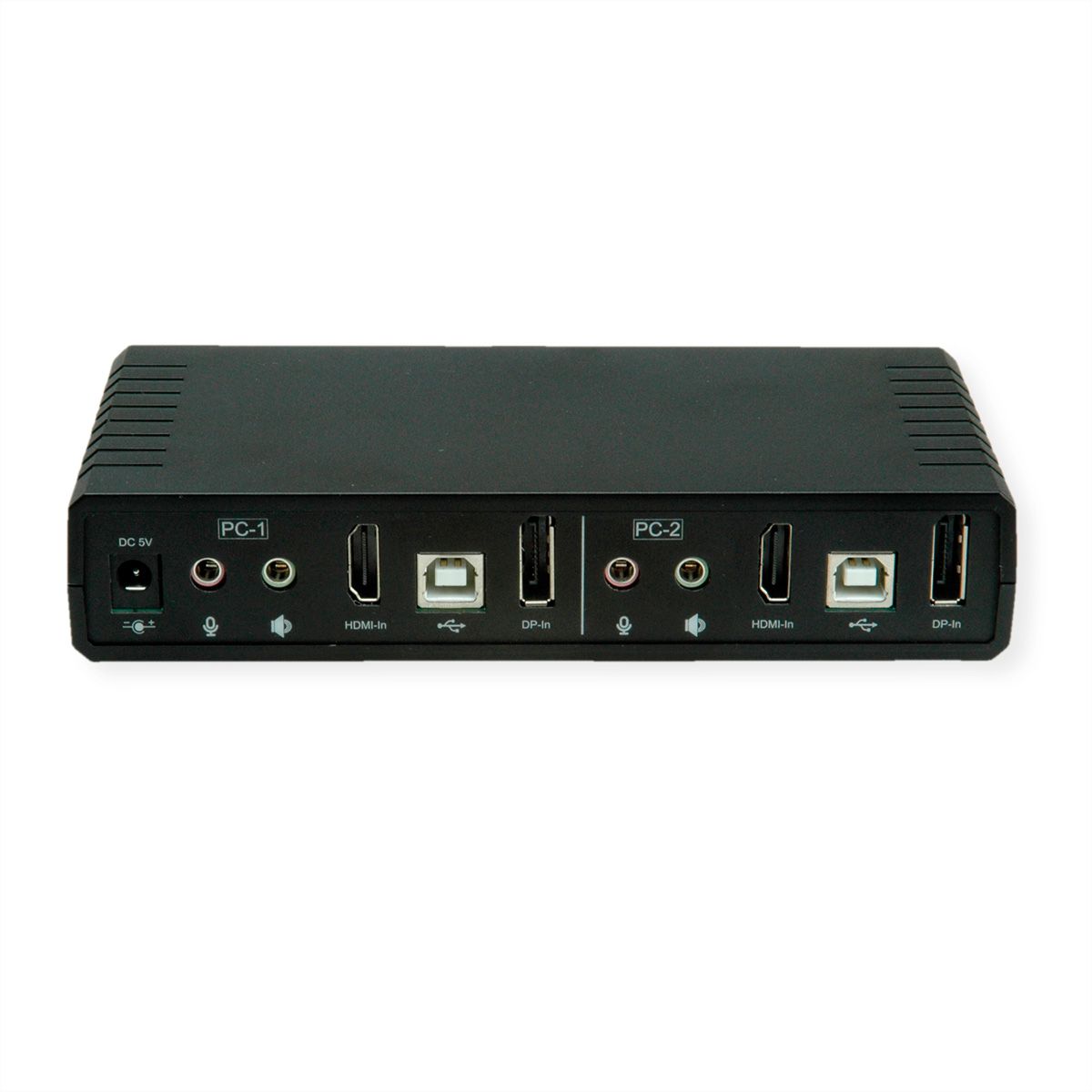

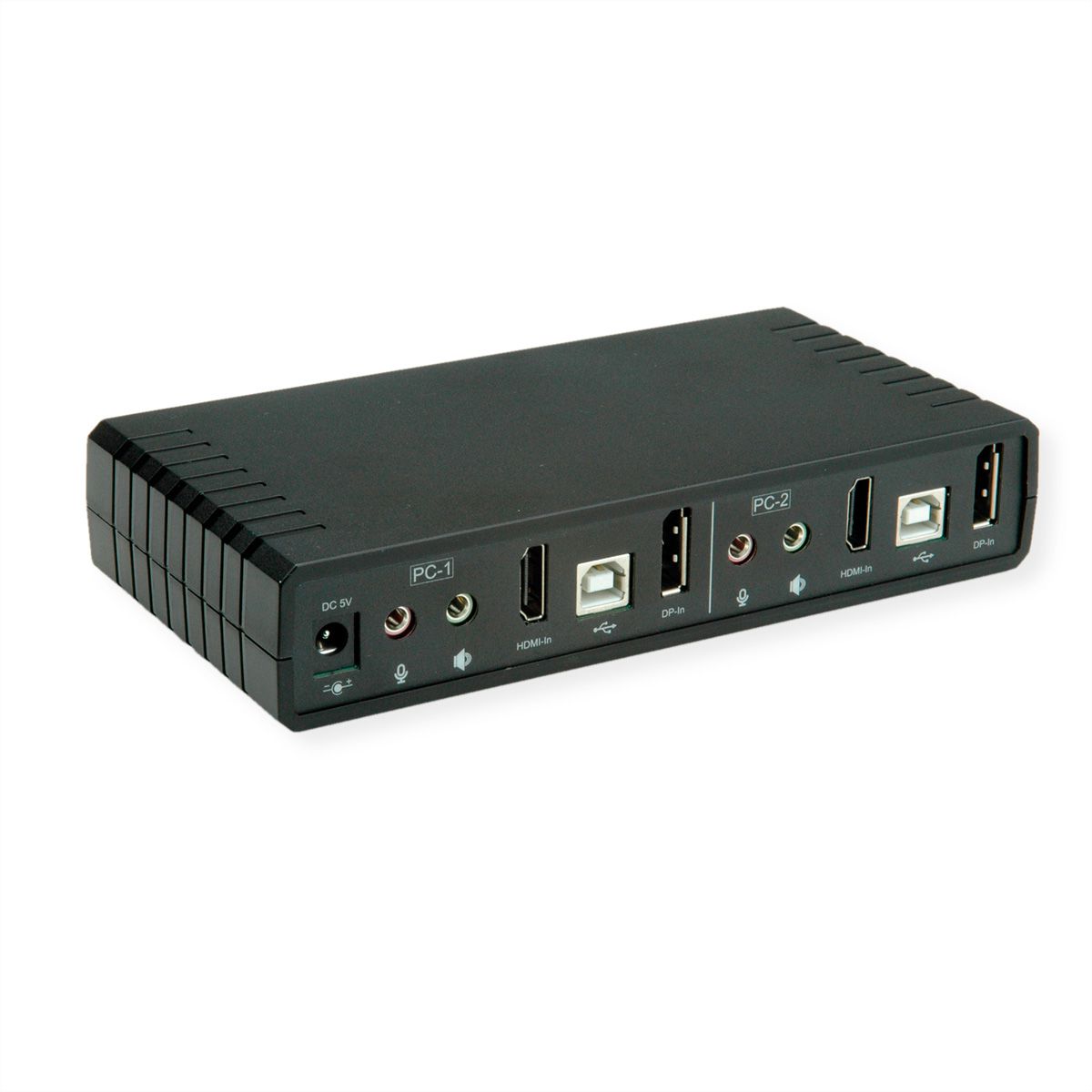

PC Side:
2x HDMI female for video input
2x DisplayPort female for video input
2x USB Type B female
4x 3.5-mm audio phone jack
Other: 2.1-mm barrel plug for power
Specifications
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, HDMI
- Colour
- black

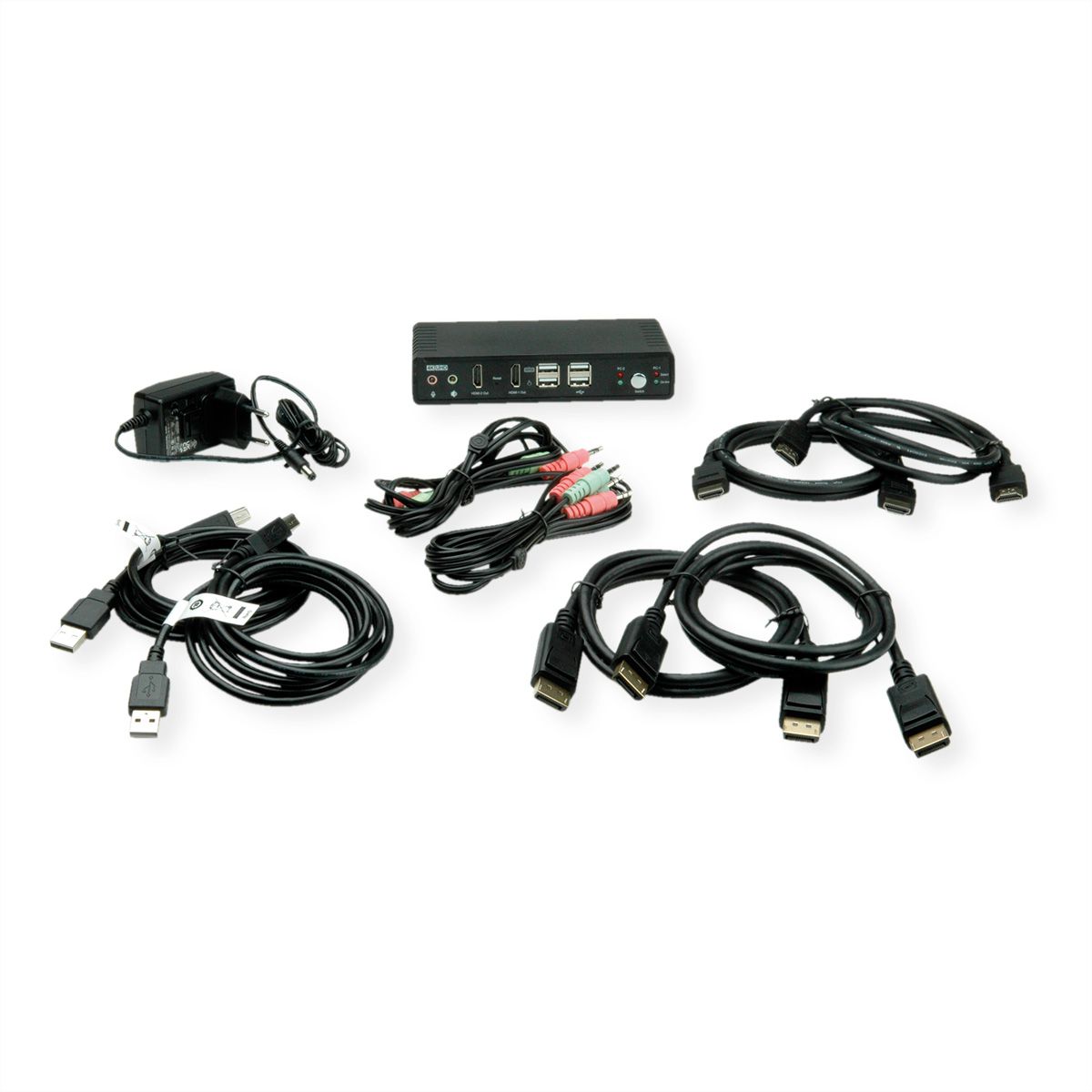

- Scope of delivery
- KVM Switch, Power Supply, 2x HDMI Cable, 2x DisplayPort Cable, 2x USB A-B Cable, 2x Audio-/Mic-Cable, User Manual
- Interface
- HDMI
- Audio
- Stereo Audio
- Inputs
- 2
- Outputs
- 2
- Quantity of PCs
- 2
- Supported PC-Systems
- USB
- PC: monitor connection
- 2x HDMI, 2x DP
- PC: mouse/keyboard connection
- 2x USB Type B
- Quantity of digital consoles
- 2
- Print button on device
- yes
- Switching over Hot Keys
- Keyboard
- Integrated Hub
- yes
- 19" compatible
- no
- Cascadable
- no
- Hot plug compatible
- yes
- Max. resolution (nominal)
- 3840 x 2160@60Hz
- Colour (Design profile)
- black
- Dimensions (HxWxD)
- 32 x 167 x 84 mm
- Power supply unit required
- yes
- Power supply output
- 5V 2A DC
- Technical particularity
- LEDs for easy status monitoring
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 60 °C
- Height
- 32 mm
- Width
- 167 mm
- Depth
- 84 mm
- Weight
- 905 g
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 210 mm
- Depth of packaging (single piece)
- 320 mm
- Package weight (single piece)
- 1 kg
- Analogue Console: Monitor connection
- 2x HDMI
- Analogue Console: Mouse/Keyboard connection
- 2x USB Type A
- Analogue Console: Combi connection
- 2x USB 2.0 Type A
- Quantity of USB-Hub ports
- 2
- Material (casing)
- metal
