ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, spiral (max. 3m)

Item no. 19080055 Brand / Manufacturer ROLINE Manuf. item no. 19.08.0055 EAN 7630049628229 Item weight 3 kg

Colour:

Length:

ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, spiral (max. 3m)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 09/10/2026

Download PDF

Description

Type2 charging cable for electric and hybrid cars with 22 kW, 3-phase, 480 V AC

Enables easy / fast charging at public charging stations and private wall boxes (wallbox)
Suitable for charging electric and hybrid vehicles
Mode 3 / Type 2 car charging cable
Connections: Type 2 on both sides
For all electric cars with type 2 connection

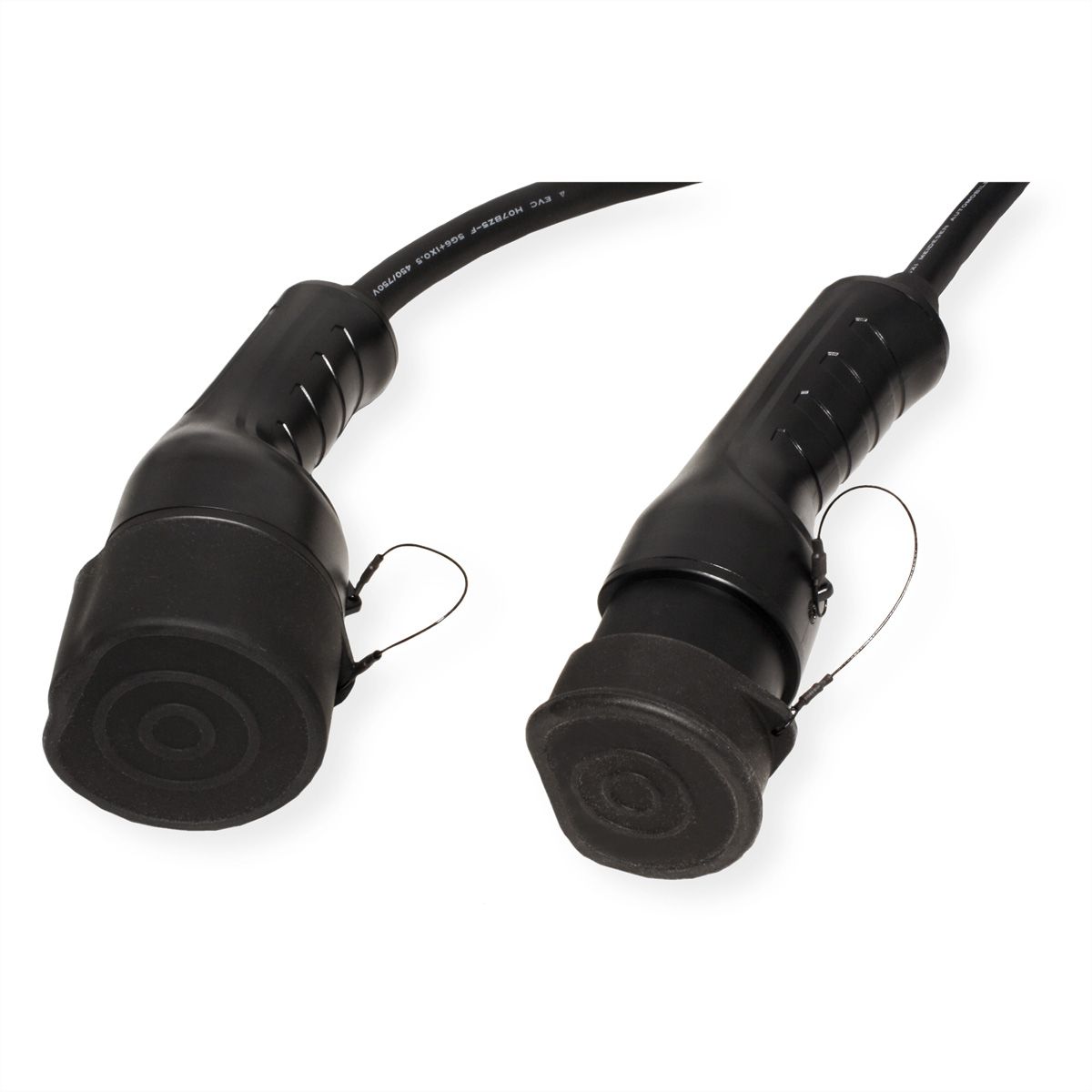

Ergonomically shaped plug and coupler
Moisture protection (IP65 - connected state, IP54 - unconnected cable with protective caps attached)
Spiral, max. usable length 3 m

32 A / 3- phase (480 VAC)
Max. Charging power: 22 kW

Specifications

Manufacturer: ROLINE
Product group: Power Cables
Product type: Electric car charging cable
Colour: black
Length: 5 m
Scope of delivery: E-car charging cable, carrying bag
Charging power: 22 kW
Input voltage: 480 V, 50 Hz
Current: 32 A
Number of phases: 3-phase
Supported charging technology: Mode-3
Side 1 Connector Type: IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
Side 1 Connector Gender: Male
Side 2 Connector Type: IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
Side 2 Connector Gender: Female
Cable LSOH: flame retardant
Protection class (IP Code): IP65

IP54
Technical particularity: spiral, max. usable length 3 m
Mains connection: IEC 62196-2 Type 2 plug, 3Ph.
Operating temperature min.: -30 °C
Operating temperature max.: 50 °C
Storage temperature min.: -40 °C
Storage temperature max.: 85 °C
Height: 40 mm
Width: 390 mm
Depth: 390 mm
Weight: 2.6 kg
Height of packaging (single piece): 100 mm
Width of packaging (single piece): 370 mm
Depth of packaging (single piece): 370 mm
Package weight (single piece): 3 kg
