Item no.:21170325Herst.-Art.-Nr.:21.17.0325

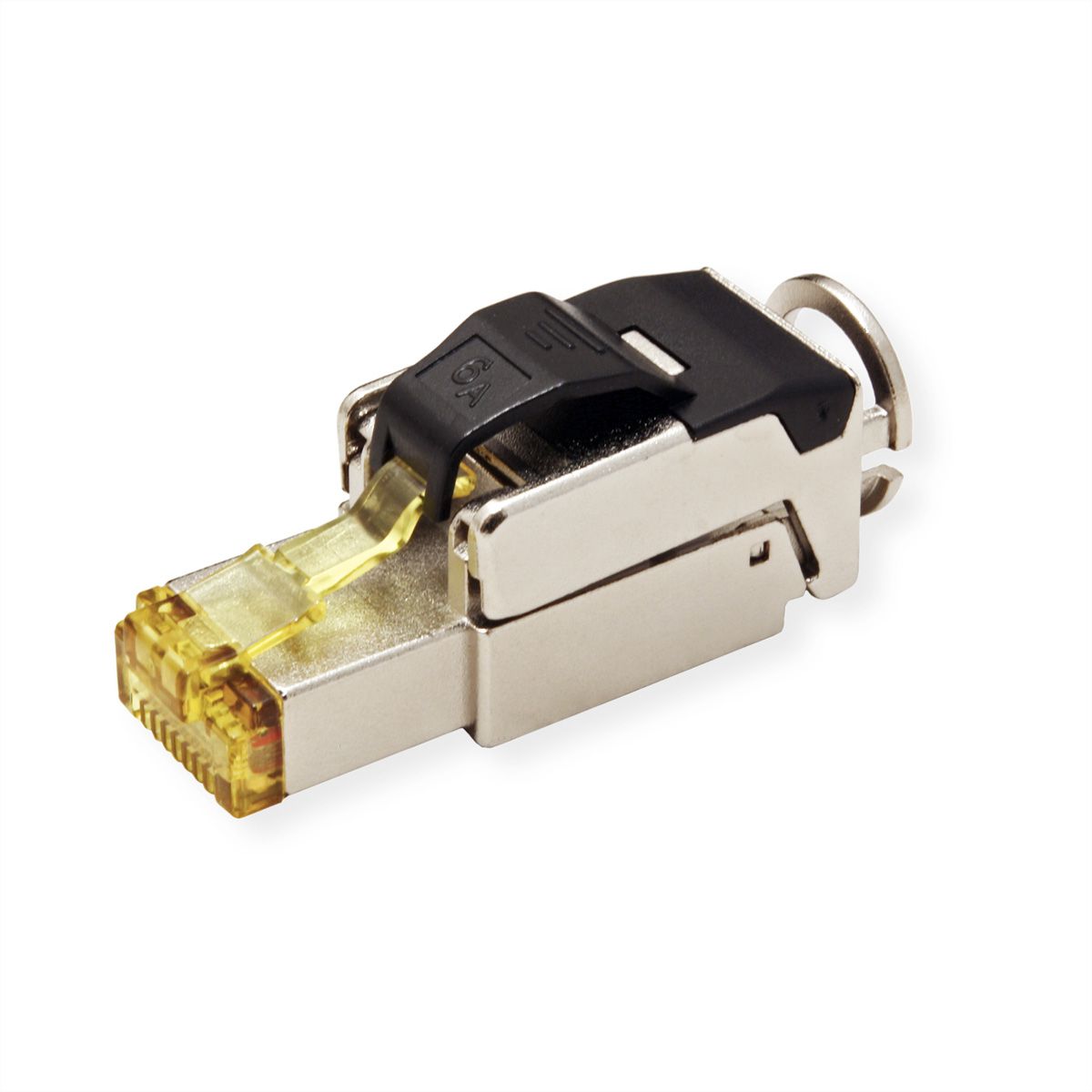

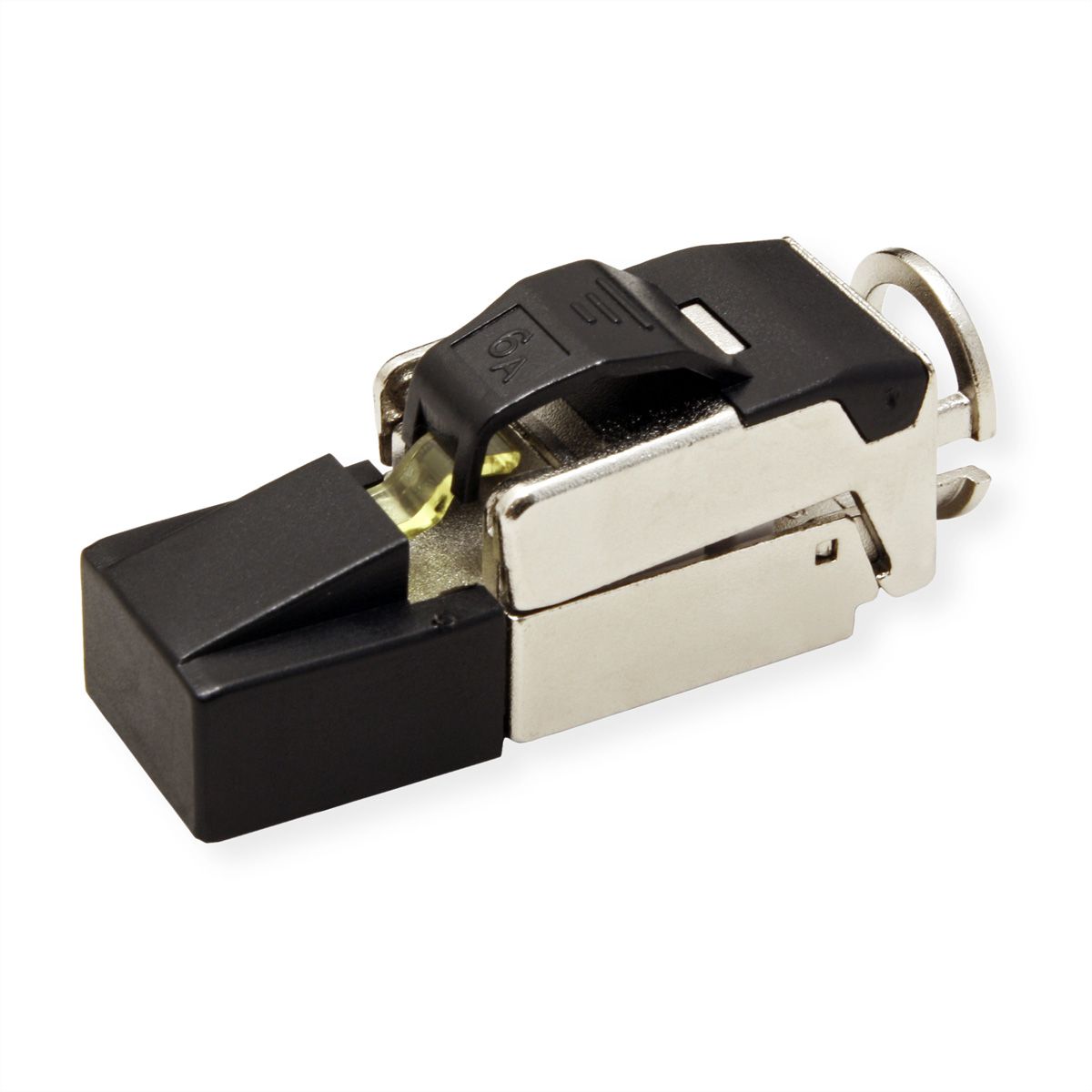

ROLINE Field Plug Cat.6A (Class EA), STP, silver
Item no.
21170323
Brand / Manufacturer
ROLINE
Manuf. item no.
21.17.0323
EAN
7630049614659
Item weight
0.019 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

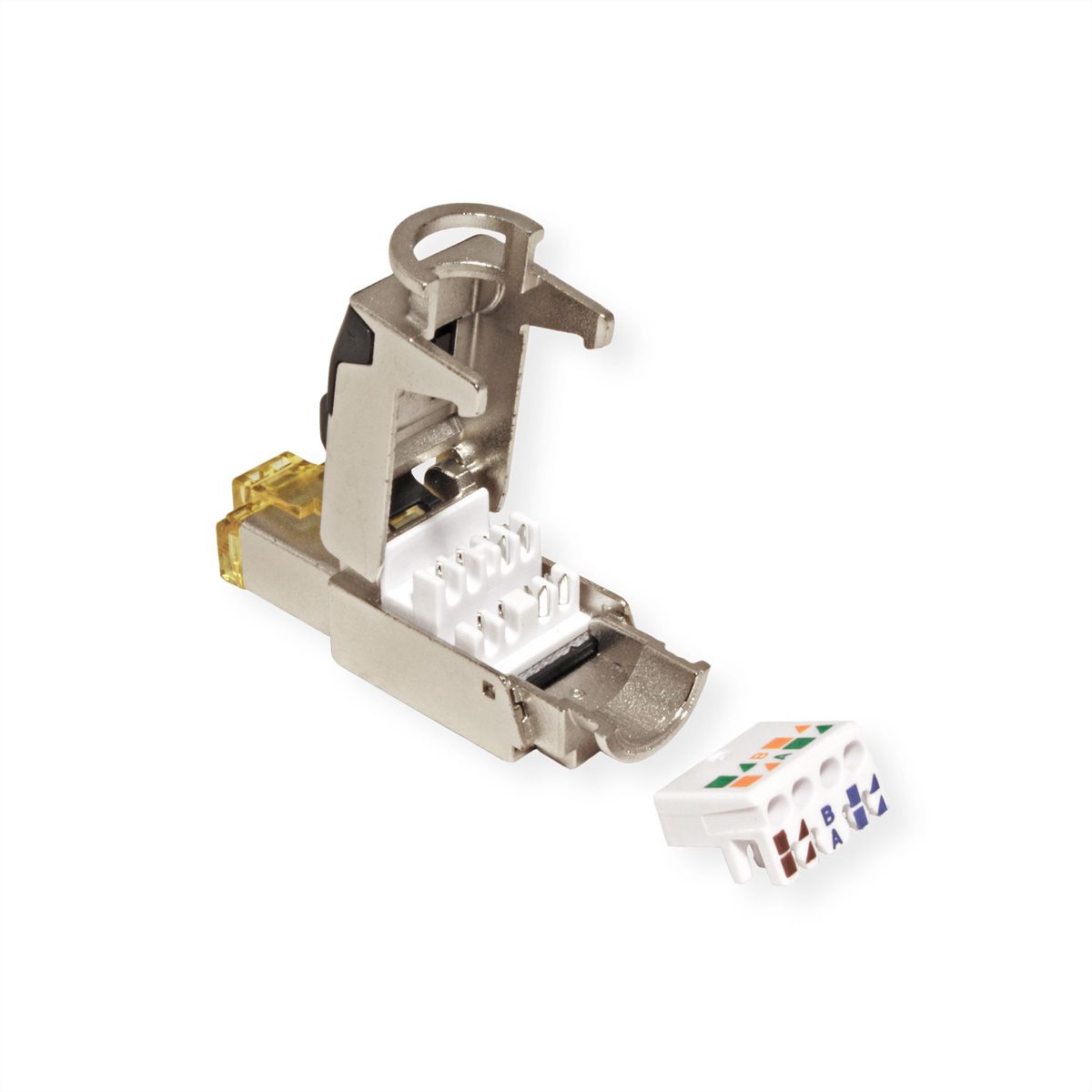

- Fast and easy tool-free installable unshielded RJ45 connector
- Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
- Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
- For cable with outer diameter OD: 6.0 - 9.0mm
- Pair management according to TIA 568B and TIA 568A colour codes
- Robust zinc die-cast housing
- Strain relief with cable tie and black transparent dust cup and boot
- Color: silver
Specifications
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- silver
- Scope of delivery
- 1x RJ-45 plug
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Shield contacts
- ja
- separate strain relief
- yes
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 16.8 mm
- Width
- 13.8 mm
- Depth
- 41.8 mm
- Weight
- 14.8 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.019 kg
