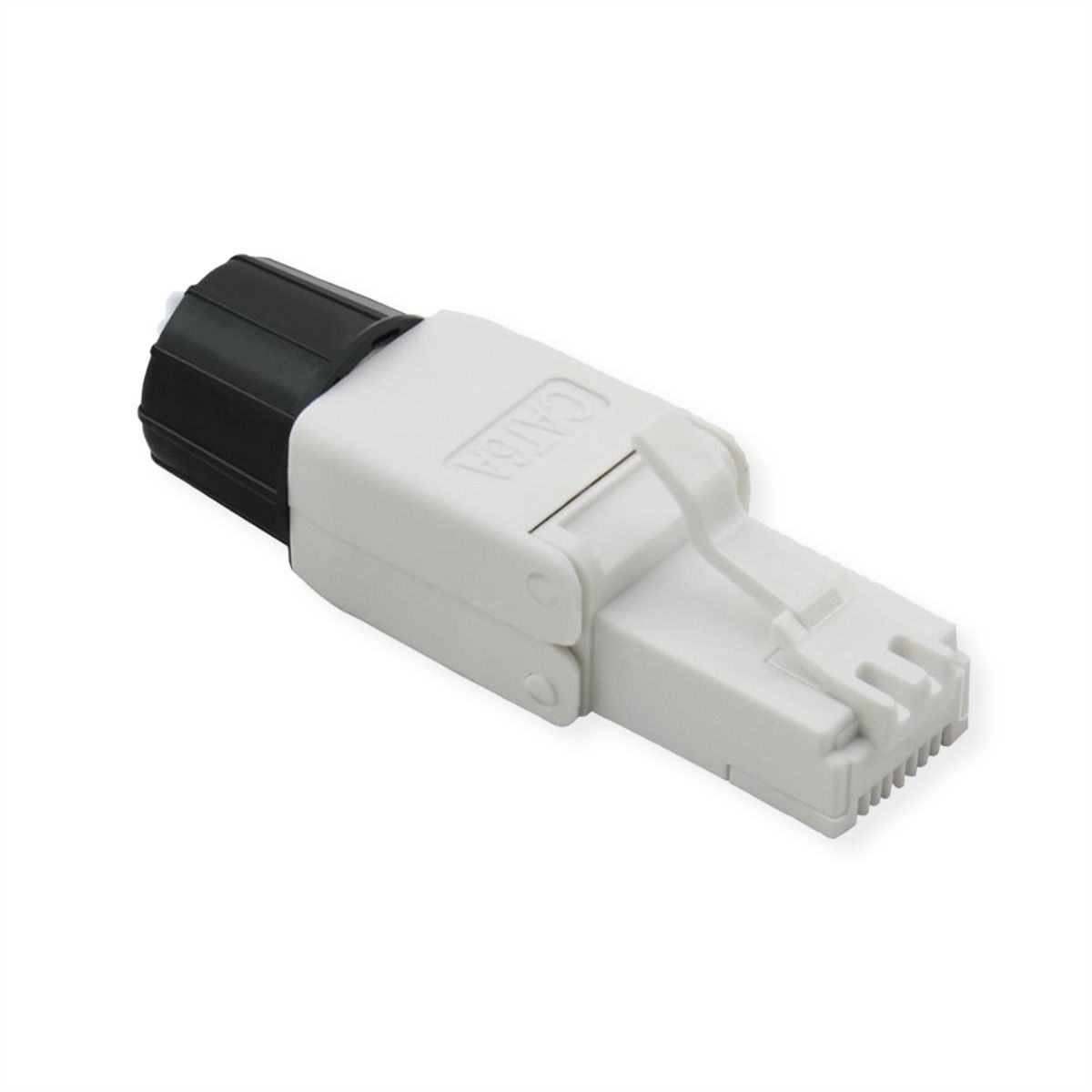

ROLINE Field Plug Cat.6A (Class EA), UTP, white

Item no. 21170324 Brand / Manufacturer ROLINE Manuf. item no. 21.17.0324 EAN 7630049625044 Item weight 0.005 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

  • Fast and easy tool-free installable unshielded RJ45 connector
  • Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
  • Compact cable manager for round Solid cable AWG 22-24(1/0.41-1/0.575mm)
  • For cable with outer diameter OD: 5.0 - 7.5mm
  • Pair management according to TIA 568B and TIA 568A colour codes
  • Plastic housing
  • Strain relief with cable tie and black transparent dust cup and boot

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
Connectors RJ-45
Colour
white
Shield type
Not screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
separate strain relief
yes
Height
15.7 mm
Width
16 mm
Depth
69 mm
Weight
5.3 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
10 mm
Depth of packaging (single piece)
50 mm
Package weight (single piece)
0.005 kg

Downloads

Product data sheet - English (35.1 KB) Manufacturer data sheet - English (201.5 KB)
