Description

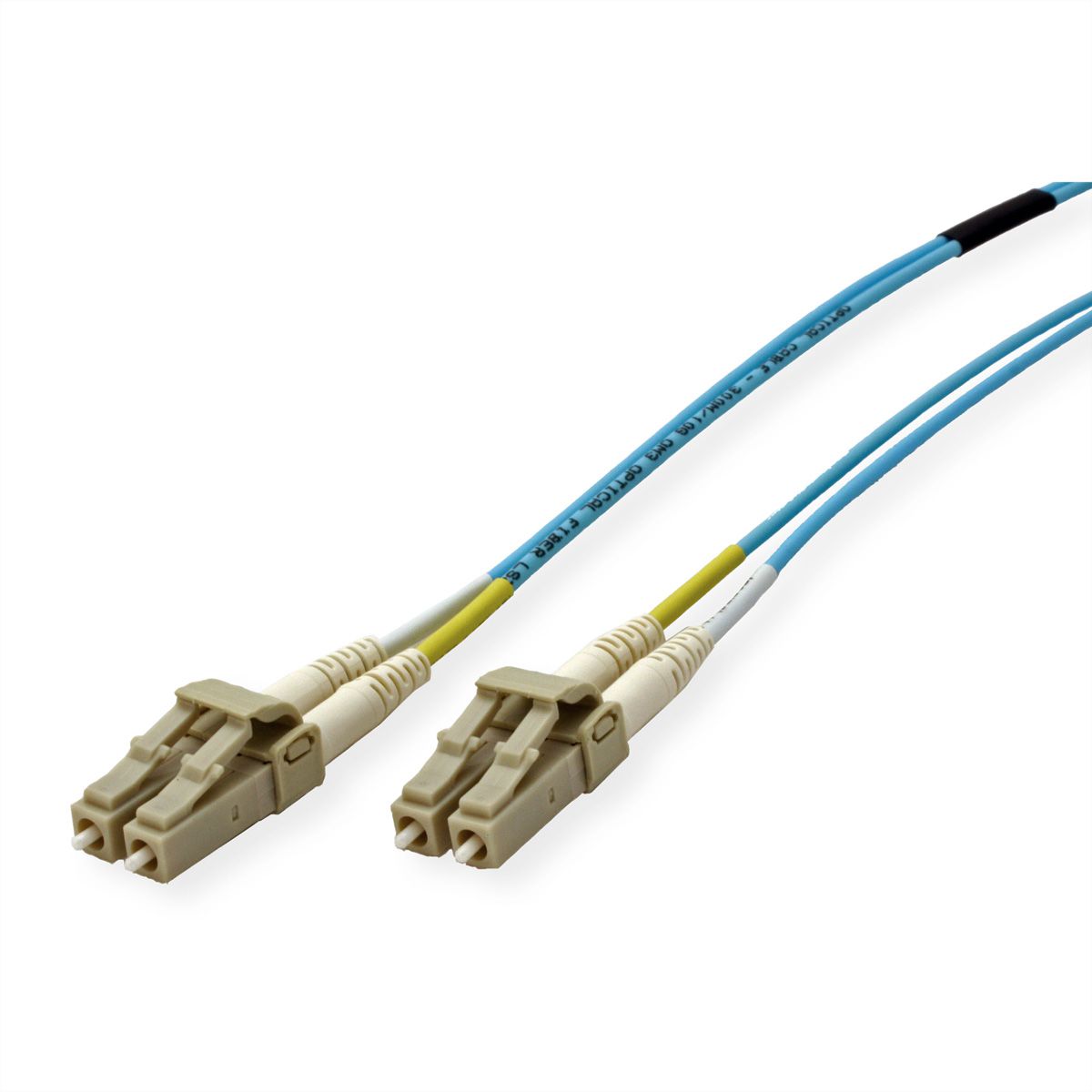

ROLINE F.O. Patchcable in OM3-Quality for a high performance connection.

• Security for the future! The OM3 fiber and connector quality with very low insertion loss ensure an excellent quality at very high bandwidths.
• Material and assembly in ROLINE quality
• The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:

- Typical attenuation of a standard LC connector: 0.5 dB
- Typical attenuation of a low-loss LC connector: 0.15 dB

• Duplex cables with fiber type Multi-mode 50/125_m, OM3
• Available lengths: 0.5 m, 1m, 2m, 3m, 5m and 10m
• Color: turquoise

Specifications

Manufacturer	ROLINE
Product group	Fibre optic cable
Product type	Fibre Optic Jumper Cables OM3
Colour	turquoise
Length	1 m
Quantity of fibre	2
Conductor composition	Compact conductor
Cable type	Duplex Cable
External cable	no
Fibre section	50/125µm OM3
Connection ports	LC / LC
Side 1 Connector Type	LC
side 1 connector ferrules	Low-Loss
Side 2 Connector Type	LC
side 2 connector ferrules	Low-Loss
Aramid strain relief	yes
External cable diameter	2,8x6 mm
Mantle of external cable	LS0H
Cable LSOH	yes
Weight	10.9 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	200 mm
Depth of packaging (single piece)	290 mm
Package weight (single piece)	0.03 kg
