The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

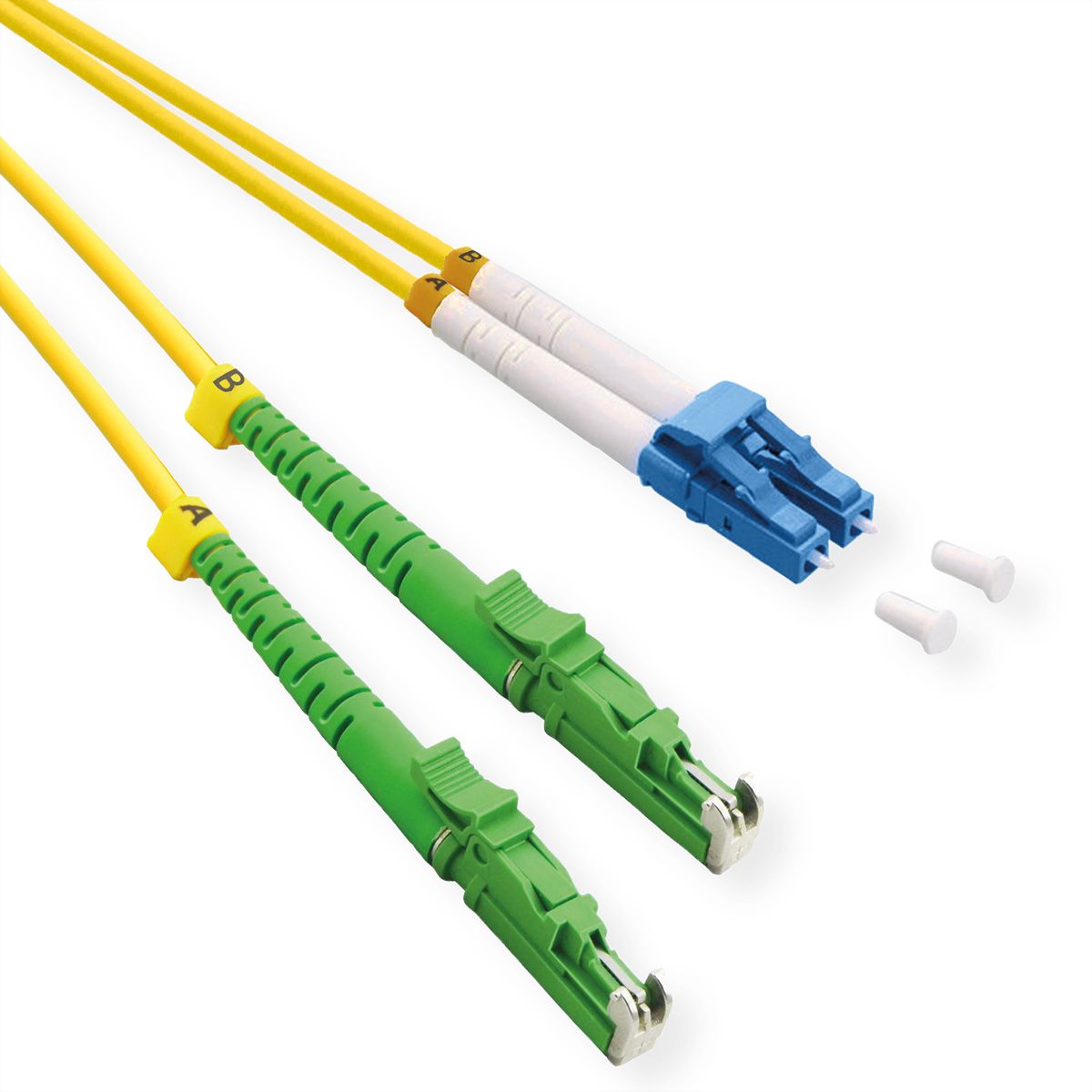

ROLINE FO Jumper Cable Duplex, 9/125µm, OS2, LSH APC / LC UPC, LSOH, yellow, 7.5 m
Item no.
21159516
Brand / Manufacturer
ROLINE
Manuf. item no.
21.15.9516
EAN
7611990158072
Item weight
0.17 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
:strip_icc():strip_exif()/bilder/icons/icon_lsoh.png){kind=icon}
Colour:
Length:
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
Deliverable approx. 09/21/2026
Description
High-quality fibre optic cable with the high protective, secured APC polished LSH connection on one side and UPC polished LC plug on the other side.
- Duplex cable with fiber type 9/125µm OS2
- Cable material: sheath halogen-free and flame-retardant, yellow, solid core with aramid strain relief
- LC connector: connector with high mechanical load capacity, push-pull latched with anti-rotation lock, APC ground joint, ceramic ferrule
- LSH connectors: precision-manufactured connectors with low return loss, APC ground joint, ceramic ferrule, grey
- The LSH connector has a spring-loaded shutter, which fully protects the ferrule from dust and scratches
- LSH APC Polish (8°) / LC UPC Polish
- IL < 0.25dB, RL > 25dB
- IL (typical) < 0.12dB
- Cable OD (outer diameter): 3.0 x 6.0mm
Specifications
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OS2
- Colour
- yellow
- Length
- 7.5 m
- Quantity of fibre
- 2
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Single mode 9/125µm OS2
- Connection ports
- LSH / LC
- Side 1 Connector Type
- LSH
- side 1 connector ferrules
- APC Polish
- Side 2 Connector Type
- LC
- side 2 connector ferrules
- UPC Polish
- Min. Bending radius, static
- 30 mm
- Min. Bending radius, dynamic
- 60 mm
- Aramid strain relief
- yes
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.2 dB
- Min. return loss
- 50 dB
- Weight
- 116.2 g
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.17 kg
