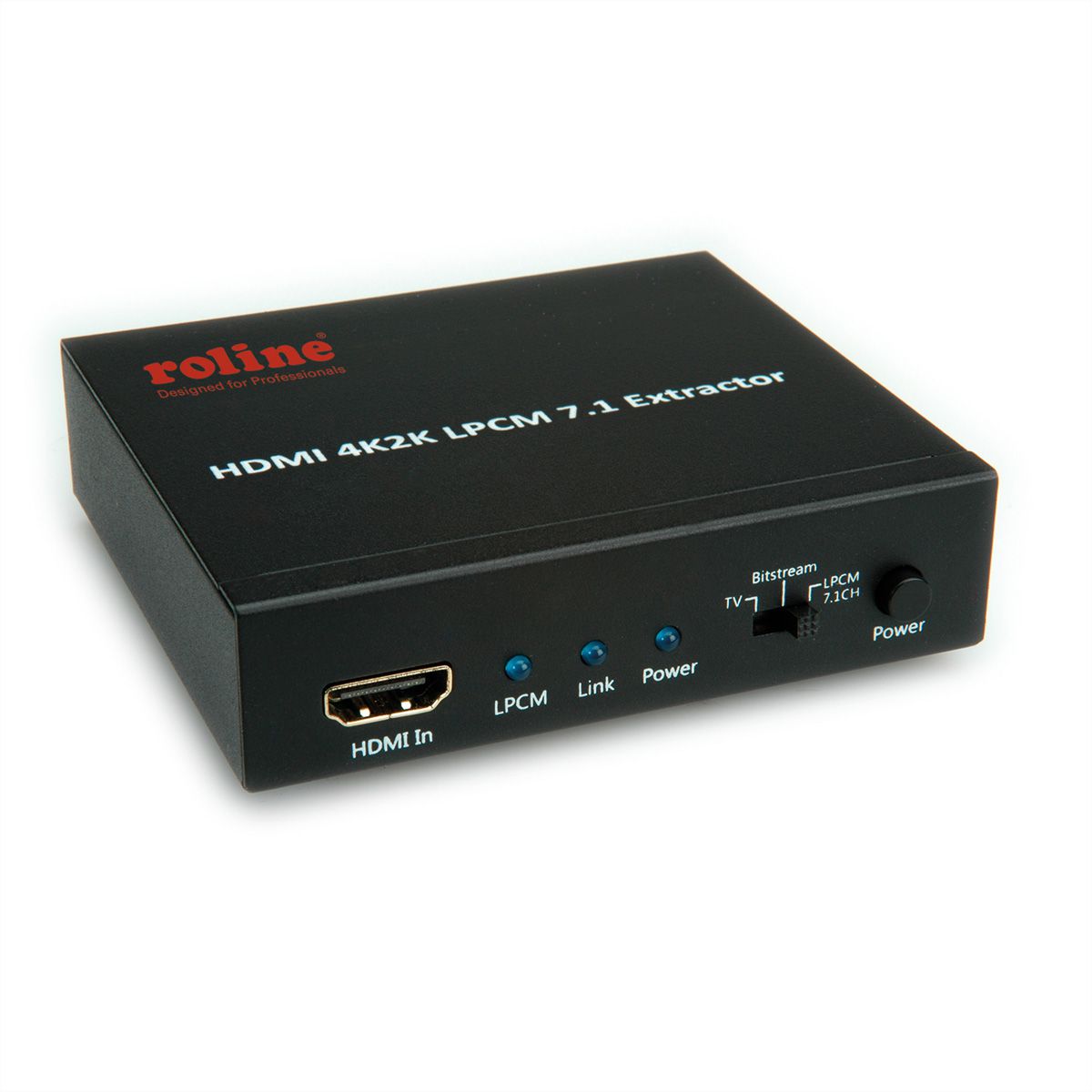

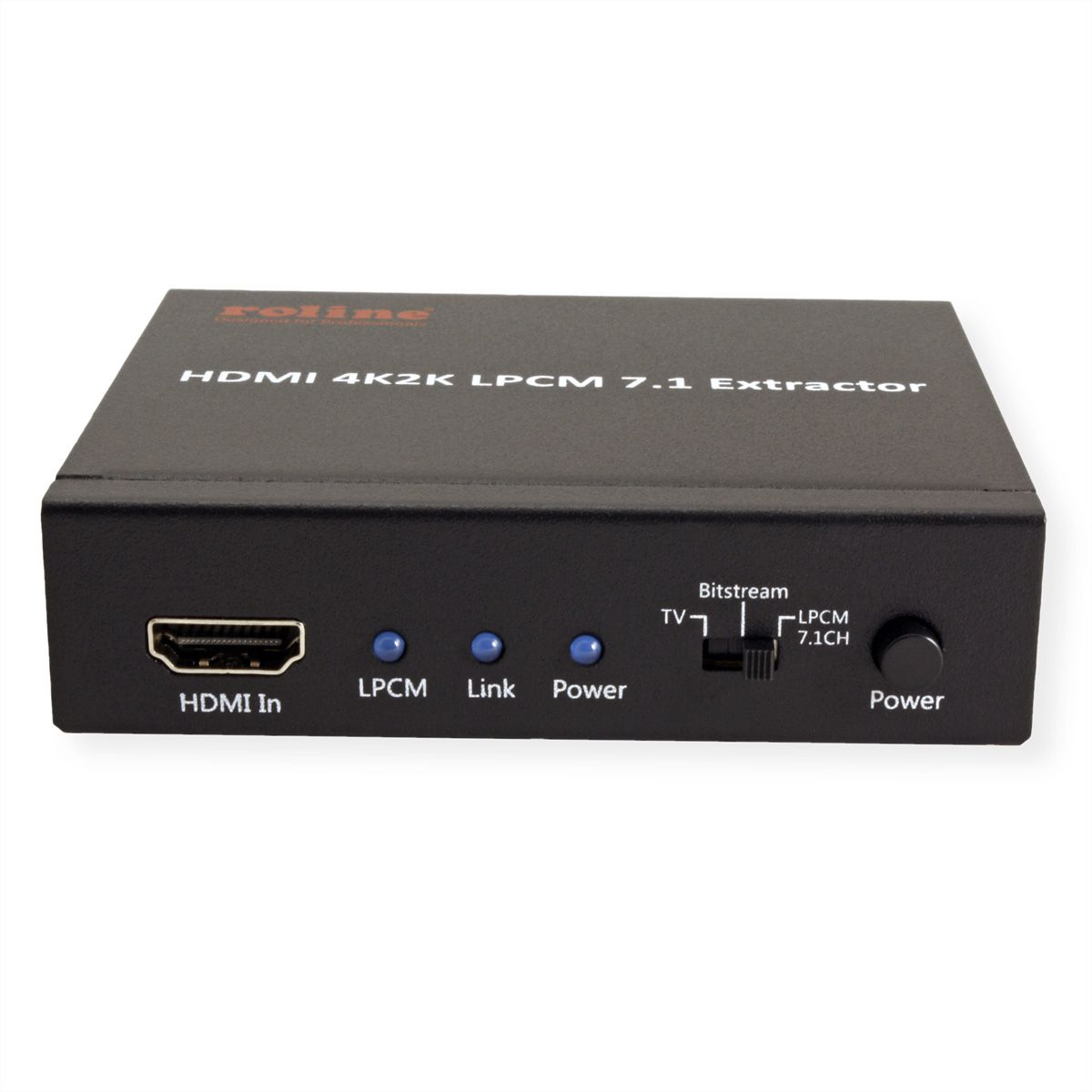

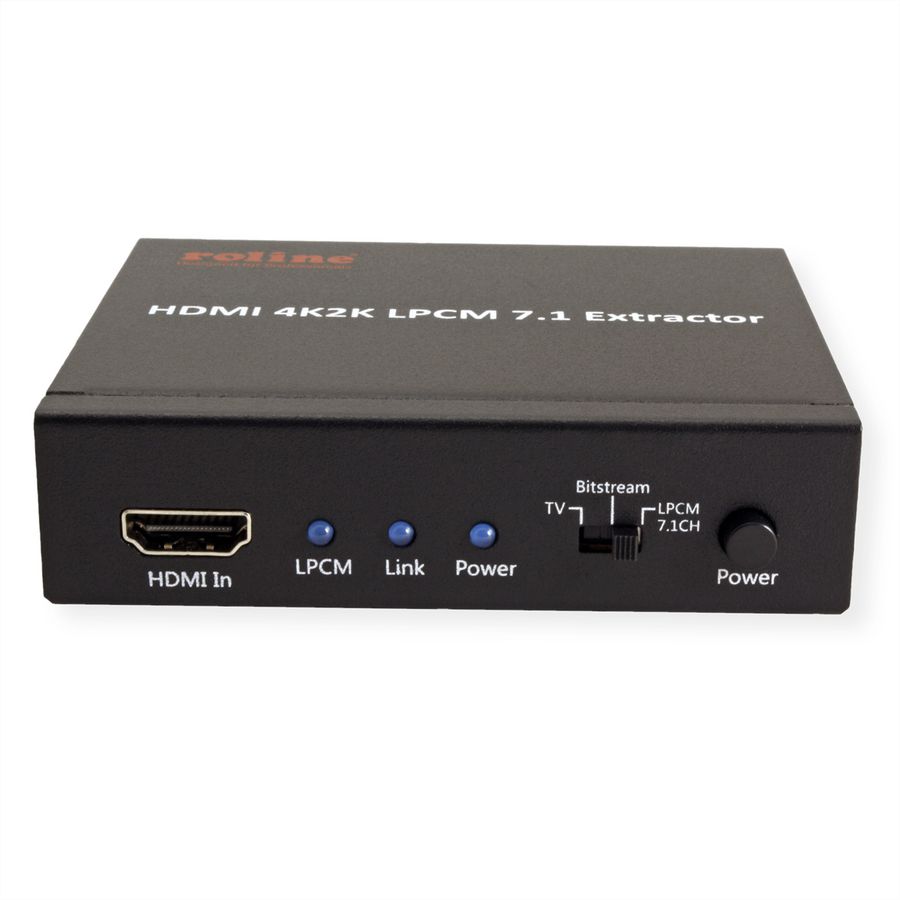

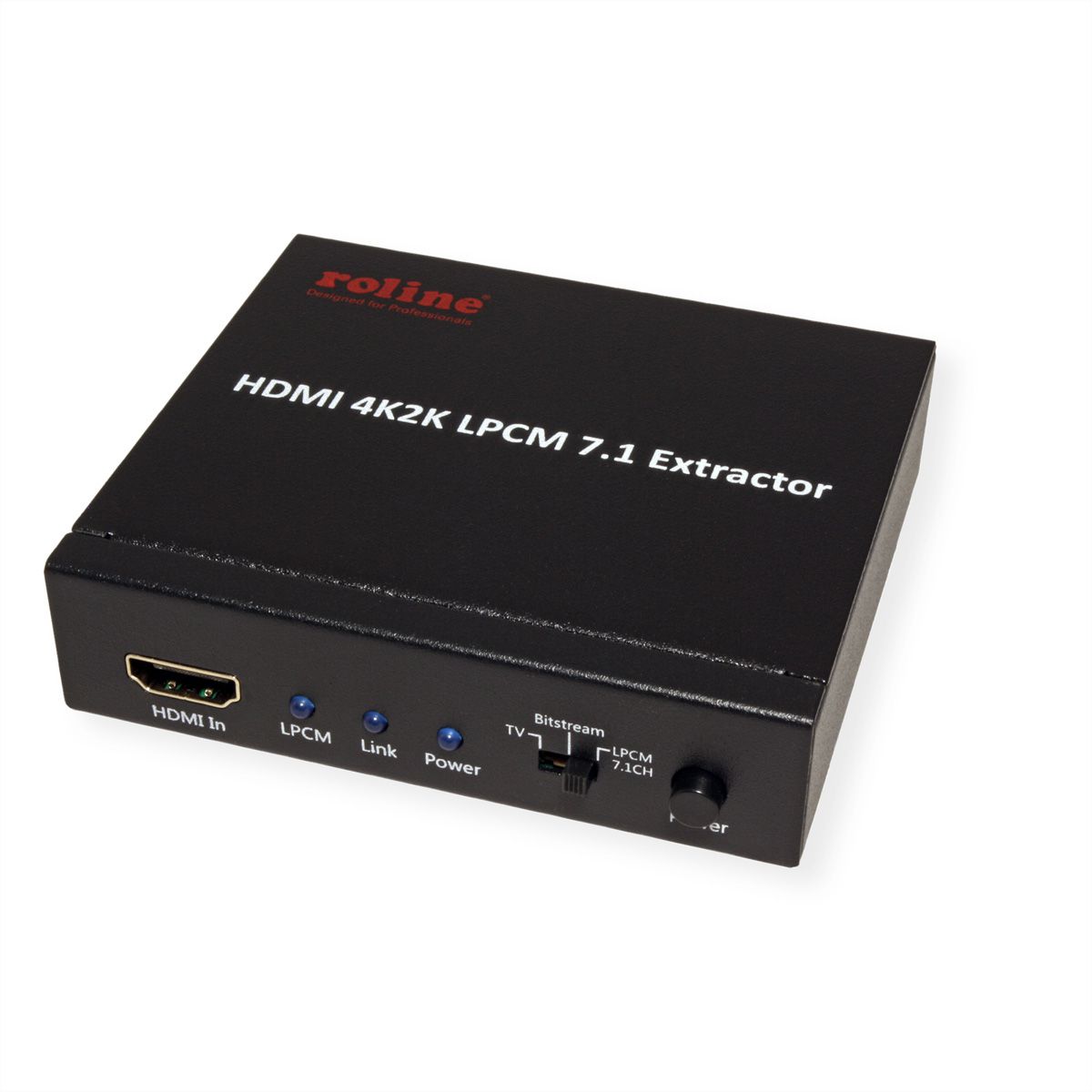

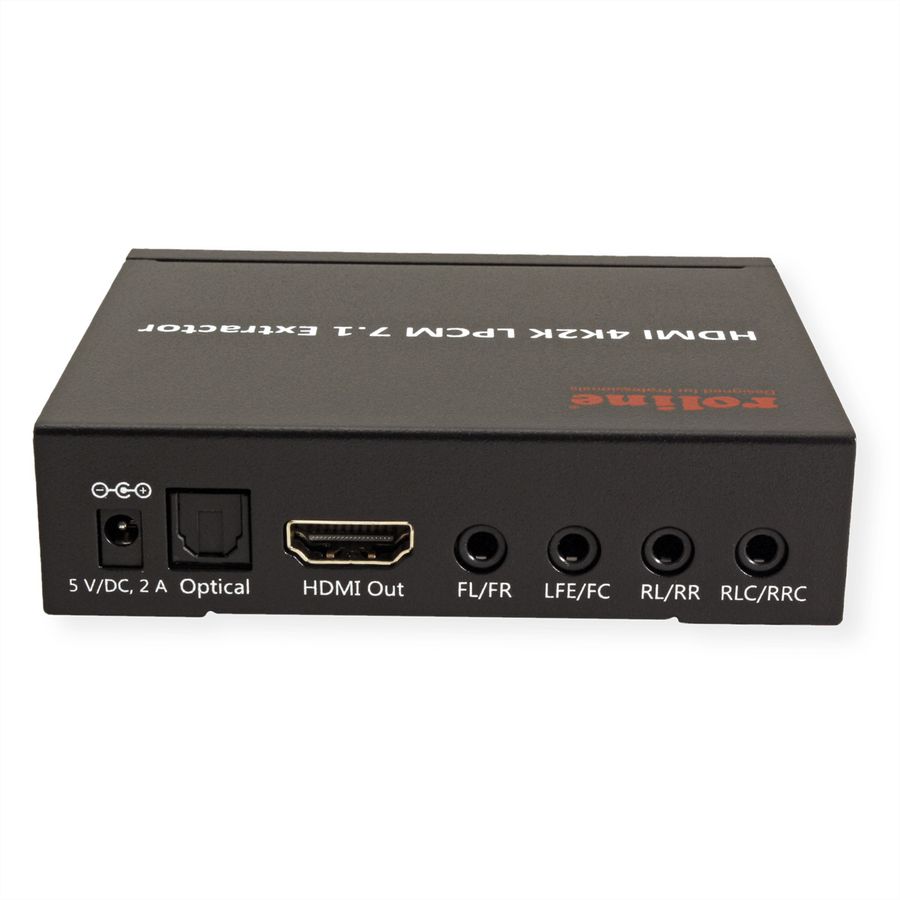

ROLINE HDMI 4K Audio Extractor LPCM 7.1
Item no.
14013442
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3442
EAN
7611990116379
Item weight
0.396 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
The ROLINE HDMI 4K2K Audio Extractor allows to uncouple audio signals from the HDMI signal.

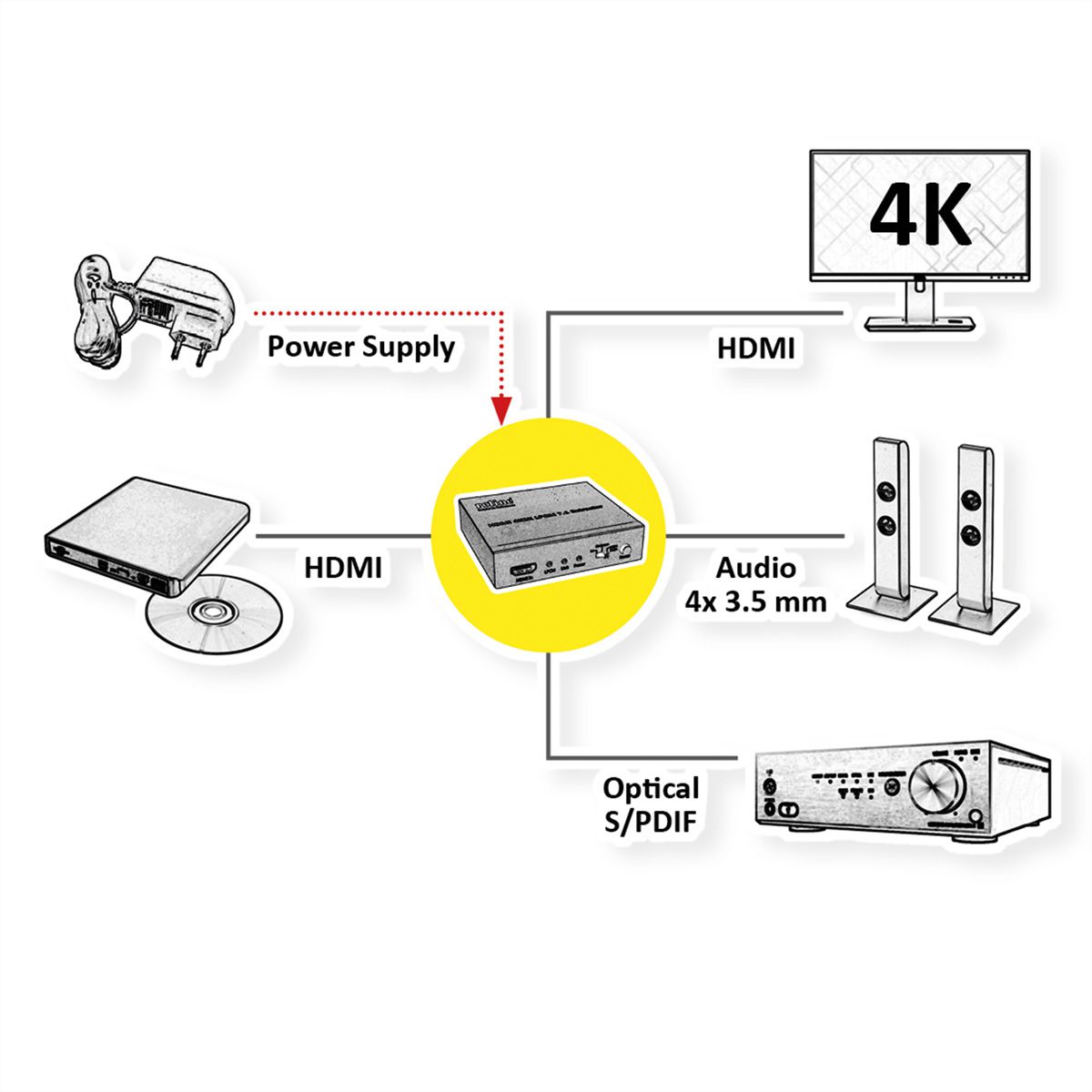

Not all monitors have good speakers. With the extractor you can redirect the audio signals via S/PDIF (optical) or analog via 3.5mm ports on a speaker system, the pure image signal goes to the screen.
Not all monitors have good speakers. With the extractor you can redirect the audio signals via S/PDIF (optical) or analog via 3.5mm ports on a speaker system, the pure image signal goes to the screen.
- Supports HDMI, HDCP 1.2
- Audio-rate (sampling frequency for S/PDIF as HDMI) to 192kHz
- Supports high bit-rate audio
- Supports video resolution up 4K2K and 3D
- HBR audio supported
- Supports CEC bypass
- Supports up to 4 x 3.5 mm phone jacks for analog multi-channel audio outputs
- Power supply (5 V DC, 2 A) included
- Contents: extractor, power adapter, user manual
Specifications
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- HDMI Audio Extractor
- Colour
- black
- Scope of delivery
- Extractor, main adapter, manual
- Max. resolution
- 3840 x 2160 @30Hz (4K, Full HD)
- Side 1 connection (PC)
- HDMI
- Side 2 connection (Peripherals)

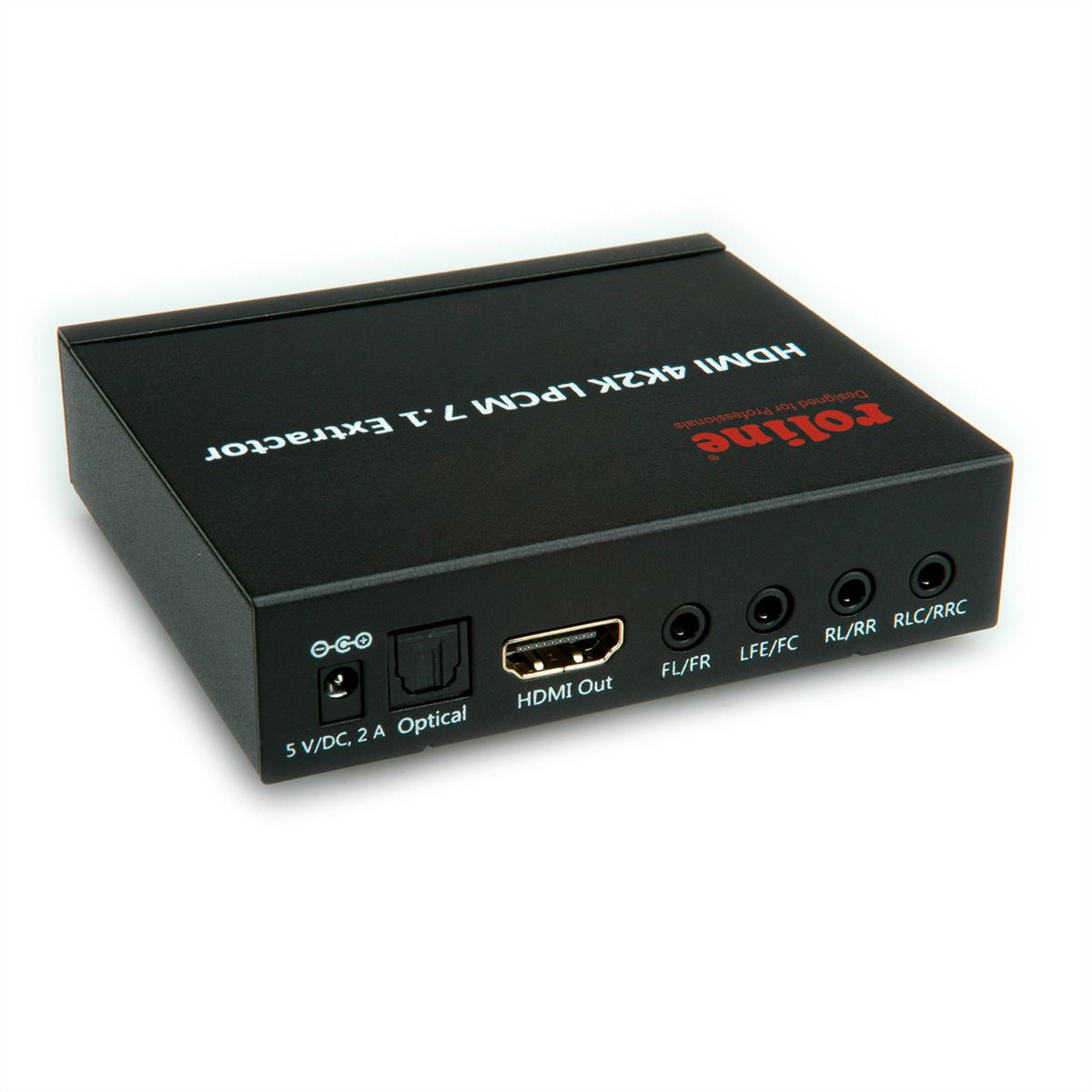

- HDMI, Opt. S/PDIF / 4x 3,5mm female
- Side 1 Connector Type
- HDMI Type A
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
-
- HDMI Type A
- Mini Phone Stereo 3.5 mm, 3-pin
- Toslink
- Side 2 Connector Gender
- Female
- Area of application
- External
- Dimensions (HxWxD)
- 27 x 95 x 85 mm
- Height
- 27 mm
- Width
- 95 mm
- Depth
- 85 mm
- Weight
- 200.3 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 170 mm
- Depth of packaging (single piece)
- 230 mm
- Package weight (single piece)
- 0.396 kg
