The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

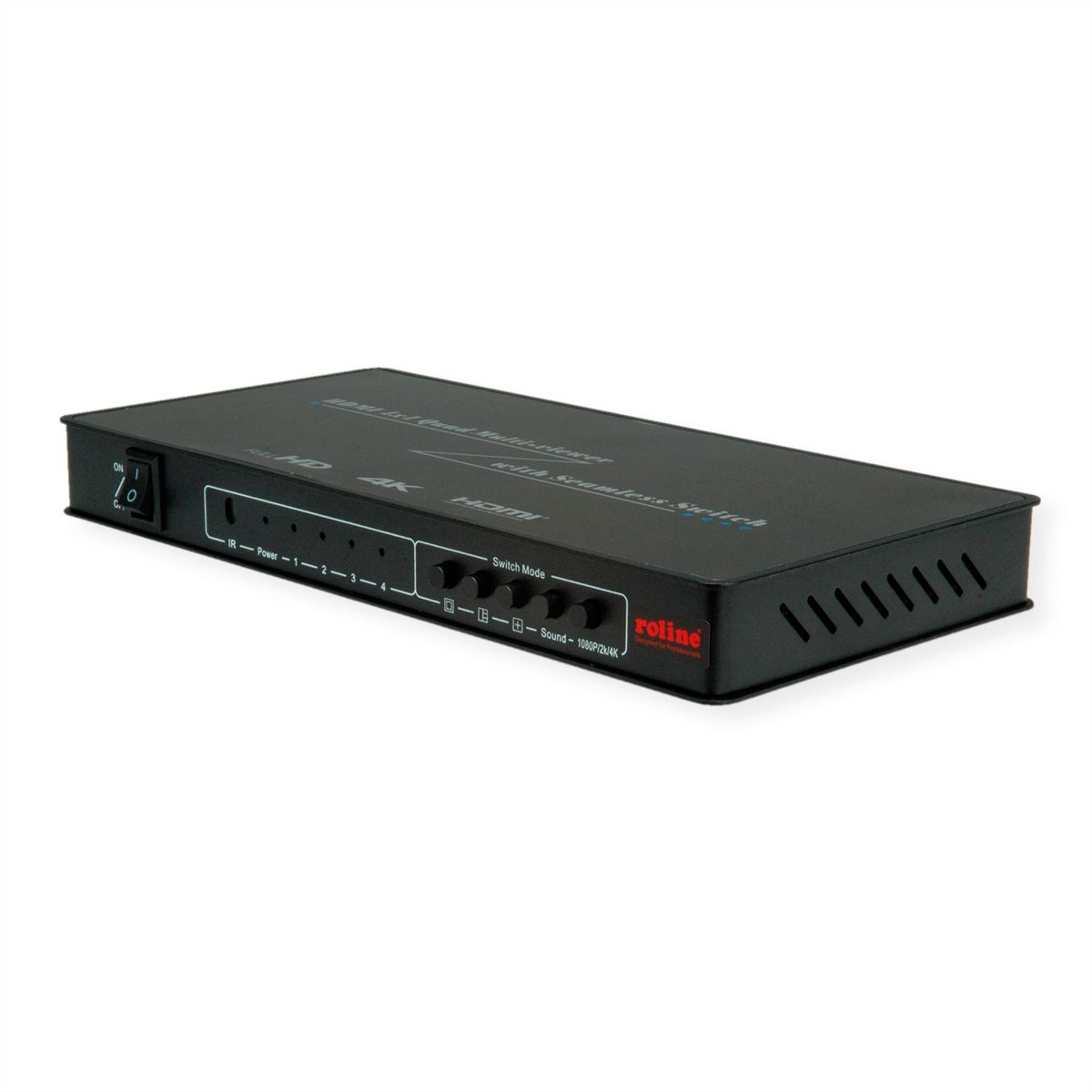

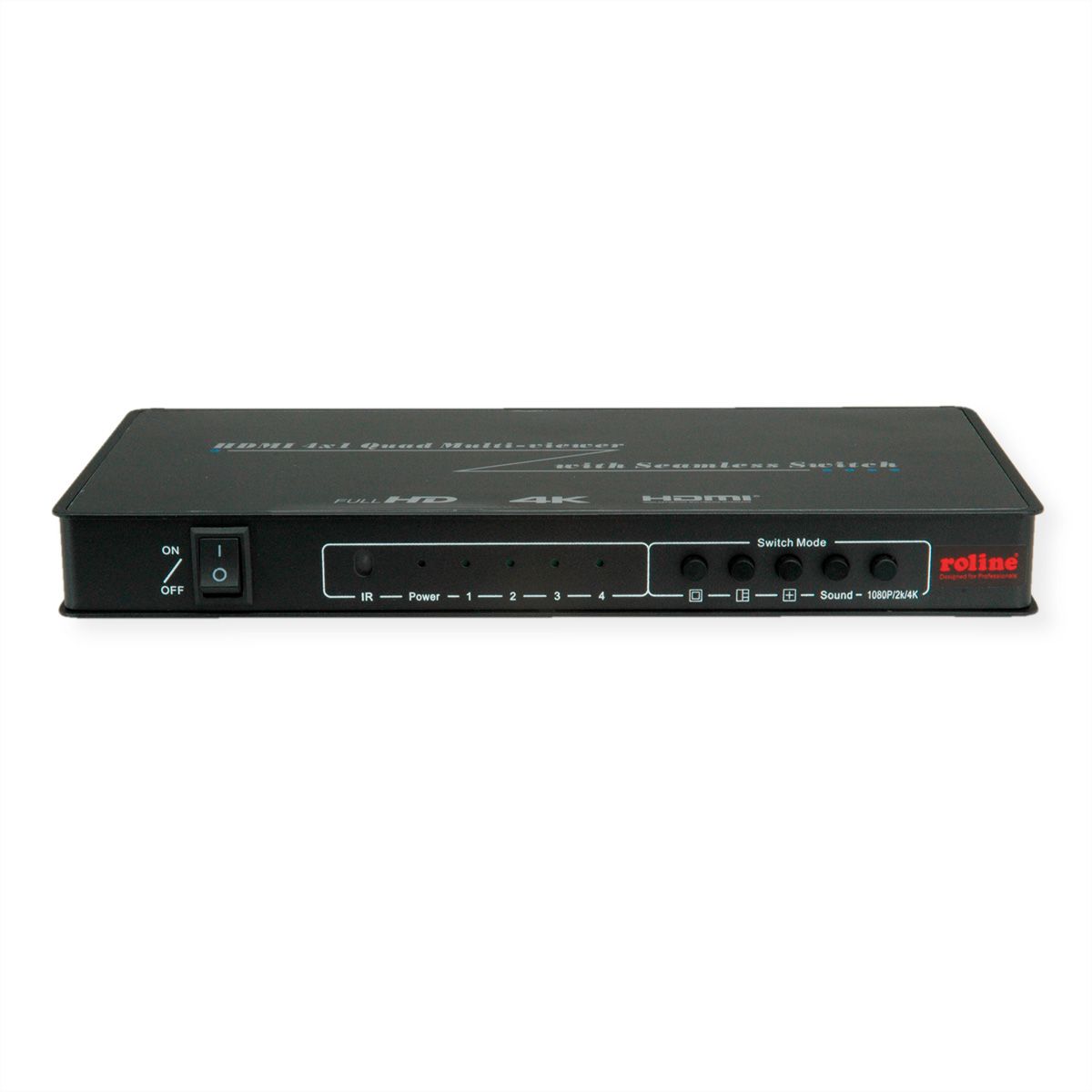

ROLINE HDMI 4x1 QUAD Multi-Viewer, with Seamless Switch
Item no.
14013596
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3596
EAN
7630049632660
Item weight
1.2 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

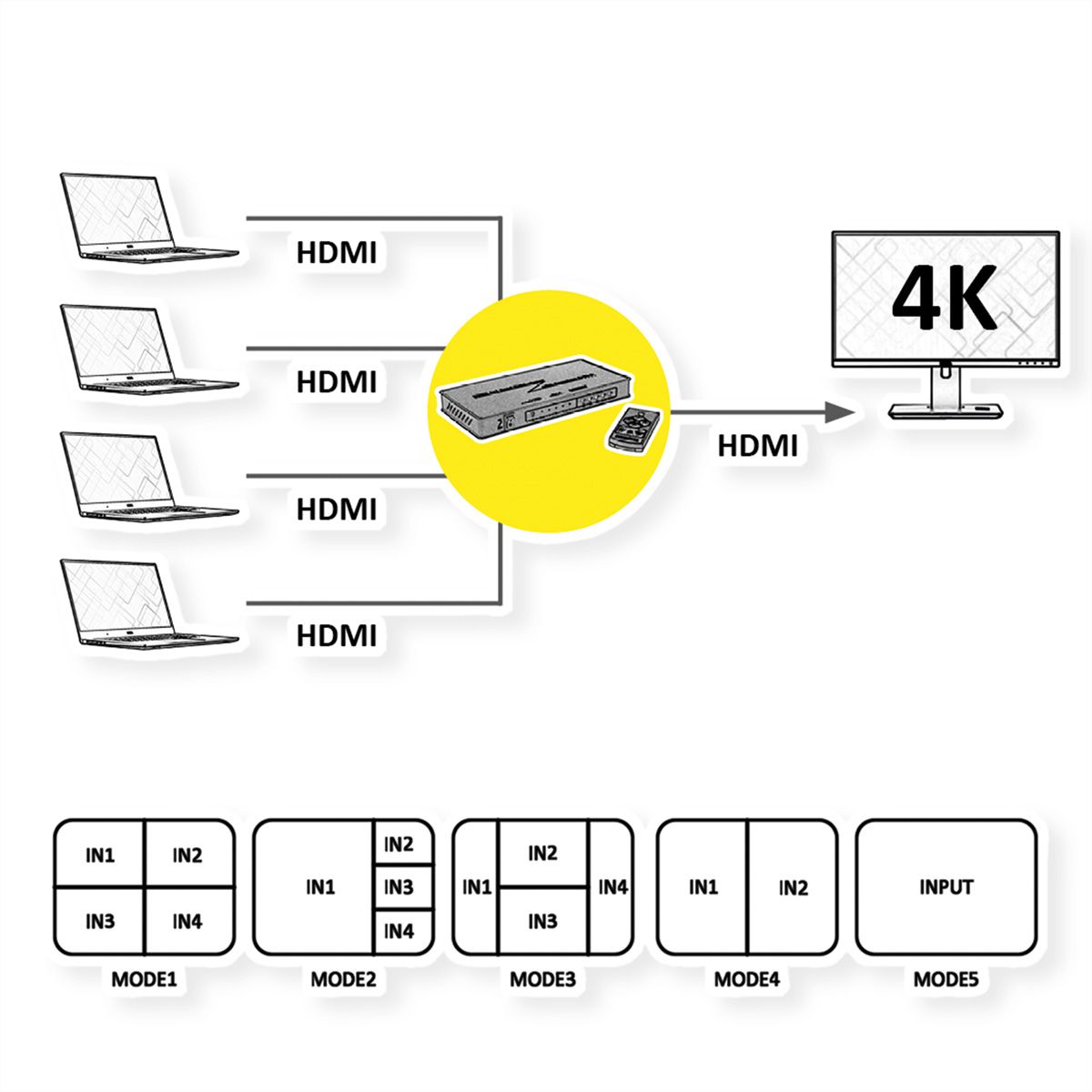

Displays the video output of up to 4 HDMI sources on a monitor or projector in up to 4K@30Hz. You can choose between different viewing modes to see the content from up to four sources either separately or simultaneously.

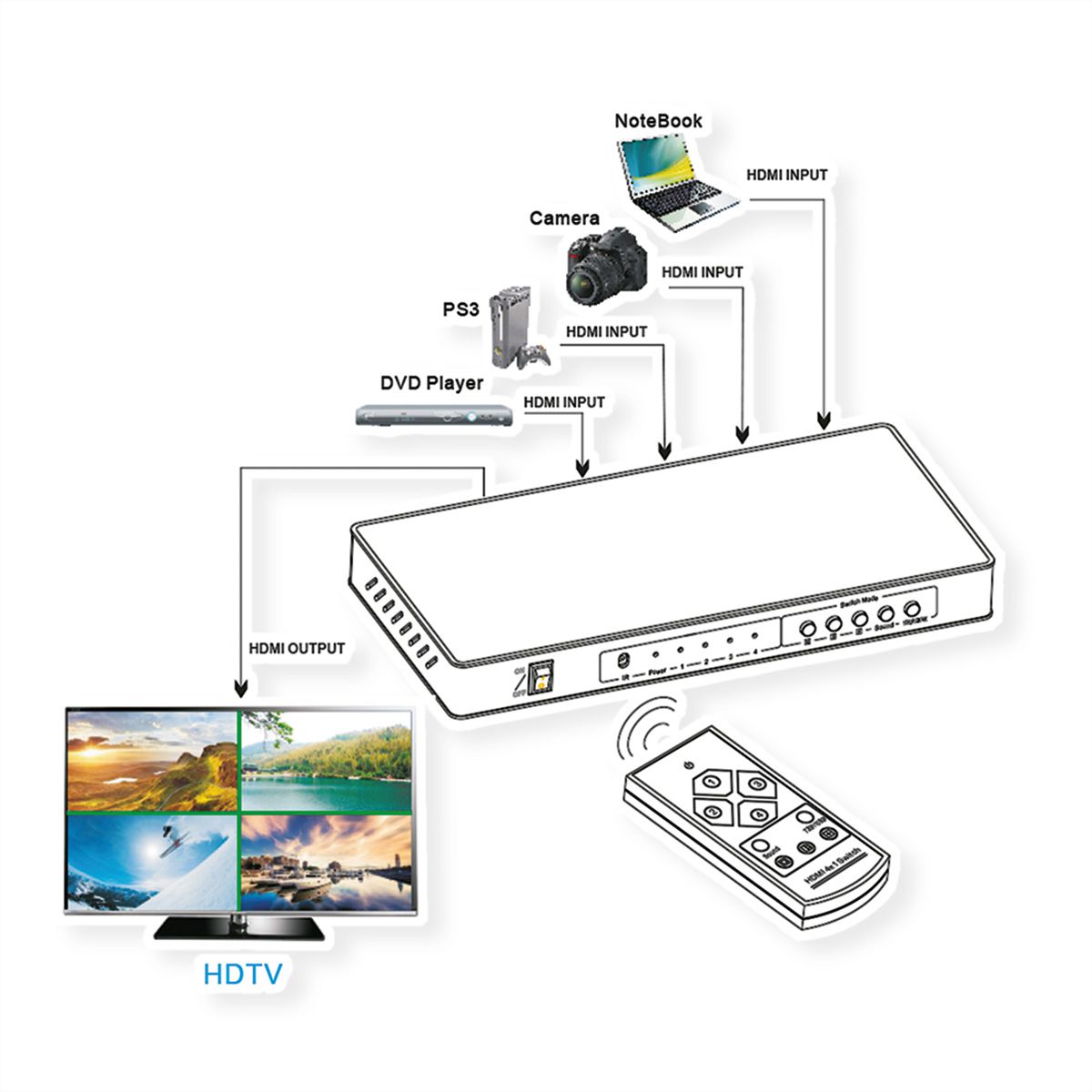

- Application example: A display device (monitor/TV/beamer) is supplied by several HDMI sources such as BluRay players, etc. The desired source can be selected for a single display or up to four sources simultaneously via various display options.
- Switching between PCs is done via buttons on the switch or via remote control
- Compliant with HDMI 1.4
- Up to 4K@30Hz resolution
- Supports 4 by 1 Quad Multi-viewer and seamless switching
- Plug & Play
- Black metal housing

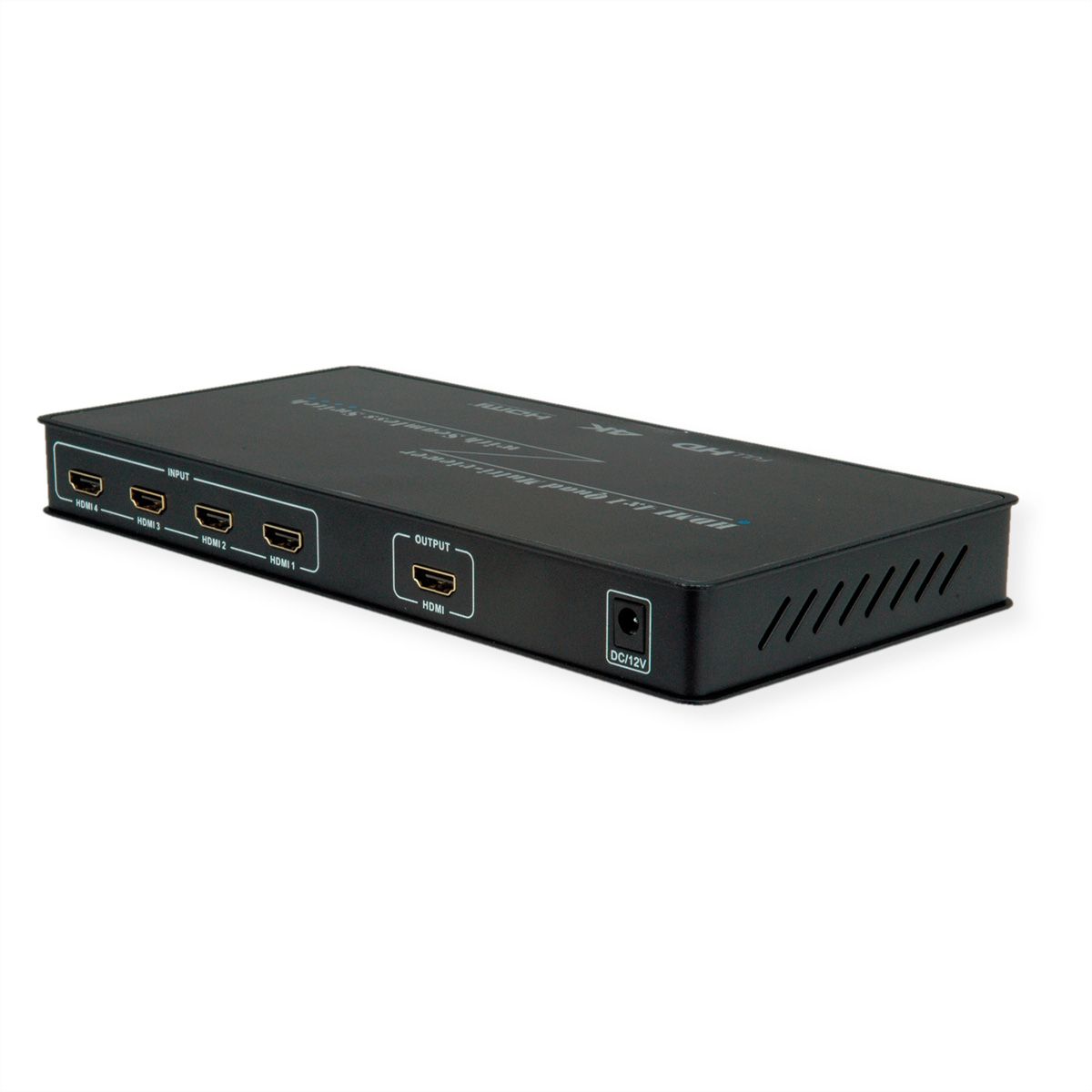

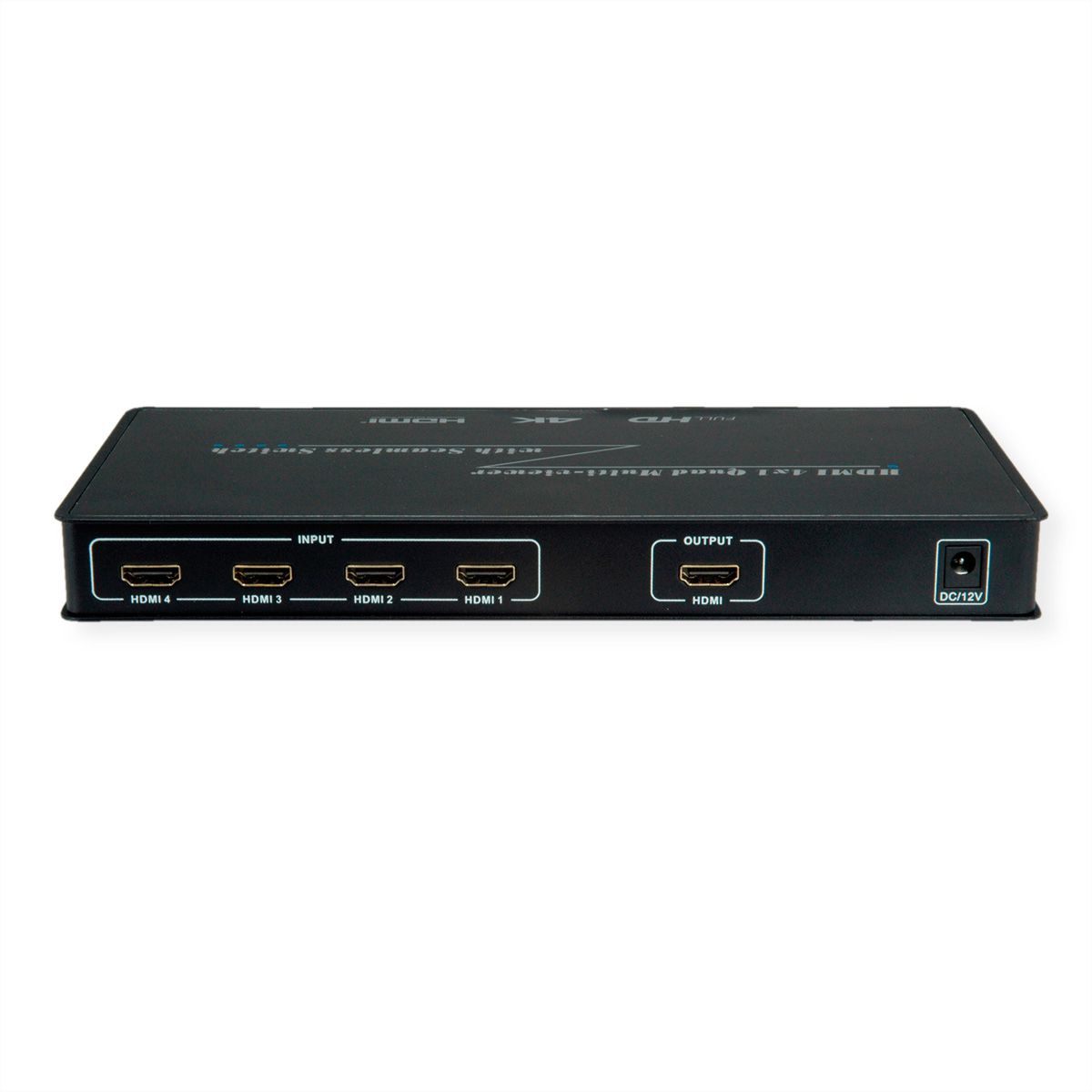

- Input: 4x HDMI A Female
- Output: 1x HDMI A Female

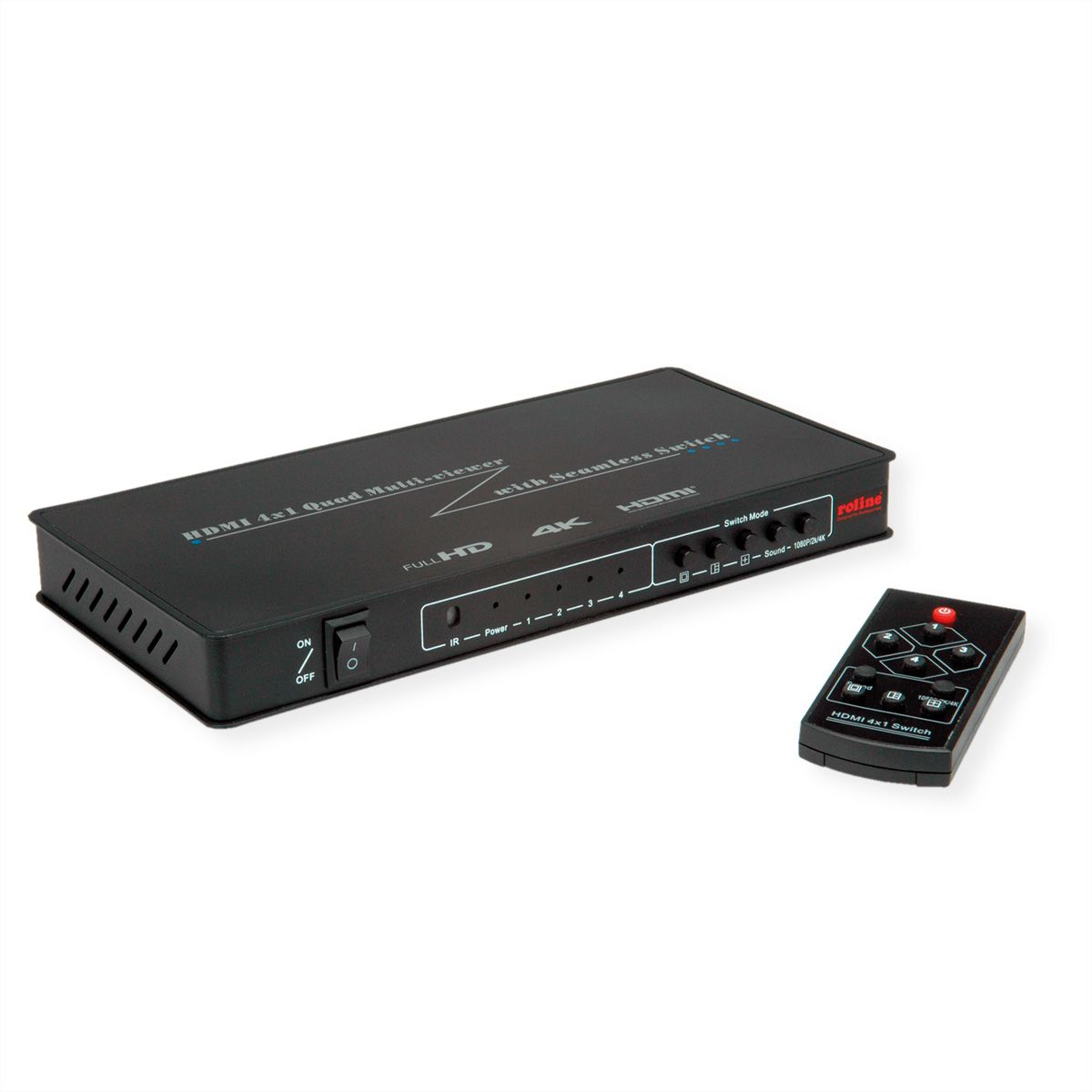

- Contents: Main unit, power supply, remote control, button cell (CR2025), user manual
Specifications
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI-Video-Switch
- Colour
- black
- Scope of delivery
- main unit, power supply, remote control, button cell (CR2025), user manual
- Interface
- HDMI
- Inputs
- 4
- Outputs
- 1
- Max. bandwidth
- 225 MHz
- Video input
- 4x HDMI Female
- Video output
- 1x HDMI Female
- Max. resolution (nom.)
- 3840 x 2160
- Max. resolution
- 3840 x 2160 @30Hz (4K, Full HD)
- Dimensions (HxWxD)
- 27 x 250 x 120 mm
- Power supply output
- 12 VDC
- Technical particularity
- Switching by push botton / remote control
- Mains connection
- Appliance Europlug, Type-C
- Battery category
- Portable battery
- Number of batteries
- 1 pieces
- Battery type
- Button cell CR2025
- Battery
- included
- Battery technology
- Li-Ion
- Operating temperature min.
- -15 °C
- Operating temperature max.
- 55 °C
- Height
- 27 mm
- Width
- 250 mm
- Depth
- 120 mm
- Weight
- 965 g
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 300 mm
- Depth of packaging (single piece)
- 230 mm
- Package weight (single piece)
- 1.2 kg
