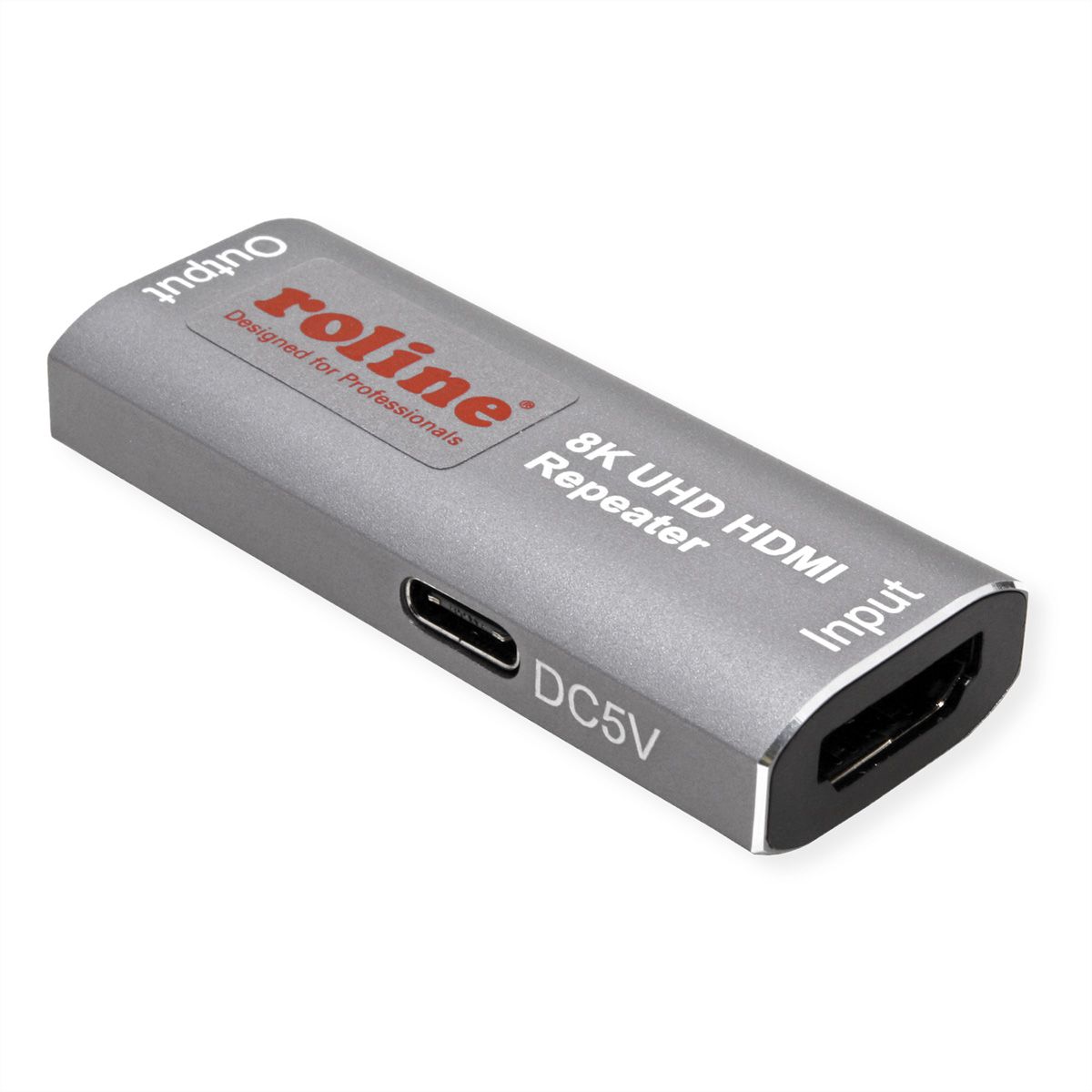

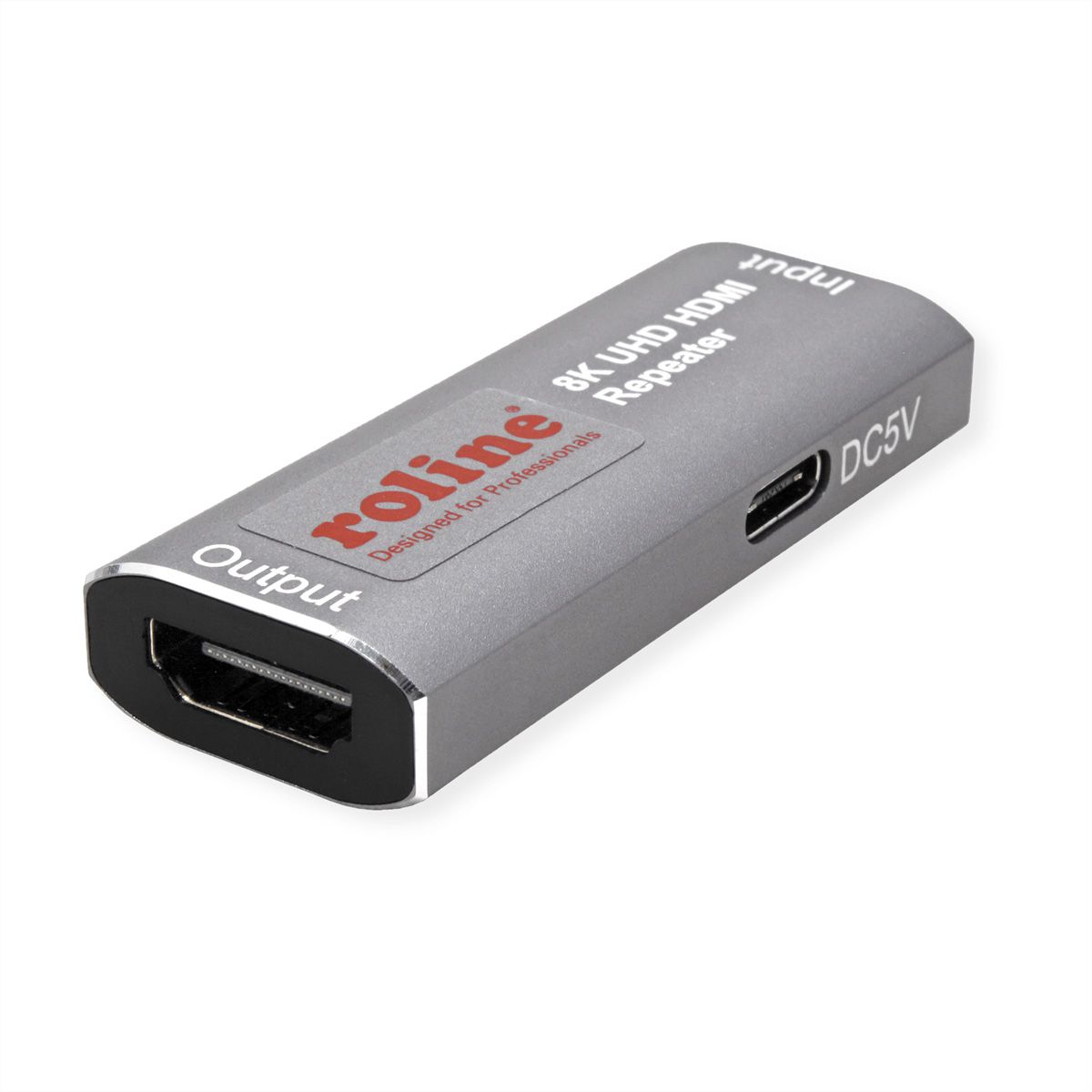

ROLINE HDMI Extender, 8K60, 10m
Item no.
14013476
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3476
EAN
7630049628878
Item weight
0.02 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_4320p_uhd2.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_8k.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

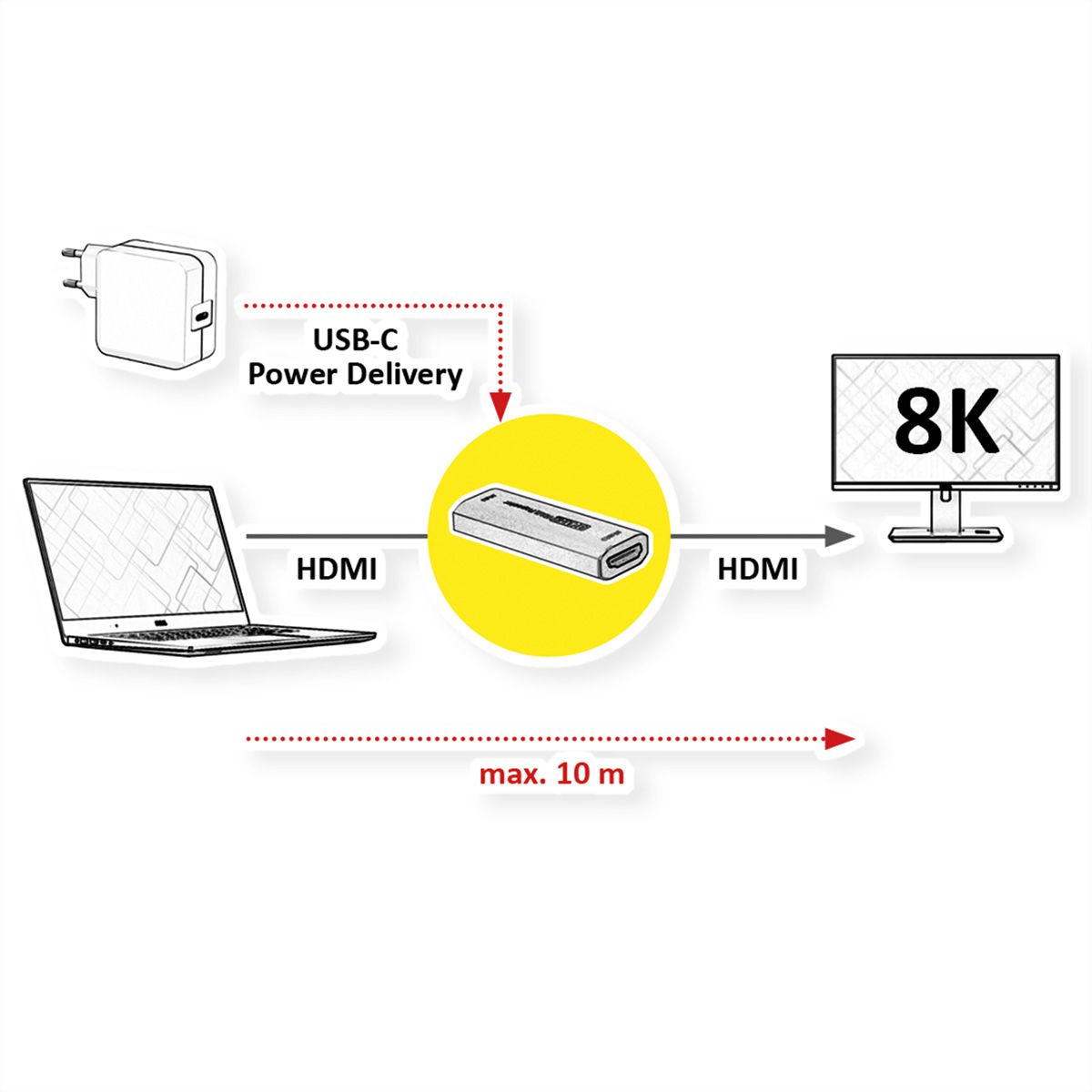

HDMI Repeater to create a point-to-point connection to reduce costs for applications that require a single HDMI Port input and output device over long distances - with up to 7680x4320 @60Hz resolution!
- Ideal for display applications in conference rooms, classrooms & training facilities etc.
- Extend the HDMI Port signal up to 10/20 meters (depending on the resolution)
- Supports HDMI resolutions up to 8K @60Hz
- Compliant with HDCP 2.2 & DPCP
- Supports 8K 60Hz (max. length: 5m in; 5m out), 4K 60Hz (max. length: 10m in; 10m out);
- HDTV compatible
- Supports DTS-HD / Dolby truehd / DTS / dolby-ac3 / DSD Audio formats
- Plug & Play
- Power: via USB C cable (5 VDC, 2A) - not included.
REMARK: Graphics card and display must support display stream compression (DSC) to use HDR 8K@30/60Hz、
4K@120Hz and 2K@240Hz
Specifications
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI Extender
- Colour
- grey
- Scope of delivery
- HDMI Repeater, Quick Installation Guide
- Interface
- HDMI
- Max. distance
- 10 m
- Video input
- HDMI
- Video output
- HDMI
- Max. resolution
- 7680 x 4320 @60Hz (8K, UHD-2)
- Operating temperature min.
- -15 °C
- Operating temperature max.
- 45 °C
- Height
- 10 mm
- Width
- 23 mm
- Depth
- 60 mm
- Weight
- 17 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 70 mm
- Package weight (single piece)
- 0.02 kg
- Power supply output
- DC 5V; 2A
