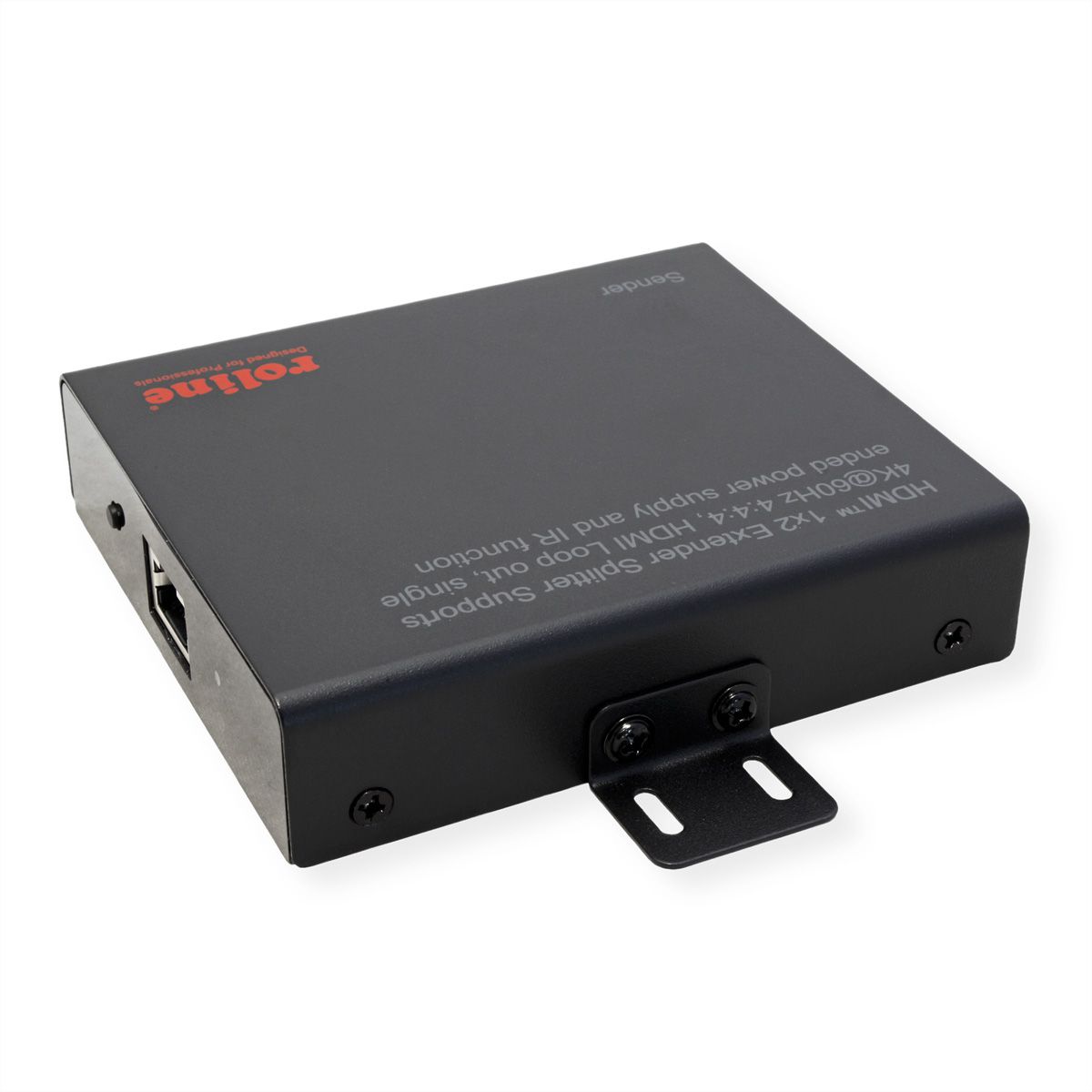

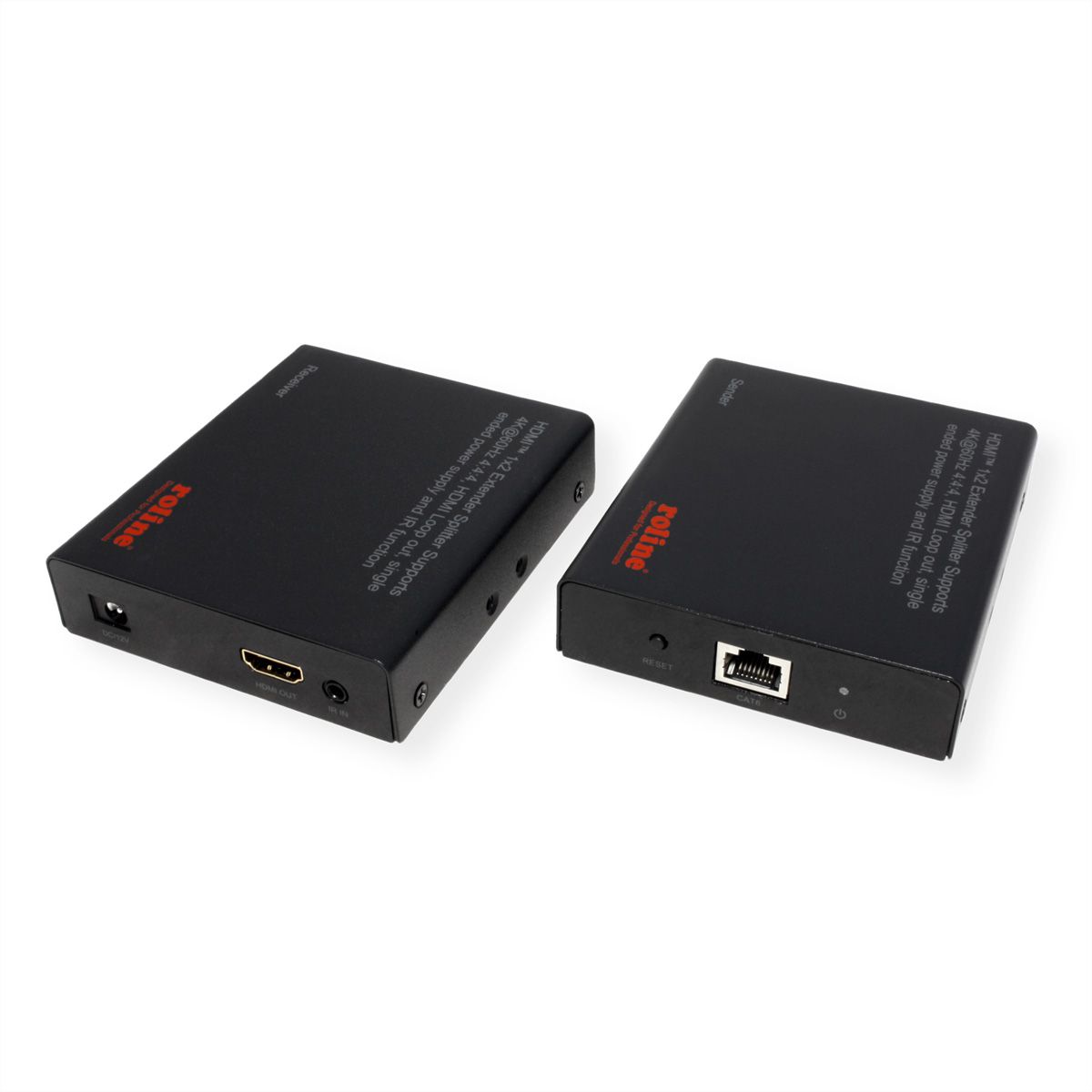

ROLINE HDMI Extender and Splitter, 1x2, via Cat6A, 70m, 4K60Hz

Item no. 14013643 Brand / Manufacturer ROLINE Manuf. item no. 14.01.3643 EAN 7630049633414 Item weight 0.5 kg

ROLINE HDMI Extender and Splitter, 1x2, via Cat6A, 70m, 4K60Hz

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

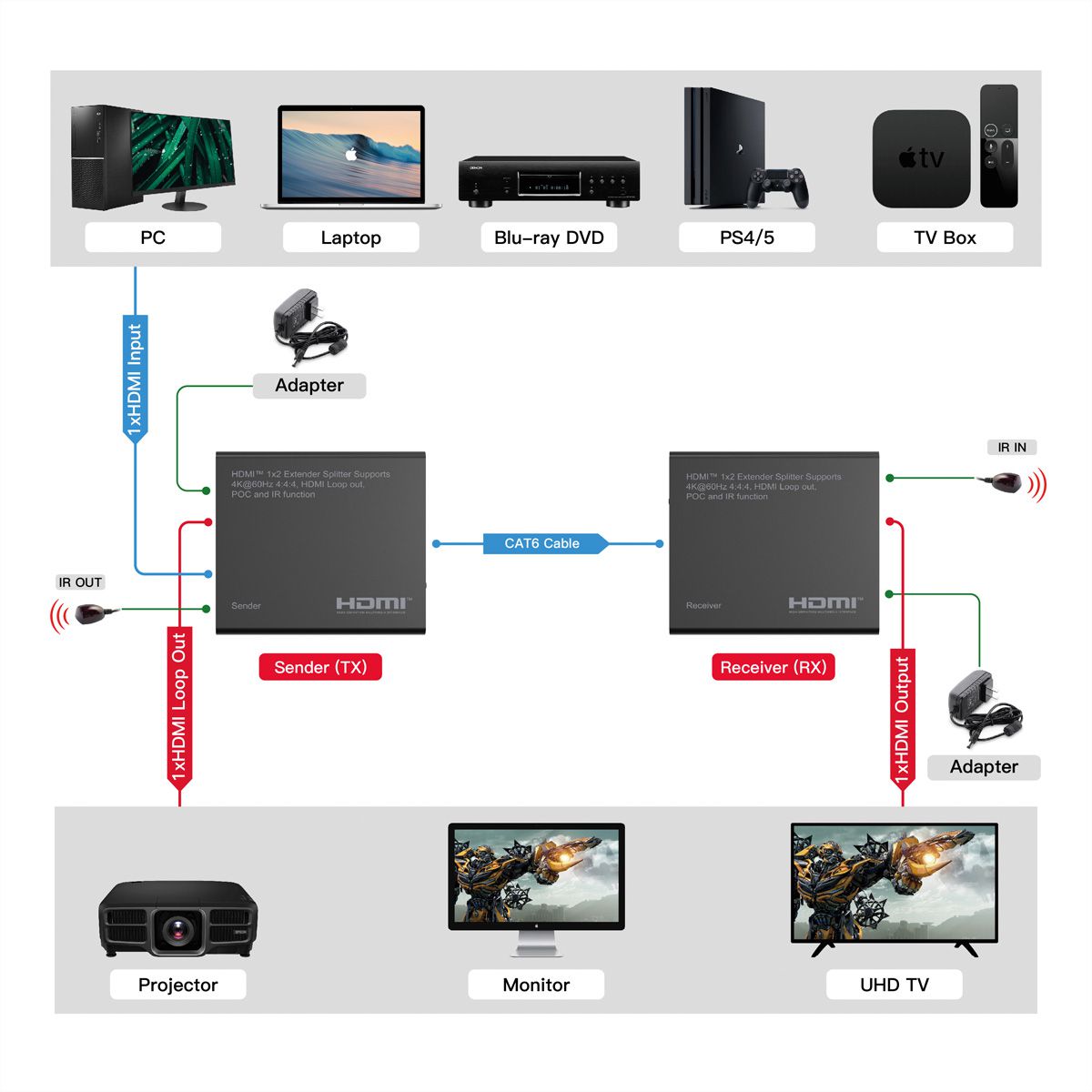

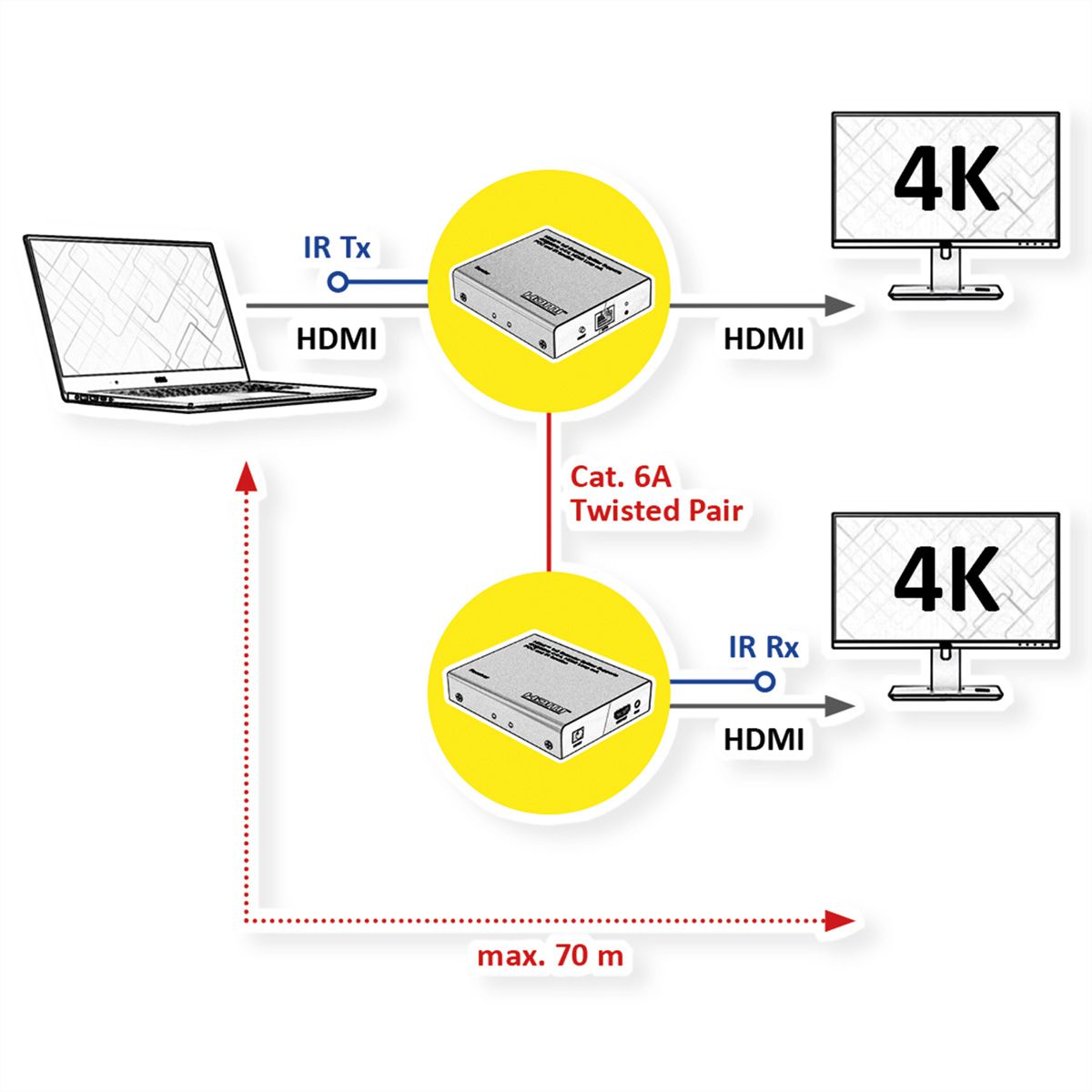

This ROLINE HDMI Extender and Splitter combines extension and splitting functions as it distributes the input of the HDMI signal to the local and the up to 70 m far output simultaneously - perfect for digital signage applications that require high quality HDMI video up to 4K@60Hz 4:4:4. It can also transmit IR signals from remote controls - ideal for controlling your video source from your video destination. It has a single-ended power supply so that both the transmitter and receiver can be powered by a single 12 V power supply.

Suitable for advertising, studios, multimedia classrooms, etc.

Resolution up to 4K@60Hz YUV 4:4:4 at 70 meters.
HDMI Local Loop Out
HDCP 2.2 and HDCP 1.4
High Dynamic Range (HDR) video
Data transfer rate up to 6 Gbps per channel (18 Gbps all channels).
TMDS clock can be up to 600MHz
12 bit per channel (36 bit all channels) deep color.
Uncompressed audio such as LPCM
Compressed audio such as DTS, Dolby Digital.

Single ended power supply - transmitter and receiver can be powered by a single 12 V power supply
Stable metal casing
Dimensions: Transmitter / Receiver (each): 23 x 88 x 100 mm
Weight: Transmitter 201 g, Receiver 199 g
Contents: 1x Transmitter, 1x Receiver, 1x Power Supply DC 12V 1A, 1x IR Transmitter Cable, 1x IR Receiver Cable, 4x Mounting Ears, 1x User Manual

Note: the product supports only the HDR10 and HLG High Dynamic Range (HDR) signal, and doesn't support the Dolby Vision High Dynamic Range (HDR) signal.

Specifications

Manufacturer: ROLINE
Product group: Splitters and selectors
Product type: HDMI Extender
Colour: black
Scope of delivery: 1x Transmitter, 1x Receiver, 1x Power Supply DC 12V 1A, 1x IR Transmitter Cable, 1x IR Receiver Cable, 4x Mounting Ears, 1x User Manual
Interface: HDMI
Audio: HDMI
Inputs: 1
Outputs: 2
Max. distance: 70 m
Video input: HDMI
Audio input: HDMI
Video output: HDMI
Audio output: HDMI
Video band width: Up to 18 Gbps
Max. resolution (nom.): 3840 x 2160 @60Hz
Max. resolution: 3840 x 2160 @60Hz (4K, UHD-1)
Dimensions (HxWxD): TX/RX: 100 x 88 x 23mm
Power supply unit: 1
Power supply output: DC 12V 1A
Technical particularity: Extends the signal up to 70m
Operating temperature min.: 0 °C
Operating temperature max.: 50 °C
Height: 23 mm
Width: 88 mm
Depth: 100 mm
Weight: 400 g
Height of packaging (single piece): 70 mm
Width of packaging (single piece): 200 mm
Depth of packaging (single piece): 240 mm
Package weight (single piece): 0.5 kg
