ROLINE HDMI Receiver over TP, for 14.01.3468, 100 m

Item no. 14013469 Brand / Manufacturer ROLINE Manuf. item no. 14.01.3469 EAN 7611990123742 Item weight 0.707 kg

ROLINE HDMI Receiver over TP, for 14.01.3468, 100 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

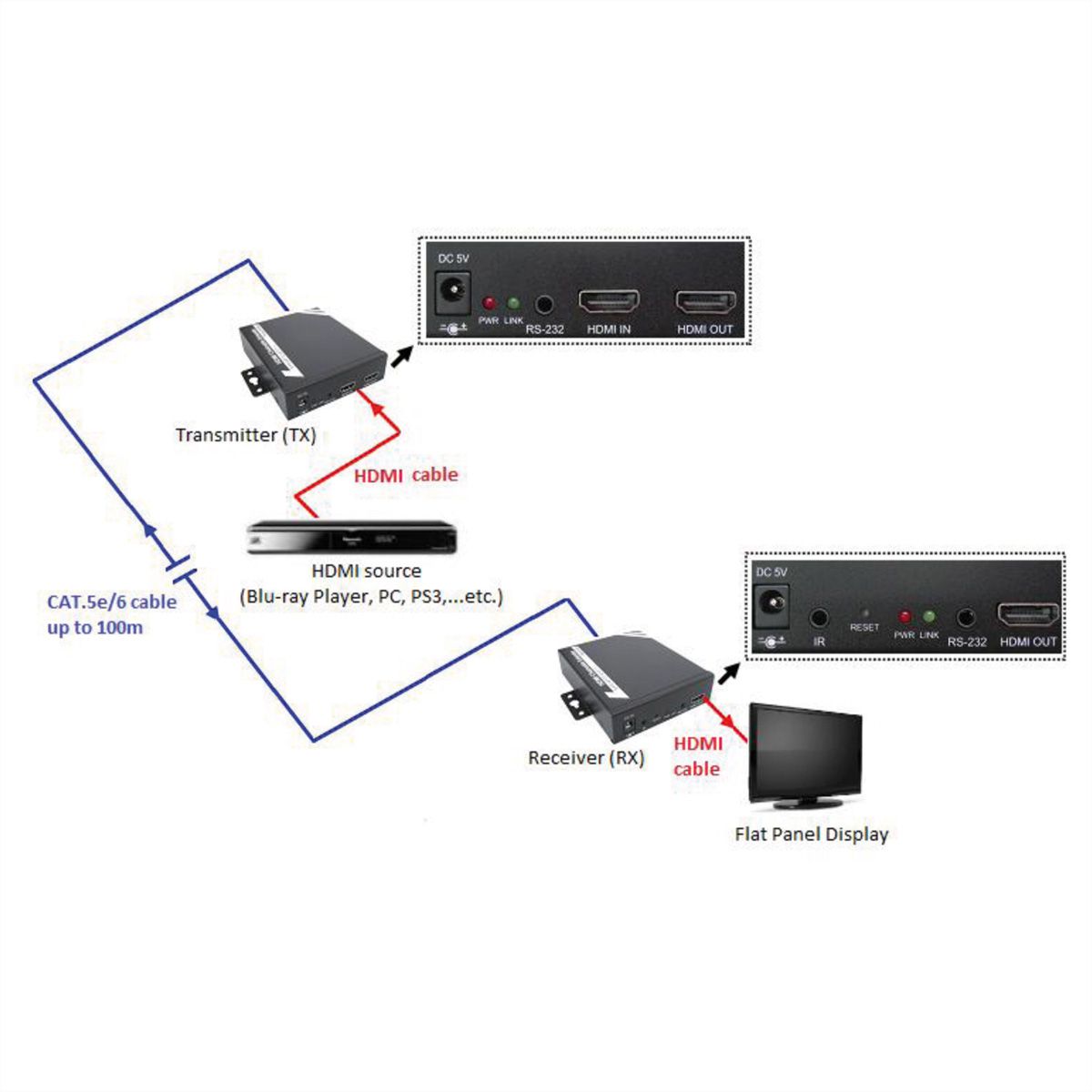

The transmission distance of the HDMI signal can be extended (chained) up to 100 m by using one Cat.5e or Cat.6 cable in combination with 14.01.3468

Easily connect the receiver to a second receiver unit with a twisted pair cable of up to 100 m length in combination with 14.01.3468
Max. resolution (nominal) over 100 m: 1920 x 1200, 1080p
Supports uncompressed HDMI signal
Supports CEC pass-through
Supports uncompressed audio stereo

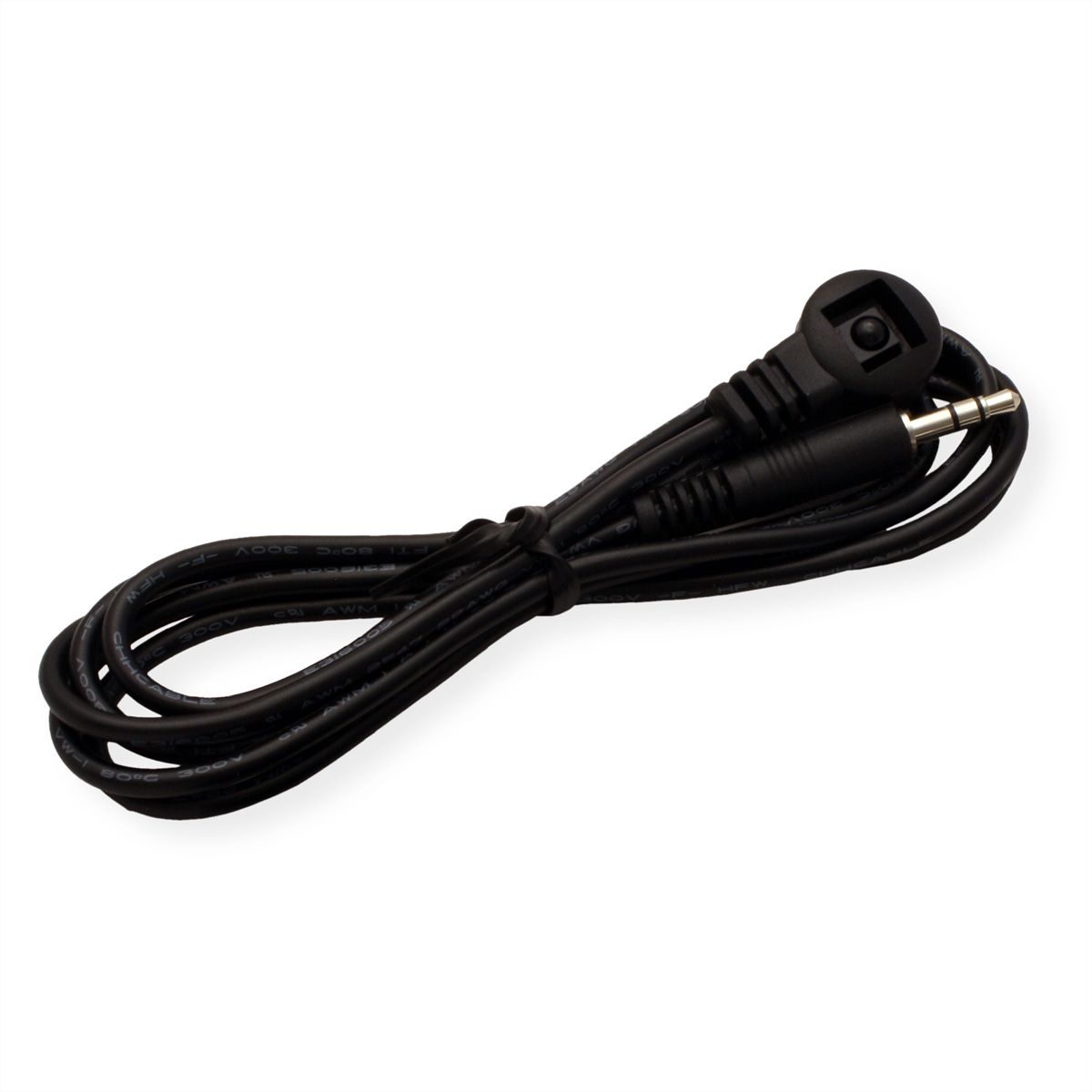

External infrared emitter - allow using the remote control of the source device
Metal housing
Power supply included in content of delivery
Contents: Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, 1x cables IR (1.1m), 1x serial cables (3.5mm/DB9F, 1.1m), manual

Specifications

Manufacturer: ROLINE
Product group: Splitters and selectors
Product type: HDMI Extender
Colour: black
Scope of delivery: Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, manual
Interface: HDMI
Max. distance: 100 m
Video input: HDMI
Audio input: HDMI
Video output: HDMI
Audio output: HDMI
Max. resolution (nom.): 1.920 x 1.080
Max. resolution: 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Dimensions (HxWxD): 28 x 115 x 91 mm
Power supply unit: 1
Technical particularity: External infrared emitters allow using the remote control of the source device
Mains connection: Appliance Europlug, Type-C
Height: 28 mm
Width: 115 mm
Depth: 91 mm
Weight: 562.87 g
Height of packaging (single piece): 70 mm
Width of packaging (single piece): 150 mm
Depth of packaging (single piece): 240 mm
Package weight (single piece): 0.707 kg
