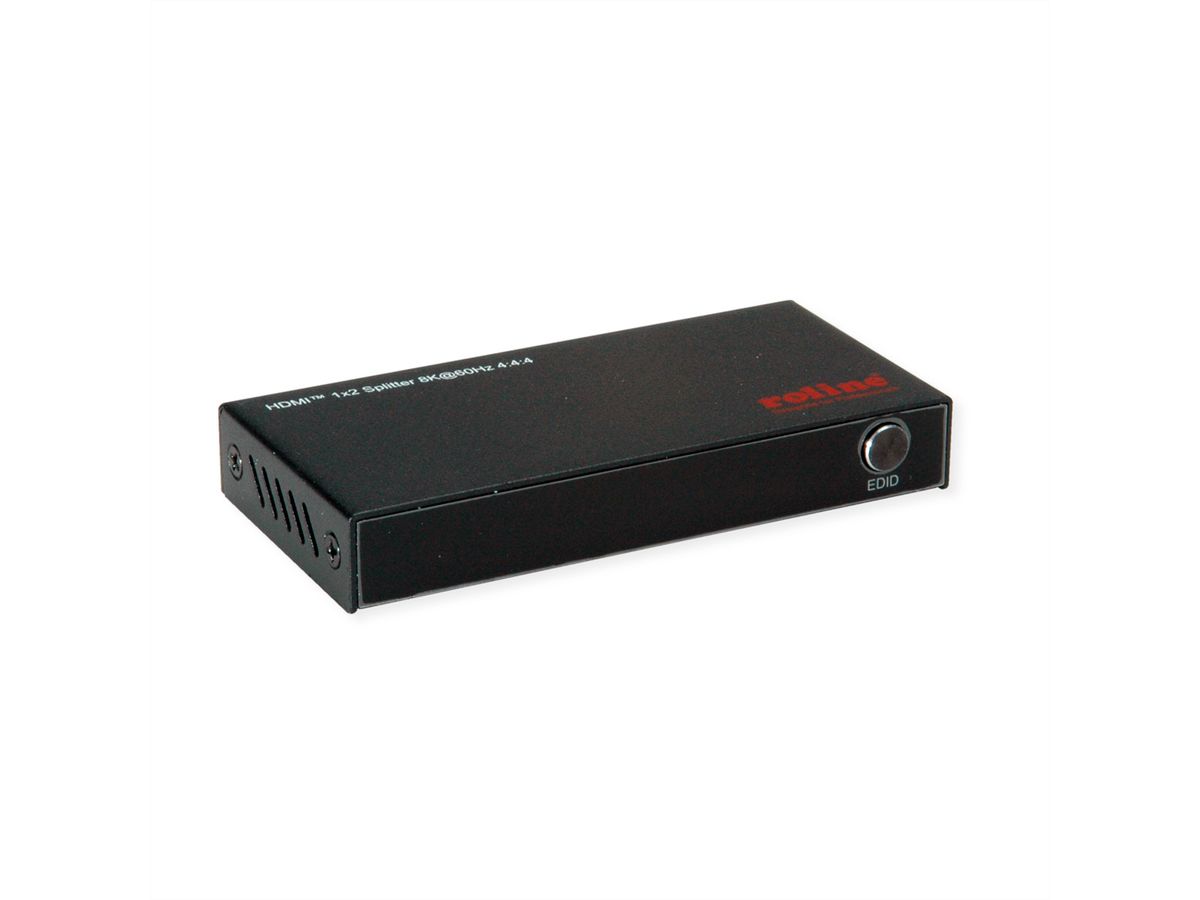

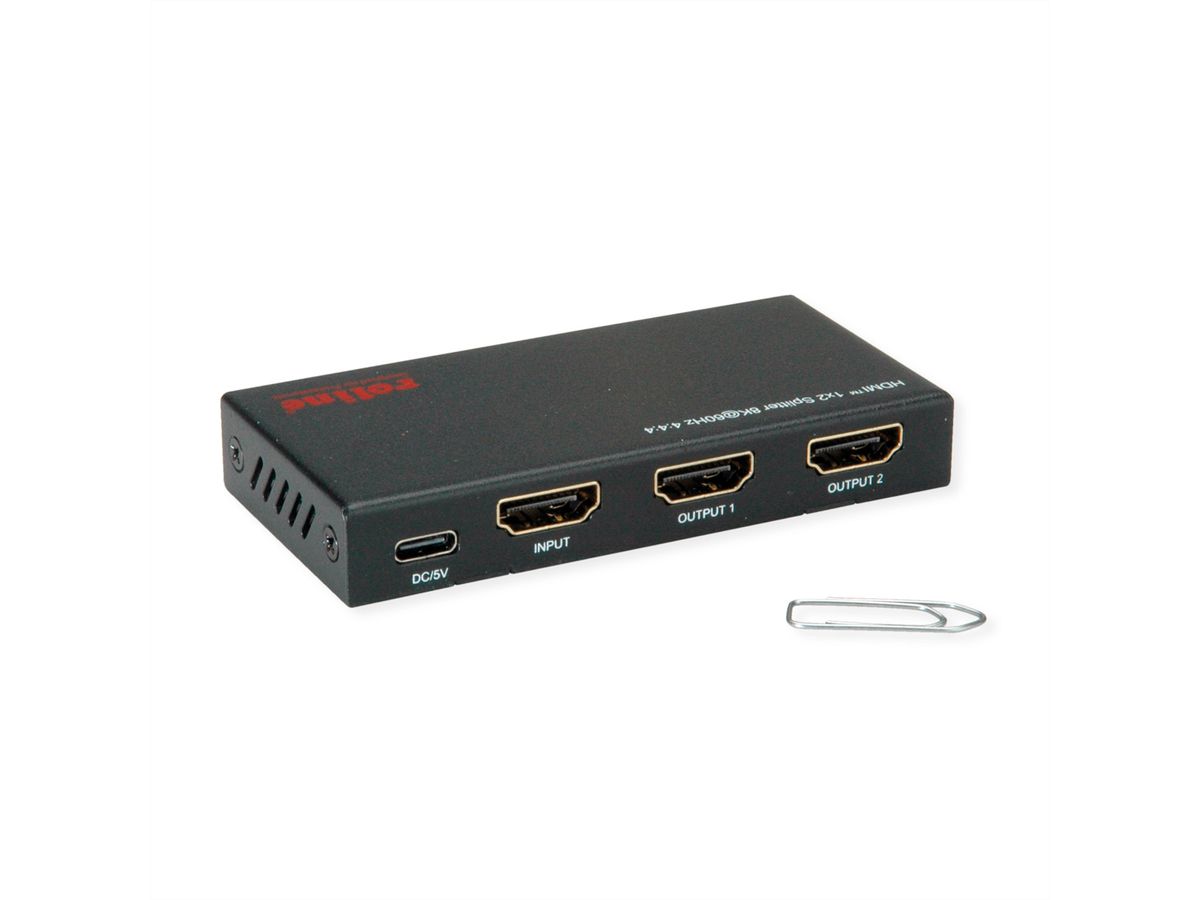

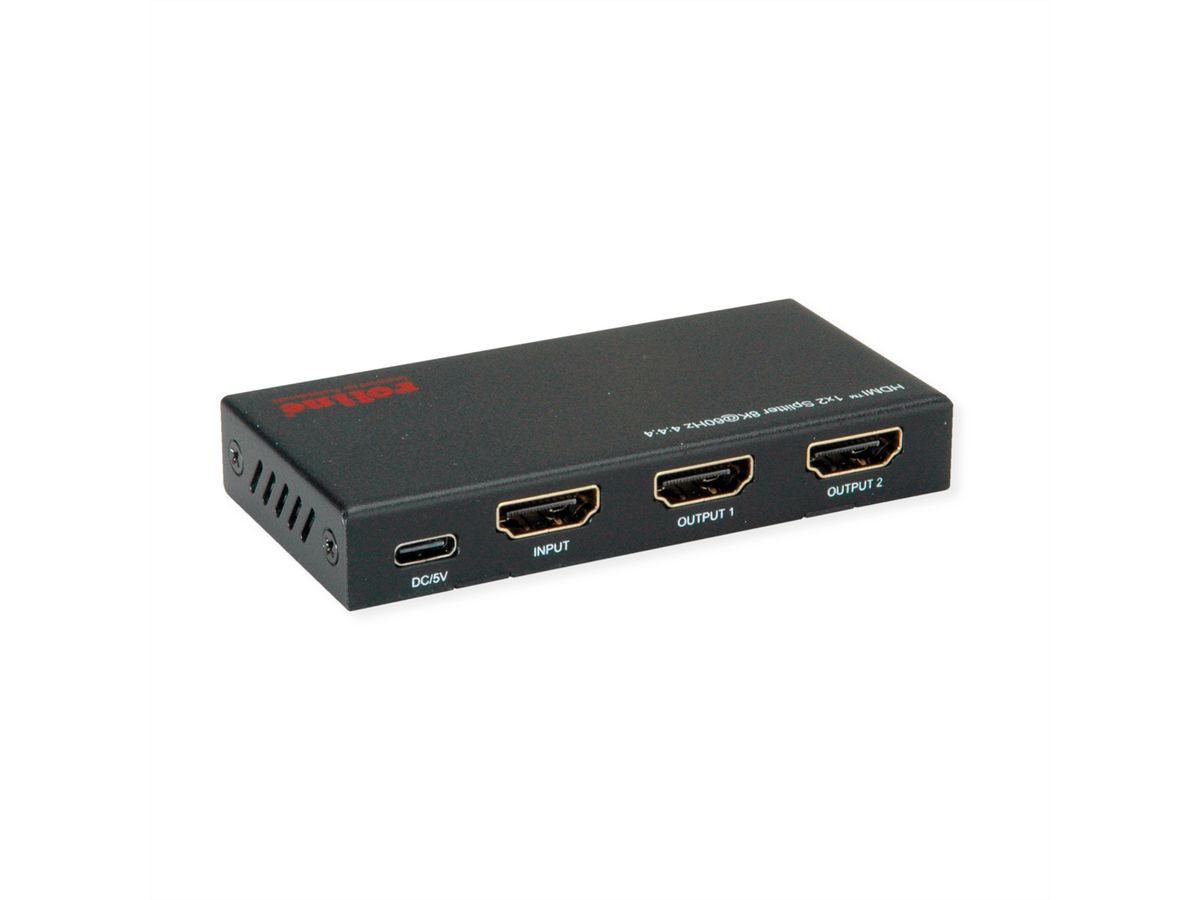

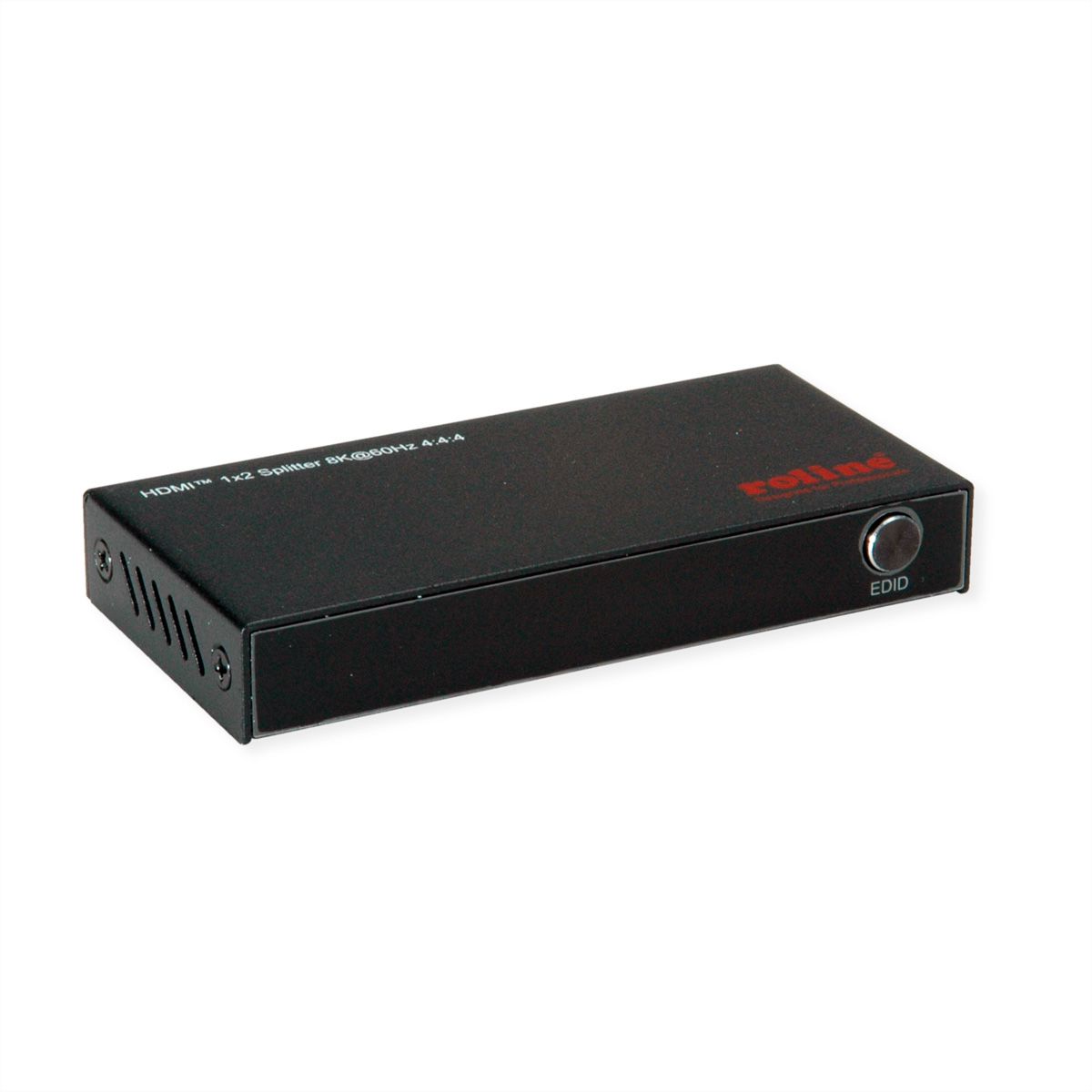

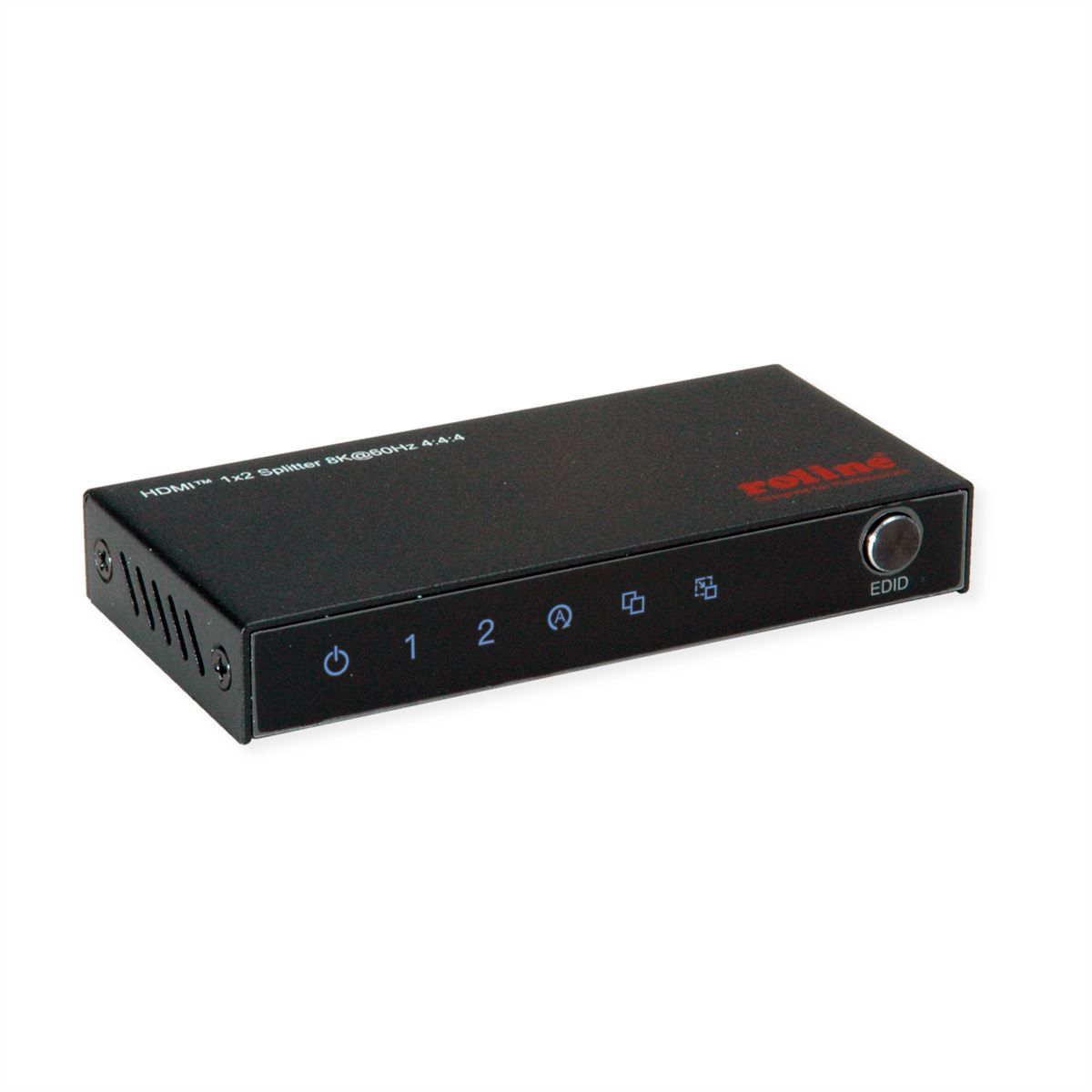

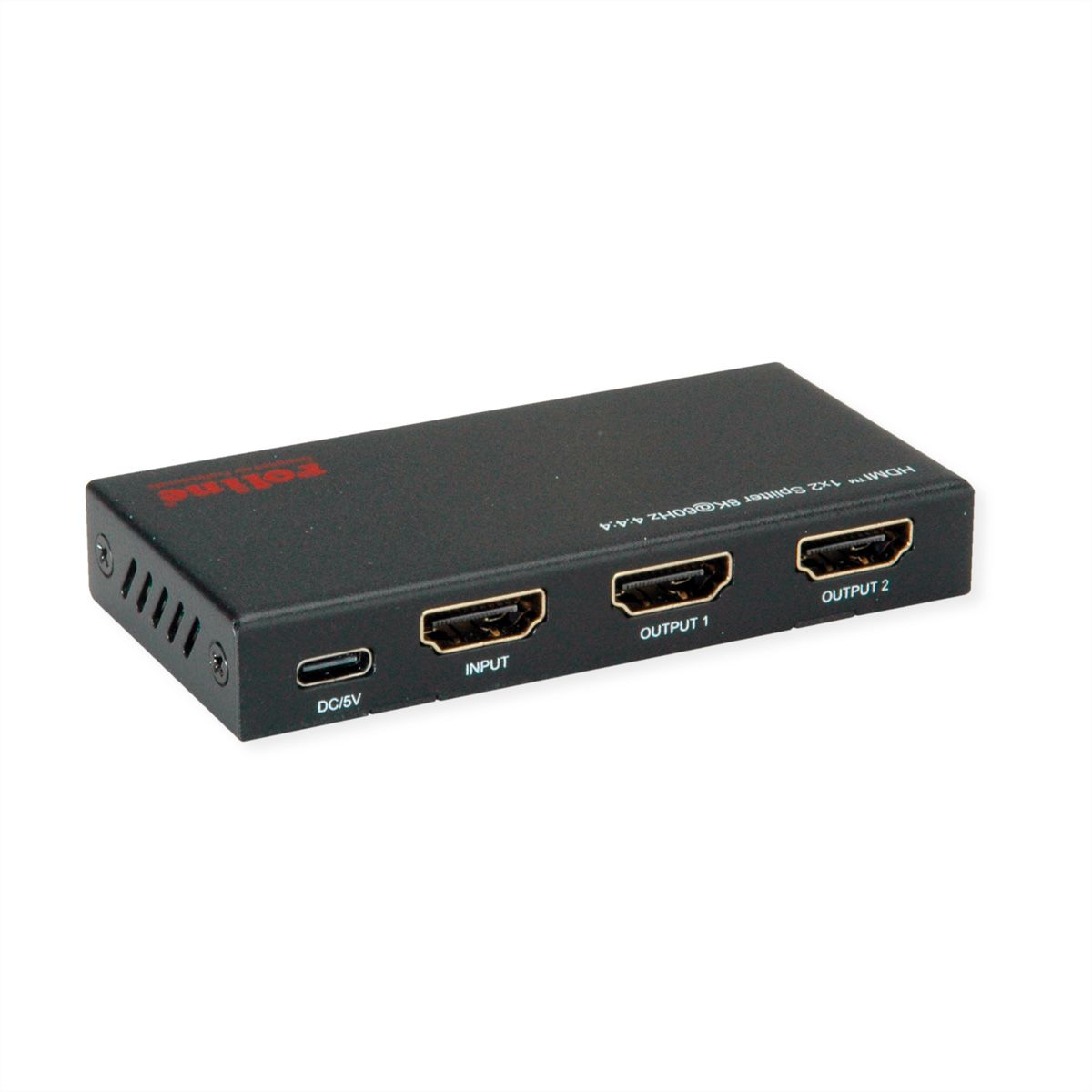

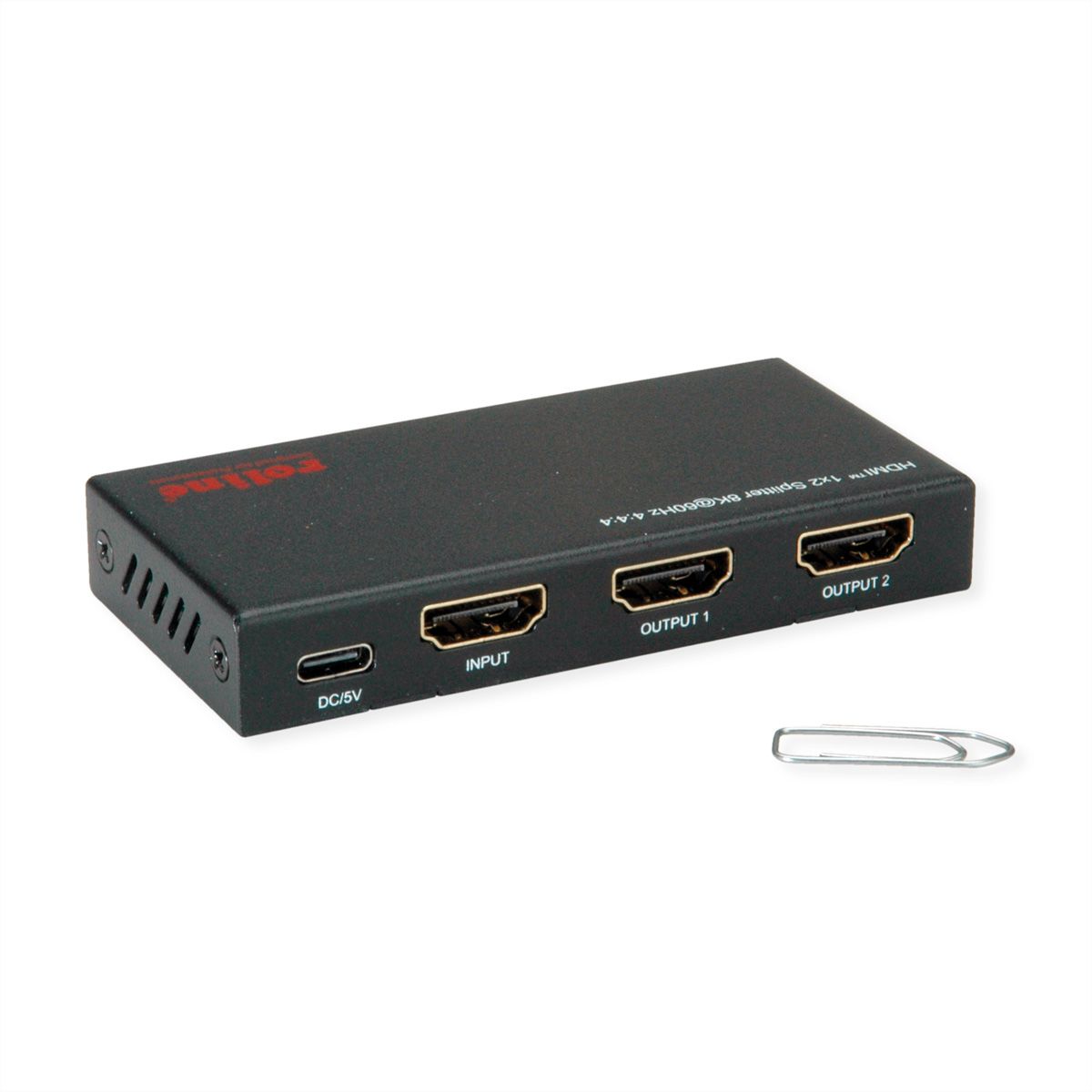

ROLINE HDMI Splitter, 8K60Hz, 1x2
Item no.
14013558
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3558
EAN
7630049633315
Item weight
0.1 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_4320p_uhd2.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_8k.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

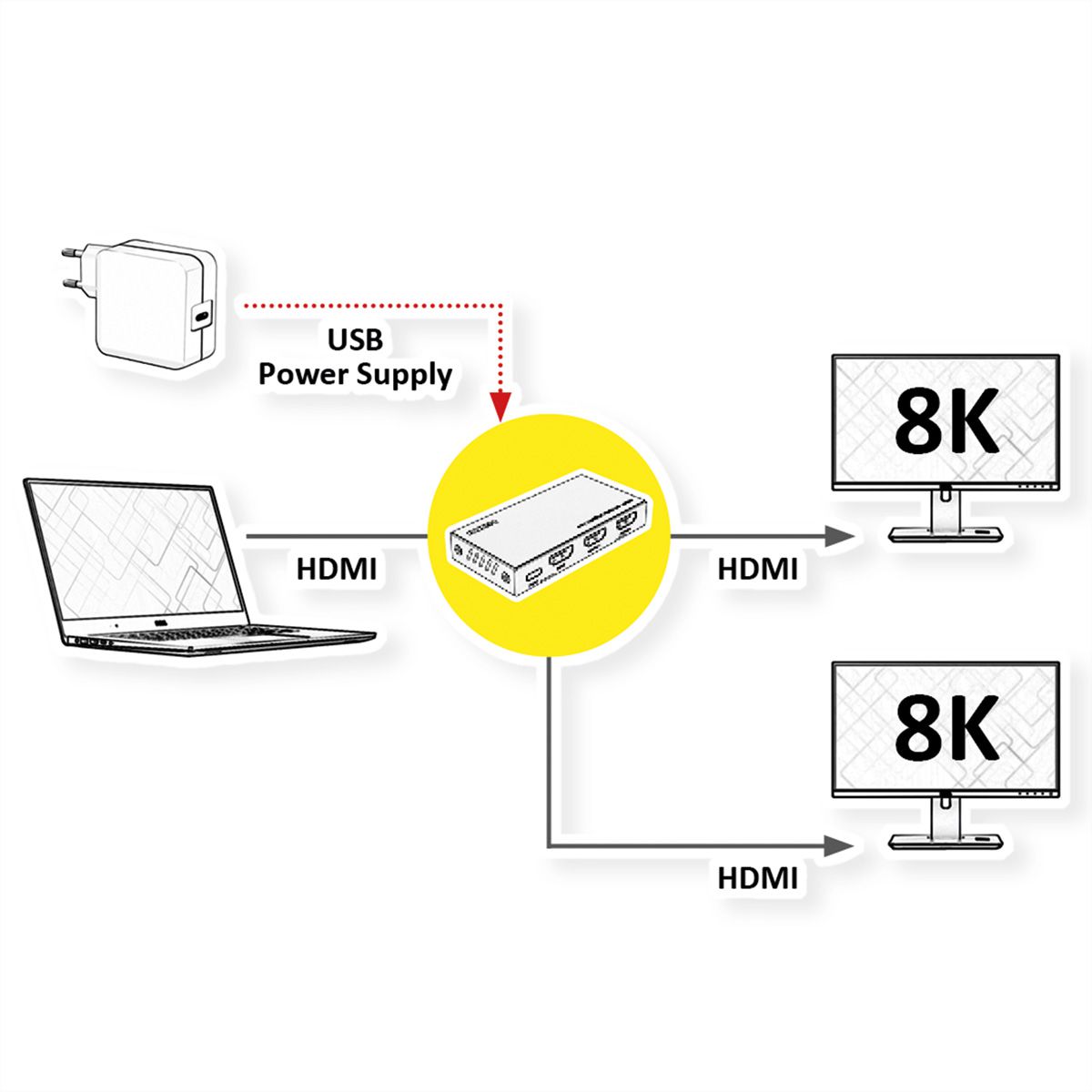

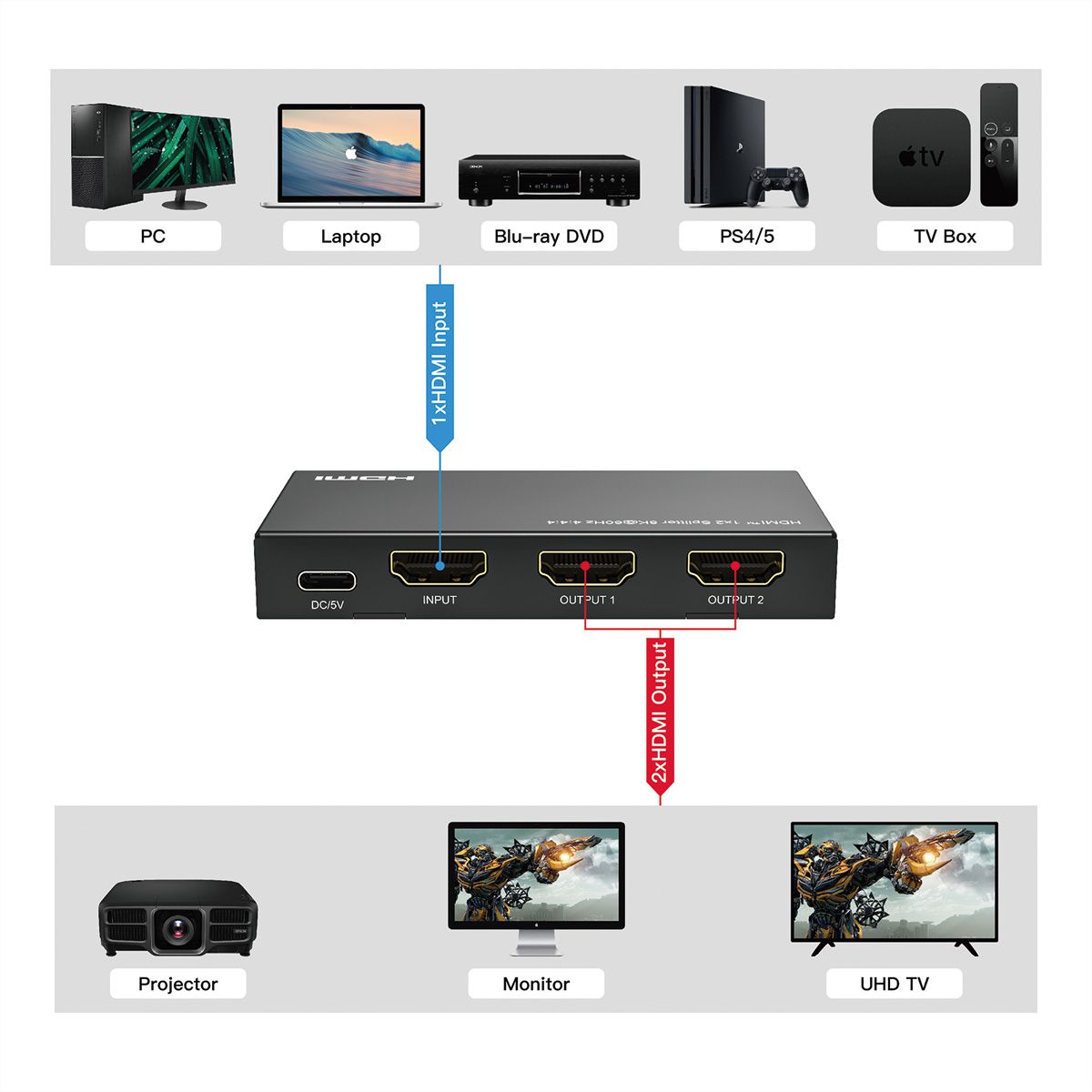

ROLINE HDMI Splitter for connecting up to two HDMI capable end devices (monitor, projector, etc) with 8K resolution at 60 Hz.
- For use in presentations or for training purposes
- Maximum resolution: 7680 x 4320 @60Hz
- Full 3D video format
- High definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz
- HDCP 2.3, and backwards compatible with HDCP 2.2 and HDCP 1.4
- Uncompressed audio such as LPCM
- Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
- High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
- Power supply via USB cable Type A-C (included)
Specifications
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI-Video-Splitter
- Colour
- black
- Scope of delivery
- HDMI Splitter, USB Power Cable Type A - C, User Manual
- Interface
- HDMI
- Inputs
- 1
- Outputs
- 2
- Video input
- 1x HDMI Female
- Video output
- 2x HDMI Female
- Max. resolution
- 7680 x 4320 @60Hz (8K, UHD-2)
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 70 °C
- Height
- 14 mm
- Width
- 90 mm
- Depth
- 44 mm
- Weight
- 87 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 90 mm
- Depth of packaging (single piece)
- 130 mm
- Package weight (single piece)
- 0.1 kg
- Dimensions (HxWxD)
- 14 x 90 x 44 mm
