Description

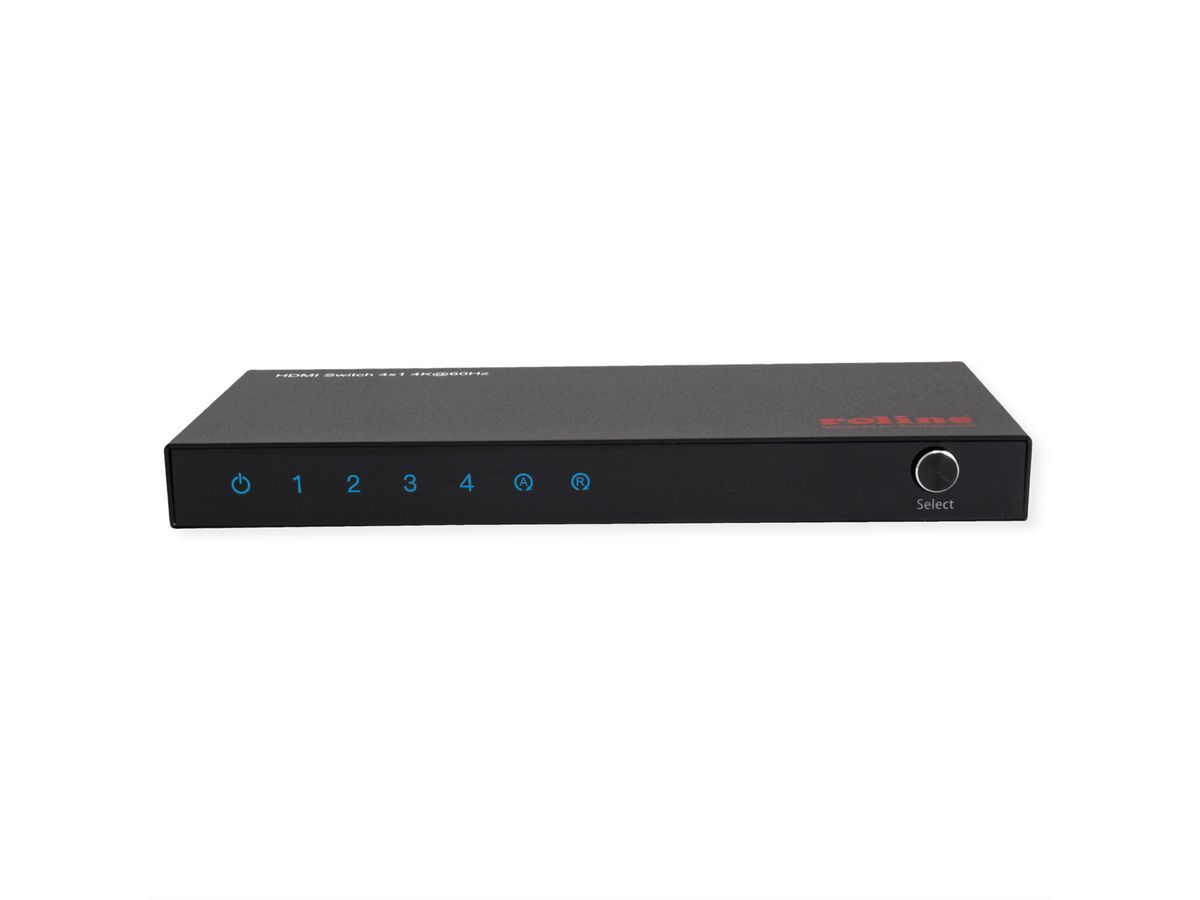

This ROLINE HDMI Switch displays the video output of up to 4 HDMI sources on a monitor or projector with a resolution of up to 4K@60Hz.

• Shows the video output of 4 HDMI devices like e.g. notebook, laptop, pc, video camera or game console on one monitor.
• Supports resolution of up to 4K@60Hz and full 3D.
• HDMI input can be switched by button on the switch, automatically or by remote control (included).
• Automatic switching enables your most recently activated video source to be displayed automatically.
• USB power supply cable needed (included)
• Colour: black

• Contents: HDMI switch, USB power cable, remote control (2x AAA batteries, not included)

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI-Video-Switch
Colour	black
Scope of delivery	HDMI Switch, USB Power Cable, Remote Control (2x AAA batteries, not included)
Interface	HDMI
Inputs	4
Outputs	1
Video input	4x HDMI Female
Video output	1x HDMI Female
Max. resolution (nom.)	max. 3840x2160@60Hz
Dimensions (HxWxD)	14,5 x 136 x 61,5 mm
Technical particularity	Switching by push buttons, automatically, or by remote control
Operating temperature min.	0 °C
Operating temperature max.	70 °C
Height	14.5 mm
Width	136 mm
Depth	61.5 mm
Weight	173 g
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
Video band width	18 Gbps

Downloads

Product data sheet - English (52.6 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 5-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
