The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

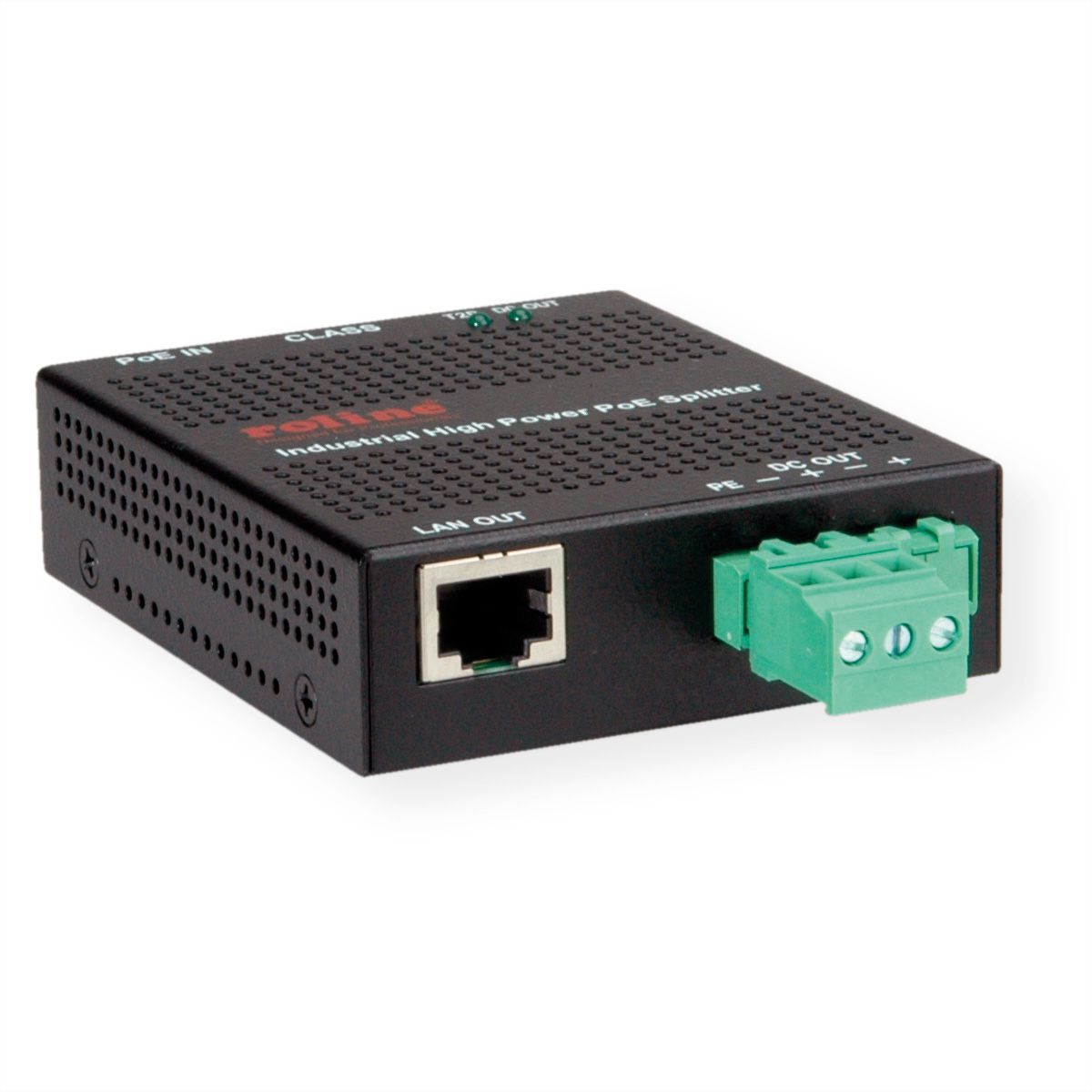

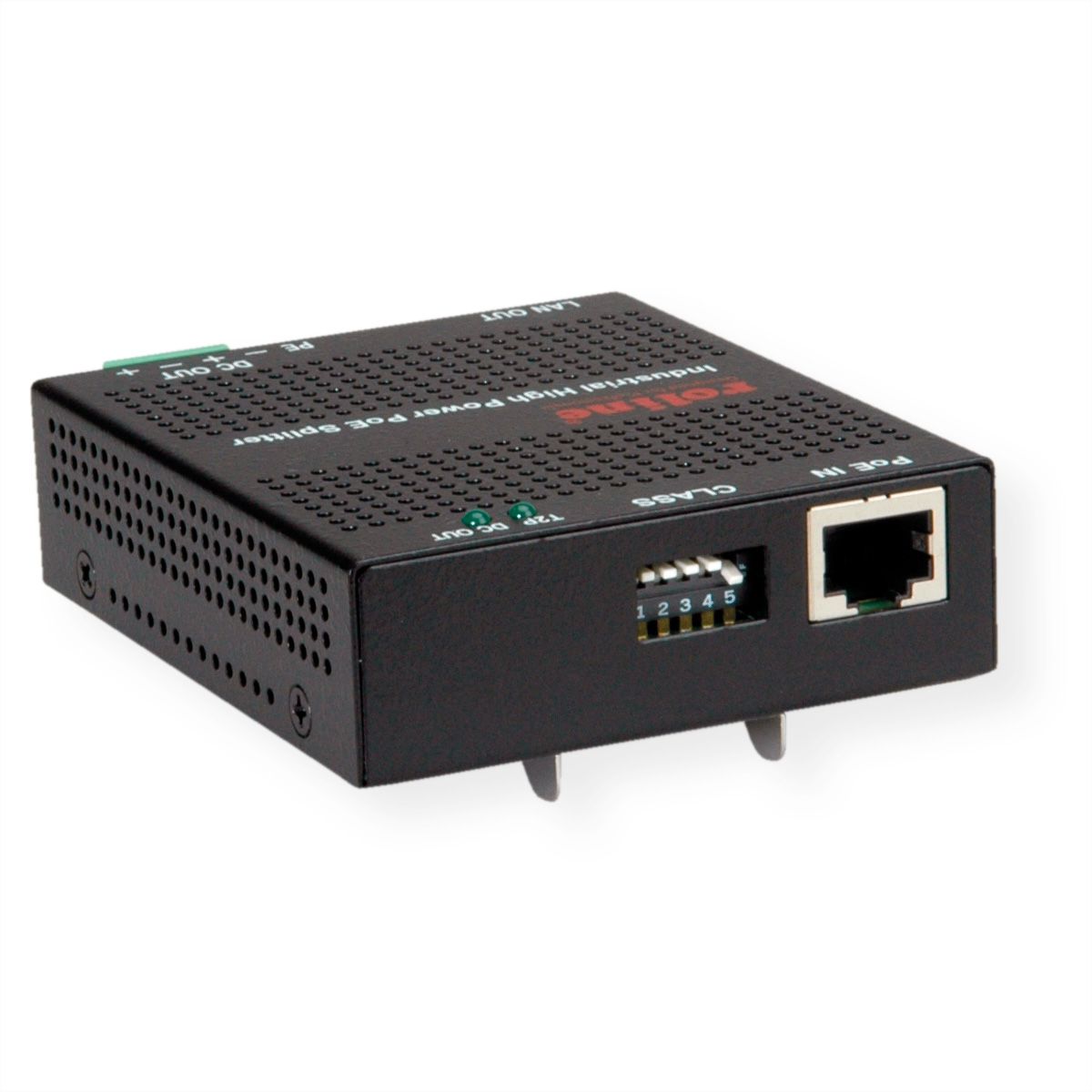

ROLINE High Power PoE Splitter, 30W
Item no.
21131175
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1175
EAN
7630049623644
Item weight
0.34 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
- High power PoE splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single Cat.5 cable for both power and data transaction
- For easier, cost-effective PoE network installation, the PoE splitter is the best solution to protect original investment.
- IEEE 802.3at and 802.3af compliance
- Support 10BASE-T, 100BASE-TX, and 1000BASE-T
- Support Alternative A or Alternative B PoE input over Cat.5
- Provide a power class selection DIP for demanding power from PSE
- Support Type 1 PSE classification (for power up to 13 Watts min.) and Type 2 PSE 2-event classification (for power up to 30 Watts)
- Regulated DC power output
- Flexible mounting support, light weight and compact
- Metal housing
- Dimension: 73 x 85 x 24 mm
Specifications
- Manufacturer
- ROLINE
- Product group
- PoE adapter
- Product type
- PoE-Splitter
- Colour
- black
- Scope of delivery
- Splitter, DC kabel, handleiding (op CD)
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 1
- Power over Ethernet (PoE)
- PoE (IEEE 802.3af)
- Quantity of PoE ports
- 1
- Max. PoE output power per port
- 30 W
- Max. PoE output power (total)
- 30 W
- Technical particularity
- 12 VDC (output voltage)
- Mains connection
- Loose cable / screw terminals
- Height
- 24 mm
- Width
- 85 mm
- Depth
- 73 mm
- Weight
- 193.4 g
- Height of packaging (single piece)
- 160 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.34 kg
