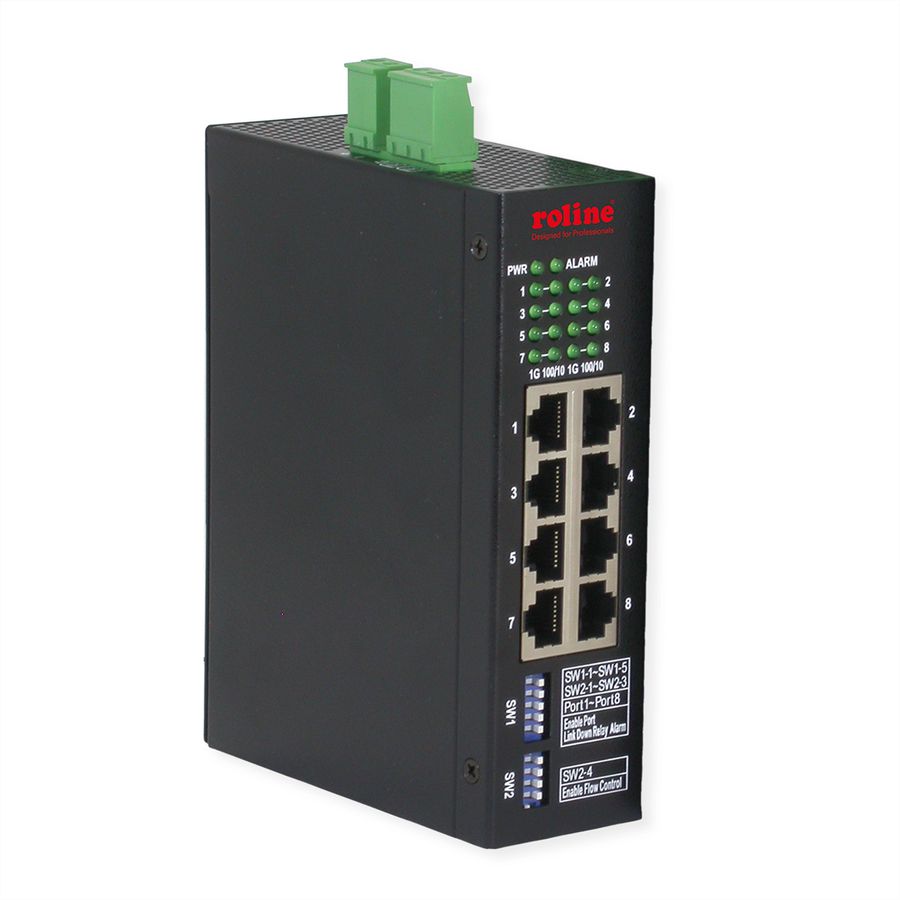

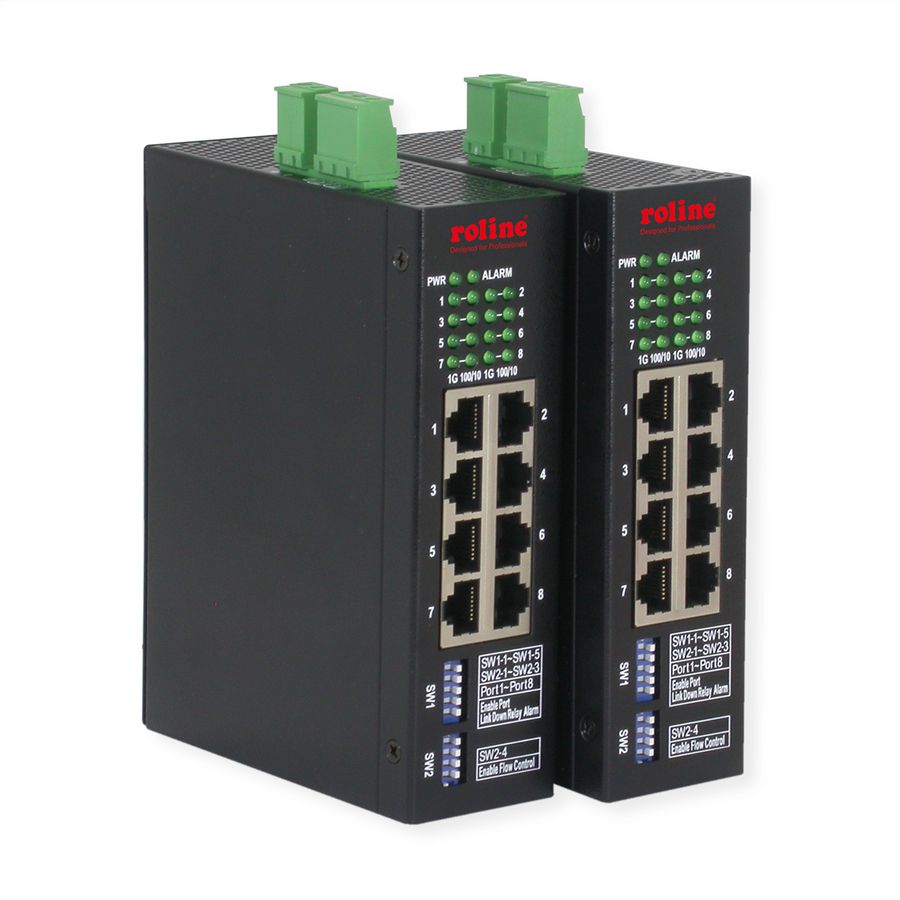

ROLINE Industrial Managed 8-Port L2 Gigabit Ethernet Switch
Item no.
21131134
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1134
EAN
7630049628298
Item weight
0.4 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
ROLINE Industrial Managed 8-Port L2 Gigabit Ethernet Switch which enables up to 8 connections of copper-based Ethernet equipment
- Provides 8 10/100/1000Mbps copper ports
- Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3az standards
- Auto-negotiation / Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full duplex
- Supports back pressure flow control for half duplex
- Fully non-blocking Gigabit full wire speed switching performance
- Jumbo frame support (9.6K bytes)
- Alarm relay output for power failure event and software configured port link fault events
- 802.1Q VLAN / QoS (Quality of Service) function
- Port mirroring / IGMP snooping function
- Web management
- SNMP MIB-II support and trap function
- Wide operating temperature range
- Supports IEEE 802.3az Energy Efficient Ethernet
- Supports DIN-Rail mounting and panel mounting
- LED Indication Unit: Power status, per port: Speed/Link/Activity
- Metal casing
Specifications
- Manufacturer
- ROLINE
- Product group
- Industrial Networking
- Product type
- Network Switch
- Colour
- black
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 8
- Gigabit Ethernet Ports RJ-45
- 8
- Mounting form
- DIN Rail
- Management
- Smart
- Stackable
- no
- Dimensions (HxWxD)
- 140 x 42 x 106 mm
- Power supply
- External power supply unit
- Mains connection
- Loose cable / screw terminals
- Height
- 140 mm
- Width
- 42 mm
- Depth
- 106 mm
- Weight
- 535.5 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 170 mm
- Depth of packaging (single piece)
- 210 mm
- Package weight (single piece)
- 0.4 kg
- Scope of delivery
- Switch, manual
Downloads
Product data sheet - English (40.9 KB)
