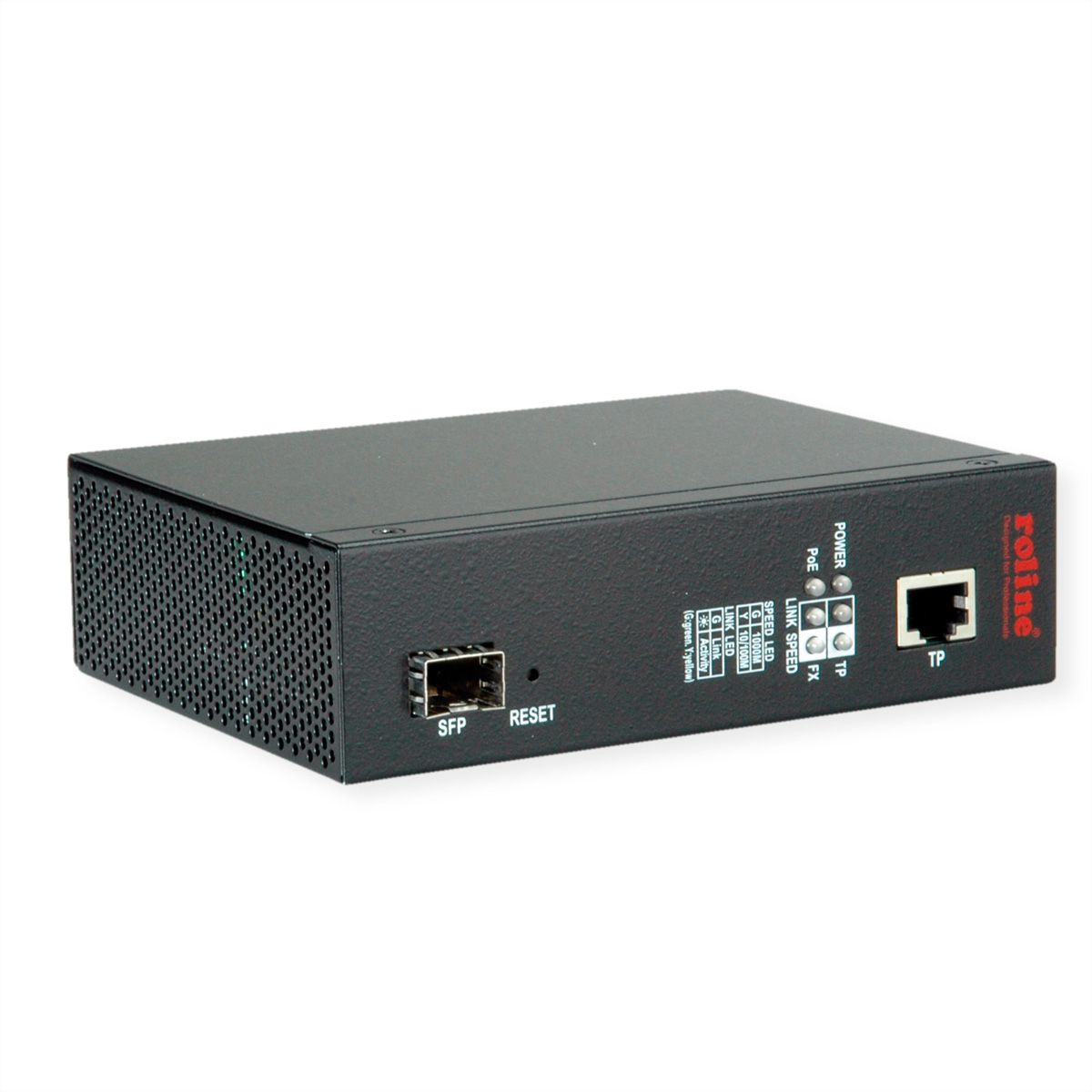

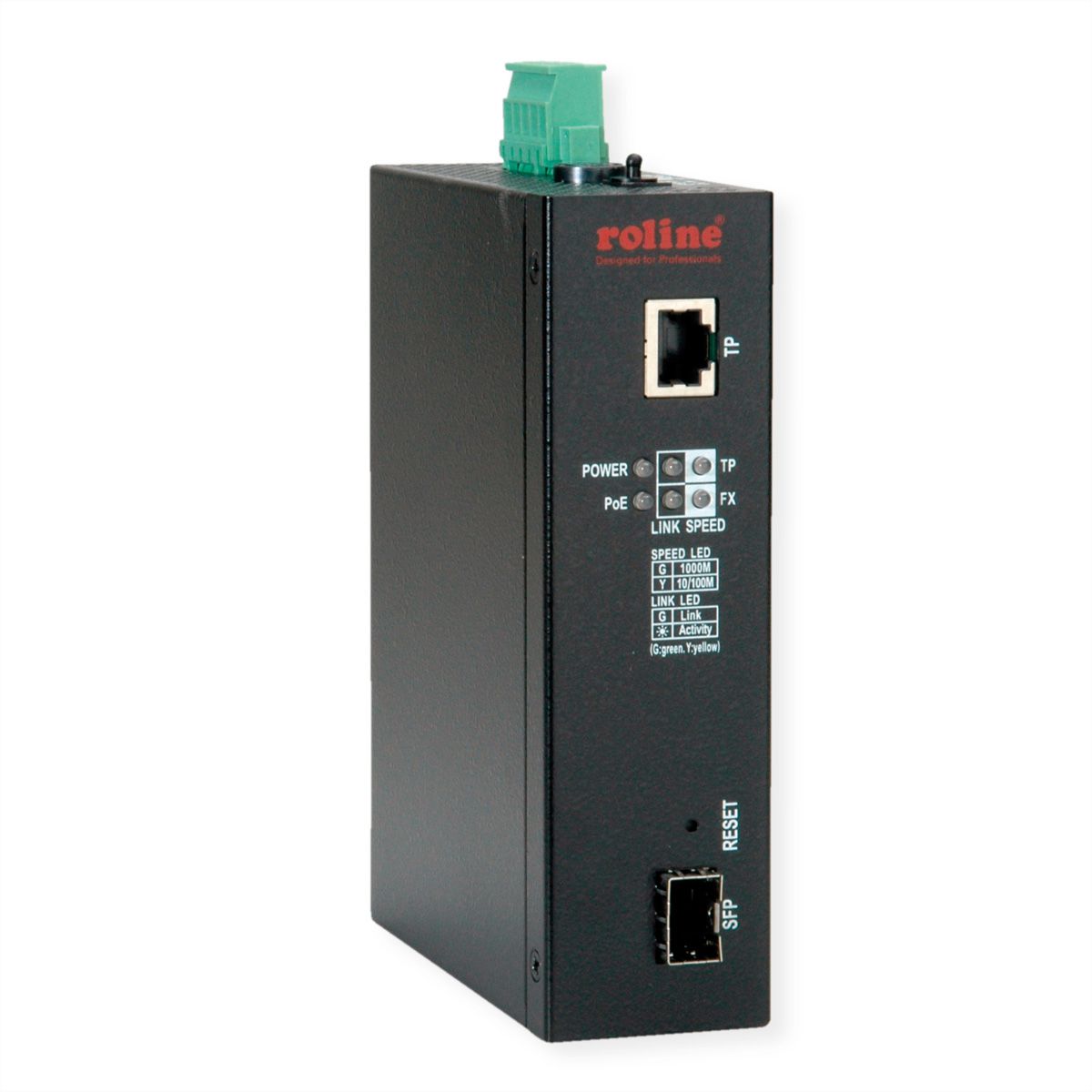

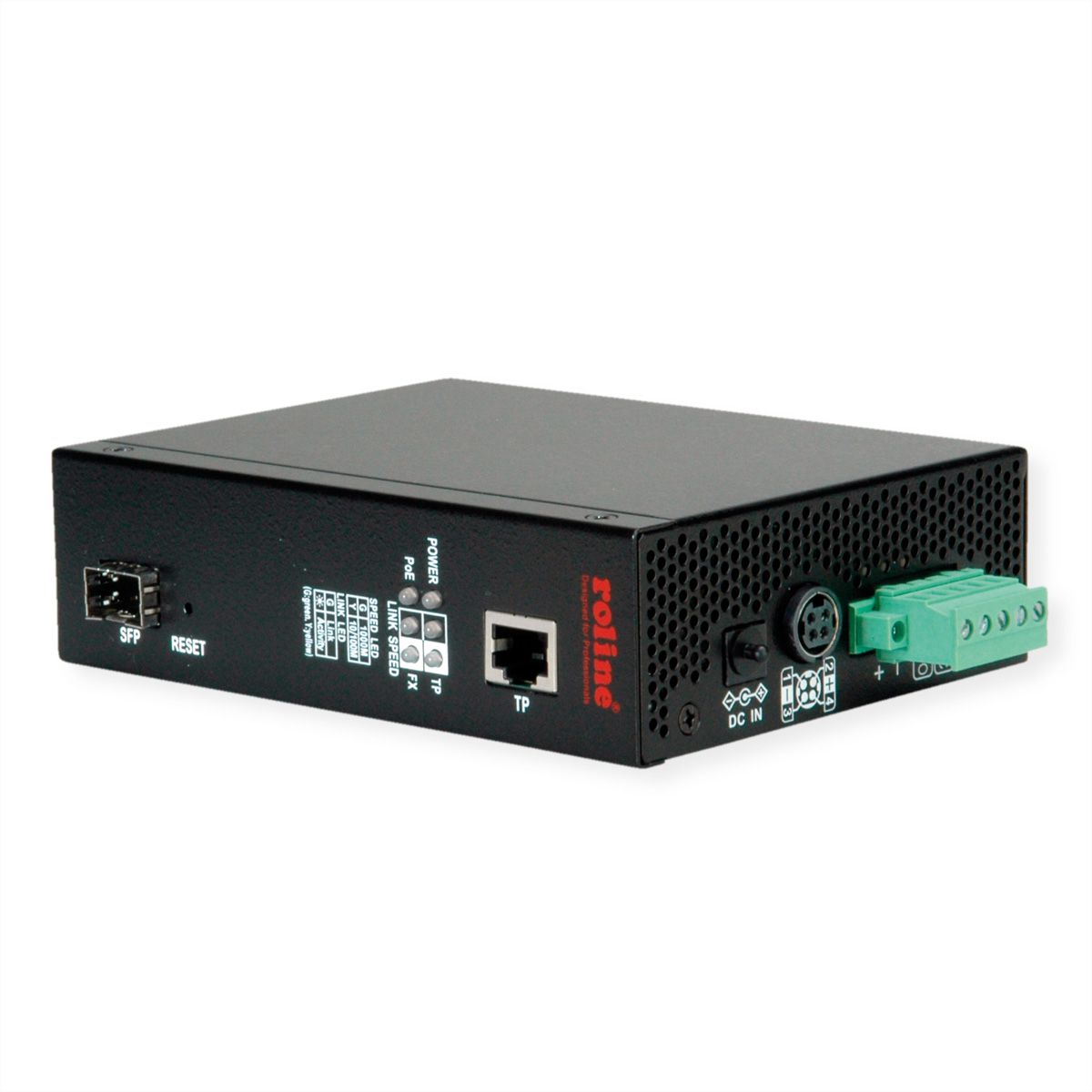

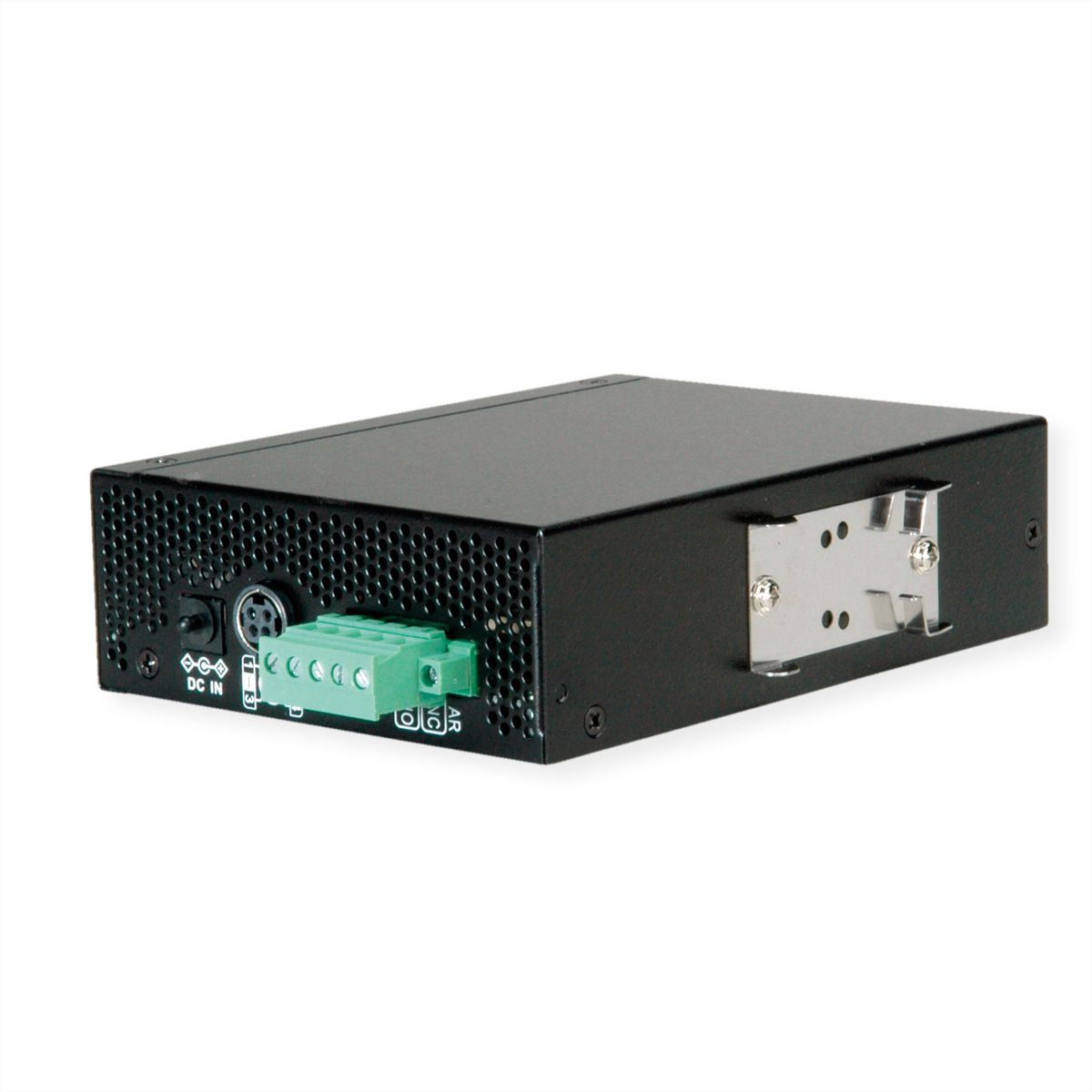

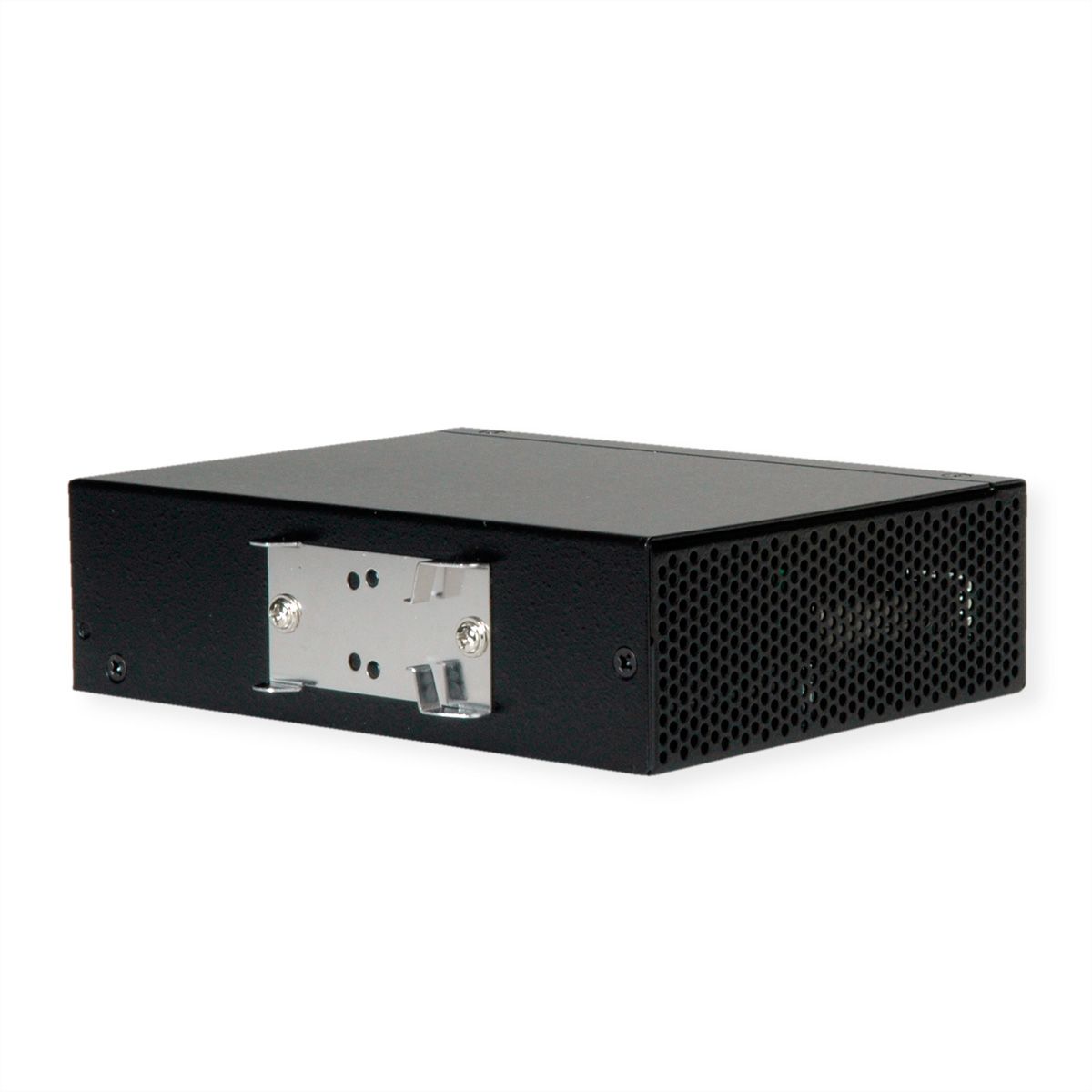

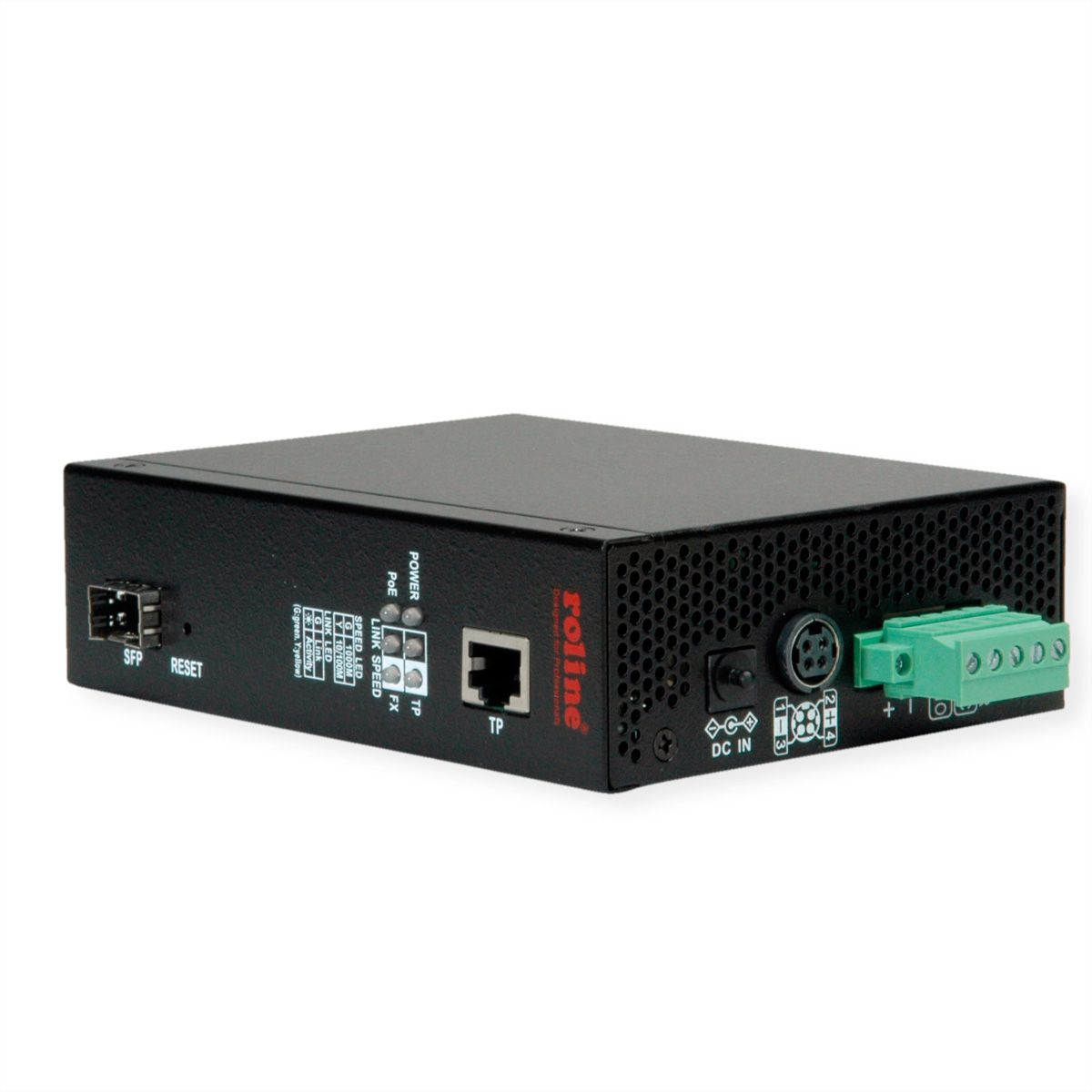

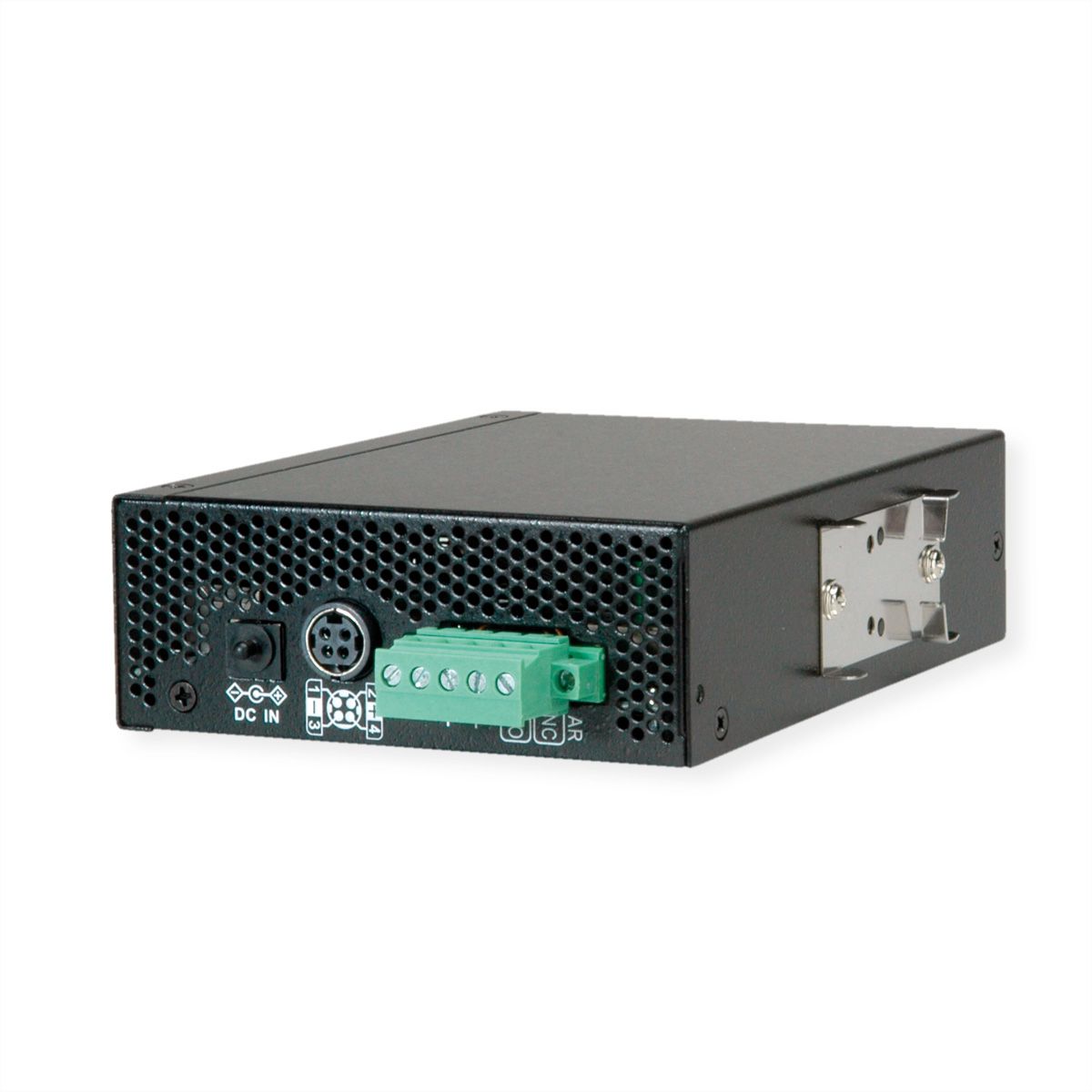

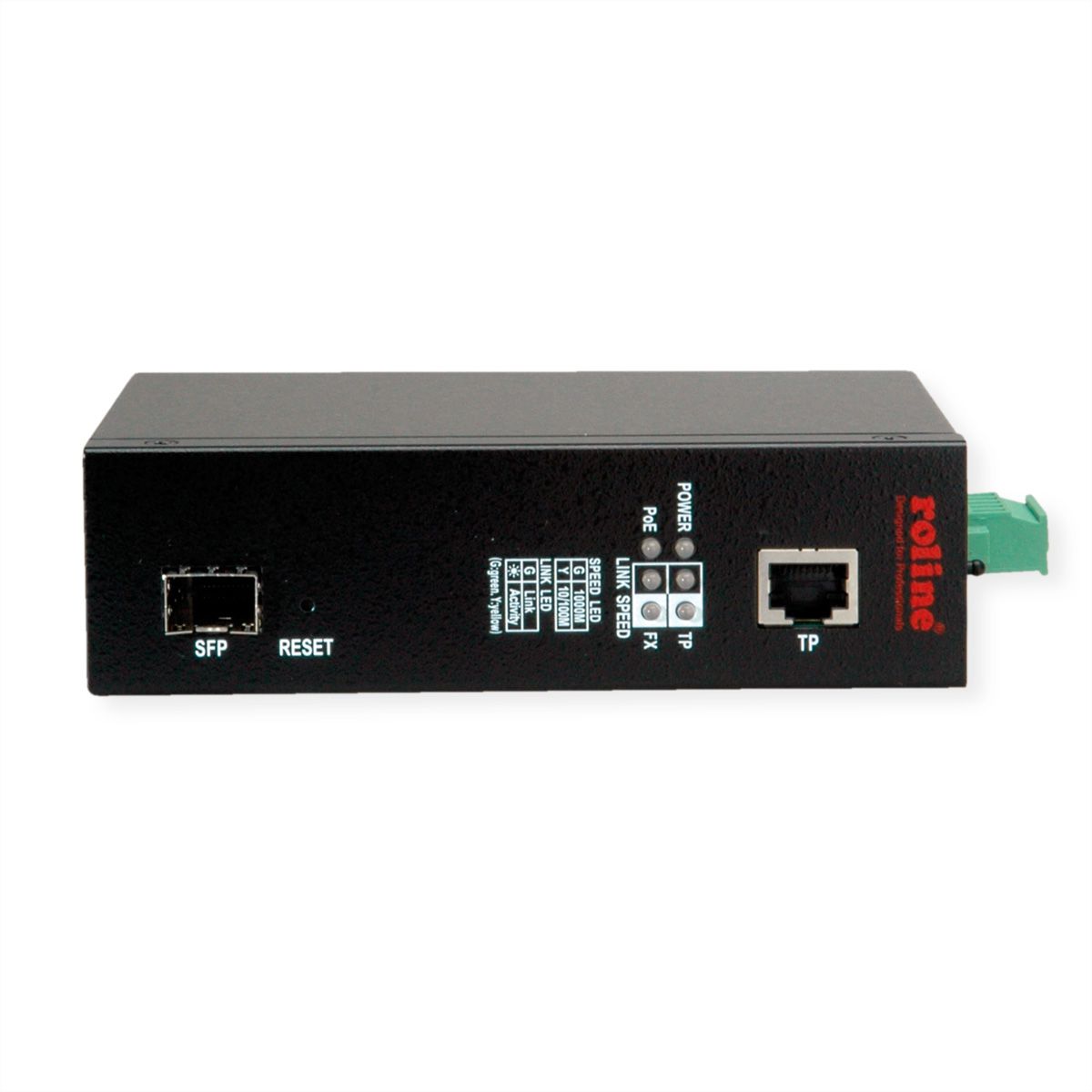

ROLINE Industrial Managed Media Converter Gigabit Ethernet with PoE++ PSE Support
Item no.
21131135
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1135
EAN
7630049621541
Item weight
0.6 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
- Industrial Media Converter with PoE++ PSE for general applications
- Tri-speed 10/100M/1Gbps copper to dual-speed 100M/1Gbps fiber conversion
- Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3bt standard
- Support full wire speed conversion for Gigabit copper to Gigabit fiber
- Provide dual-speed SFP on fiber port for mounting variety of fiber options
- Provide important LFPT (Link Fault Pass Through) media converter function
- Support Jumbo frame conversion
- Energy Efficient Ethernet (EEE) support
- Alarm events relay output
- Optical Power Alarm (OPA) function
- Auto Laser Shutdown (ALS) function
- Fiber support for multimode, short reach up to long reach single mode fiber, Bi-Di applications
- Web-based configuration management support
- Support SNMP management
- Provide variety of PoE options for different power level applications
- PoE shutdown protection for incompliant PD, disconnection, over-current and short-circuit
Specifications
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- RJ-45 Port (Mbps/s)
- 1000
- Fibre Ports (Mbps)
- 1000
- Quantity of RJ45 ports
- 1
- Quantity of fibre LC ports
- 1
- Fibre
- Multi mode
- Ethernet fibre standard
- 1000Base-SX
- Max. range 50 µm fibre
- 500 m
- Max. range 62,5 µm fibre
- 220 m
- Managed
- no
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Height
- 40 mm
- Width
- 106 mm
- Depth
- 140 mm
- Weight
- 474.8 g
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.6 kg
