ROLINE Industrial Switch, 7x RJ-45, 1x SC, unmanaged

Item no. 21131152 Brand / Manufacturer ROLINE Manuf. item no. 21.13.1152 EAN 7611990176700 Item weight 0.639 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

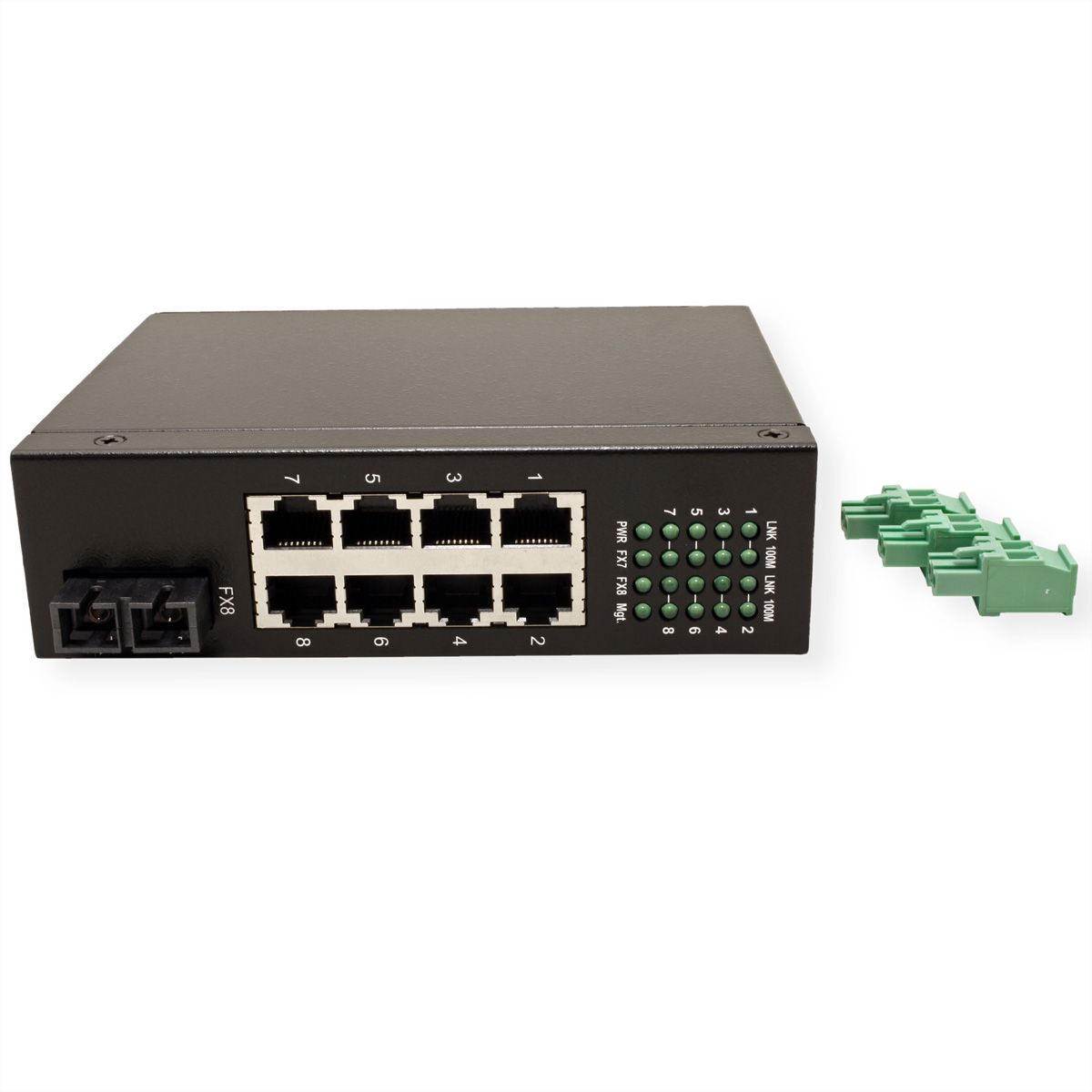

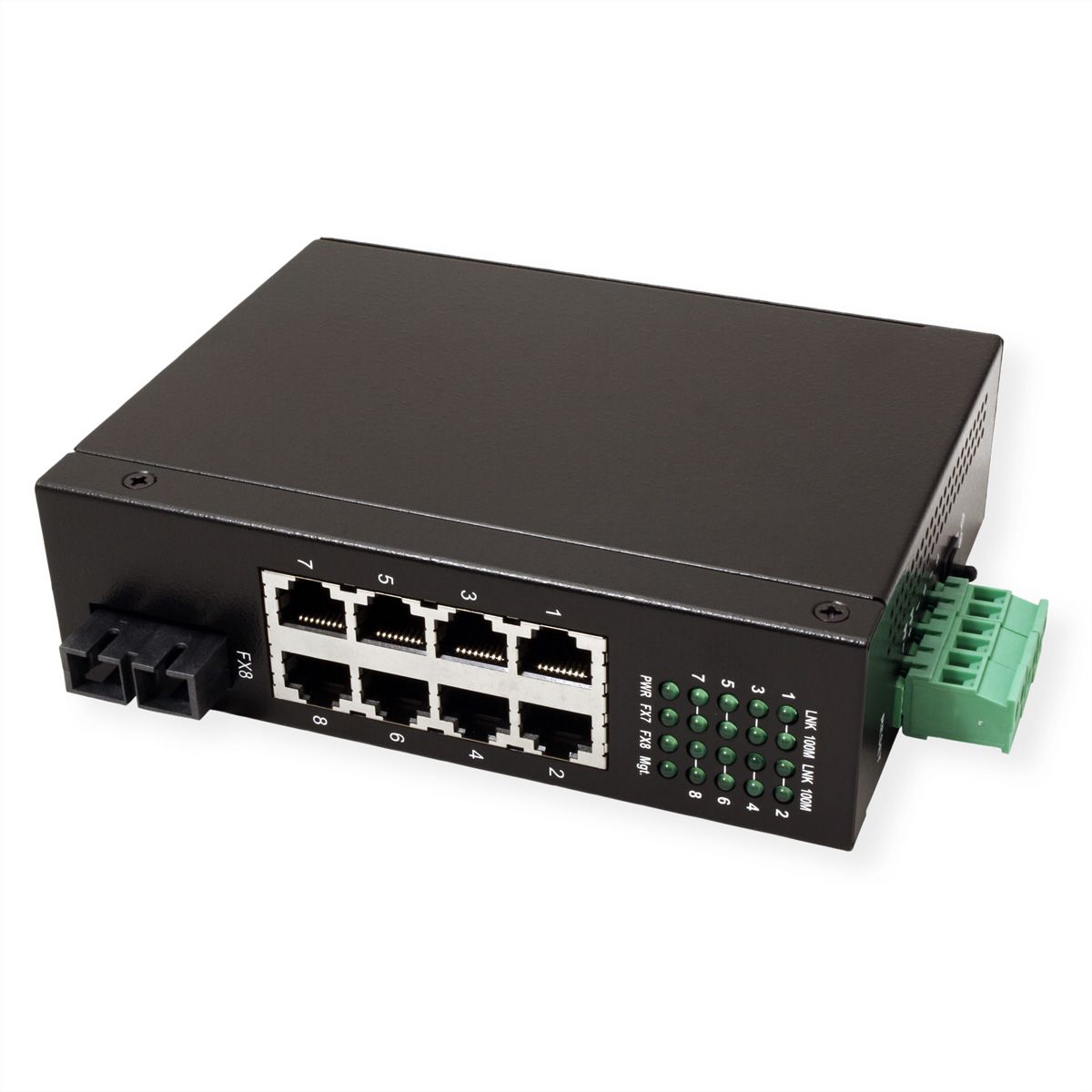

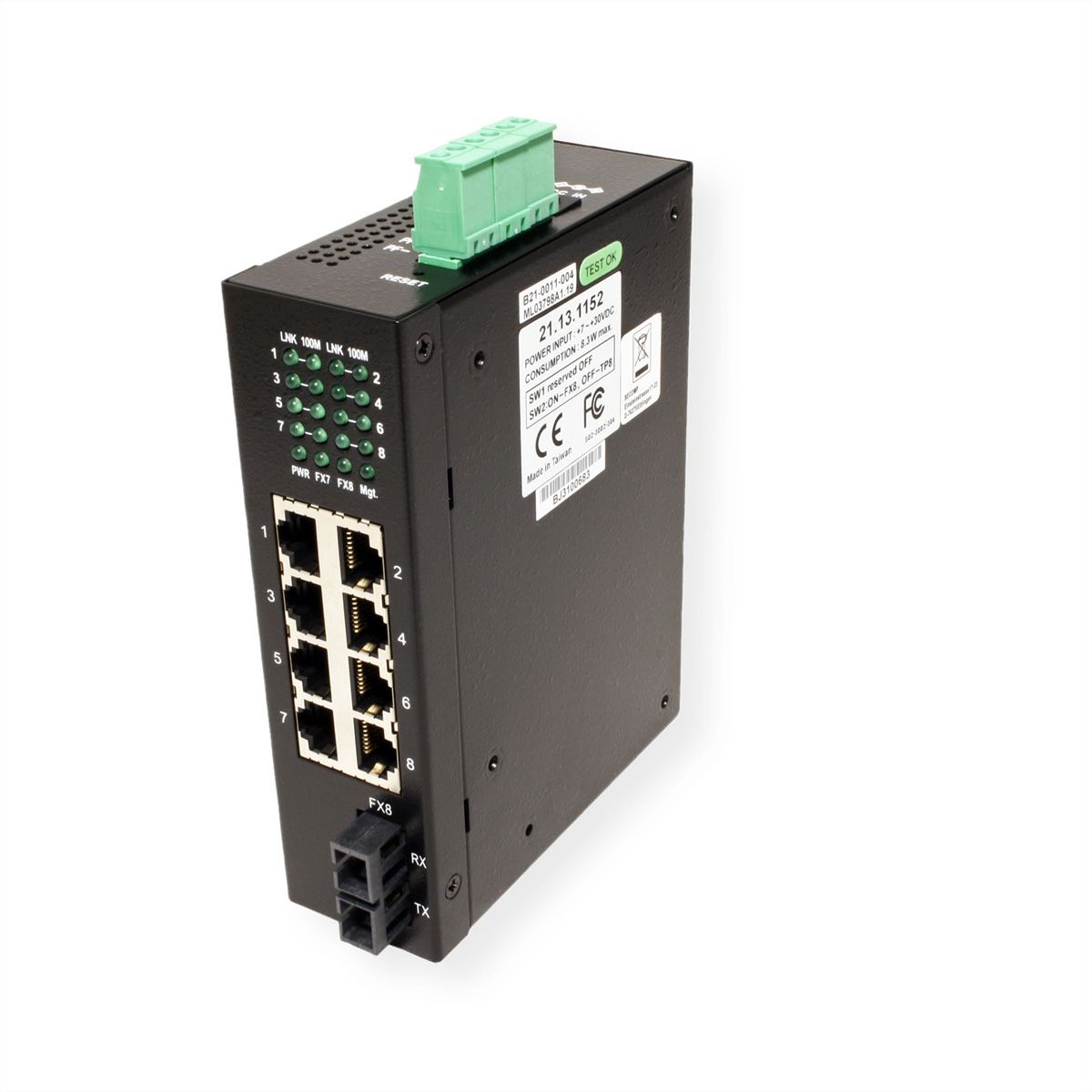

  • Fast Ethernet switch with 7x 10/100Base-T ports and 1x 100Base-FX port
  • Wide operating temperature range for temperature critical

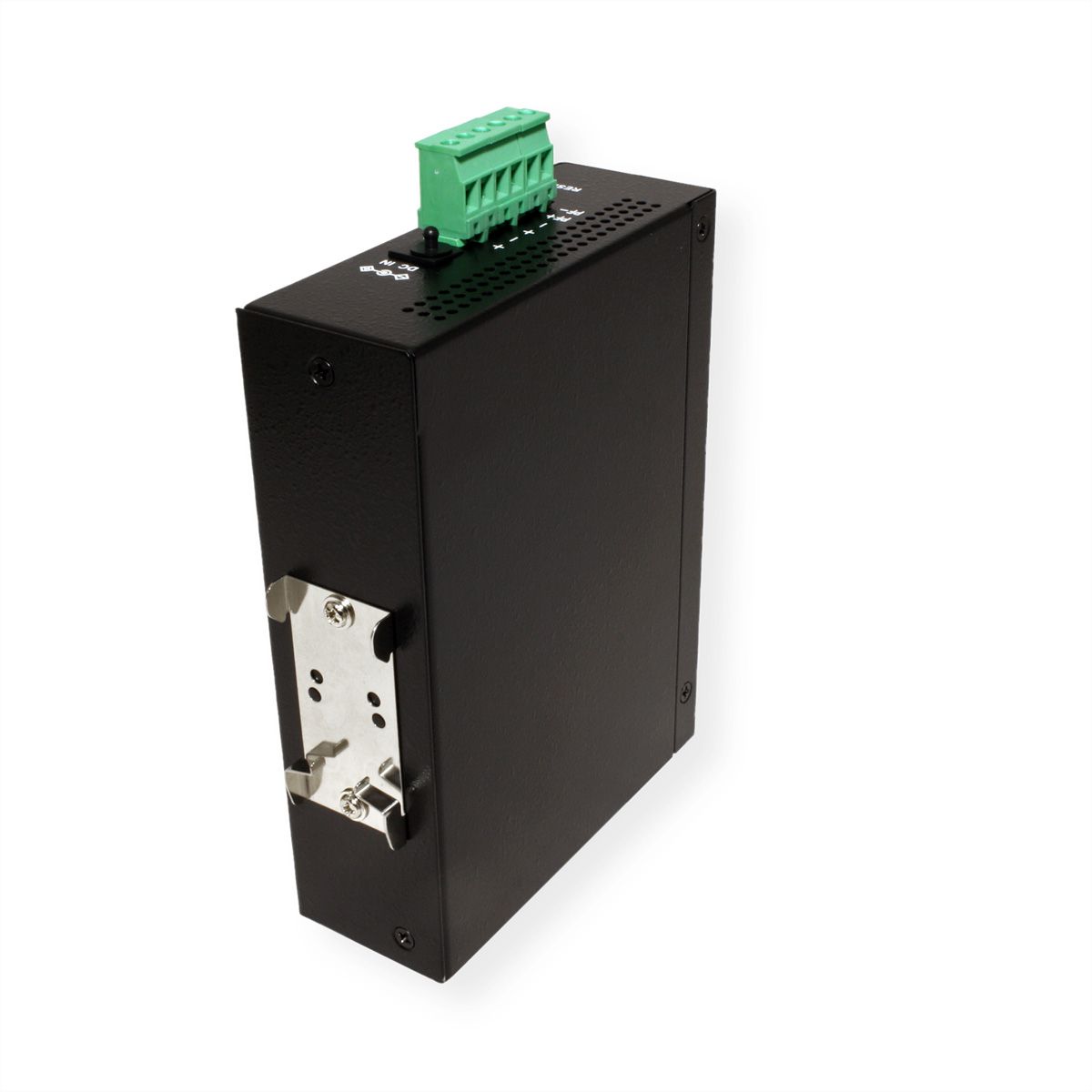

  • Support DIN rail mounting
  • Industrial-rated Emission and Immunity performance
  • Provides wire speed store-and-forward switching
  • Supports IEEE 802.3x flow control for full-duplex operation
  • Supports Back-pressure flow control for half-duplex operation
  • Power: Input: 7 - 30V DC, Consumption: 6.5W (max.)

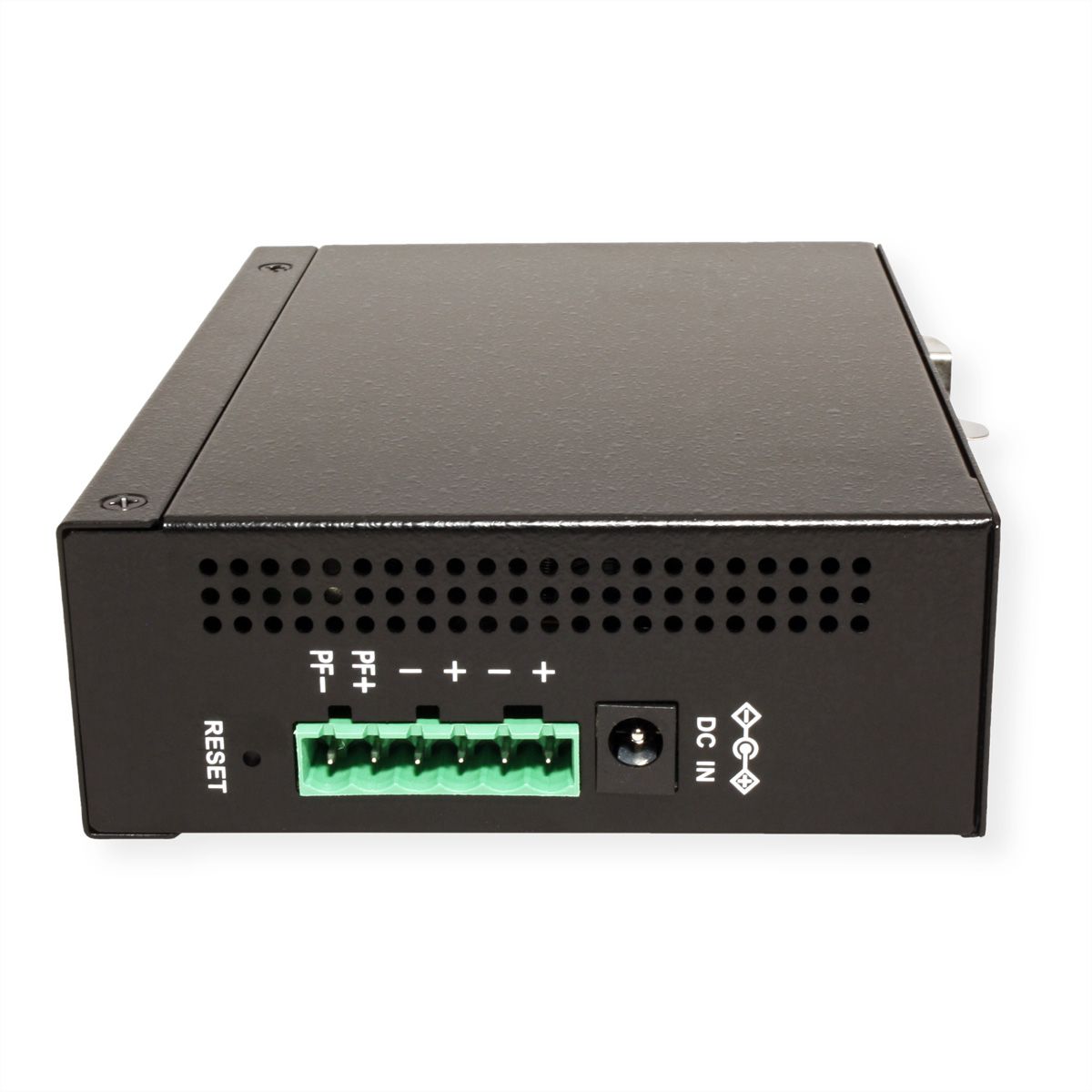

  • DC Input via terminal block or DC power jack (6.3mm/2.0mm)
  • Operating Temperature: - 20 °C - +70 °C
  • Dimensions: 140 X 106.5 X 40mm (WxDxH)
  • As according Power Supply Unit we recommend 21.13.1226

Specifications

Manufacturer
ROLINE
Product group
Industrial Networking
Product type
Network Switch
Colour
black
Scope of delivery
1x switch, 3x terminal block, 1x product CD-ROM
Network standard
Fast Ethernet
LAN (Mbps)
10/100
Quantity of ports
8
Fast Ethernet Ports RJ-45
7
Fast Ethernet Ports Fibre
1
Mounting form
DIN Rail
Management
no
Stackable
no
Dimensions (HxWxD)
106 x 40 x 140 mm
Power supply
External power supply unit
Mains connection
Loose cable / screw terminals
Operating temperature min.
-20 °C
Operating temperature max.
70 °C
Height
106 mm
Width
40 mm
Depth
140 mm
Weight
547.17 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
210 mm
Package weight (single piece)
0.639 kg

Downloads

Product data sheet - English (46.0 KB) Manufacturer data sheet - English (296.3 KB) User manual - Deutsch (1.3 MB) User manual - English (1.3 MB) User manual - Français (1.3 MB) Safety instructions - Deutsch (250.9 KB) Safety instructions - English (250.9 KB) Safety instructions - Français (250.9 KB)
