Item no.:21131311Herst.-Art.-Nr.:NDR-75-24

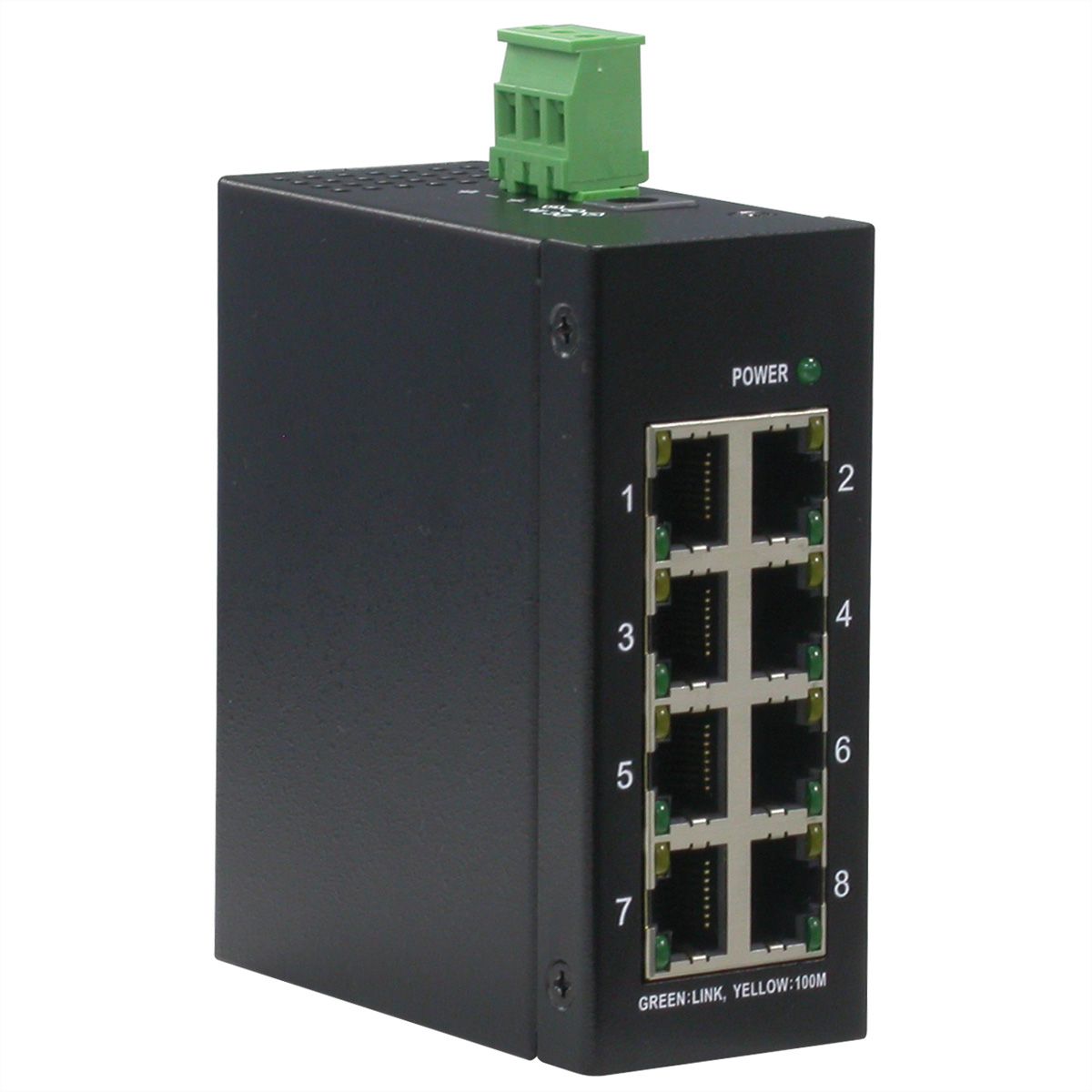

ROLINE Industrial Switch, 8x RJ-45, unmanaged
Item no.
21131156
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1156
EAN
7611990189168
Item weight
0.365 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
- Fast Ethernet switch with 8 shielded 10/100 Base-T copper ports
- Wide operating temperature range for temperature critical environment
- Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation
- Supports DIN-rail mounting
- Power: Input: 5 - 30V DC, Consumption: 2.3W (max.)
- Operating Temperature: - 10 °C - +70 °C
- DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
- Dimensions: 40 x 80 x 95 mm (WxDxH)
- As according power supply we recommend 21.13.1226
- Contents: Switch
Specifications
- Manufacturer
- ROLINE
- Product group
- Industrial Networking
- Product type
- Network Switch
- Colour
- black
- Scope of delivery
- 1x switch, 3x terminal block, 1x product CD-ROM
- Network standard
- Fast Ethernet
- LAN (Mbps)
- 10/100
- Quantity of ports
- 8
- Fast Ethernet Ports RJ-45
- 8
- Mounting form
- DIN Rail
- Management
- no
- Stackable
- no
- Dimensions (HxWxD)
- 95 x 40 x 80 mm
- Power supply
- External power supply unit
- Mains connection
- Loose cable / screw terminals
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 70 °C
- Height
- 95 mm
- Width
- 40 mm
- Depth
- 80 mm
- Weight
- 300.56 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.365 kg
