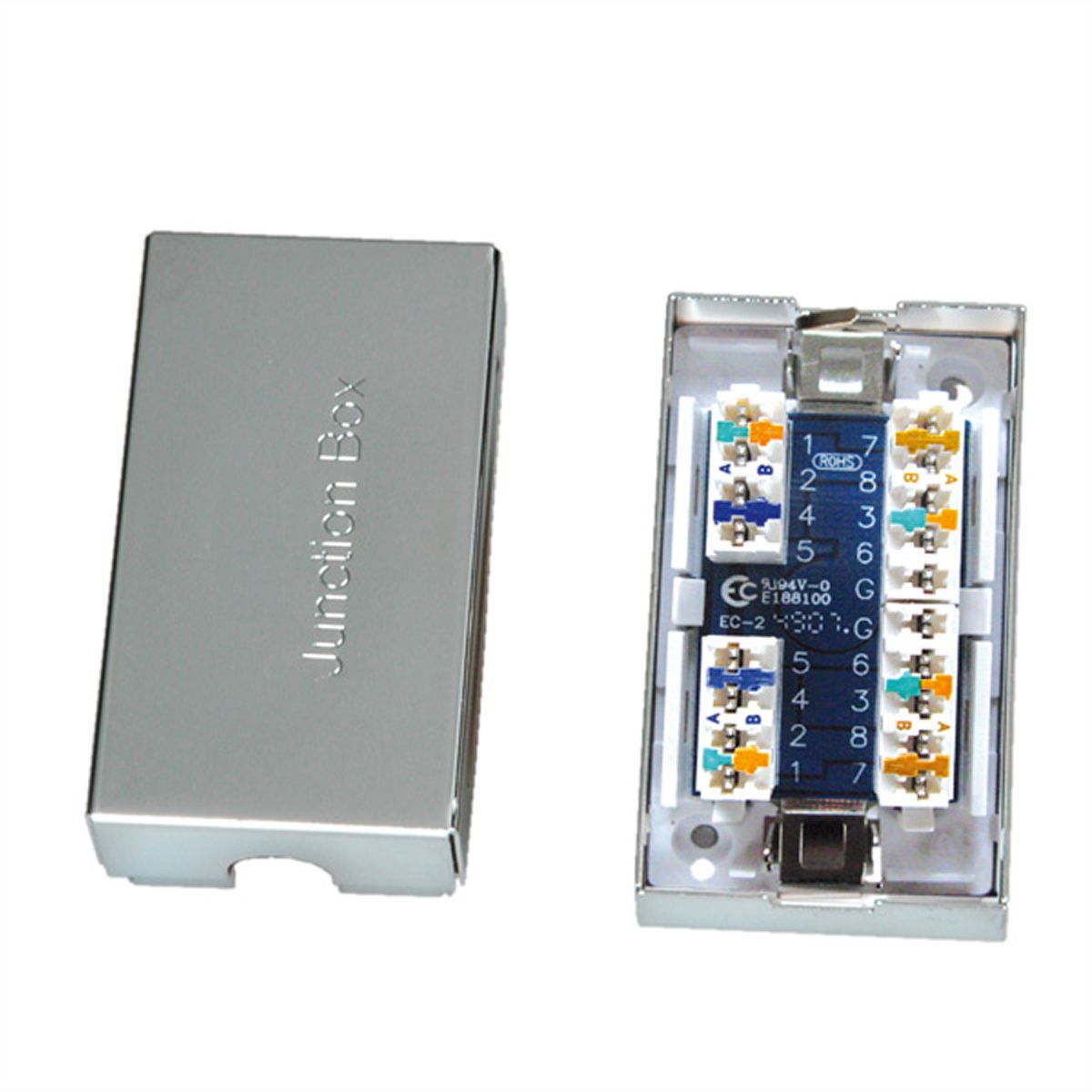

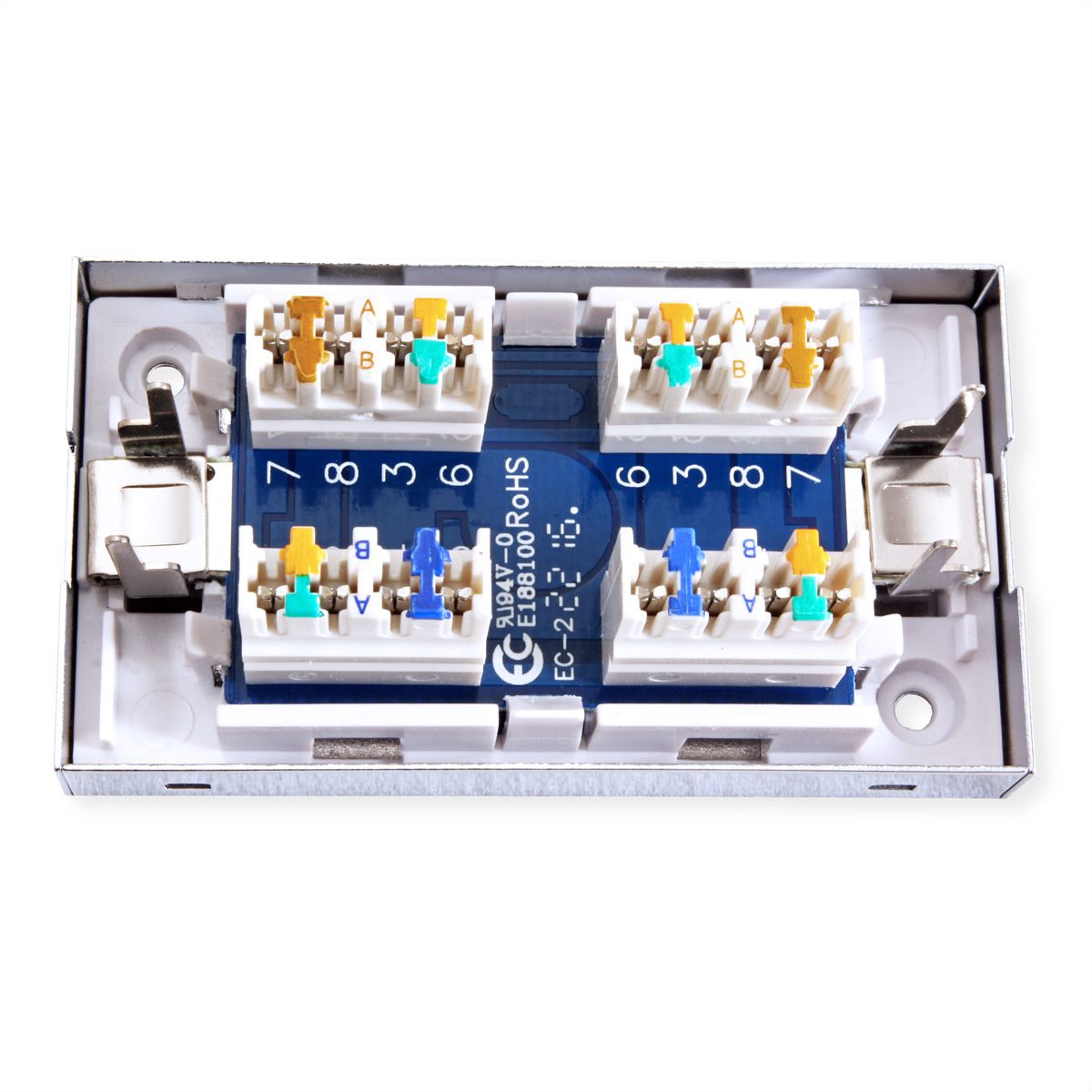

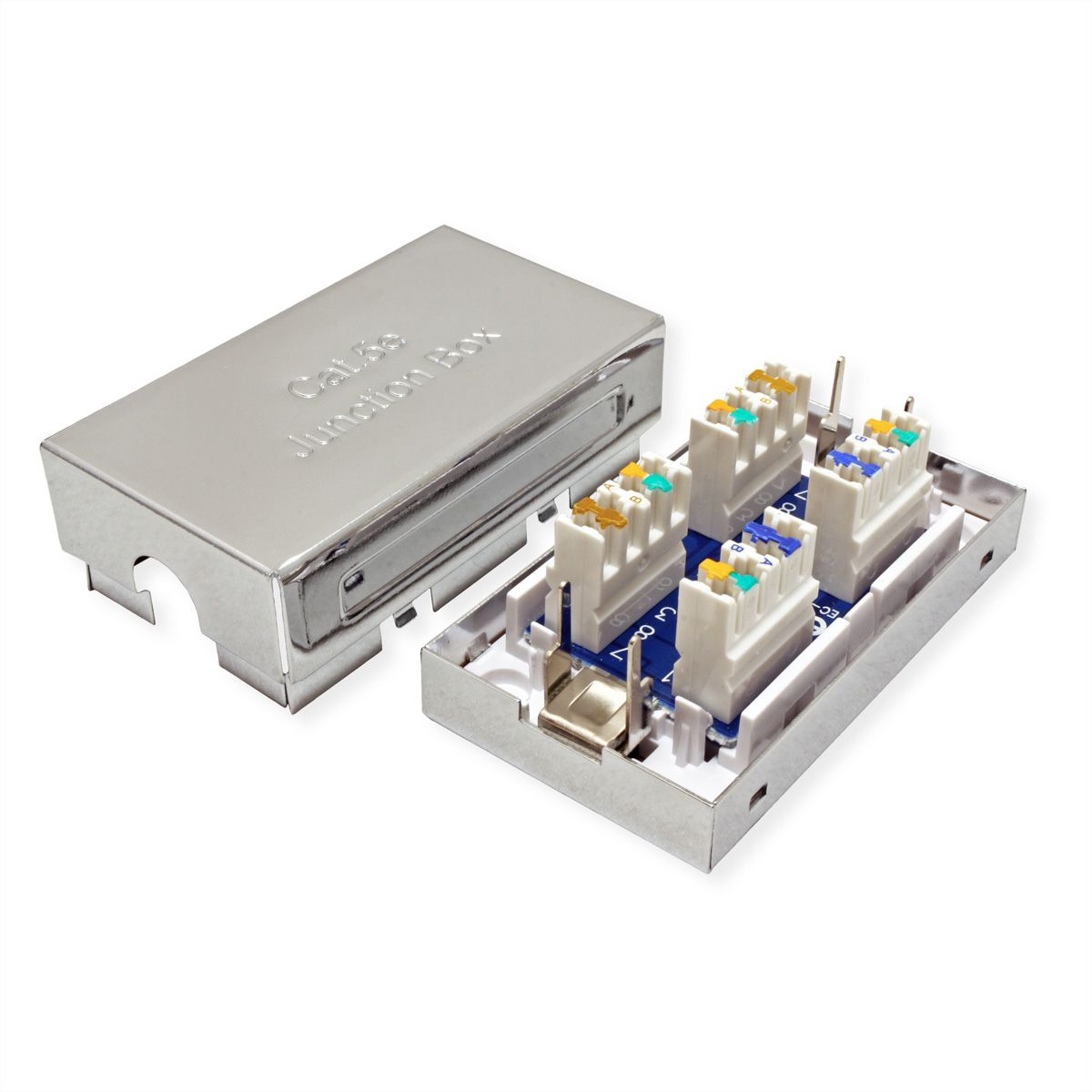

ROLINE Junction Box Cat.5e (Class D), STP
Item no.
21173035
Brand / Manufacturer
ROLINE
Manuf. item no.
21.17.3035
EAN
7611990129966
Item weight
0.05 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
- The ROLINE Junction box is used to repair shielded Cat. 5e cables
- With this box all 4 or 8 wired installation cables with AWG24 and with a cover from 6.2mm can be installed
- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA or 568B can be easily installed
- With the use of the STP type junction box, it's safe against electrical and magnetical interferences
Specifications
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Network junction box
- Colour
- white
- Shield type
- Screened
- Transfer quality
- Cat5e / Class D
- Quantity of ports
- 1
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568B
- Material (casing)
- Kunststof
- Shield contacts
- yes
- separate strain relief
- no
- Connection direction
- Straight
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 80 °C
- Height
- 23.95 mm
- Width
- 34.9 mm
- Depth
- 62.8 mm
- Weight
- 61.3 g
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 50 mm
- Depth of packaging (single piece)
- 80 mm
- Package weight (single piece)
- 0.05 kg
