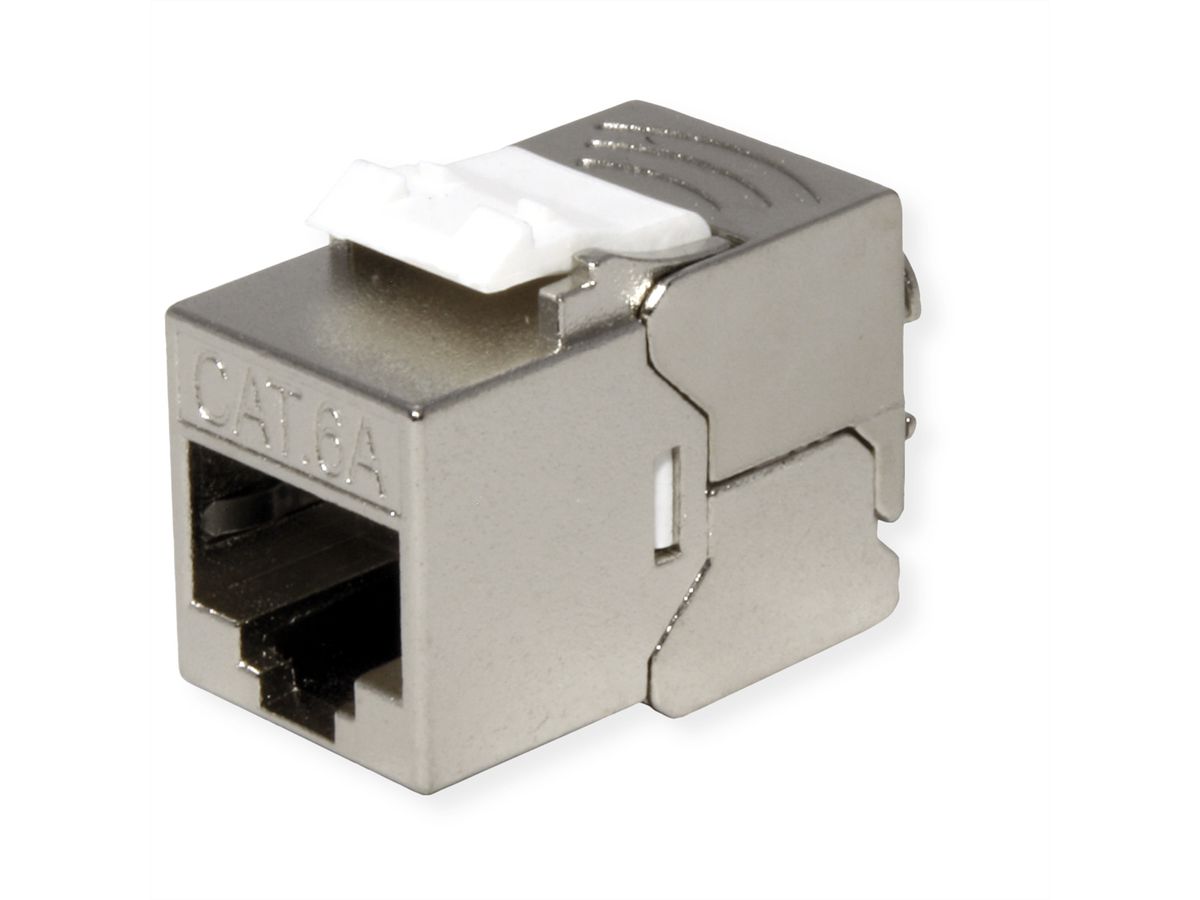

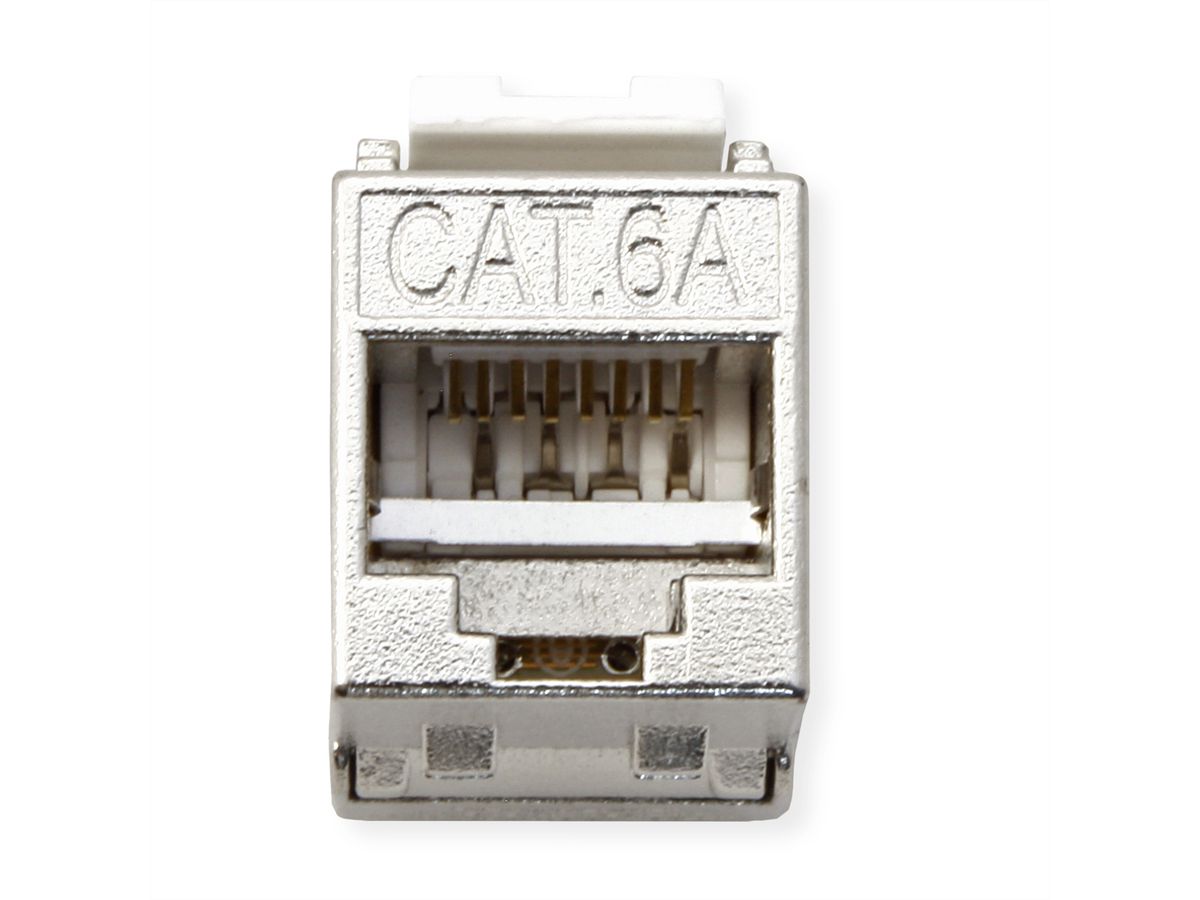

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, STP, tool-free, SLIM and SHORT, silver
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26110391 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 26.11.0391 |
| EAN | 7630049635029 |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
ROLINE Cat. 6A Keystone for use in a 10 Gigabit network, using a bandwith of 500 MHz, shielded, with a very small form factor!

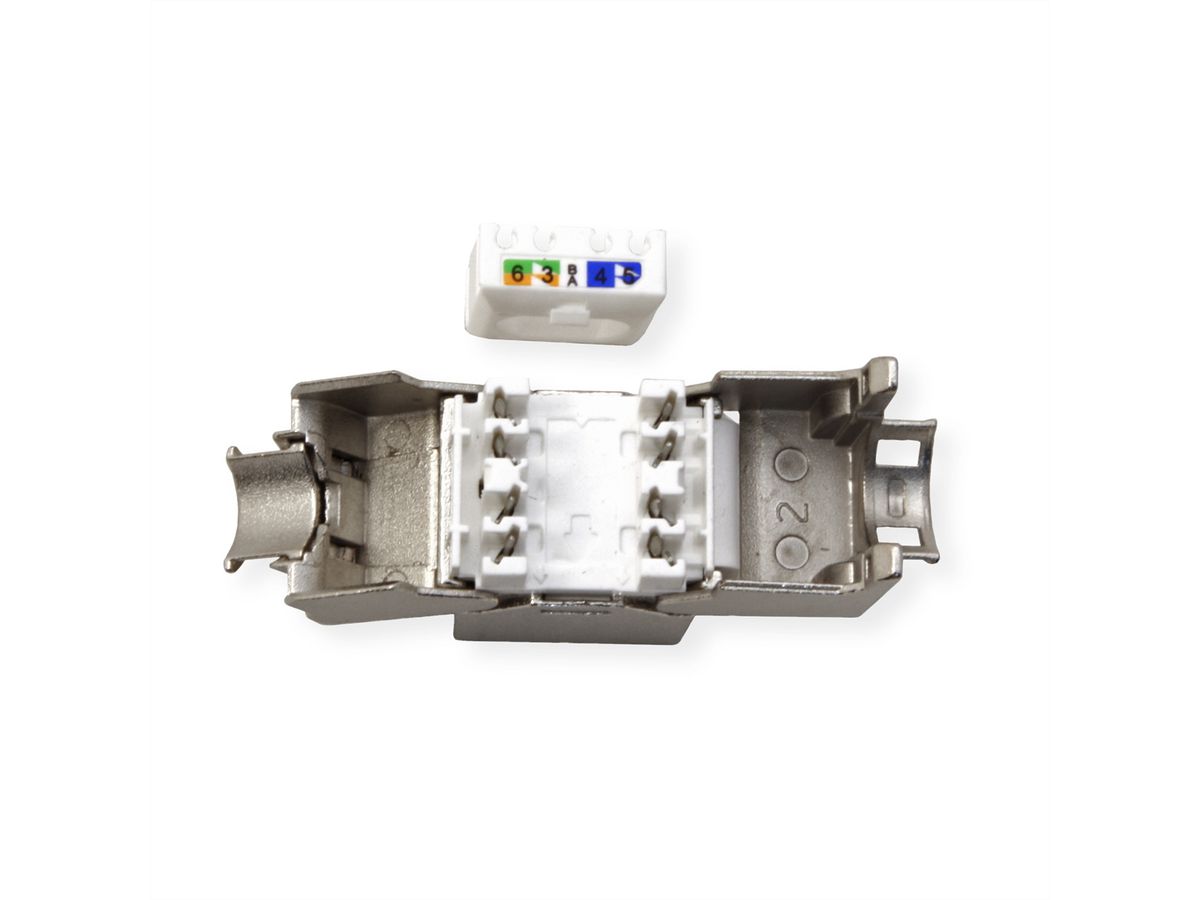

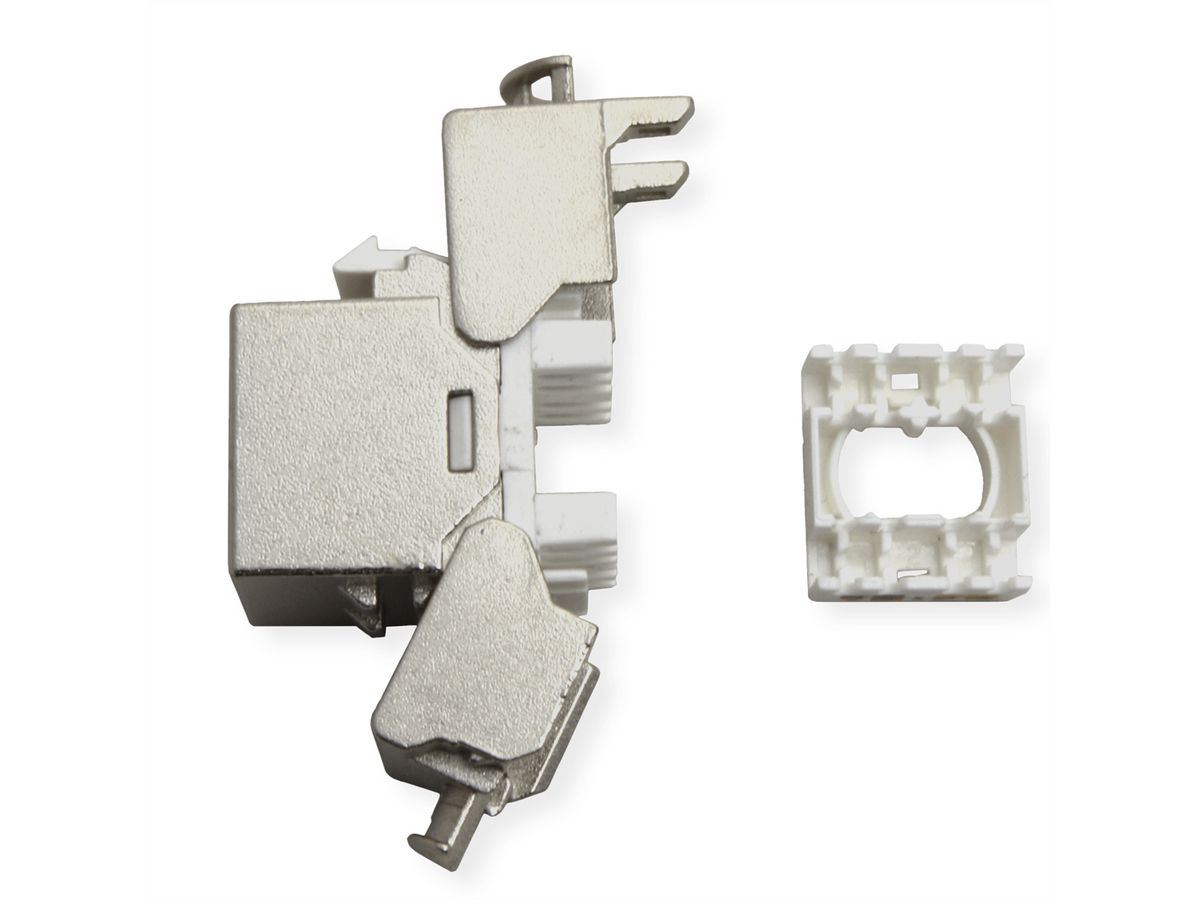

- The cables are connected to the Keystone without tools - the cable cores are simply placed in the guides, the module is closed and pressed together - the connection is complete
- Keystone with printed color coding in accordance with EIA / TIA 568
- The ROLINE Cat.6/Class E 19" keystones meet the transmission properties of a Cat.6A/Class EA link
- Shielded
- Slim and short
- Color: silver
- The Keystone modules can be clipped into a 19" module support (26.11.0360 in black or 26.11.0359 in light gray) with an earthing connection. Or they can be used together with a module holder 25.16.8579 to form a junction box.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Connection direction | Straight |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |
| Height | 21 mm |
| Width | 15 mm |
| Depth | 30 mm |
| Weight | 16 g |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
| Scope of delivery | Keystone, Cable Tie |
