The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.

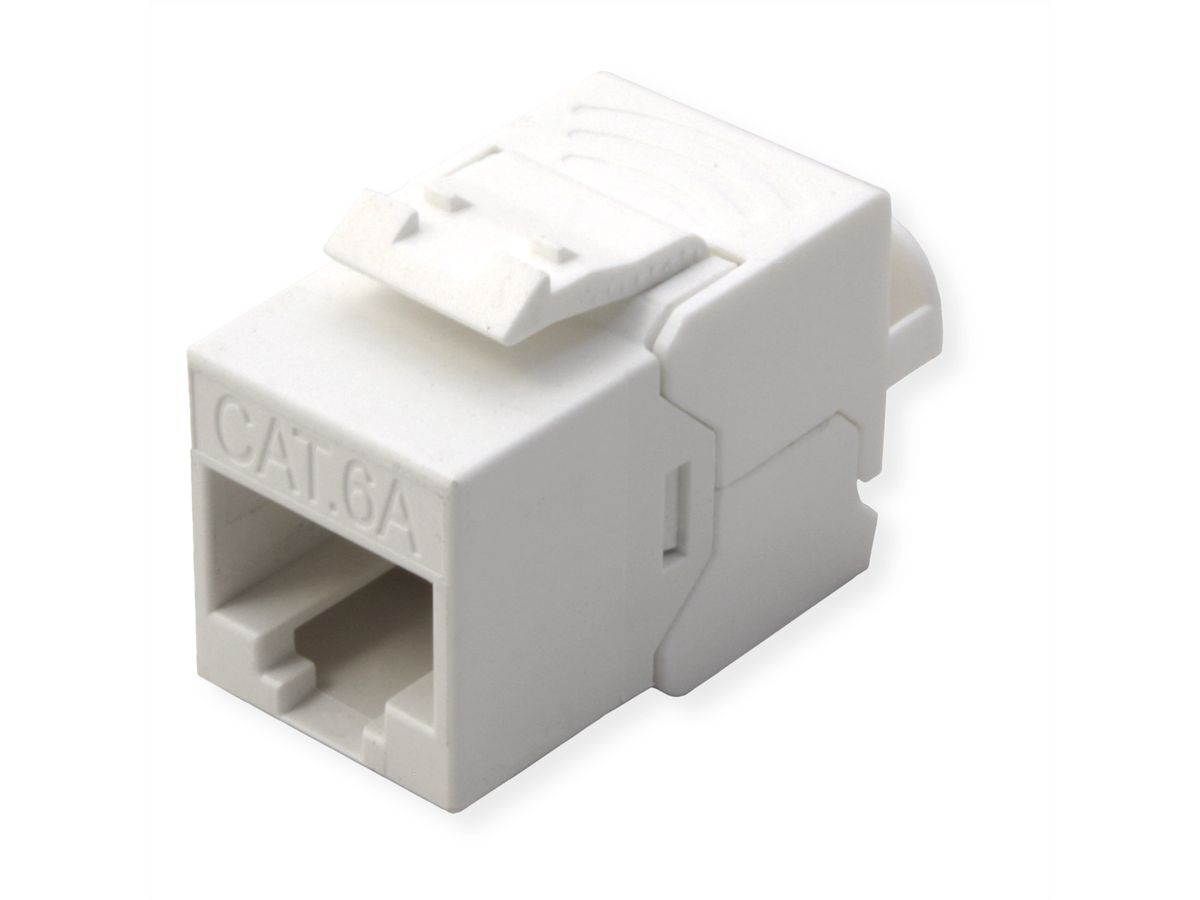

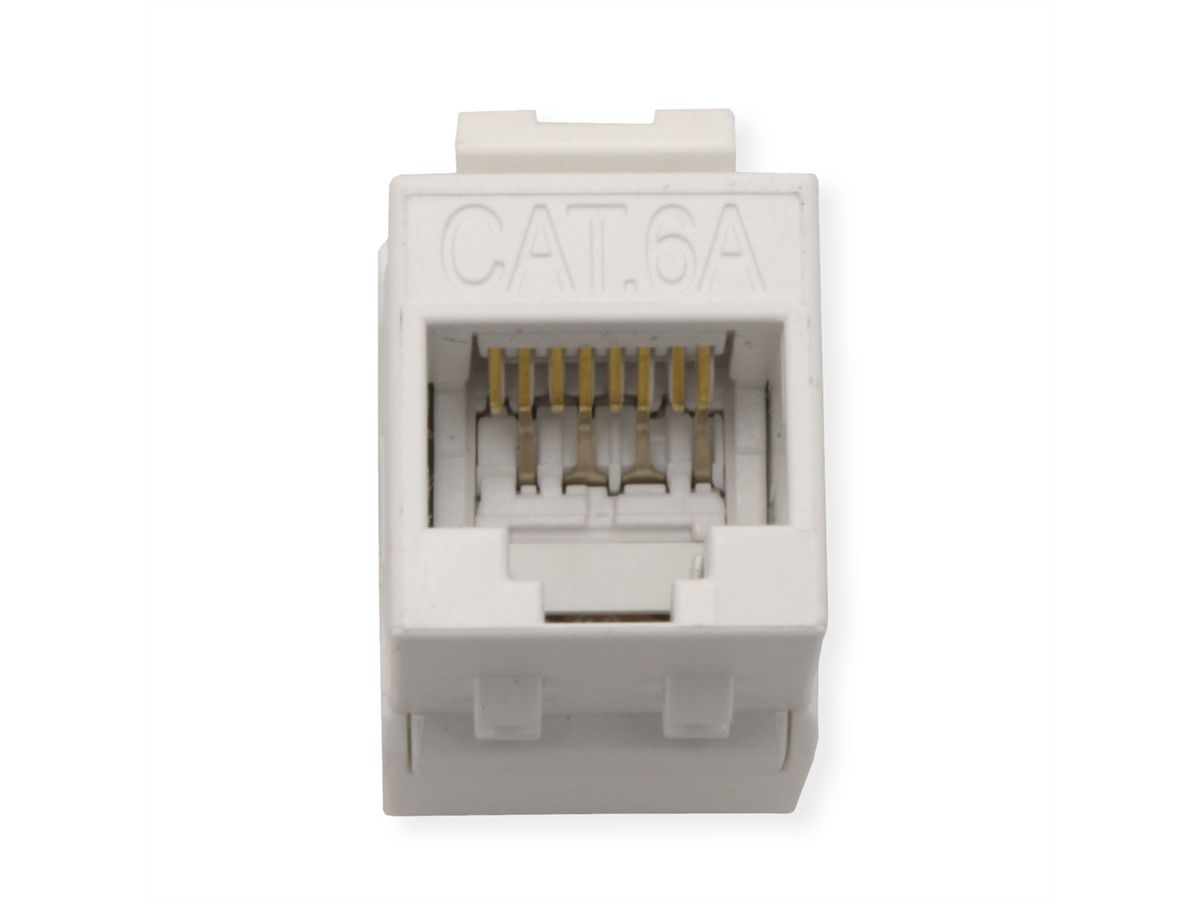

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, UTP, tool-free, SLIM and SHORT, white
Item no.
26110392
Brand / Manufacturer
ROLINE
Manuf. item no.
26.11.0392
EAN
7630049635036
Item weight
0.005 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
ROLINE Cat. 6A Keystone for use in a 10 Gigabit network, using a bandwith of 500 MHz, unshielded, with a very small form factor!

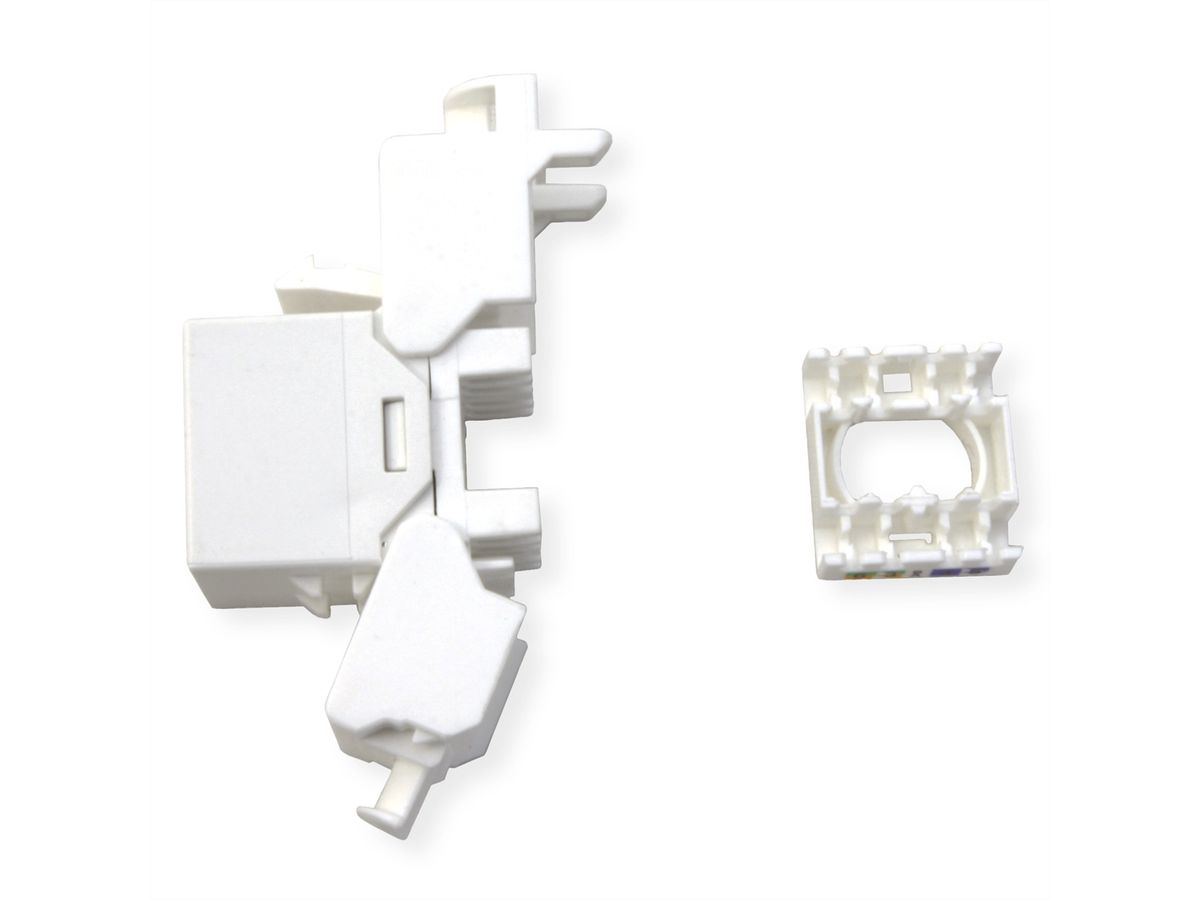

- The cables are connected to the Keystone without tools - the cable cores are simply placed in the guides, the module is closed and pressed together - the connection is complete

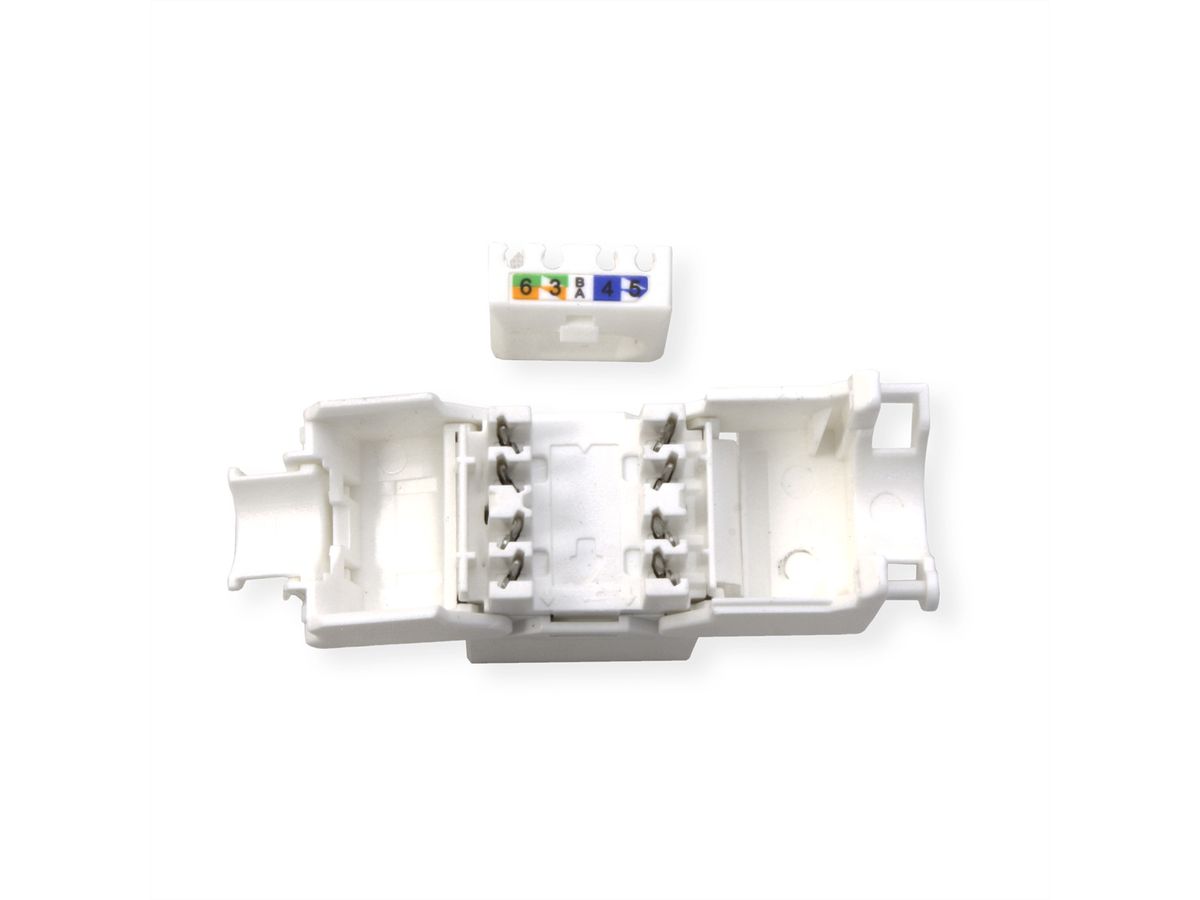

- Keystone with printed color coding in accordance with EIA / TIA 568
- The ROLINE Cat.6/Class E 19" keystones meet the transmission properties of a Cat.6A/Class EA link
- Unshielded
- Slim and short
- Color: white
- The Keystone modules can be clipped into a 19" module support (26.11.0357 in black or 26.11.0356 in light gray) with an earthing connection. Or they can be used together with a module holder 25.16.8579 to form a junction box.
Specifications
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- white
- Shield type
- Not screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 70 °C
- Height
- 21 mm
- Width
- 15 mm
- Depth
- 30 mm
- Weight
- 5.5 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.005 kg
- Scope of delivery
- Keystone, Cable Tie
Product security
Information in accordance with the EU Product Safety Regulation, (GPSR):
SECOMP Electronic Components GmbH
Einsteinstrasse 17-23, 76275 Ettlingen, Germany
safety@secomp.eu
