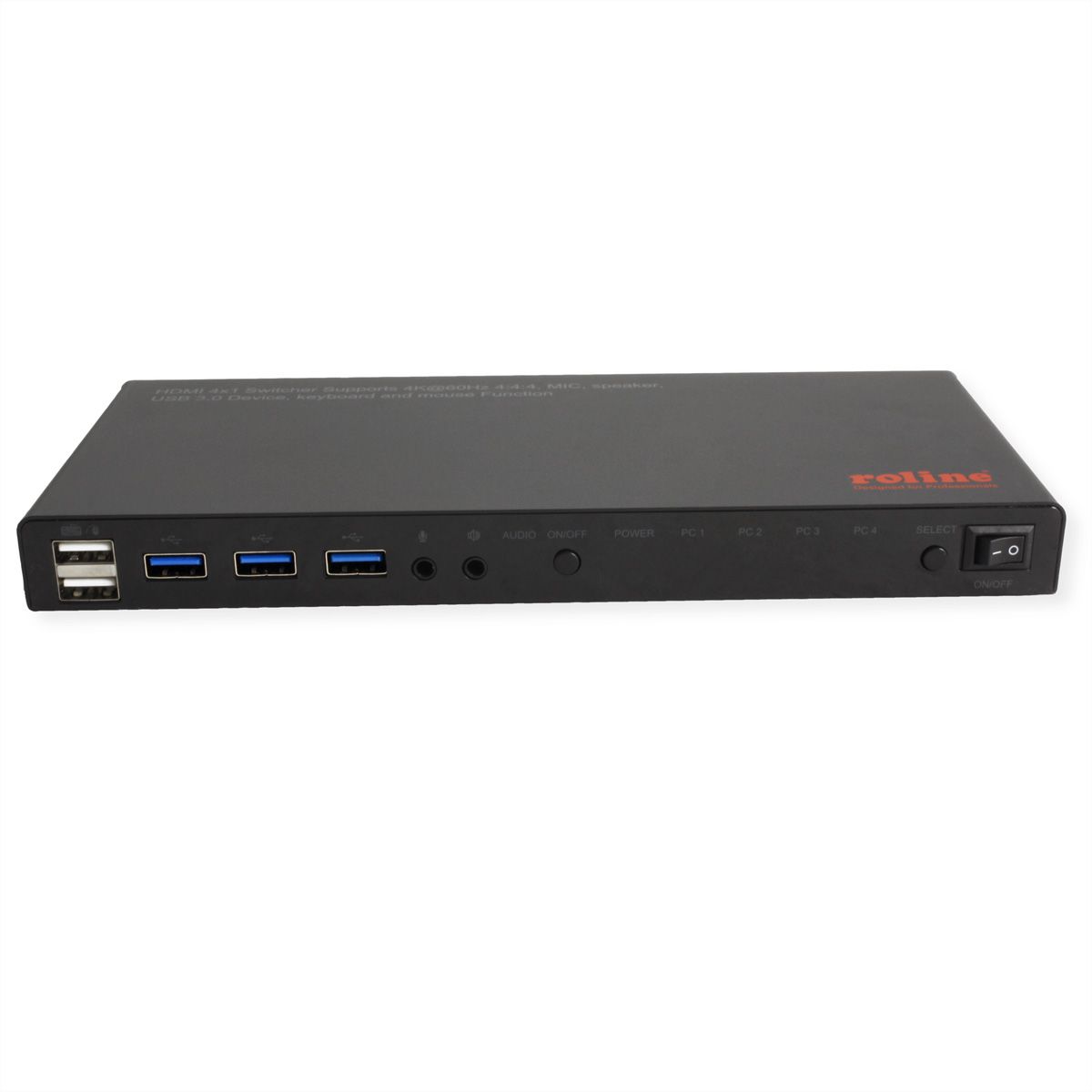

ROLINE KVM Switch, 4 PCs, HDMI 4K@60Hz, with 3 Port USB 3.2 Gen1 / USB 3.0 Hub
Item no.
14013428
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3428
EAN
7630049635739
Item weight
0.84 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
With this ROLINE 4-Port HDMI KVM Switch you can control four computers with only one mouse, one keyboard and one monitor - with a resolution of up to 3840x2160@60Hz! Moreover, it features a 3-Port USB 3.0 / USB 3.2 Gen 1 Hub to connect additional USB devices.
- Switching between the PCs is done via hotkey on the keyboard or via push button on the KVM.
- Max. Resolution: 3840x2160@60Hz
- Four computers can be controlled
- Integrated 3-Port USB 3.2 Gen1 / USB 3.0 Hub
- Supports Mic In and Stereo Audio Out
- Offers full 3D video format
- Features Consumer Electronics Control and High Dynamic Range (HDR)
- Solid metal housing
- Supports Windows 7 / 8 / 10 / 11
Specifications
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, HDMI
- Colour
- black
- Scope of delivery
- KVM Switch, Power Adapter, Operating Instructions
- Interface
- HDMI
- Audio
- Stereo Audio
- Inputs
- 4
- Outputs
- 1
- Quantity of PCs
- 4
- Supported PC-Systems
- USB
- PC: monitor connection
- 4x HDMI 4K@60Hz
- PC: mouse/keyboard connection
- 4x USB 3.2 Gen 1 / USB 3.0 Type B
- Analogue Console: Monitor connection
- 1x HDMI
- Analogue Console: Mouse/Keyboard connection
- 2x USB 2.0 Type A
- Print button on device
- yes
- Switching over Hot Keys
- Keyboard
- Integrated Hub
- yes
- Quantity of USB-Hub ports
- 3
- Hot plug compatible
- yes
- Max. resolution (nominal)
- 3840 x 2160 @60Hz
- Colour (Design profile)
- black
- Material (casing)
- Metal
- Power supply unit required
- yes
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Height
- 23 mm
- Width
- 231 mm
- Depth
- 108 mm
- Weight
- 621 g
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 220 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 0.84 kg
- Dimensions (HxWxD)
- 23 x 231 x 108 mm
- Power supply output
- DC 5V 3A
