Description

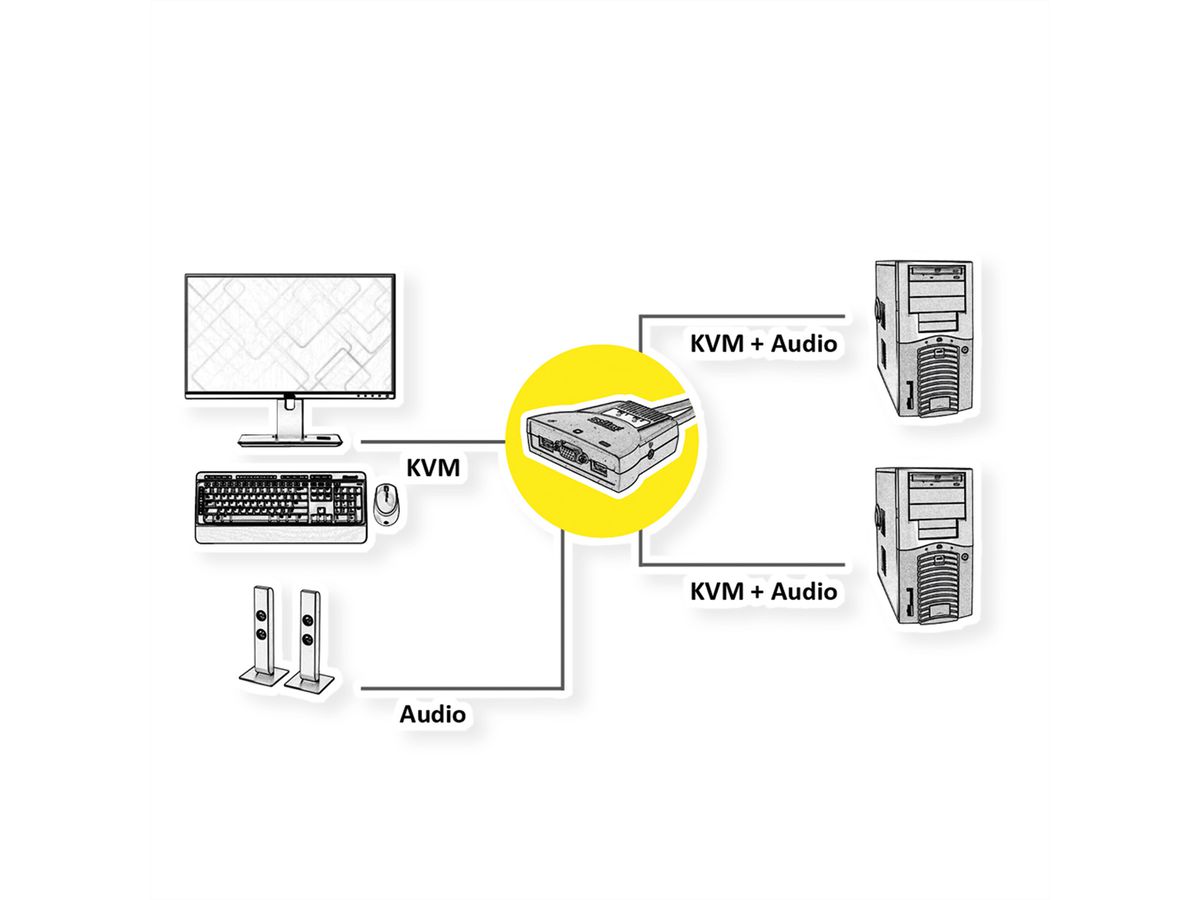

One USB keyboard, USB mouse and VGA monitor controls two computers

• Automatic KVM-Switch with attached moulded cables
• Computer selection via hot key
• Easy to install, no software required
• Keyboard, mouse and monitor emulation
• Audio (speaker) enabled

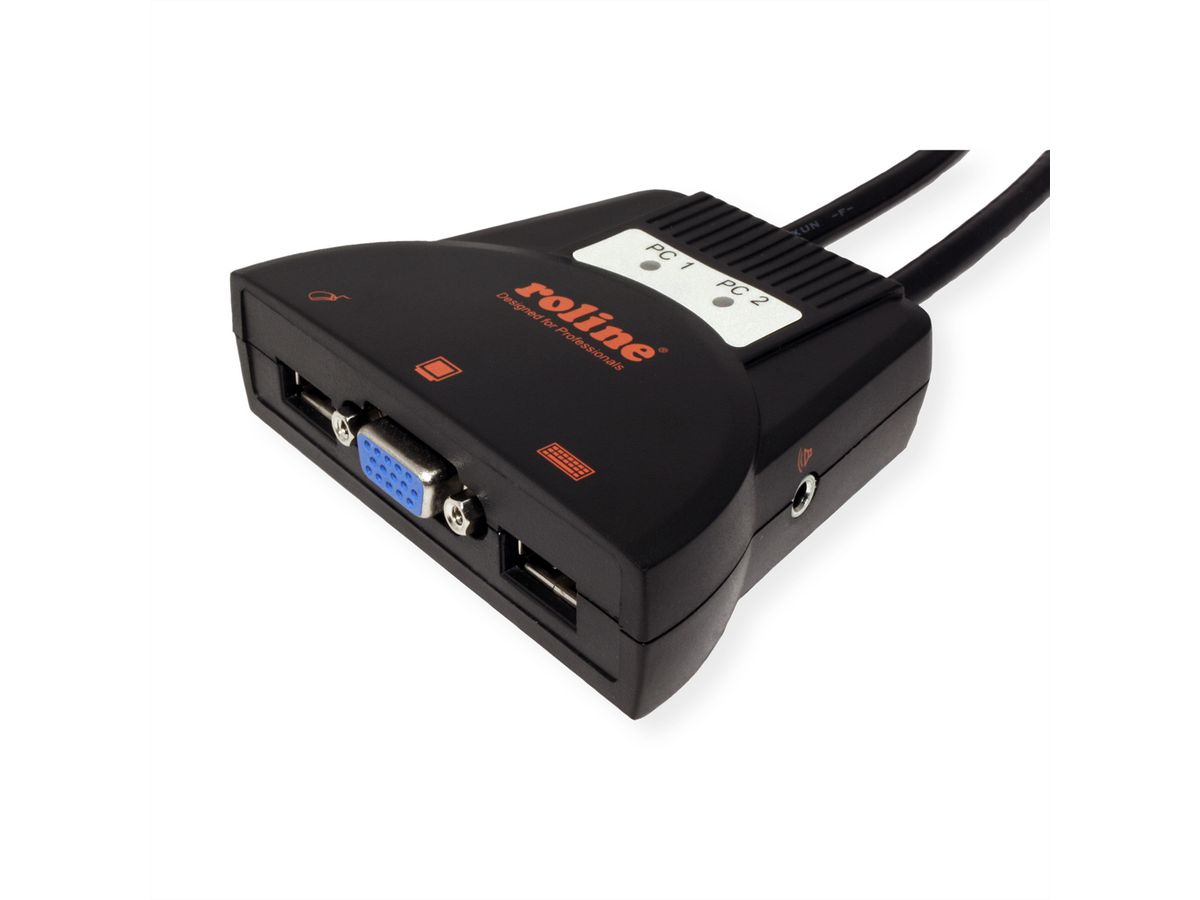

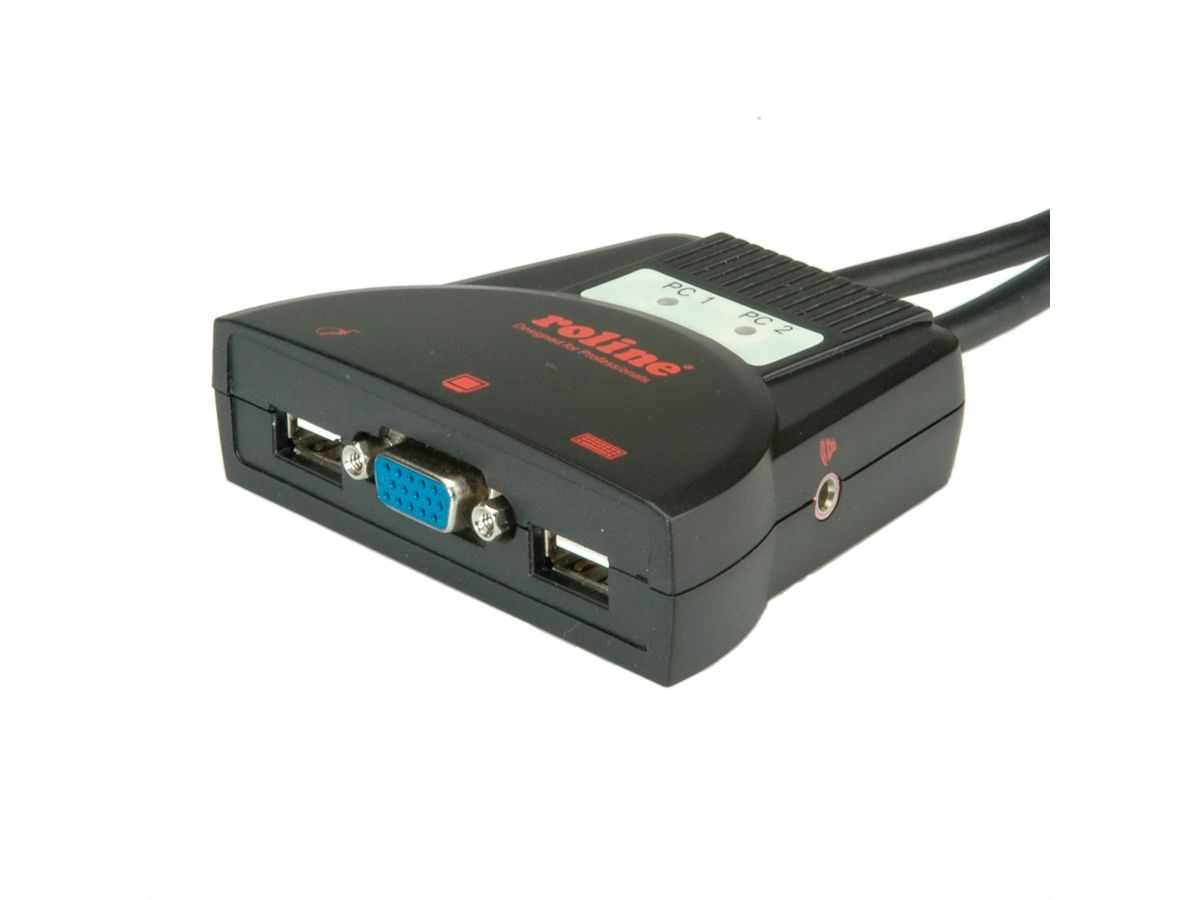

• LEDs for easy status monitoring
• No power supply needed

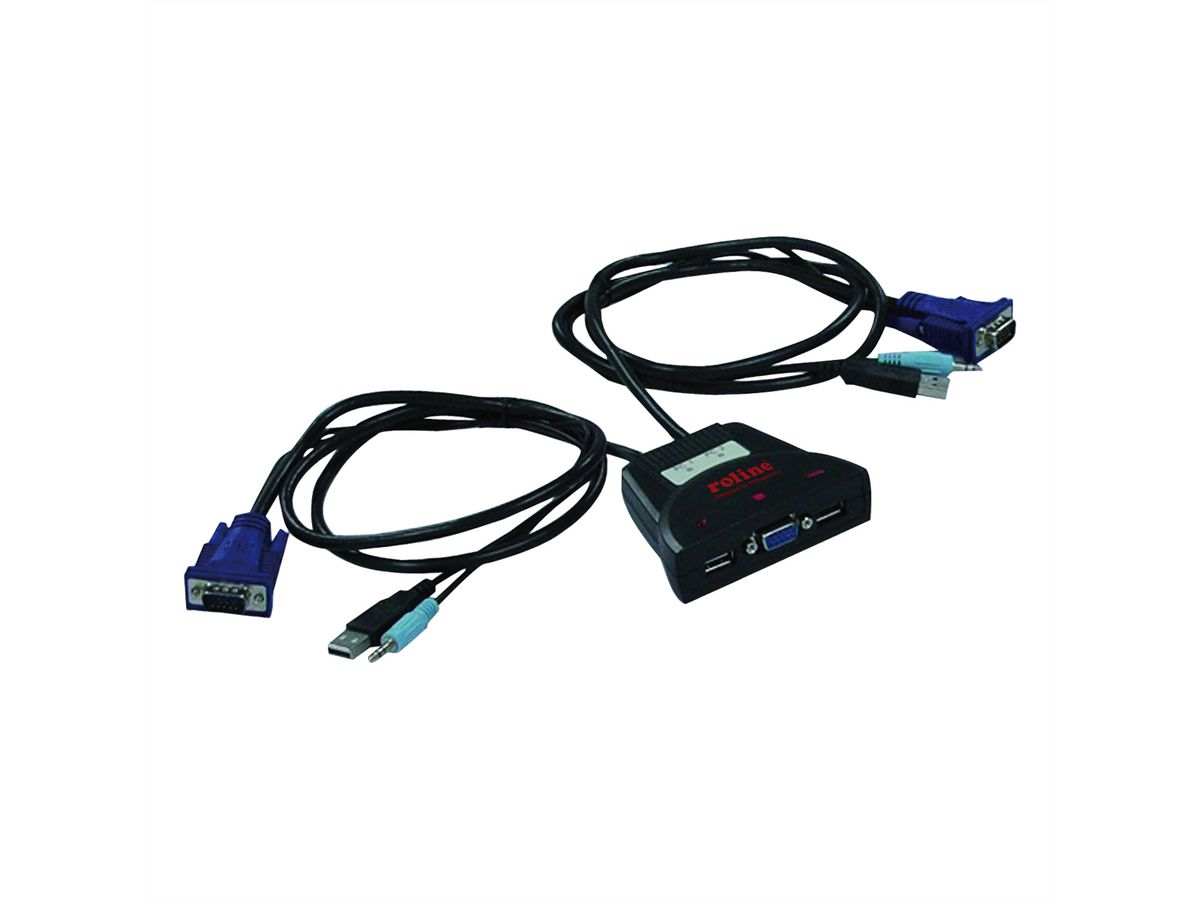

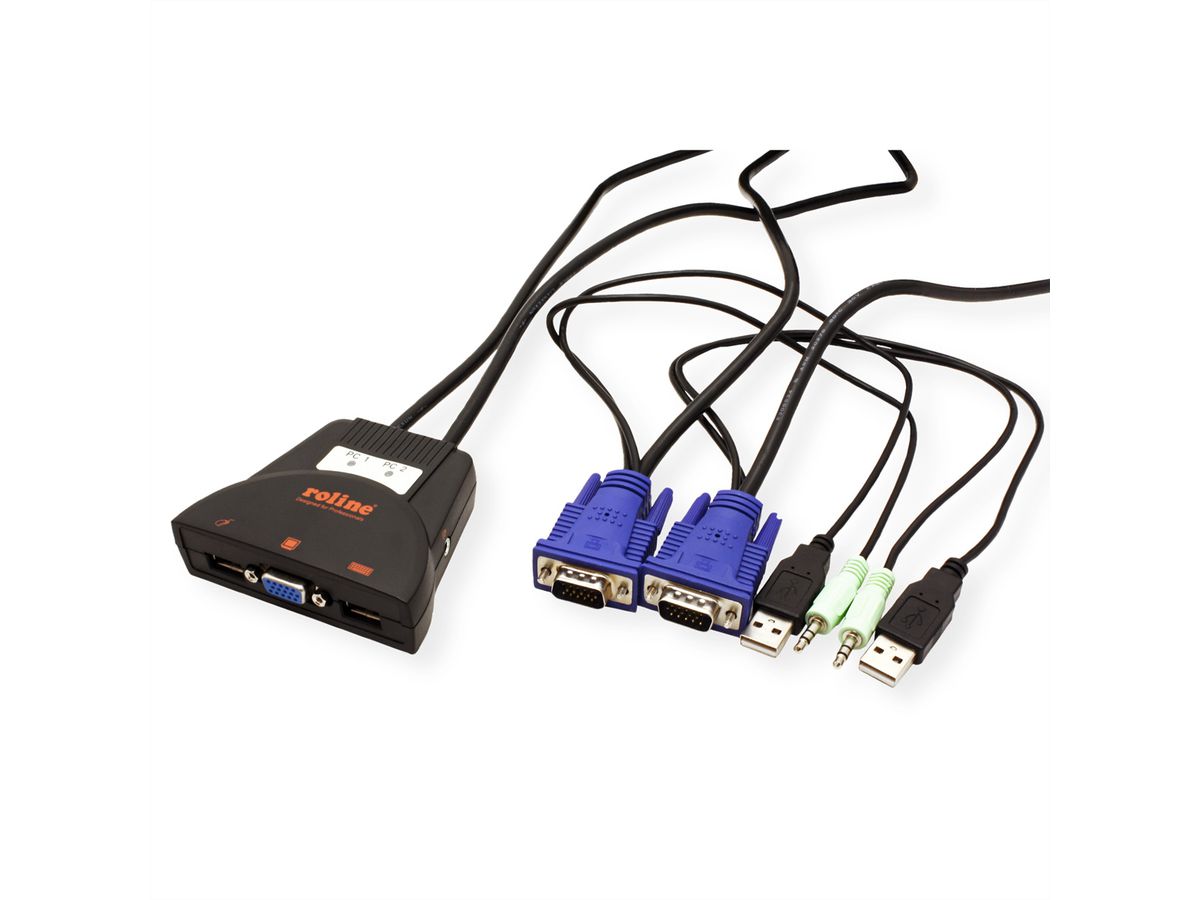

• Contents: Switch with 2 integrated KVM cables (each 1.1 m)

Specifications

Manufacturer	ROLINE
Product group	KVM switches / PC shares
Product type	KVM-Switch, VGA
Colour	black
Scope of delivery	Switch, Manual
Quantity of PCs	2
Supported PC-Systems	USB
PC: monitor connection	2x HD15 pin M
PC: mouse/keyboard connection	2x USB Type A
PC: connection on moulded cables	yes
Quantity of analogue consoles	1
Analogue Console: Monitor connection	1x HD15 pin F
Analogue Console: Mouse/Keyboard connection	2x USB Type A
Integrated console	no
Switching over Scan Run	yes
Print button on device	no
Switching over Hot Keys	Keyboard
Switching over OSD	no
Audio switching	Loudspeakers
Audio switching separately	no
Integrated Hub	no
Keyboard/mouse emulation	yes
19" compatible	no
Cascadable	no
Hot plug compatible	no
Max. resolution (nominal)	1920 x 1080
Colour (Design profile)	black
Material (casing)	Plastic
Power supply unit required	no
Technical particularity	LED display for easy status monitoring
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Weight	280 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.338 kg
