The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C
Item no.
14013427
Brand / Manufacturer
ROLINE
Manuf. item no.
14.01.3427
EAN
7630049632394
Item weight
0.8 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

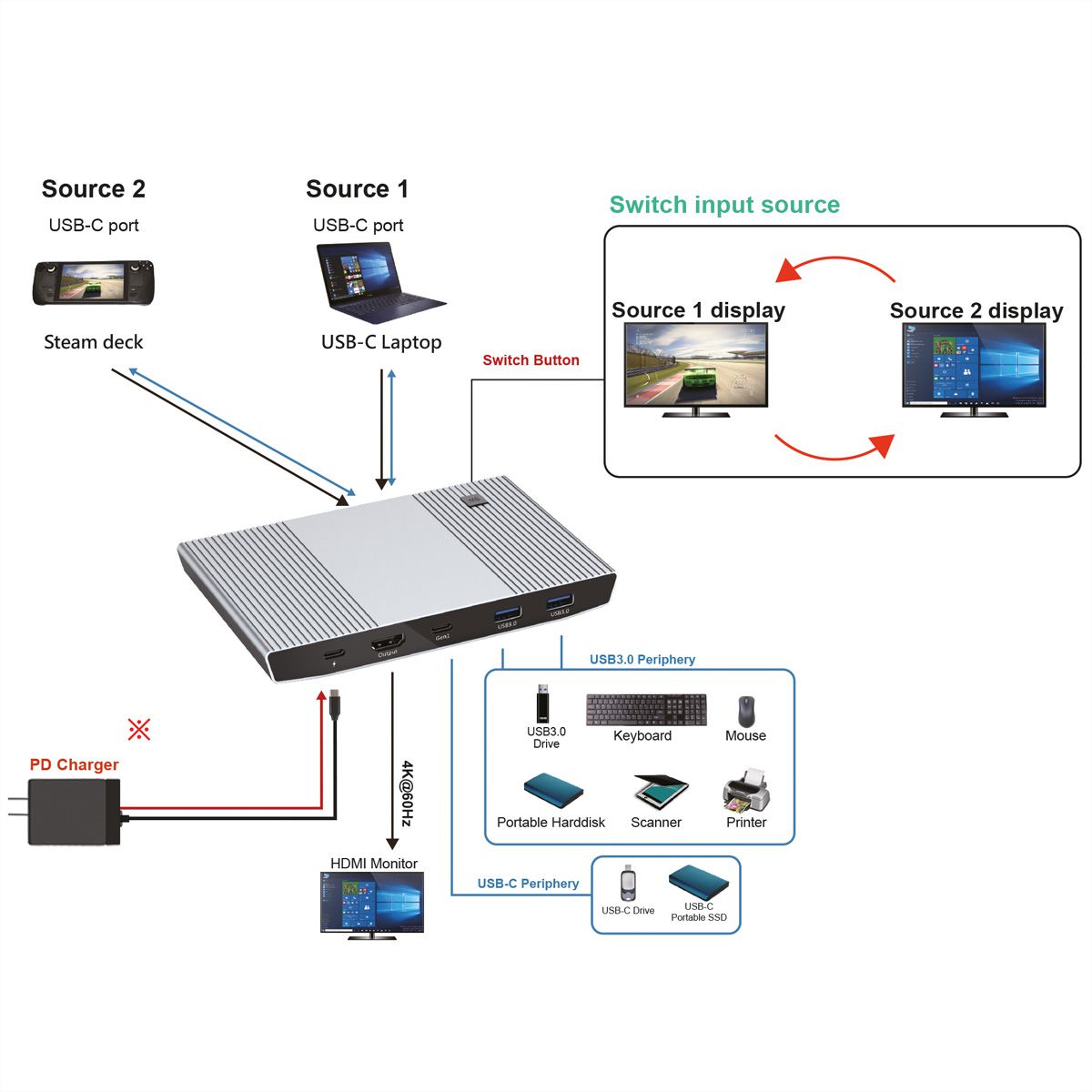

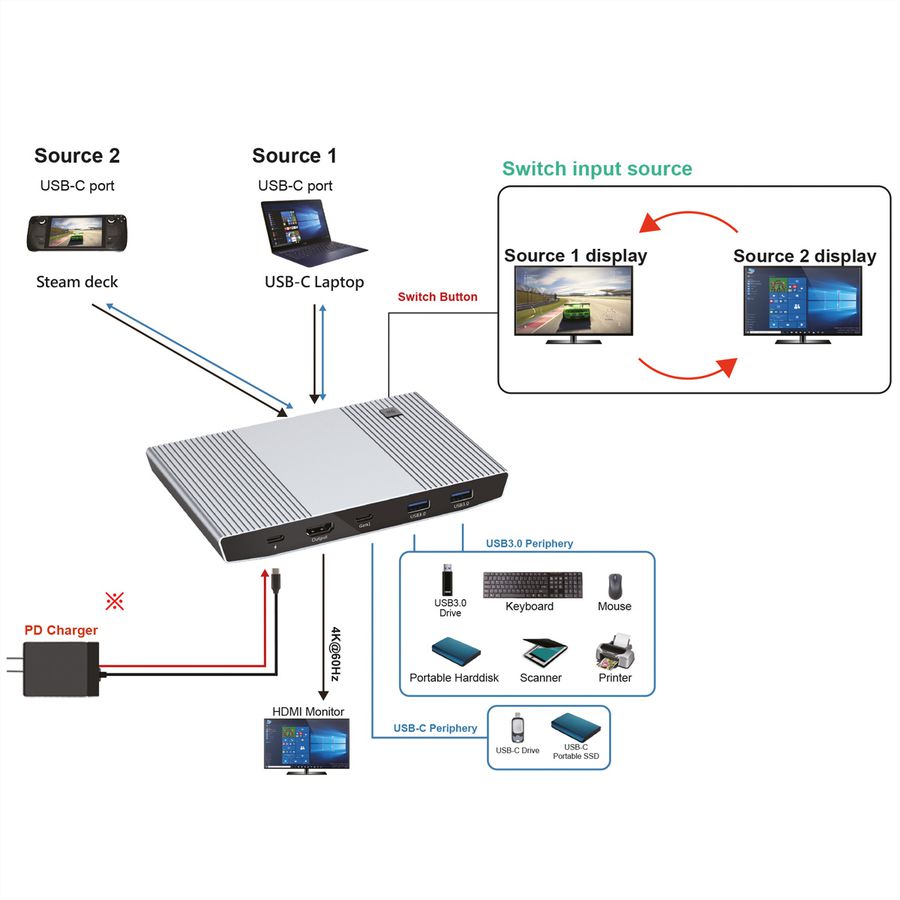

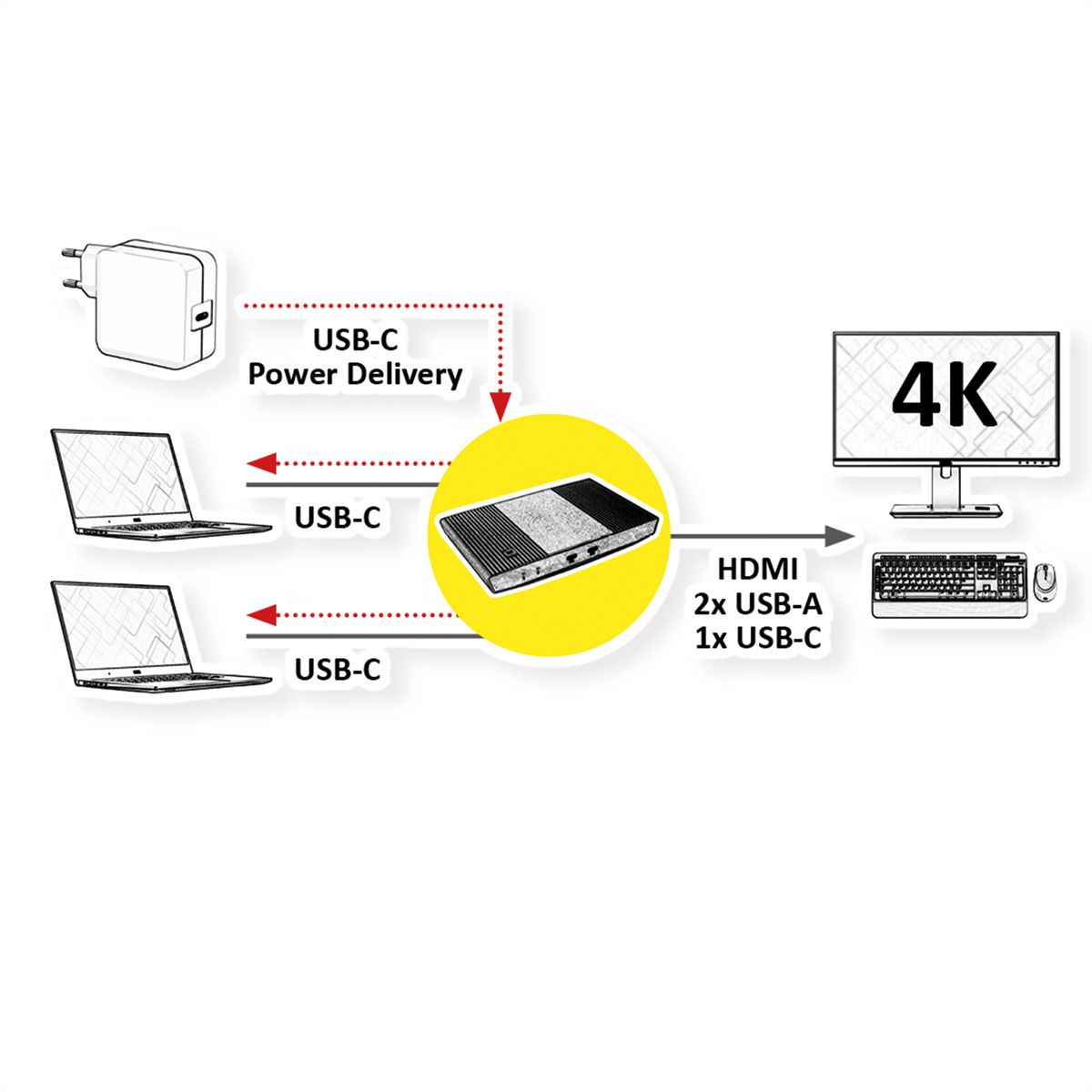

This is a KVM switch, including an USB Hub. You can operate two USB-C devices with just one USB mouse, one USB keyboard and one HDMI monitor - with a resolution of up to 3840x2160 @60Hz!
KVM switch
- Switching between the devices is done via a button on the switch
- LED display provides information about the active connection to the device
- Max. Video display resolution: 3840x2160 @60Hz
- Solid metal housing
USB Hub
- Three USB 3.2 Gen. 1 / USB 3.0 (2x Type A, 1x Type C) ports for connecting e.g. keyboard and mouse, external hard disk, printer, scanner or other peripheral devices
- 1 port with USB type C PD for connecting a PD charger (min. 100 W)
- If two devices are connected, they are charged via PD with 60W (port 1) and 20W (port 2);
if only one device is connected, it can be charged with up to 80W.
Specifications
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, HDMI
- Colour
- black
- Scope of delivery
- Main Unit, 2 USB-C cables, User Manual
- Interface
- HDMI
- Inputs
- 2
- Outputs
- 1
- Quantity of PCs
- 2
- Supported PC-Systems
- USB
- PC: monitor connection
- HDMI
- PC: mouse/keyboard connection
- 2x USB
- PC: connection on moulded cables
- no
- Analogue Console: Monitor connection
- HDMI
- Analogue Console: Mouse/Keyboard connection
- USB
- Integrated console
- no
- Switching over Scan Run
- no
- Print button on device
- yes
- Switching over Hot Keys
- no
- Switching over OSD
- no
- Integrated Hub
- yes
- Quantity of USB-Hub ports
- 3
- Keyboard/mouse emulation
- yes
- 19" compatible
- no
- Cascadable
- no
- Hot plug compatible
- yes
- Max. resolution (nominal)
- 3840 x 2160 @60Hz
- Colour (Design profile)
- black
- Material (casing)
- Metal
- Power supply unit required
- yes
- Power supply output
- 100 W
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 20 mm
- Width
- 161 mm
- Depth
- 100 mm
- Weight
- 261 g
- Height of packaging (single piece)
- 80 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.8 kg
