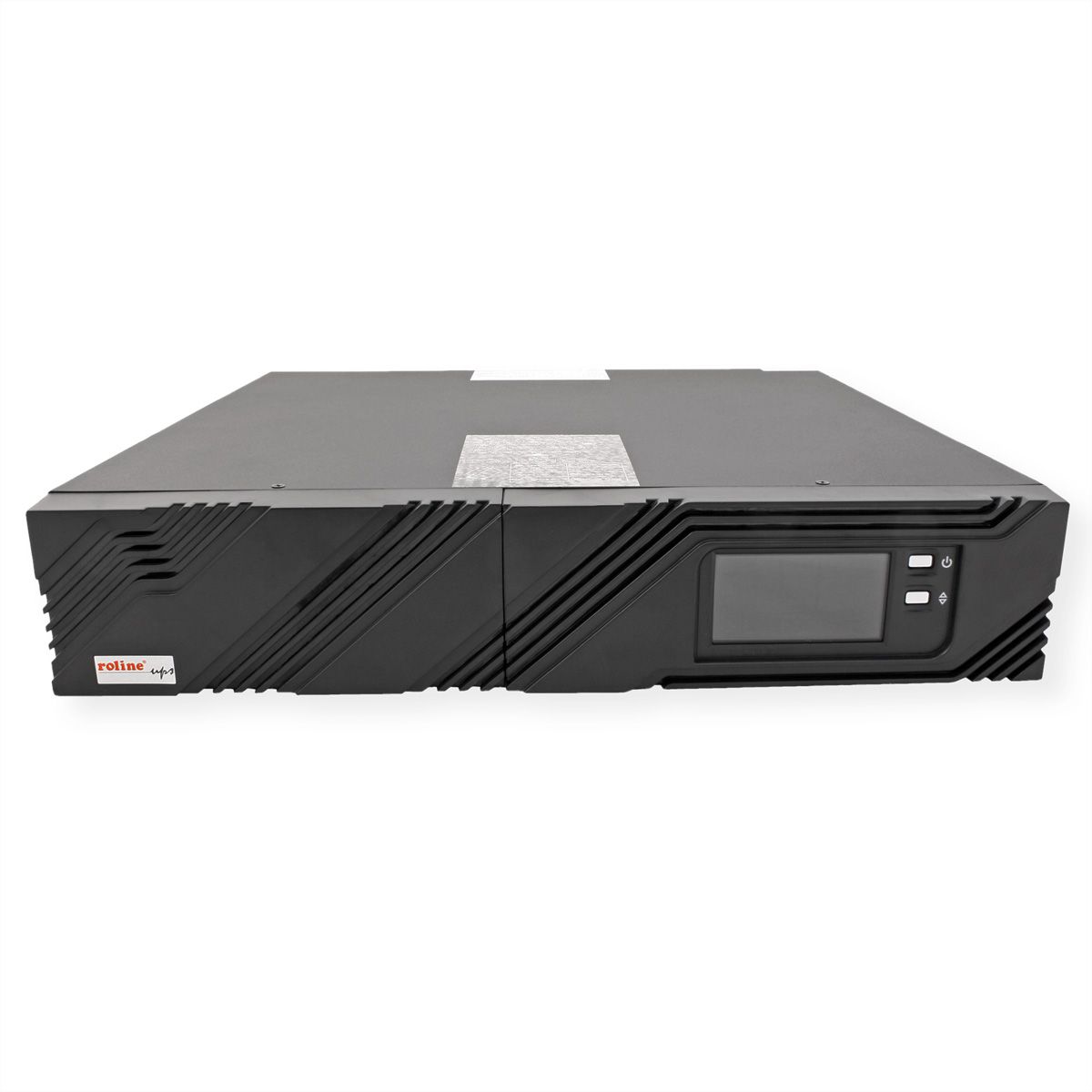

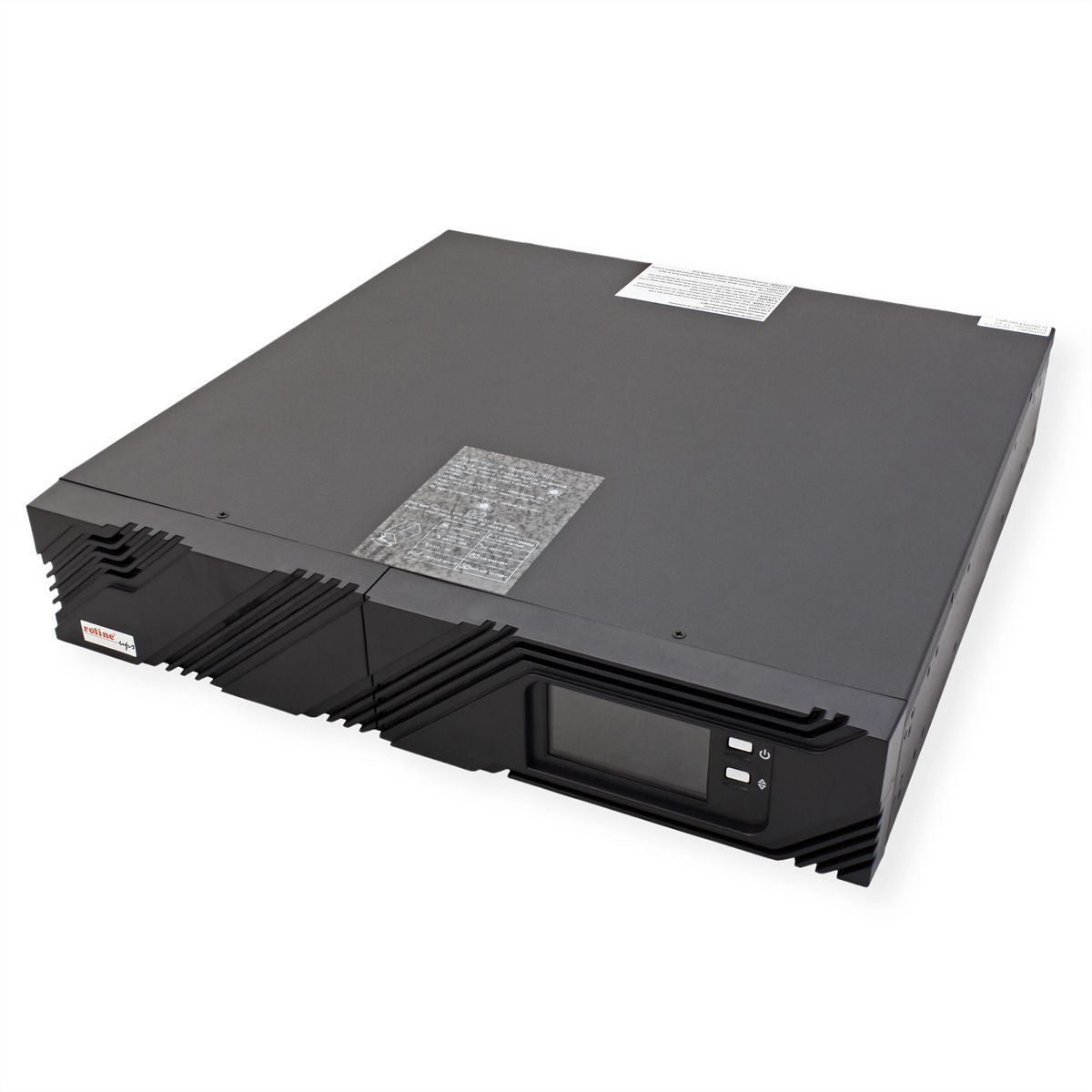

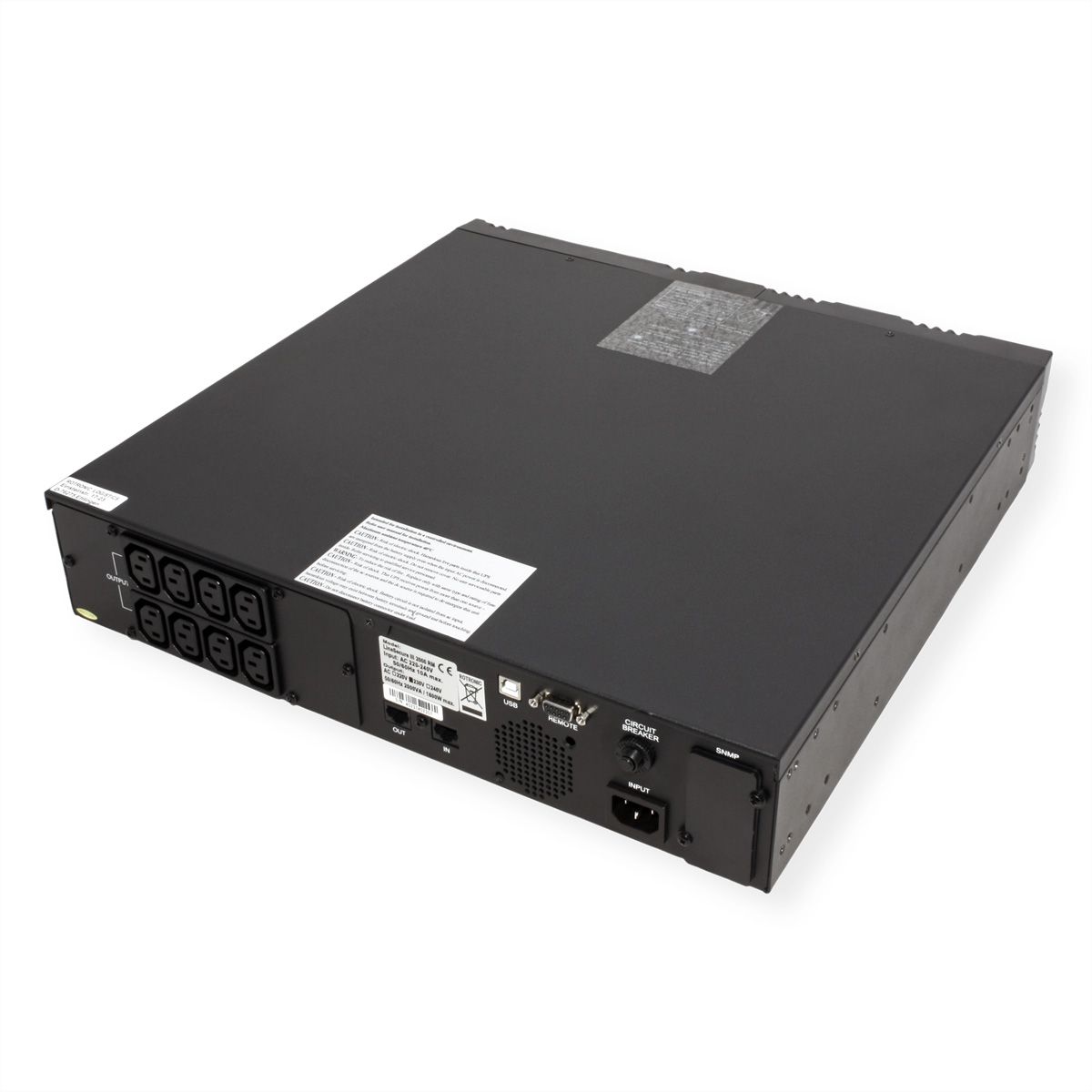

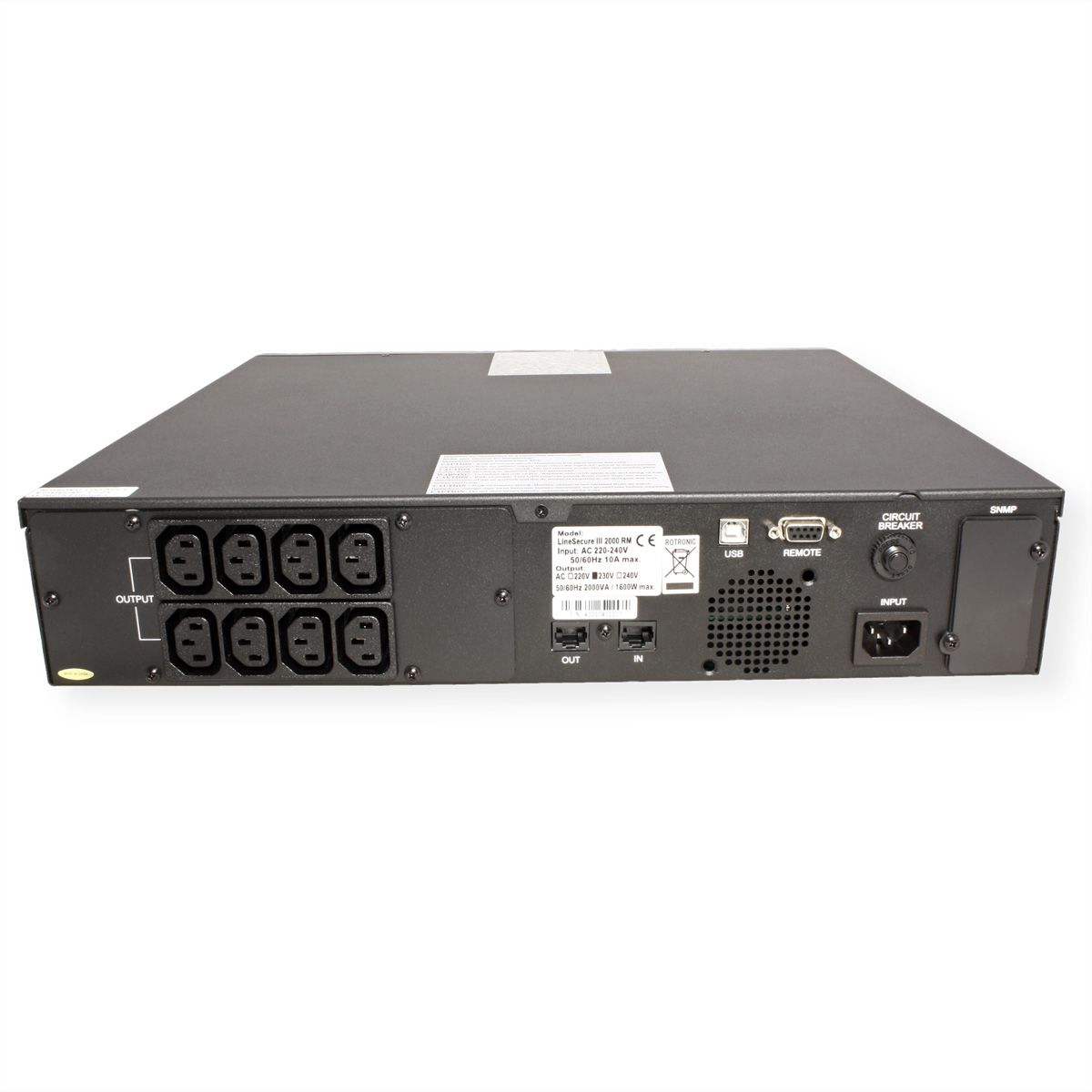

ROLINE LineSecure III 1000R - Line Interactive UPS, Rack Version

Item no. 19401126 Brand / Manufacturer ROLINE Manuf. item no. 19.40.1126 EAN 7630049628007 Item weight 18.2 kg

Output (VA/W):

Interface:

ROLINE LineSecure III 1000R - Line Interactive UPS, Rack Version

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

The ROLINE LineSecure UPS series uses line-interactive technology and is used wherever reliable protection is required.

The LineSecure III UPS series, with its intelligent design and pure sine wave output for connected applications, is the best choice for office, SOHO, and home applications. It provides high-quality pure sine wave output for connected critical devices. Additionally equipped with an AVR (Automatic Voltage Regulator), it stabilizes fluctuating voltages such as overvoltages and undervoltages as well as other voltage problems and provides a stable output voltage for the most important devices. The LS III series is equipped with a color LCD display that shows the UPS status and increases user-friendliness. The LS III series offers power protection, including overload, surge, and short-circuit protection. The USB port allows you to monitor UPS status, schedule UPS events, and receive instant notifications via a computer system or portable device. It also has a slot for an SNMP/web card.

In areas with significant voltage fluctuations, the UPS uses buck and boost regulation to compensate for differences between the input and target voltage. The battery management system monitors the UPS batteries and only charges them when necessary, extending battery life by up to 50%.

RS232 interface
USB interface
Operating display via LCD panel
Battery management
Automatic voltage regulation
Tel/modem protection
SNMP/WEB via optional LAN adapter
Sine wave output

Specifications

Manufacturer: ROLINE
Product group: UPS
Product type: UPS Line Interactive, Rackmount
Colour: black
Scope of delivery: UPS, Software, Cable Set, (19" Rail Kit not included > see accessories!)
Classification (IEC 62040-3): VI-SS-333
UPS technology: Line Interactive
Power class: 1000 ... 1900 VA
Output (VA/W): 1000 / 800
Efficiency: 95 %
Backup time: 3 min
Backup time full/half-load: 3 / 6 min
Dimensions (HxWxD): 84 x 483 x 430
Mounting form: 19" Rackmount
Voltage (input): 230V +- 10%
Voltage (output): 230V
Frequency: 50Hz
Connector type (input): Connector IEC320 C14
Outputs: 8
Connector type (output): 8 x Cold Connector IEC320 C13
Phase in/output: 230V/230V / 50Hz
Over current protection: EMI,- RFI-Filter
Max. quantity of delay expansion units: 0
Delay expansion unit: --
Slots for adapter card: 1
Slot for adapter card: 1
Acoustic level: 40dBA
Interface: USB, RS232
RS-232 Interface: yes
USB 2.0 Interface: yes
Hot swap batteries: no
Bypass: no
Additional over current protector: Telephone/Fax
Activity: Display
Activity LED: --
Activity Display: LCD
incl.Management Software: Windows
Internal cooling: Active, fan
Ambient temperature: 0-40°C
Mains connection: Cold appliance connection
Battery category: Industrial battery
Number of batteries: 4 pieces
Battery Voltage: 12 V
Battery Capacity: 7 Ah
Battery type: Pack
Battery: built-in
Battery technology: Lead-acid
Operating temperature min.: 0 °C
Operating temperature max.: 40 °C
Height: 84 mm
Width: 428 mm
Depth: 431 mm
Weight: 14.4 kg
Height of packaging (single piece): 200 mm
Width of packaging (single piece): 580 mm
Depth of packaging (single piece): 580 mm
Package weight (single piece): 18.2 kg
