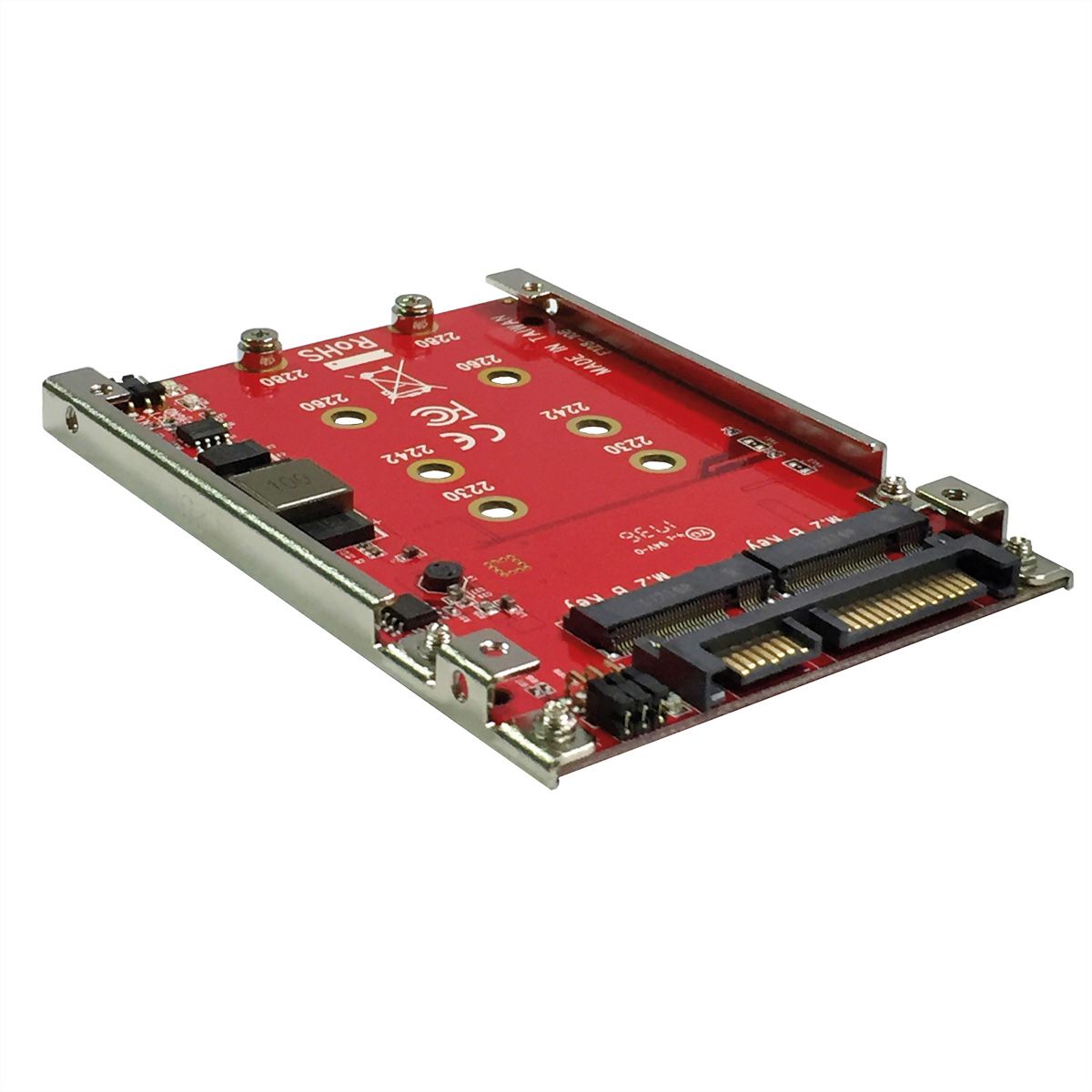

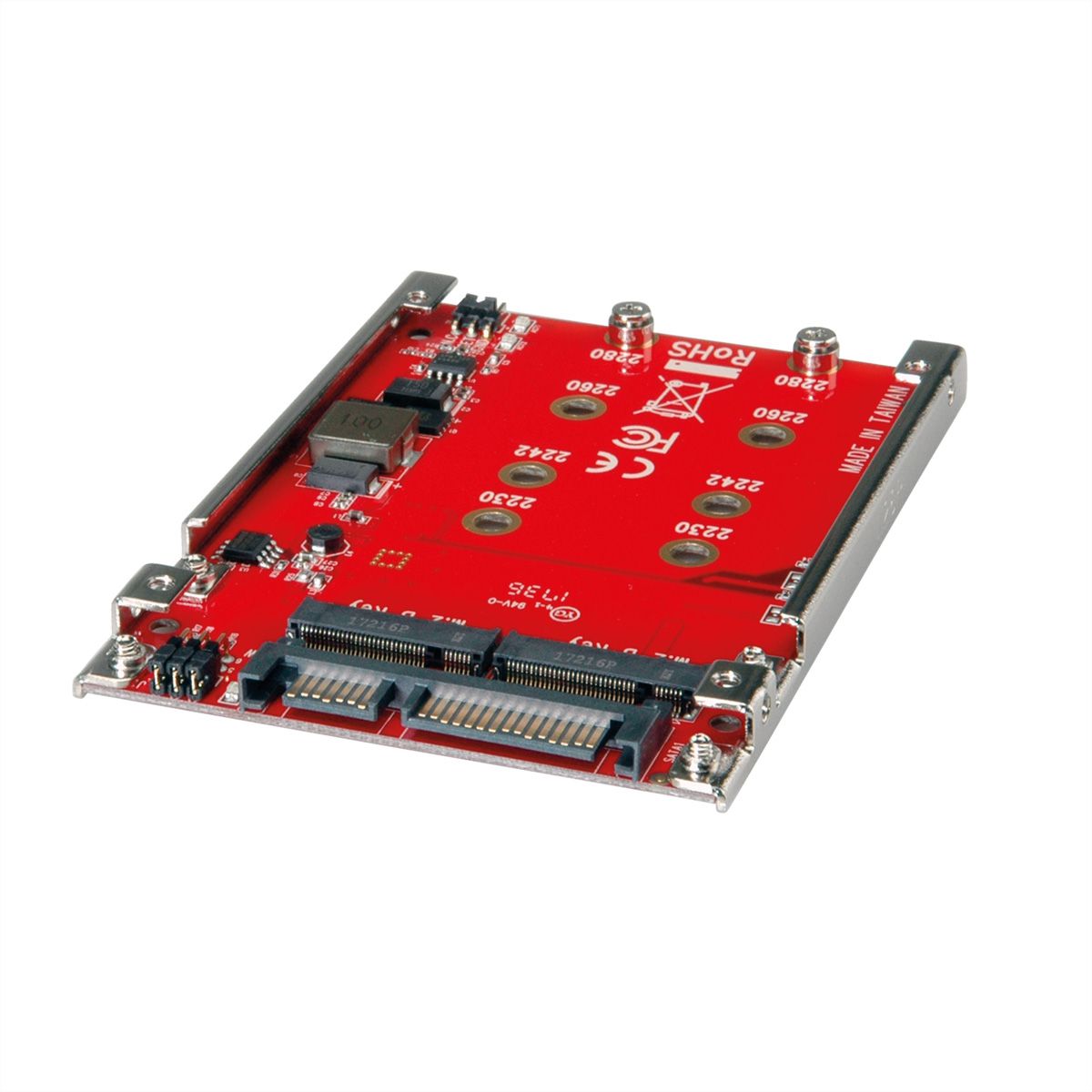

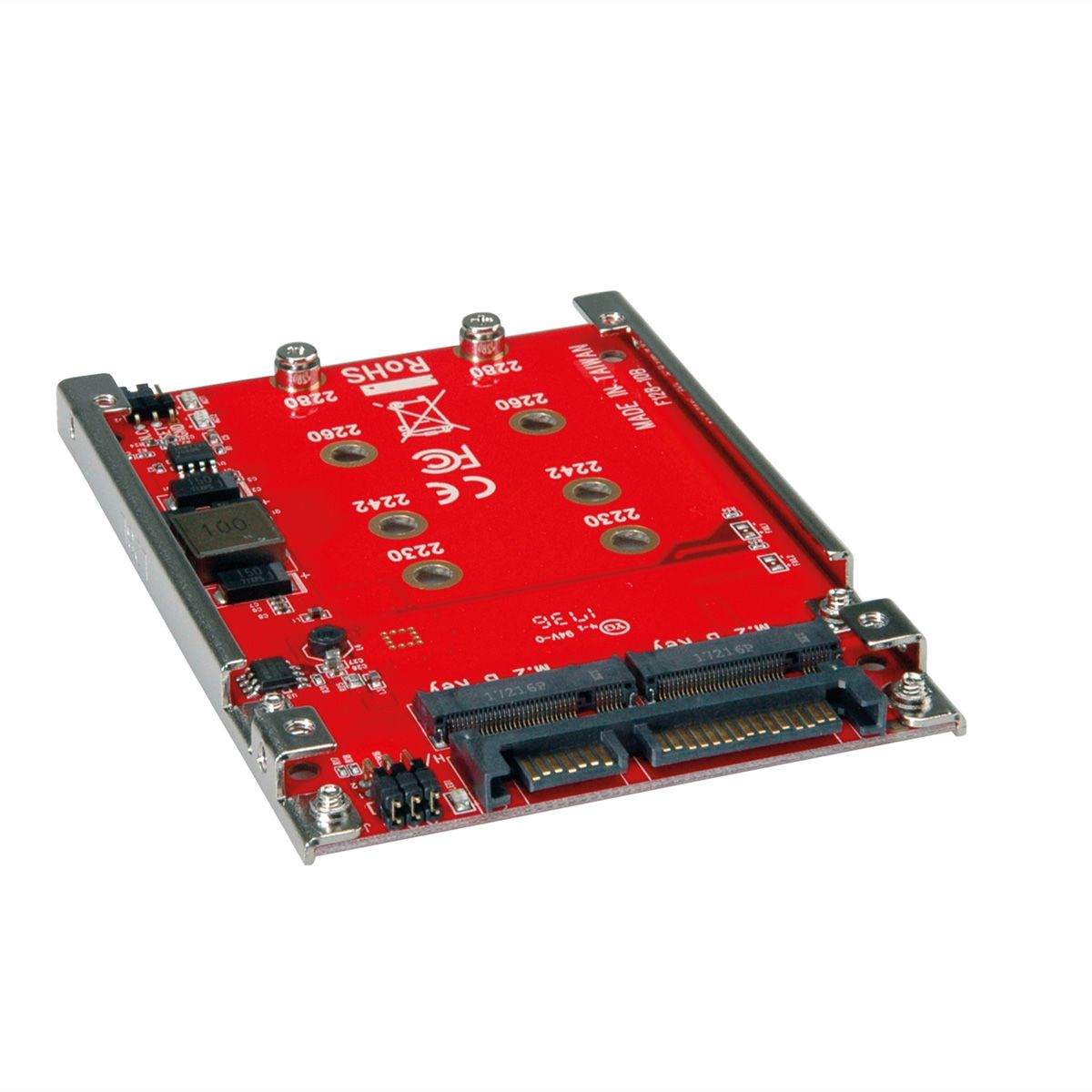

ROLINE M.2 to SATA III SSD H/W adapter, 2x M.2 NGFF SSD, bootable and RAID-capable

Item no. 16014145 Brand / Manufacturer ROLINE Manuf. item no. 16.01.4145 EAN 7611990134946 Item weight 0.156 kg

ROLINE M.2 to SATA III SSD H/W adapter, 2x M.2 NGFF SSD, bootable and RAID-capable

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

2.5-inch H/W adapter for the installation of two M. 2 SSDs (NGFF), bootable and RAID-compatible and with 6Gbit/s SATA connection!

Supports two M. 2 NGFF SSDs with B-Key and form factor 2230, 2242, 2260 and 2280
M.2 NGFF SATA SSDs can be primary boot device and contain operating system and applications.
RAID 0 and RAID 1 configurable via hardware or software; configuration on the hardware side via 6 pins with jumper (jumper table on the back of the board)
The 2.5 inch H/W adapter can be installed in a 2.5" housing and is therefore perfectly suited for mobile use.
No drivers required

Specifications

Manufacturer: ROLINE
Product group: Drive housing
Product type: Plug-In Casing S-ATA
Colour: red
Scope of delivery: HDD adapter
Quantity of Drives: 1
Drive form: 2.5
Material (casing): Metal
Weight: 41 g
Height of packaging (single piece): 50 mm
Width of packaging (single piece): 160 mm
Depth of packaging (single piece): 220 mm
Package weight (single piece): 0.156 kg

Downloads

Product data sheet - English (50.8 KB) Manufacturer data sheet - English (167.5 KB) User manual - Deutsch (447.7 KB) User manual - English (442.2 KB) User manual - Français (40.9 KB)
