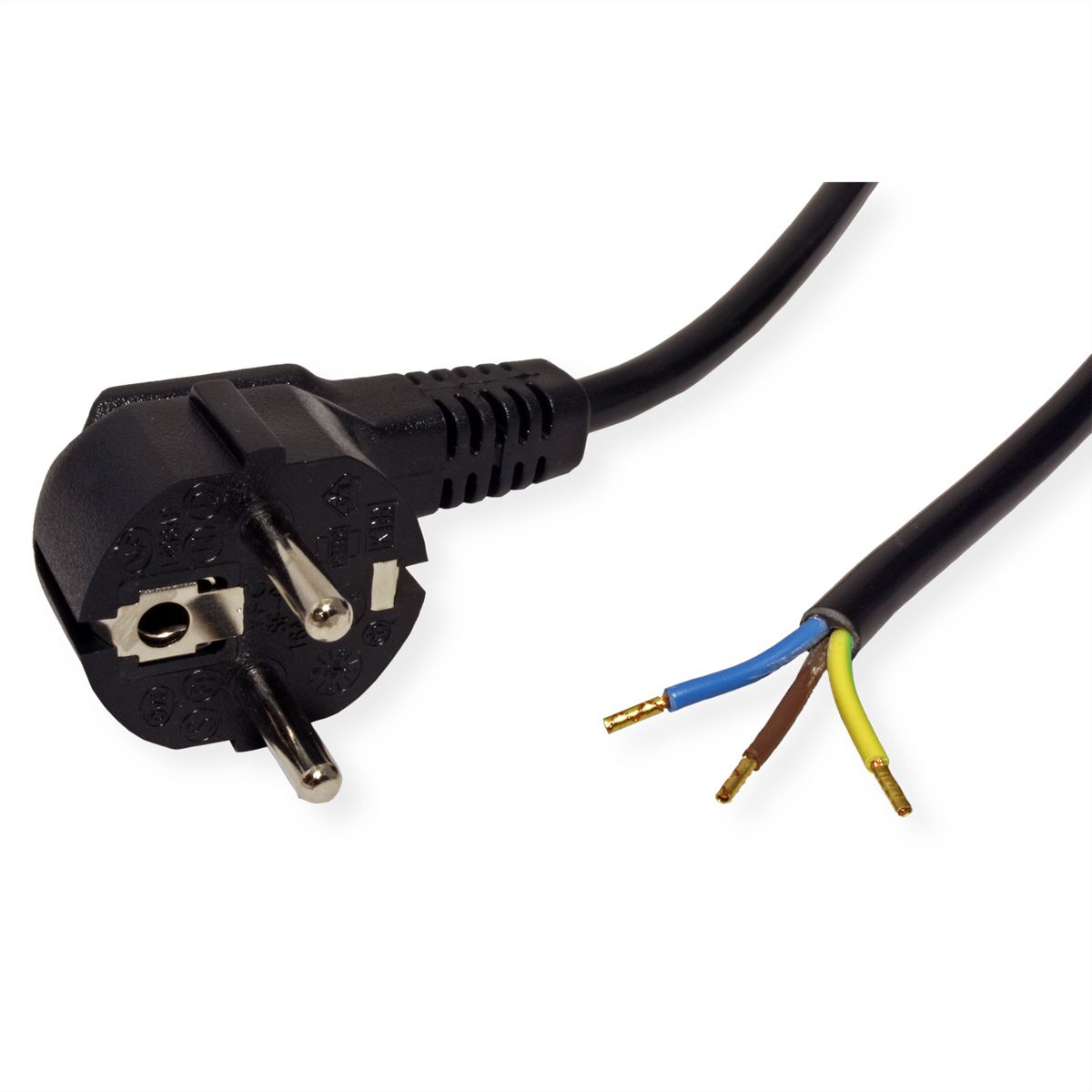

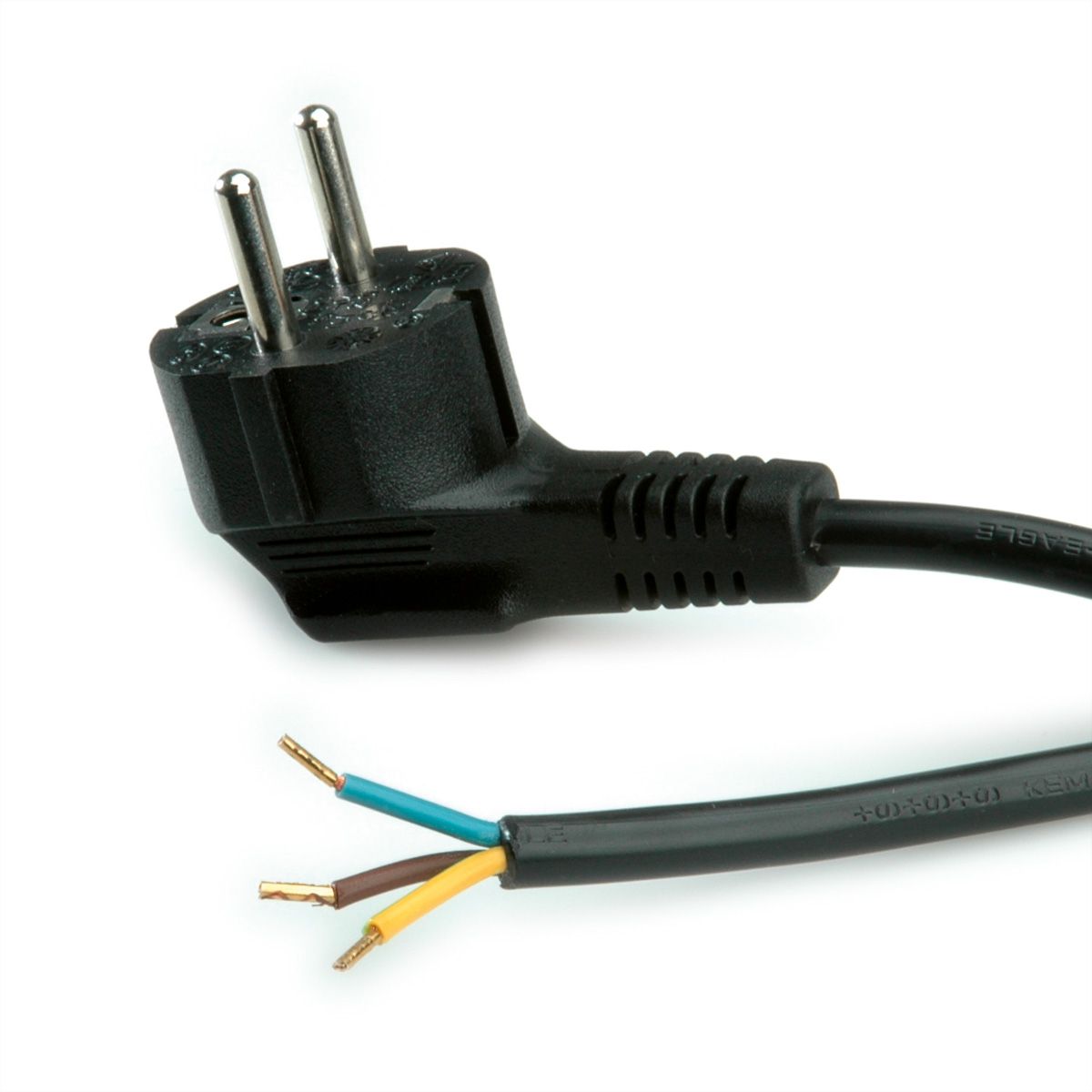

ROLINE Power Cable with German Type Plug / open end, AC 230V, black, 1.8 m

Item no. 19081110 Brand / Manufacturer ROLINE Manuf. item no. 19.08.1110 EAN 7611990138180 Item weight 0.2 kg

Colour:

Length:

ROLINE Power Cable with German Type Plug / open end, AC 230V, black, 1.8 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

Cable with German Type Plug, 16A / 230VAC
Cable: H05VV-F 3G1 3x 0.75mm²
Nominal data: 250 VAC/16 A
Colour: black

1. Warning
- The cable may only be connected by an expert (electrician, electrical engineer or a person with similar qualification)!
- Before installing, please make sure that the 3-pin plug with protective contact (German Type) is NOT connected to a power source (230 V AC)! Risk of electric shock!

2. Installation
- Connect the open end of the cable with the device!
- Please pay attention to the corresponding colour coding (brown, blue, yellow/green) and make sure that the stripped ends of the cable are equipped with wire end ferrules.
- Please fasten the installed end of the cable with the cable relief clamp in order to avoid any tearing or damaging of the cable!

Specifications

Manufacturer: ROLINE
Product group: Power Cables
Product type: Extension cable
Colour: black
Length: 1.8 m
Connection ports: 3P. German, CEE 7/7, Type-E/F Male / open end
Max. current: 16 A
Max. voltage: 250V AC
Max. power: 3600W
Cable material: H05VV-F
Conductor cross section (mm²): 0.75
Material identification: H05VV-F
External diameter of cable: 5 mm
Quantity of wires: 3
Side 1 description: German Type male
Side 1 connector external diameter (mm): 38
Side 1 Connector Type: 3P. German, CEE 7/7, Type-E/F
Side 1 Connector Gender: Male
Side 2 Connector Type: open end
Regional use: Germany, Austria, Netherlands

France, Czech Republic, Slovakia
Technical particularity: Must only be connected by a qualified electrician
Weight: 177 g
Height of packaging (single piece): 50 mm
Width of packaging (single piece): 90 mm
Depth of packaging (single piece): 250 mm
Package weight (single piece): 0.2 kg
