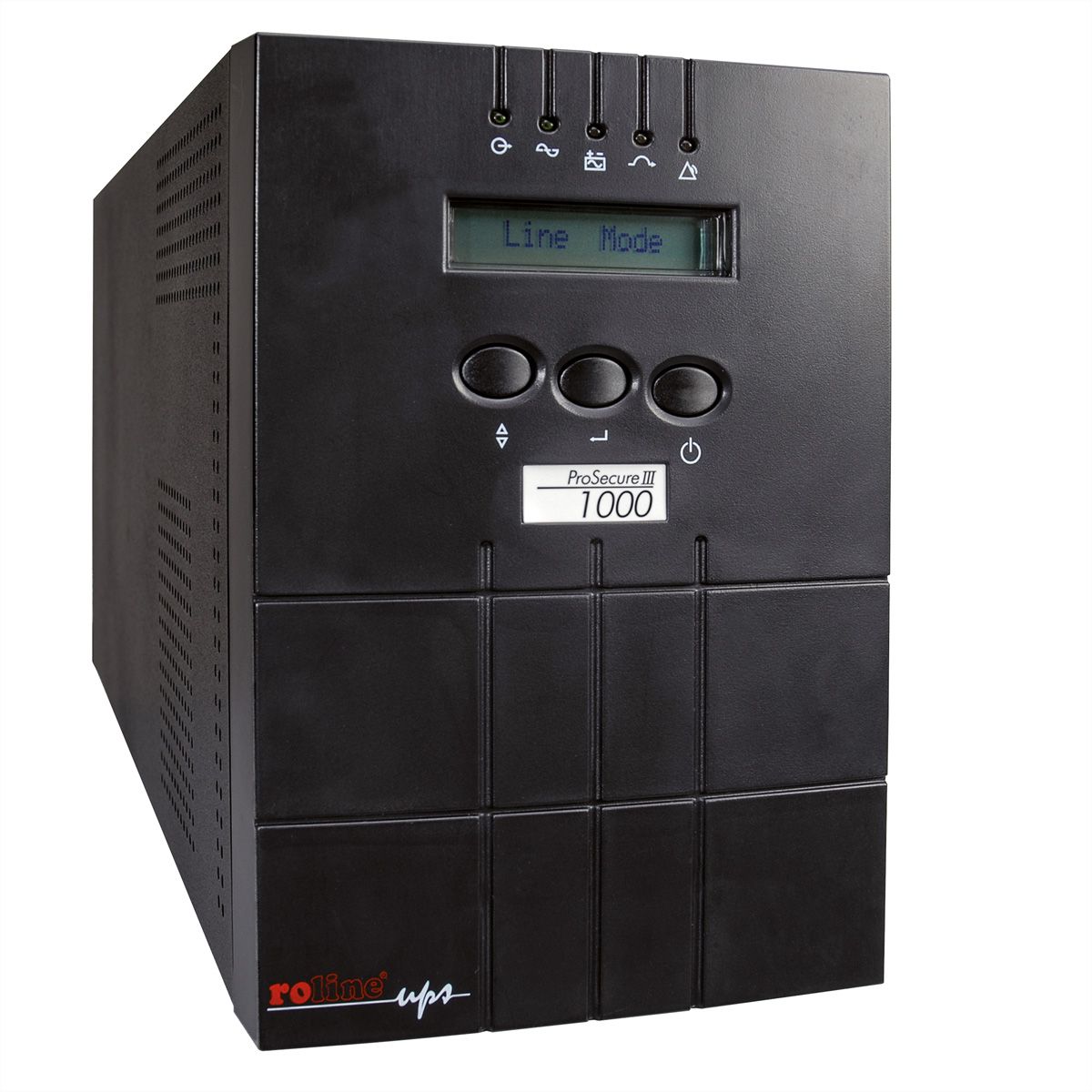

ROLINE ProSecure III 1000 - Online UPS

Item no. 19401062 Brand / Manufacturer ROLINE Manuf. item no. 19.40.1062 EAN 7611990130221 Item weight 16.88 kg
ROLINE
Output (VA/W):
Interface:

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
This item is transported on a pallet; additional shipping costs will be charged!
Download PDF

Description

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:
  • Cold start function (DC power on)
  • Lightning and surge protection
  • Battery replacement warning
  • Emergency Power Off function
  • Battery remain time display
  • LCD display front panel
  • Power factor correction
  • Support USB communication
  • Multiple language LCD display
  • On line output voltage selected
  • Hot swappable battery by user
  • True on-line technology provides all power protection
  • Pure sine-wave output with less than 3% THD
  • Fully digitized microprocessor controlled
  • Short Circuit and overload protection
  • Advanced battery management (ABM)
  • Automatic battery charge in UPS off mode
  • Automatic diagnostics & battery check
  • RS-232 communication port with monitoring software
  • Network/fax/modem surge protection
  • Extended back up time with battery pack
  • Load segmentation receptacles controllable
  • High efficiency mode selectable
  • Fan speed auto control when loads varies
  • UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64, MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX
  • Contents: UPS, cable set, UPS management software

Specifications

Manufacturer
ROLINE
Product group
UPS
Product type
UPS Online
Colour
black
Scope of delivery
UPS, Software, Cable Set
Classification (IEC 62040-3)
VFI-SS-111
UPS technology
Online
Power class
1000 ... 1900 VA
Output (VA/W)
1000 / 900
Efficiency
95 %
Backup time
3 min
Backup time full/half-load
3.5 / 11 min
Dimensions (HxWxD)
238 x 152 x 420 mm
Mounting form
Tower
Voltage (input)
160-230 V
Voltage (output)
230 V
Output voltage regulation
± 2%
Frequency
50 Hz ± 3%
Connector type (input)
cold connector IEC 320 C14
Outputs
4
Connector type (output)
4x cold connector IEC 320 C13
Phase in/output
230V/230V / 50Hz
Over current protection
EMI,- RFI-Filter
Max. quantity of delay expansion units
2
Slots for adapter card
1
Interface
RS232, USB
RS-232 Interface
yes
USB 2.0 Interface
yes
Hot swap batteries
Yes, front side
Bypass
Automatic + manual
Additional over current protector
no
Activity
Display
Activity LED
5
Activity Display
LCD
incl.Management Software
Windows
Internal cooling
Active, fan
Ambient temperature
0 - 40 °C
Mains connection
Cold appliance connection
Battery category
Industrial battery
Number of batteries
3 pieces
Battery Voltage
12 V
Battery Capacity
7 Ah
Battery type
Pack
Battery
built-in
Battery technology
Lead-acid
Operating temperature min.
0 °C
Operating temperature max.
40 °C
Height
238 mm
Width
152 mm
Depth
420 mm
Weight
14 kg
Height of packaging (single piece)
340 mm
Width of packaging (single piece)
280 mm
Depth of packaging (single piece)
540 mm
Package weight (single piece)
16.88 kg
Delay expansion unit
2
Slot for adapter card
1
Conformity
CE
Back up time
Power rating (VA / W)
with 0 / 1 / 2 Battery pack (minutes), according to manufacturer

Downloads

Product data sheet - English (63.1 KB) Manufacturer data sheet - English (404.3 KB) User manual - Deutsch (1.3 MB) Safety instructions - Deutsch - English - Français - Italiano (189.1 KB)
