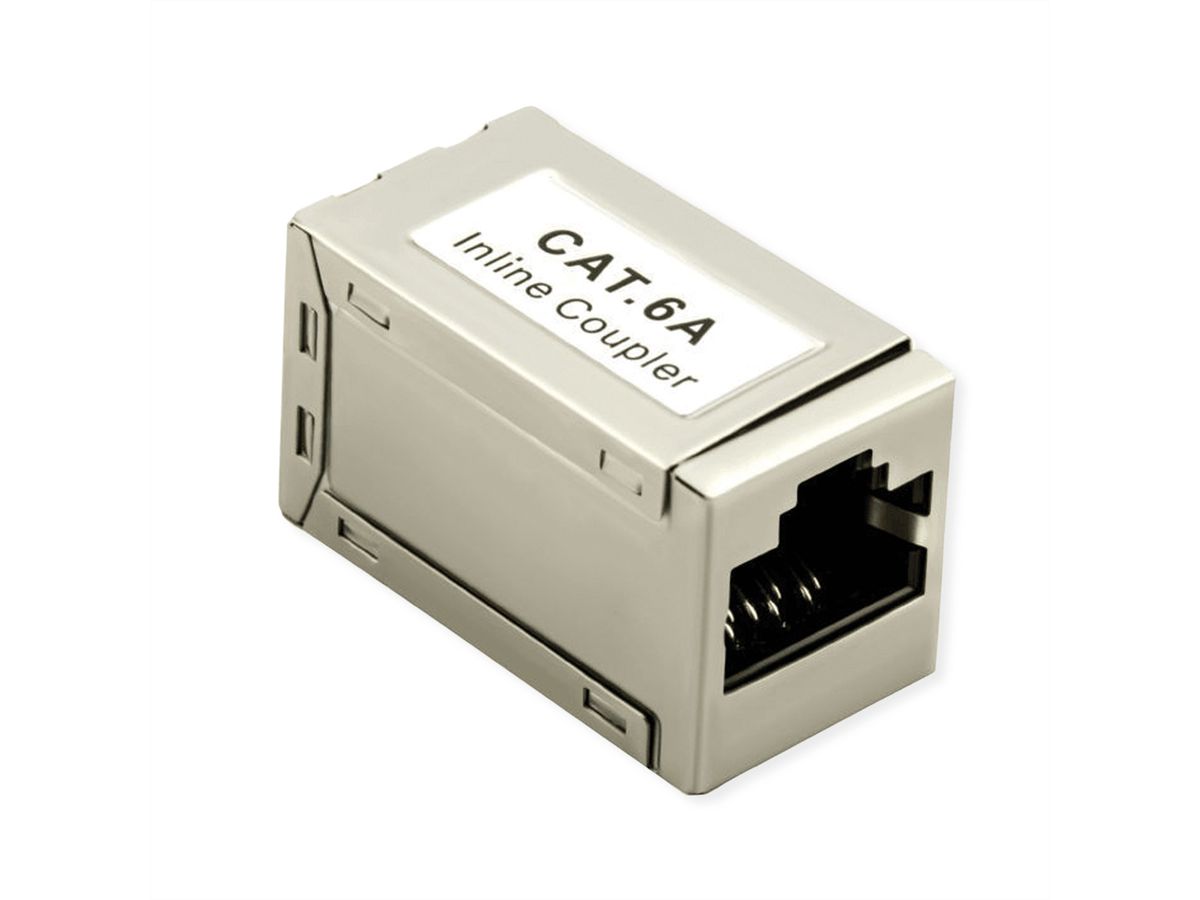

ROLINE RJ-45 Mini Inline Coupler, Cat.6A (Class EA), shielded, silver
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21173118 |
|---|---|
| Marke / Hersteller | ROLINE |
| Manuf. item no. | 21.17.3118 |
| EAN | 7630049639249 |
| Paketgewicht | 0.01 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
ROLINE Cat. 6A (Class EA) Mini Inline Coupler, with shielded metal housing, for the connection or extention of RJ-45 network cables.
- Shielded metal housing to safe the signals against electrical and magnetical interferences
- Allows you to extend Cat. 6A (Class EA) patch cords
- Very small dimensions
- With eight contacts, 1:1 connected

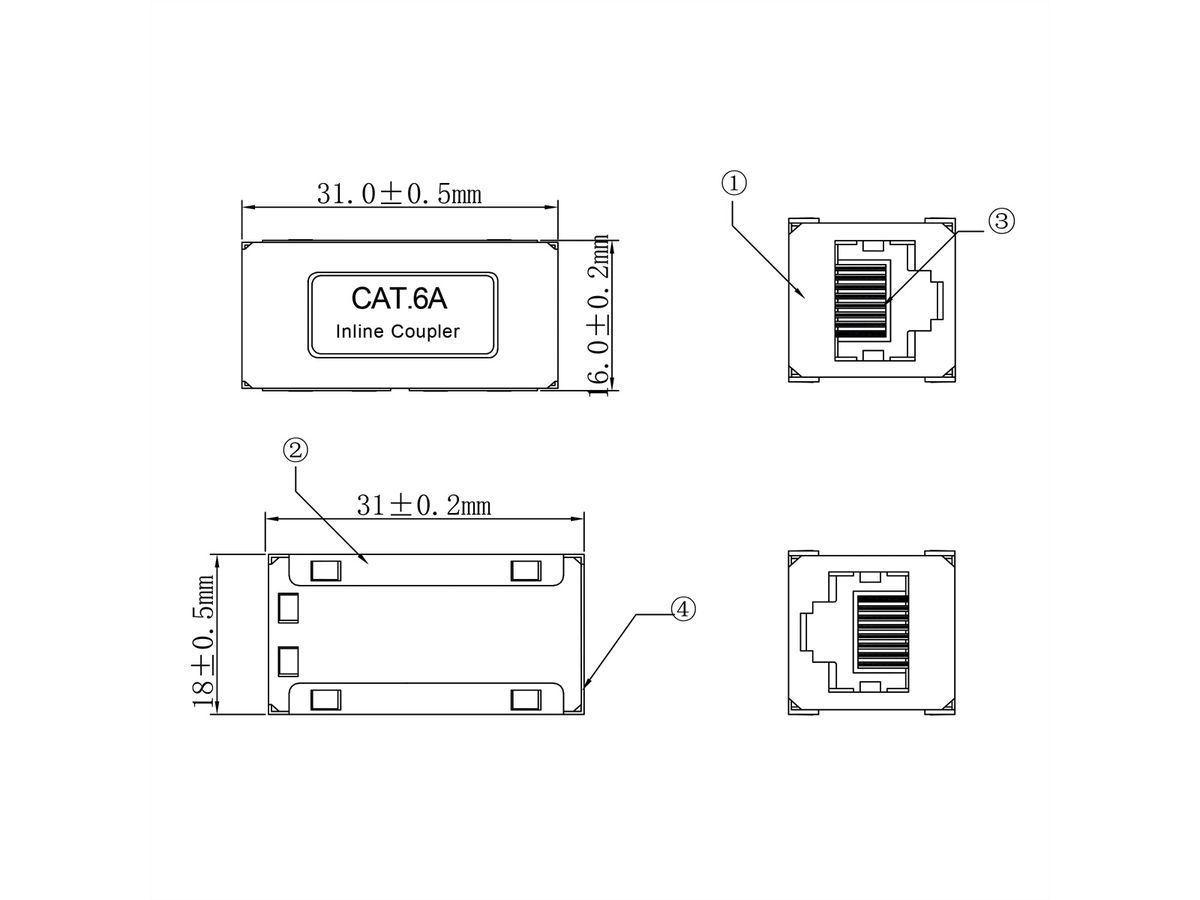

- Dimensions: 18 x 16 x 31 mm
- Colour: silver
Remark: Picture similar
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ-45 Implementing clutch |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Female |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Female |
| Material (casing) | metal |
| Shield contacts | yes |
| separate strain relief | no |
| Connection direction | Straight |
| Dimensions (HxWxD) | 18 mm x 16 mm x 31 mm |
| Technical particularity | 1 : 1 connected |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |
| Height | 18 mm |
| Width | 16 mm |
| Depth | 31 mm |
| Weight | 10 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 30 mm |
| Package weight (single piece) | 0.01 kg |
| Scope of delivery | Coupler |
