The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21173101_2024_m_0_hi.jpg "ROLINE RJ-45 Modular Coupler, Cat.6A (Class EA), shielded")

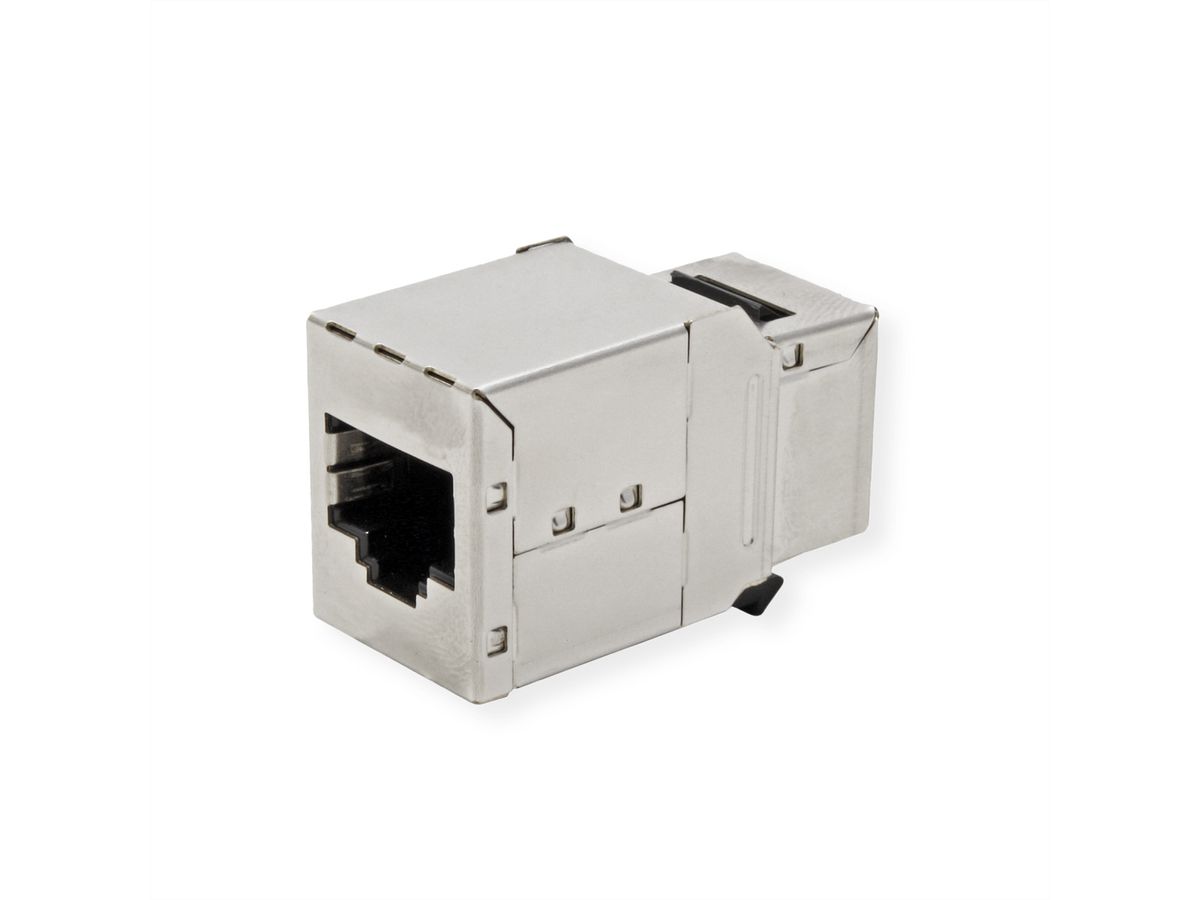

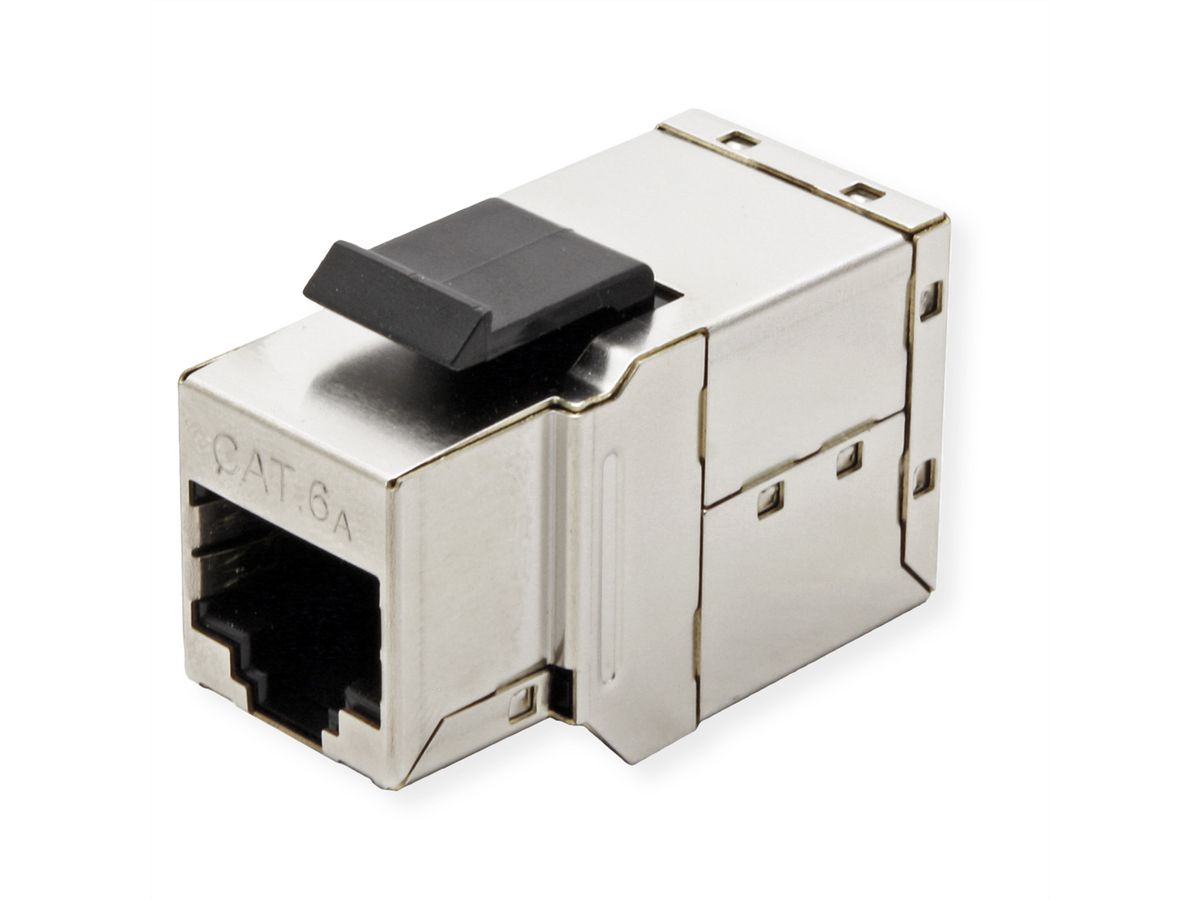

ROLINE RJ-45 Modular Coupler, Cat.6A (Class EA), shielded
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21173101 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 21.17.3101 |
| EAN | 7630049635494 |
| Item weight | 0.014 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
ROLINE Cat. 6A (Class EA) Coupler for the connection or extention of RJ-45 network cables.
- Shielded metal housing to safe the signals against electrical and magnetical interferences
- The coupler is able to extend Cat. 6A (Class EA) cables
- 8 contacts, 1:1 connected
- Colour: silver
Remark: Picture similar
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ-45 Implementing clutch |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Female |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Female |
| Material (casing) | metal |
| Shield contacts | yes |
| separate strain relief | no |
| Connection direction | Straight |
| Technical particularity | 1:1 connected |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Height | 22 mm |
| Width | 18 mm |
| Depth | 36.5 mm |
| Weight | 16.4 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 40 mm |
| Package weight (single piece) | 0.014 kg |
| Scope of delivery | Modular Coupler |
| Dimensions (HxWxD) | 22 x 18 x 36.5 mm |
